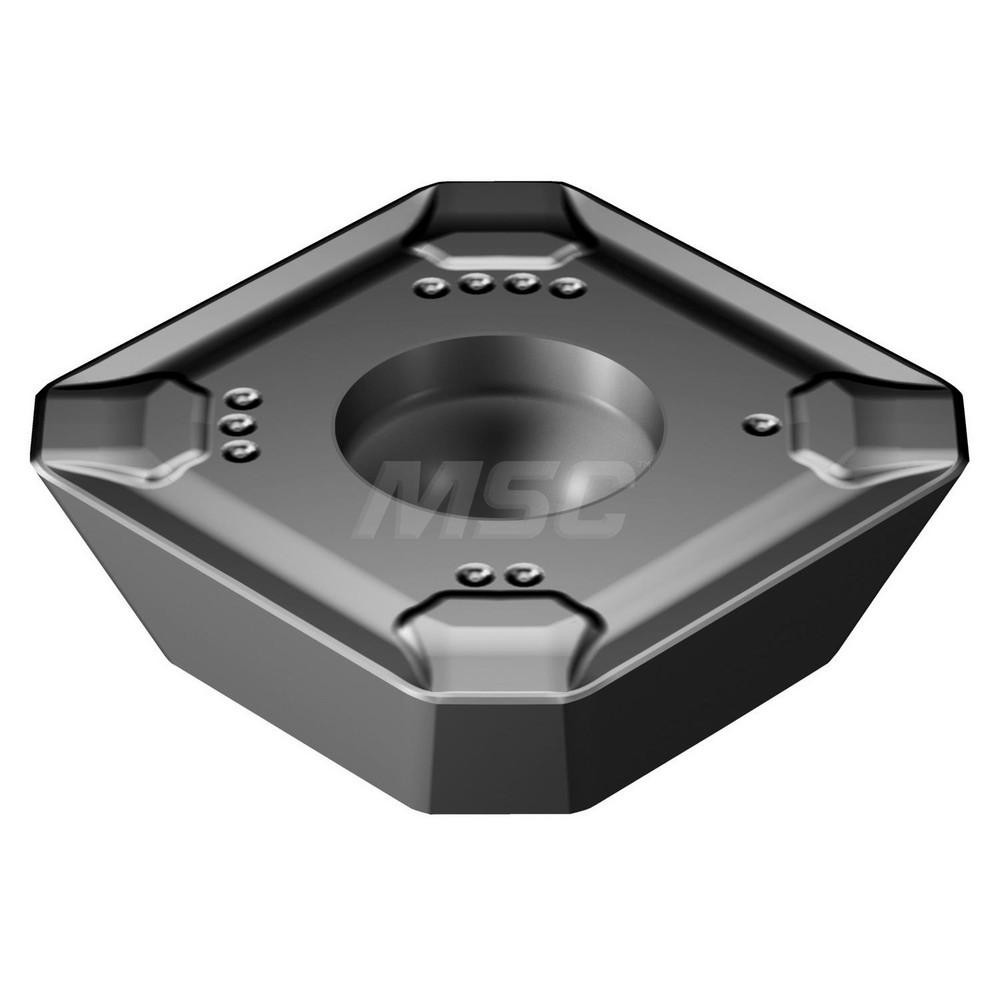

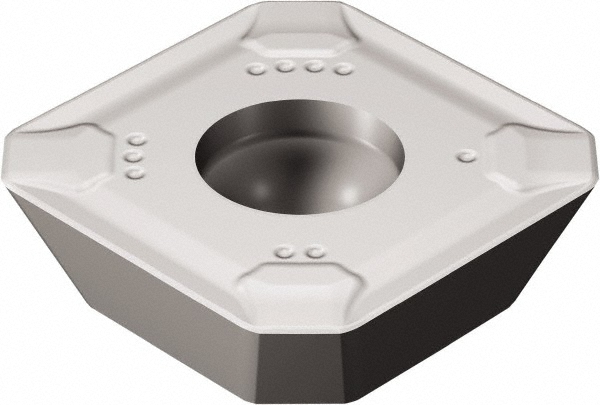

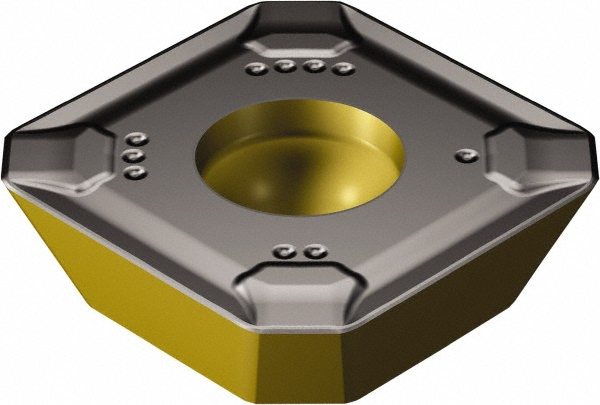

TiCrN, Al2O3 & TiN Finish, 3.97 mm Thick

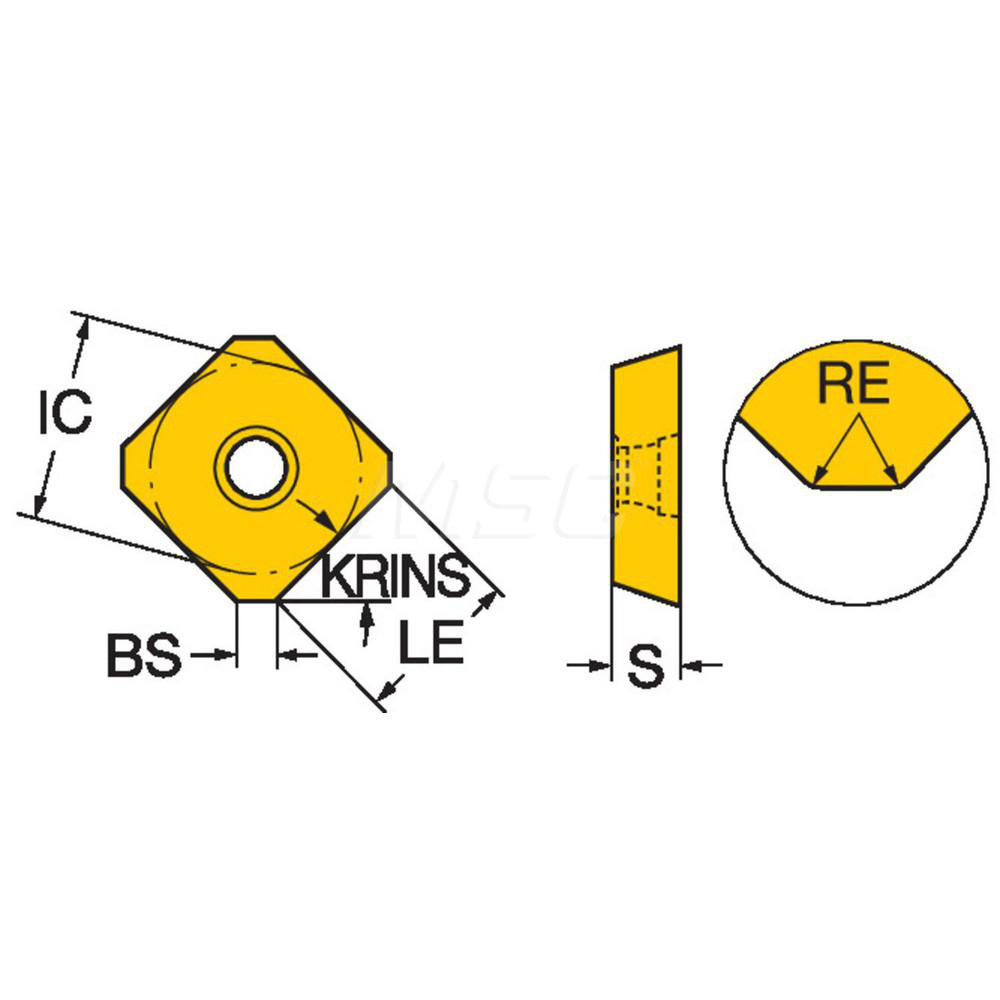

| Insert Style | R245 |
|---|---|
| Insert Size | 12 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | S40T |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.97 |
| Coating/Finish | TiN; TiCrN; Al2O3 |
| Insert Size Code | 12T3 |
| Material Grade | S35; M40 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.5276 |
| Inscribed Circle (mm) | 13.40 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.2559 |
| Maximum Depth of Cut (mm) | 6.50 |
| Series | R245 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | R245-12 T3 K-MM S40T |
| Iso Code | R245-12 T3 K-MM S40T |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R245-12 T3 K-MM S40T |
| Cutter Series Compatibility | R245 |
| Chip Breaker | MM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Superalloys & Titanium |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.5276 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5276 |
| Country of Origin | Sweden |
| MSC Number | MSC# 64674476 |
