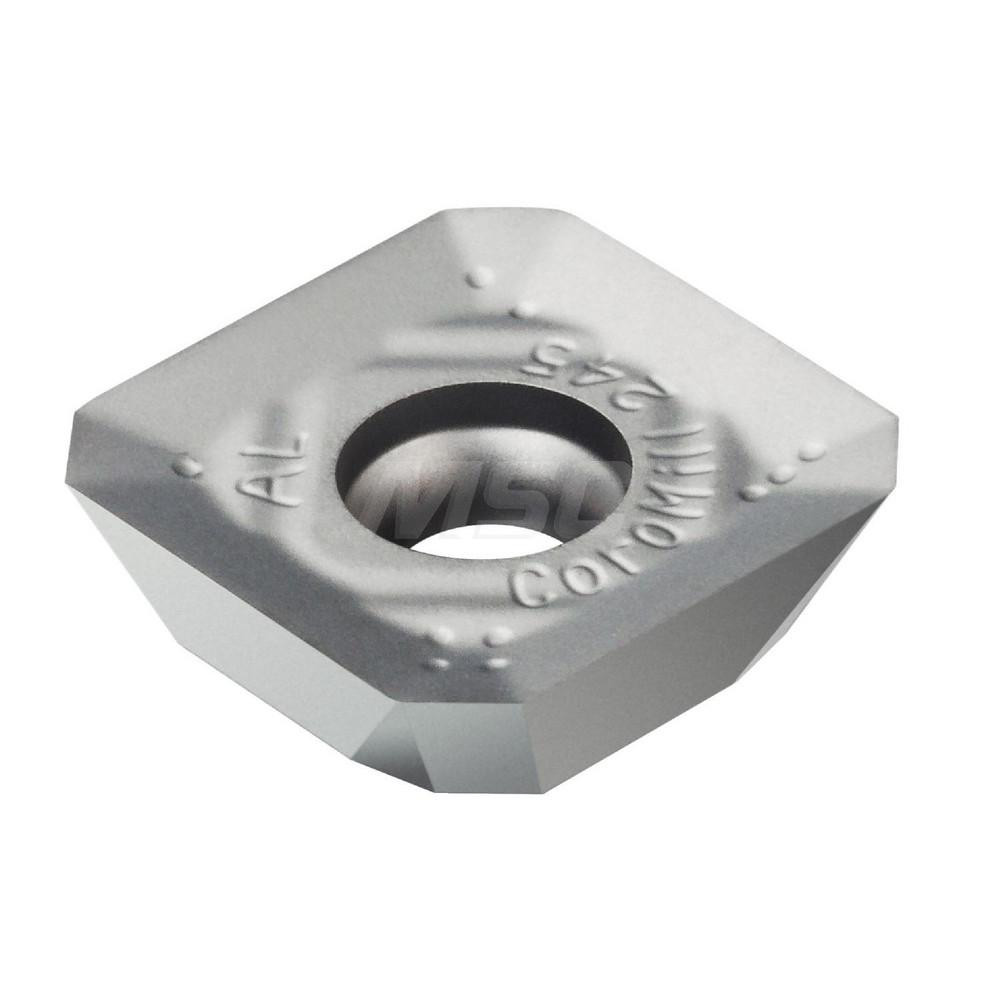

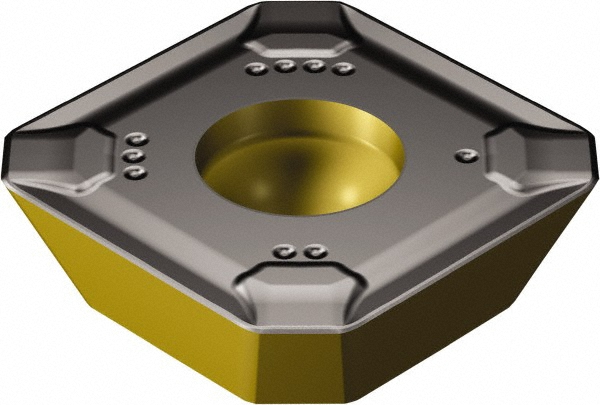

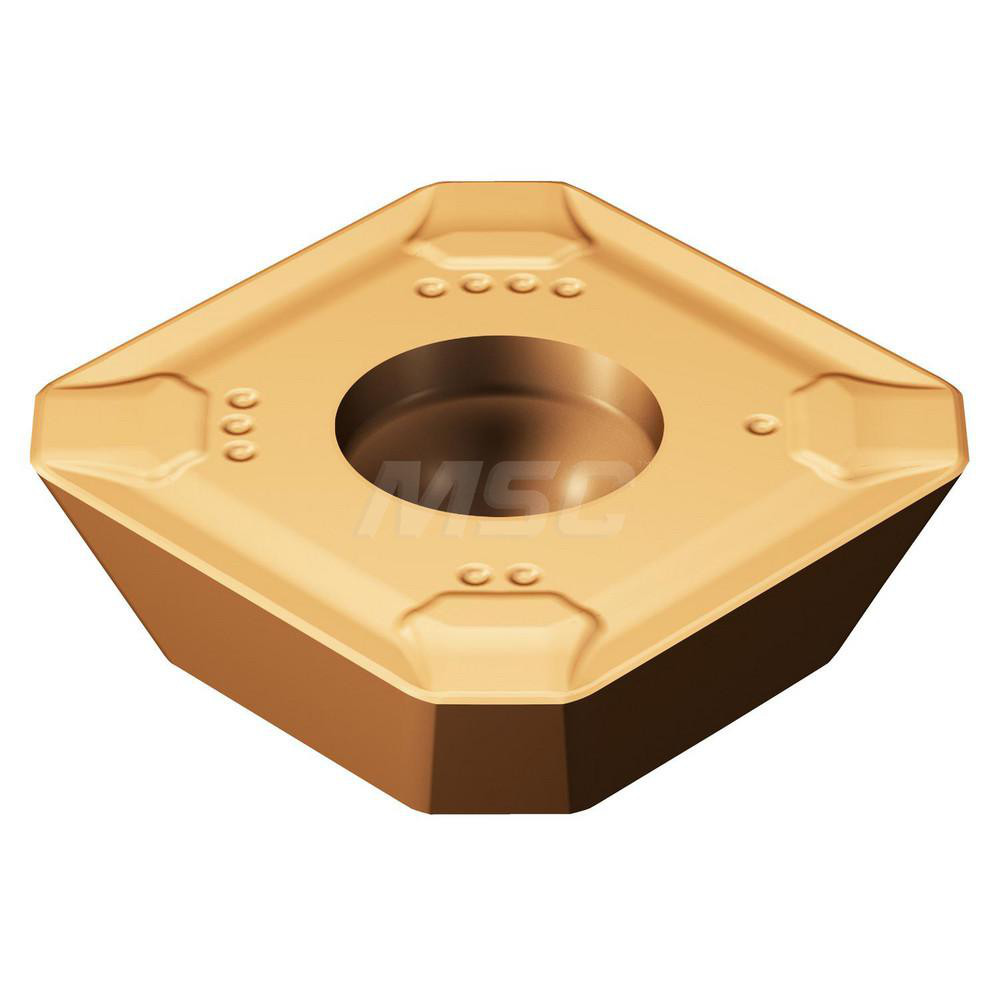

TiCN, Al2O3 & TiN Finish, 6.10 mm Thick
| Insert Style | R245 |
|---|---|
| Insert Size | 18 |
| Insert Material | Solid Carbide |
| Insert Shape | Square |
| Manufacturer Grade | 4340 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Corner Radius (mm) | 1.00 |
| Number Of Cutting Edges | 4 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2402 |
| Thickness (mm) | 6.10 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 18T6 |
| Material Grade | K40; M40; P40 |
| Inscribed Circle (Decimal Inch) | 0.7087 |
| Inscribed Circle (mm) | 18.00 |
| Thickness Range (Decimal Inch) | 0.2350 to 0.2500 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3839 |
| Maximum Depth of Cut (mm) | 9.75 |
| Series | R245 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2244 |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Ansi Code | R245-18 T6 M-PM 4340 |
| Iso Code | R245-18 T6 M-PM 4340 |
| Standards | ISO; ANSI |
| Rake Angle | 10 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R245-18 T6 M-PM 4340 |
| Cutter Series Compatibility | R245 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.7087 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.7087 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 95550059 |
