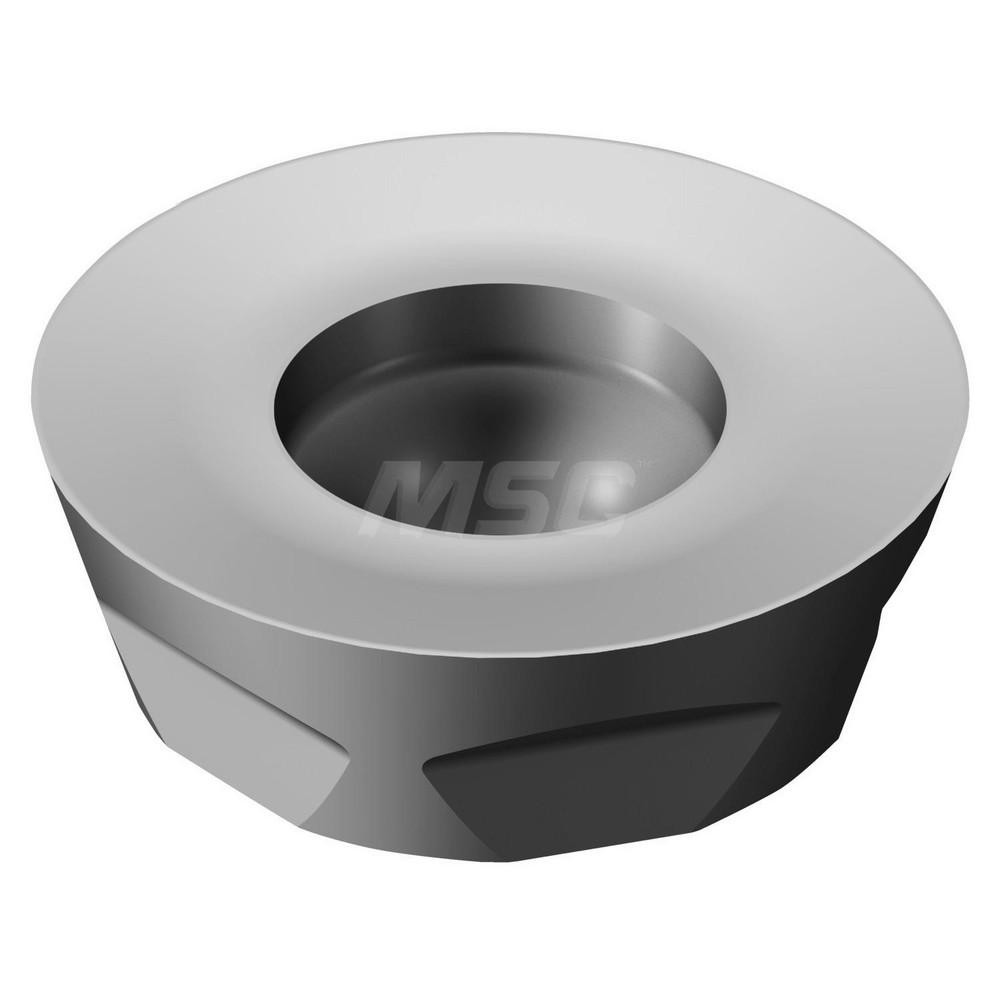

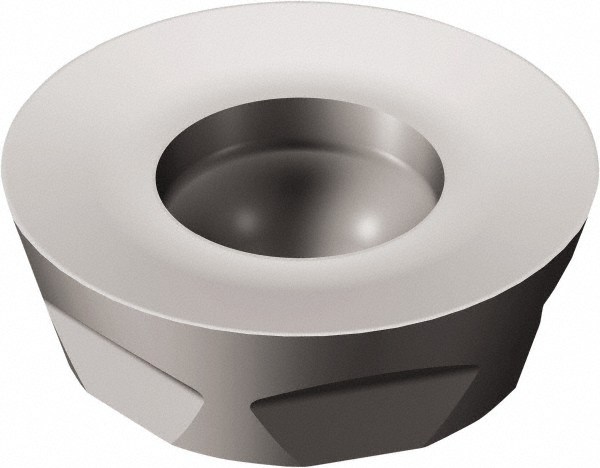

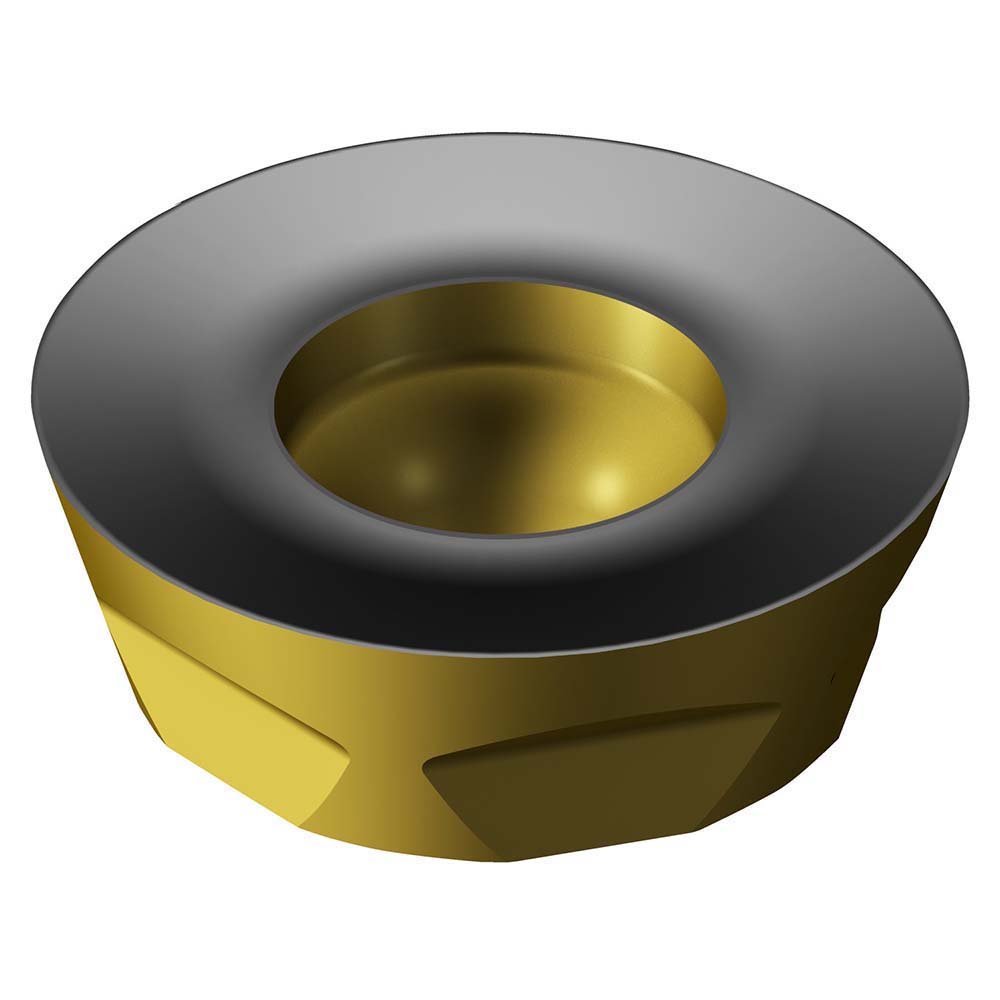

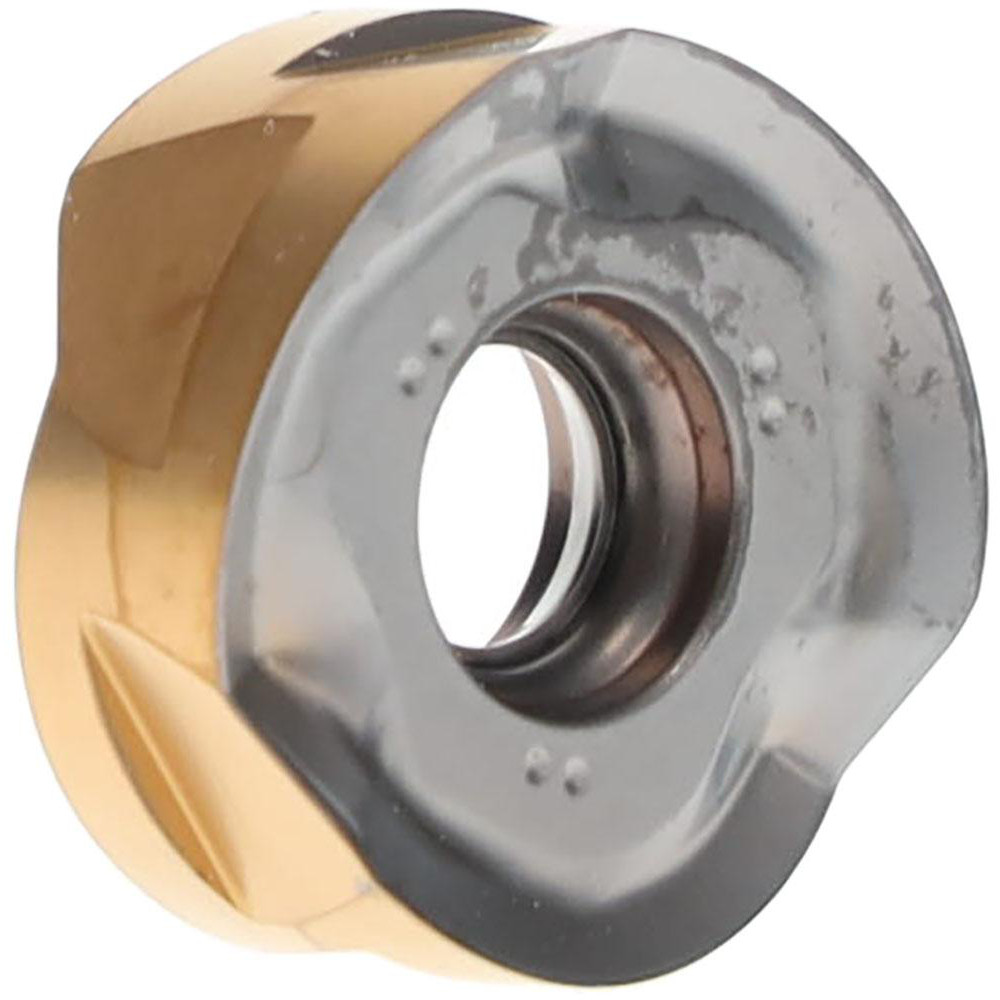

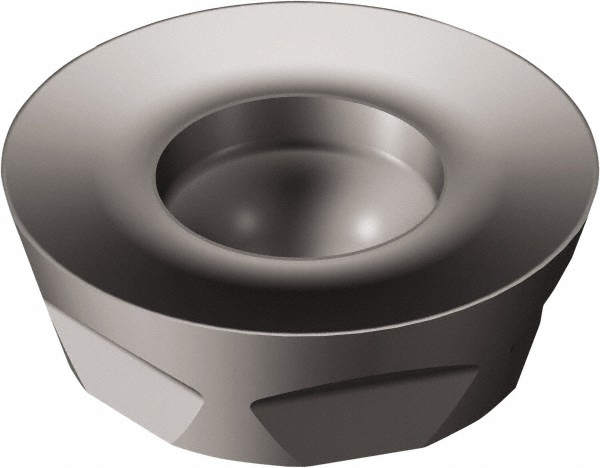

TiCN, Al2O3 & TiN Finish, 3.97 mm Thick
| Insert Style | R300 |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 4330 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1563 |
| Thickness (mm) | 3.97 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 1340 |
| Material Grade | K30; M30; P30 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 5/32 |

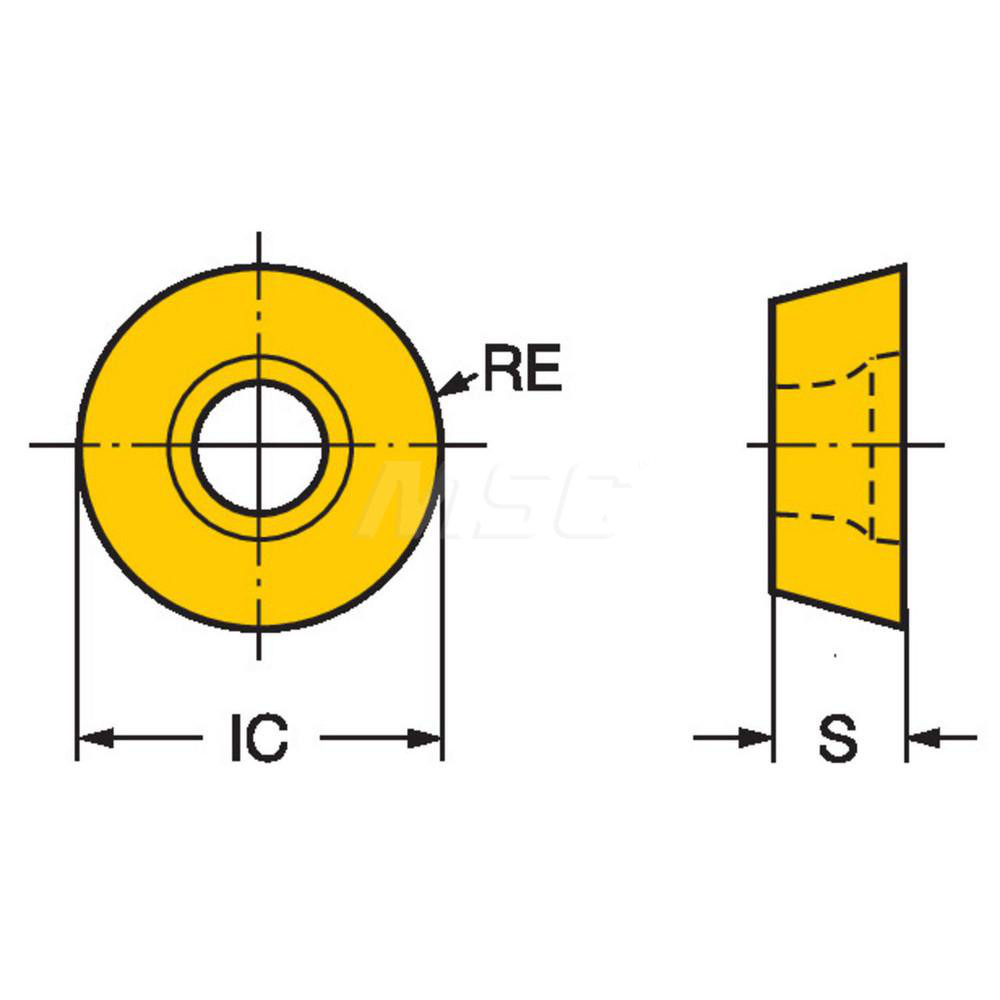

| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1500 to 0.1750 |
| Corner Radius (Inch) | 1/4 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.1252 |
| Maximum Depth of Cut (mm) | 3.18 |
| Series | R300 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | R300-1340M-PM 4330 |
| Iso Code | R300-1340M-PM 4330 |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.2500 |
| Rake Angle | 20 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | R300-1340M-PM 4330 |
| Cutter Series Compatibility | RA300 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 13726229 |
