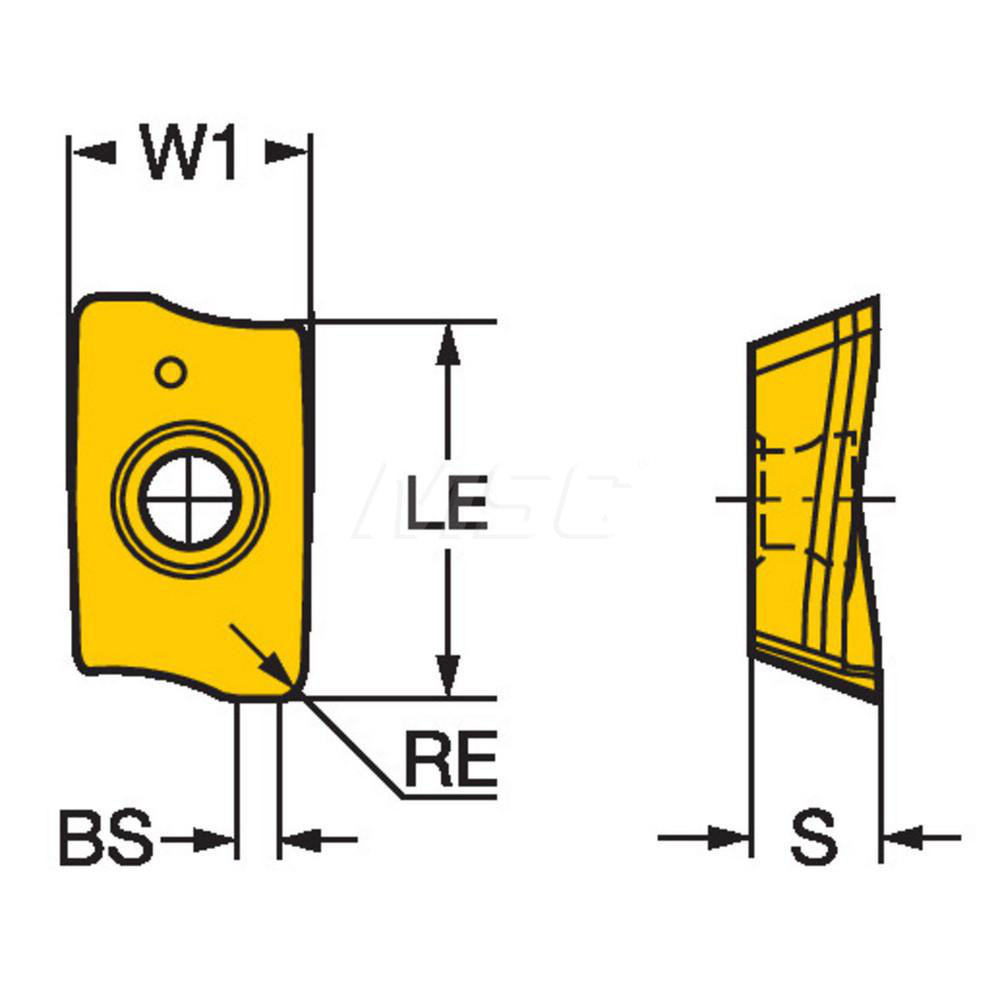

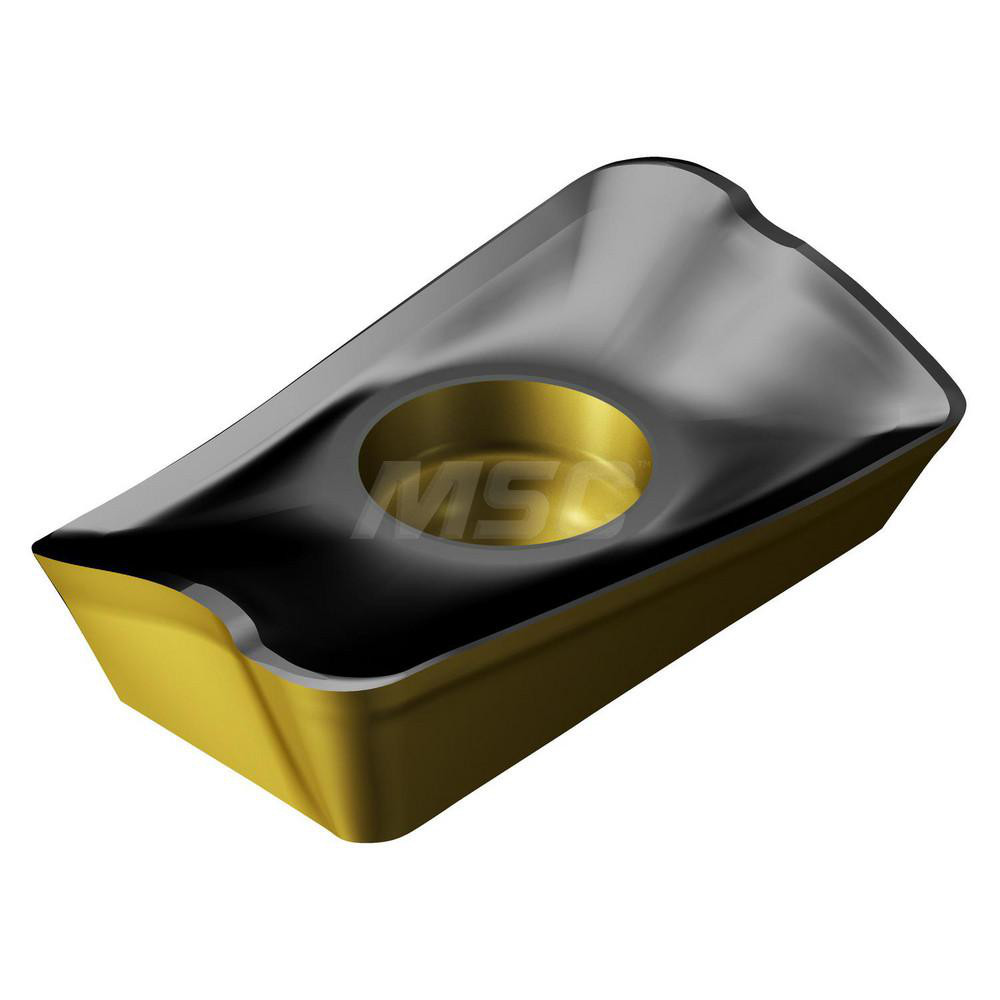

TiCN, Al2O3 & TiN Finish, 4.76 mm Thick, 9.60 mm Wide
| Insert Style | R390 |
|---|---|
| Insert Size | 17 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 4220 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Thickness (mm) | 4.76 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Insert Size Code | 170408 |
| Material Grade | H25; P20 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Decimal Inch) | 0.3780 |
| Inscribed Circle (mm) | 9.60 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.3500 to 0.4000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.6299 |
| Maximum Depth of Cut (mm) | 16.00 |
| Series | R390 |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1614 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | R390-17 04 08M-PM 4220 |
| Iso Code | R390-17 04 08M-PM 4220 |
| Standards | ISO; ANSI |
| Rake Angle | 17 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R390-17 04 08M-PM 4220 |
| Cutter Series Compatibility | R390 |
| Chip Breaker | PM |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Length (mm) | 15.70 |
| Width (Decimal Inch - 4 Decimals) | 0.3780 |
| Width (mm - 2 Decimals) | 9.60 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6181 |
| Country of Origin | Japan |
| MSC Number | MSC# 31843782 |
