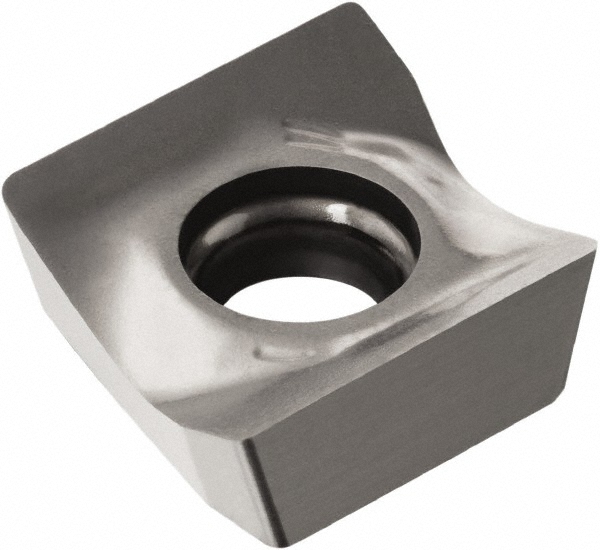

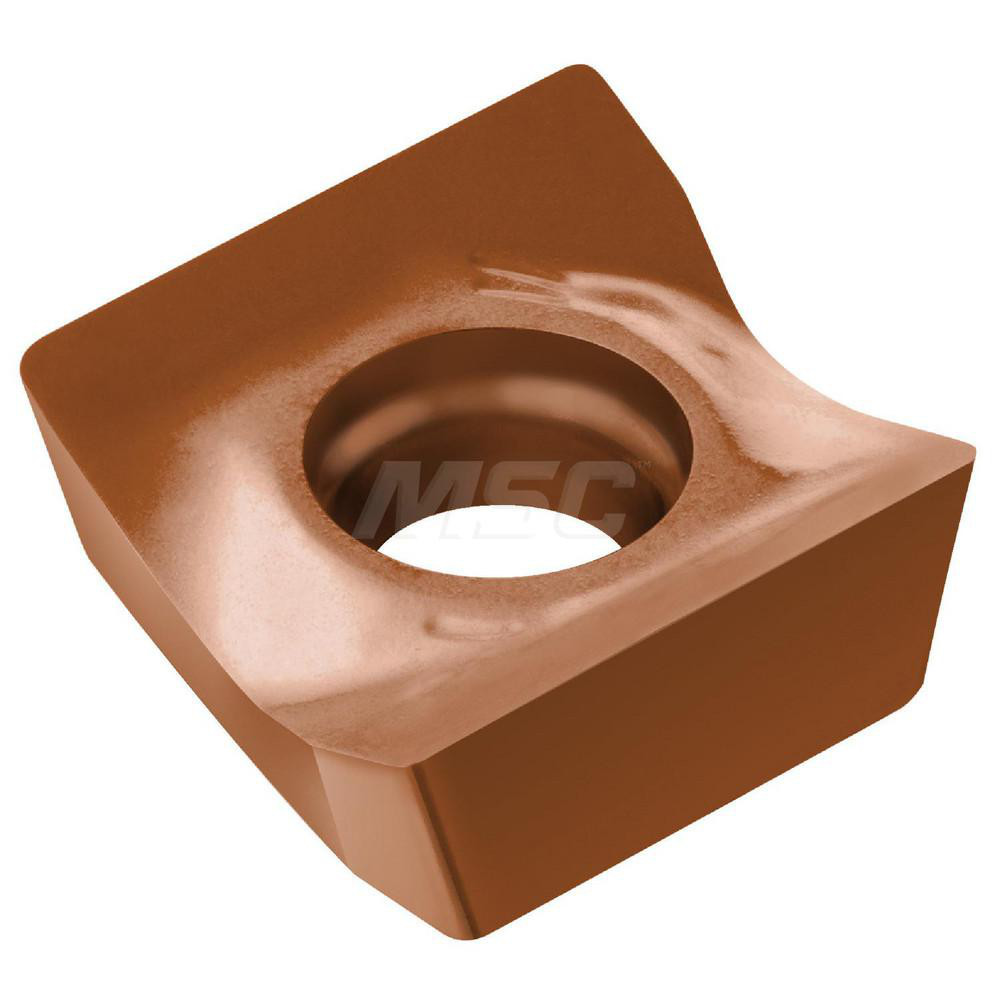

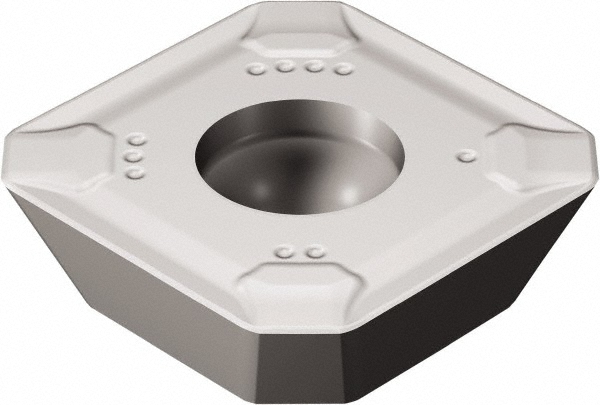

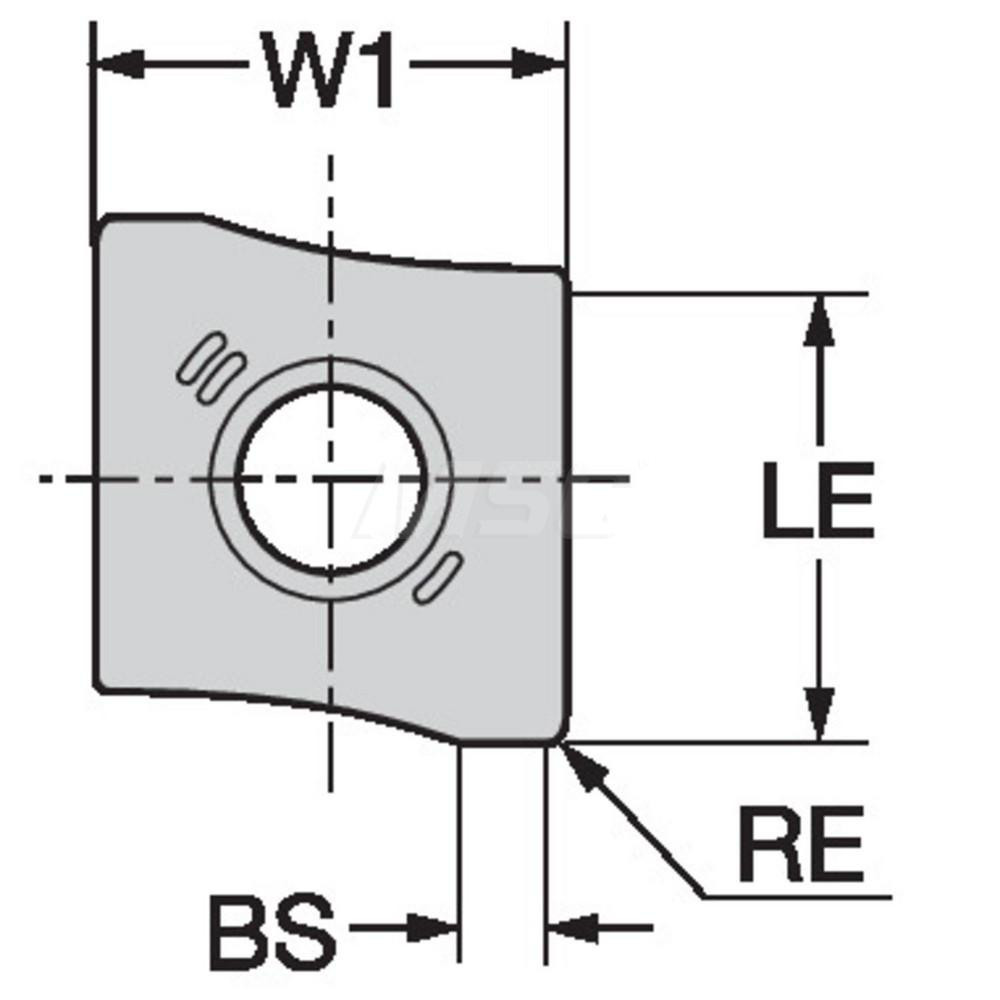

AlTiCrN Finish, 5.00 mm Thick, 11.50 mm Wide
| Insert Style | R590 |
|---|---|
| Insert Size | 11 |
| Insert Material | Solid Carbide |
| Insert Shape | Parallelogram |
| Manufacturer Grade | 1130 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1969 |
| Thickness (mm) | 5.00 |
| Coating/Finish | AlTiCrN |
| Insert Size Code | 110508 |
| Material Grade | M15; N15; P30 |
| Width (Inch) | 29/64 |
| Length (Inch) | 29/64 |
| Inscribed Circle (Inch) | 29/64 |
| Inscribed Circle (Decimal Inch) | 0.4528 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.4500 to 0.5000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Series | R590 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M; N |
| Ansi Code | R590-110508H-PL 1130 |
| Iso Code | R590-110508H-PL 1130 |
| Standards | ISO; ANSI |
| Rake Angle | 25 |
| Cutting Edge Style | Corner Rounded |
| Manufacturers Catalog Number | R590-110508H-PL 1130 |
| Cutter Series Compatibility | R590 |
| Chip Breaker | PL |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4528 |
| Width (mm - 2 Decimals) | 11.50 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.4528 |
| Country of Origin | Sweden |
