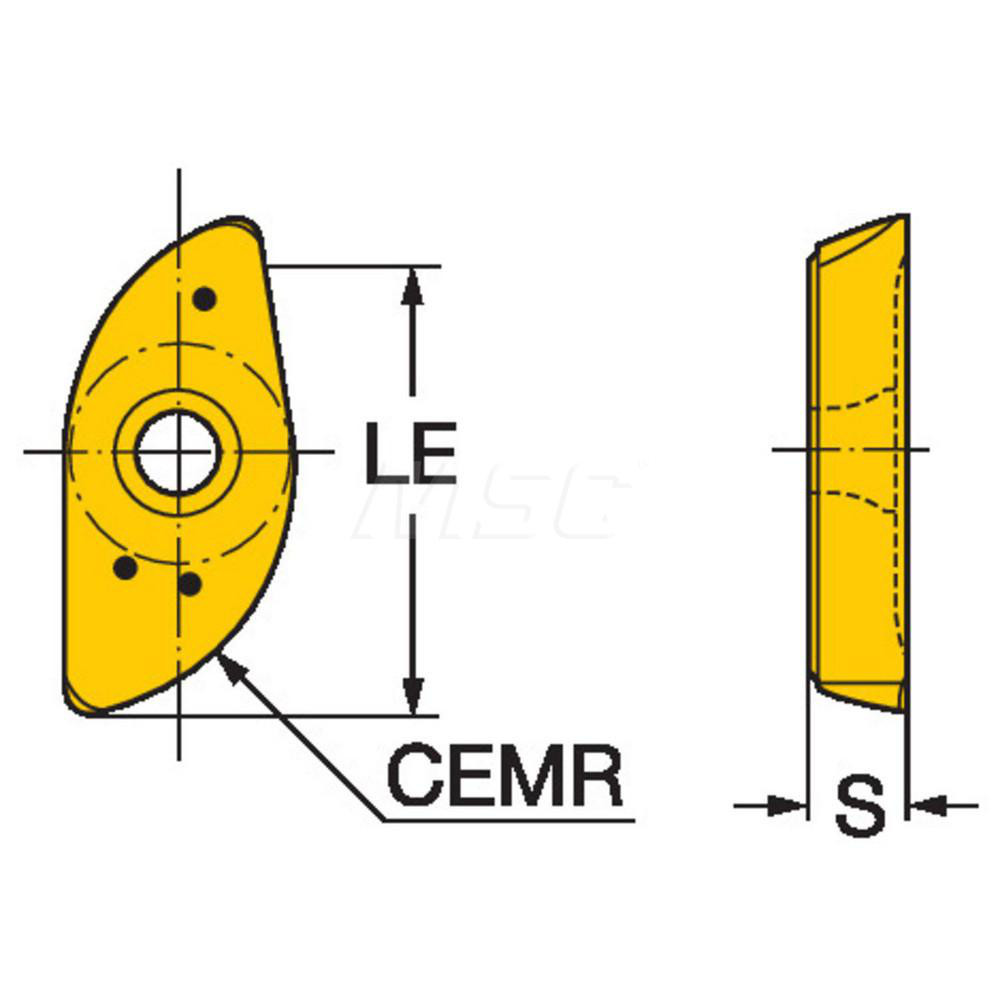

AlTiCrN Finish, 3.18 mm Thick
| Insert Style | RA216 |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Ball Nose |
| Manufacturer Grade | 1130 |
| Number Of Cutting Edges | 2 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1250 |
| Thickness (mm) | 3.18 |
| Coating/Finish | AlTiCrN |
| Insert Size Code | 1603 |
| Material Grade | M15; N15; P30 |
| Thickness (Inch) | 1/8 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5590 |
| Series | RA216 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; M; N |
| Ansi Code | RA216-16 03 M-M 1130 |
| Iso Code | RA216-16 03 M-M 1130 |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.3150 |
| Rake Angle | 0 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | RA216-16 03 M-M 1130 |
| Cutter Series Compatibility | RA216 |
| Chip Breaker | M |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5590 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 30848220 |
