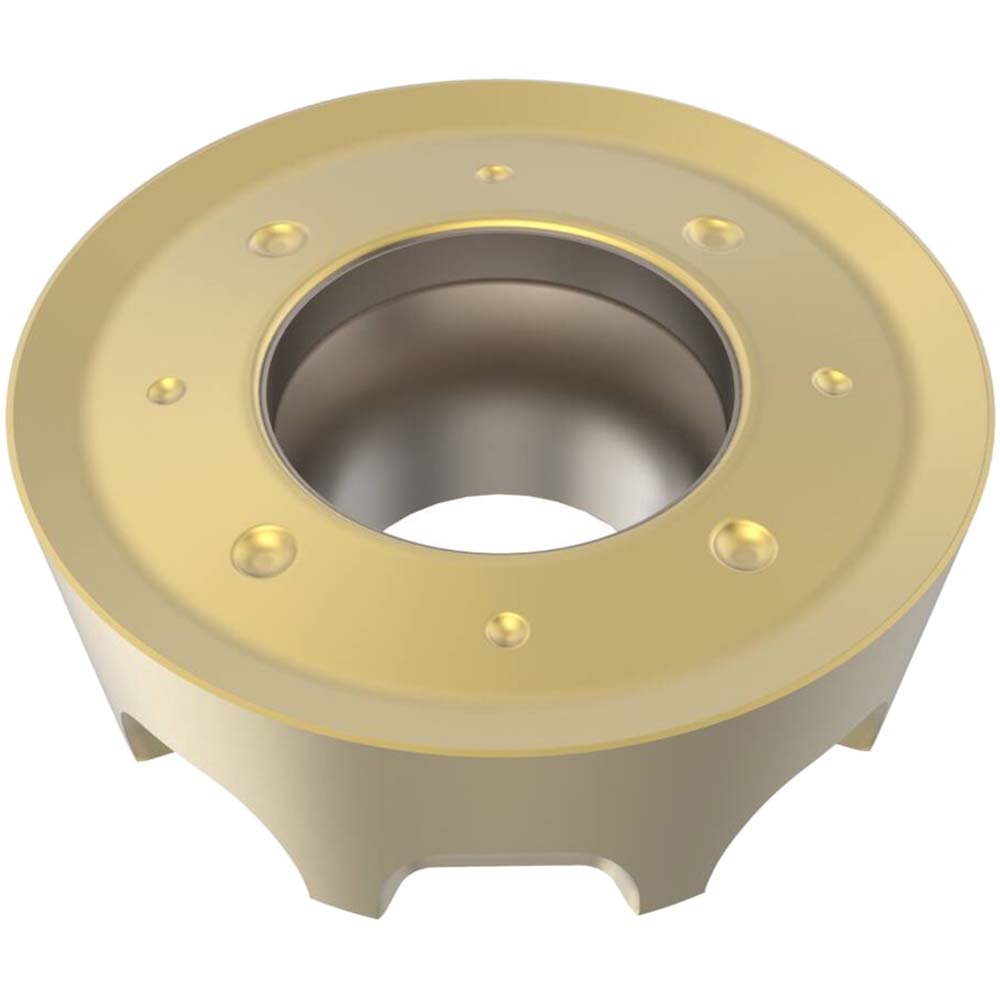

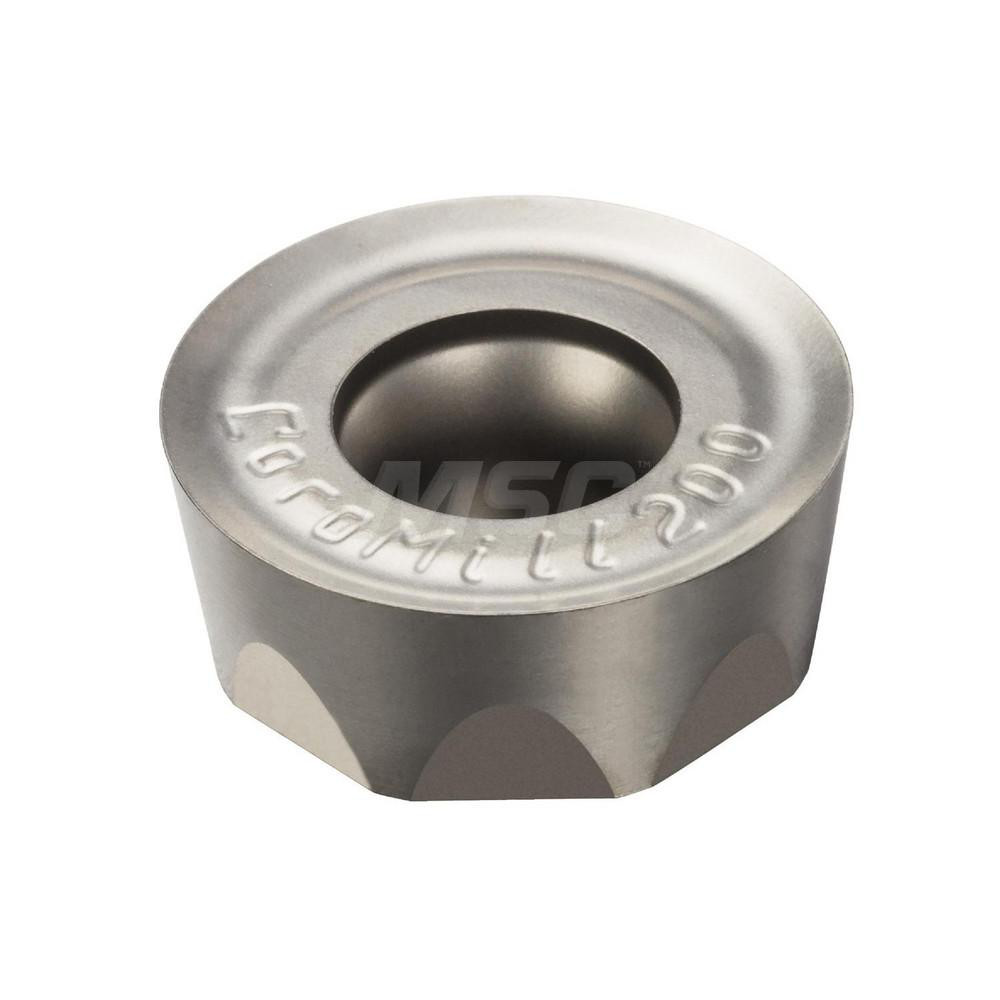

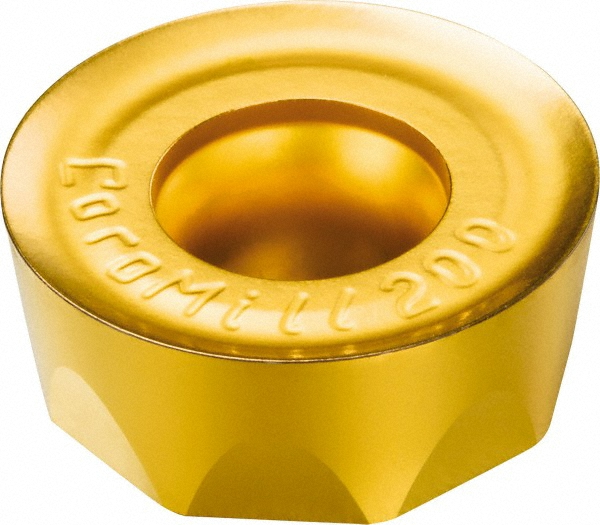

TiCN & TiN Finish, 6.35 mm Thick
| Insert Style | RCHT |
|---|---|
| Insert Size | 16 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 1025 |

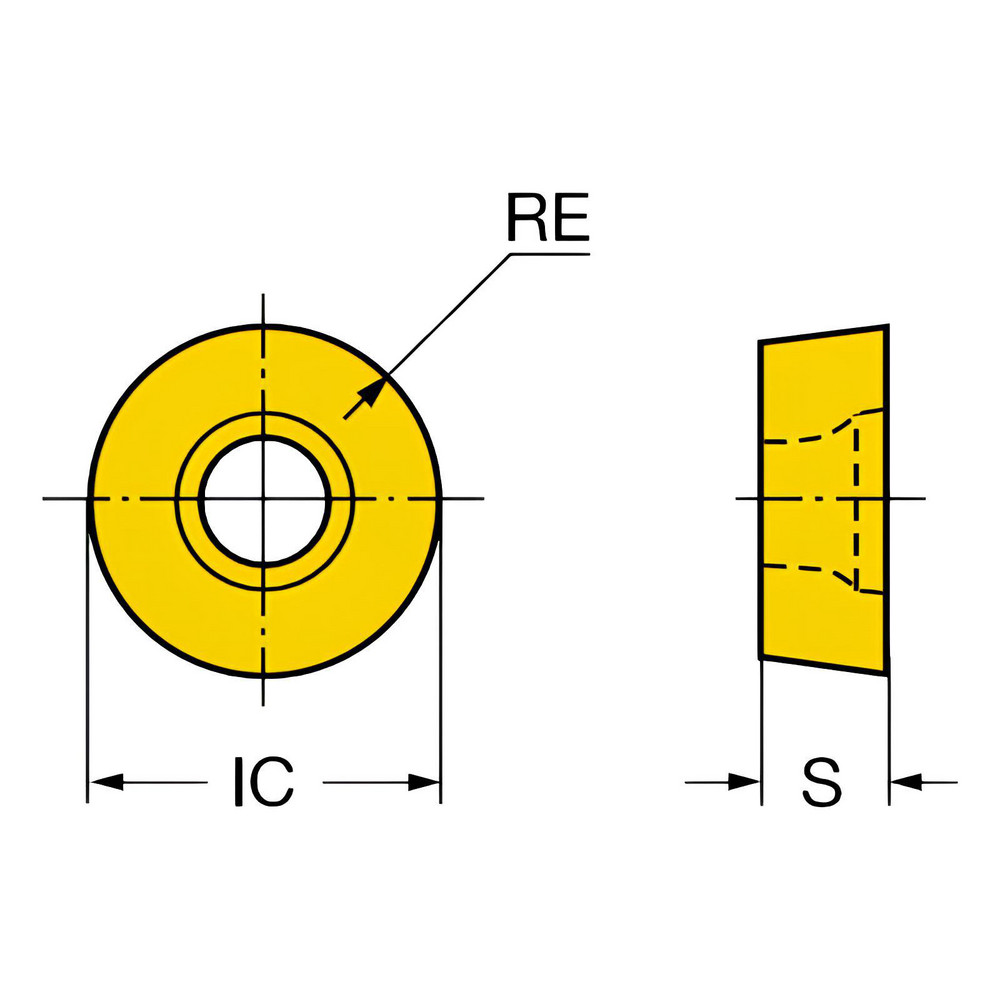

| Corner Radius (Decimal Inch) | 0.3150 |
| Corner Radius (mm) | 8.00 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Thickness (mm) | 6.35 |
| Coating/Finish | TiCN; TiN |
| Relief Angle | 7.00 |
| Insert Size Code | 1606M0 |
| Thickness (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.6299 |
| Inscribed Circle (mm) | 16.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Inscribed Circle Range (Decimal Inch) | 0.6000 to 0.7000 |
| Length Range (Decimal Inch) | 0.6000 to 0.6500 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0921 |
| Maximum Depth of Cut (mm) | 2.34 |
| Series | RCHT |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.22 |
| Hole Diameter (Decimal Inch) | 0.2165 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Ansi Code | RCHT 16 06 M0-PL 1025 |
| Iso Code | RCHT 16 06 M0-PL 1025 |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.3150 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | RCHT 16 06 M0-PL 1025 |
| Cutter Series Compatibility | C6-SRDC; C6-SRSC; 391.68S; C5-SRSC; C5-SRDC |
| Chip Breaker | PL |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.6299 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6299 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 52084449 |
