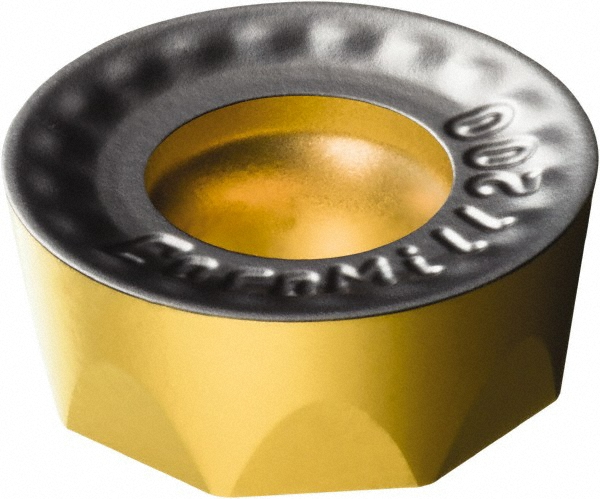

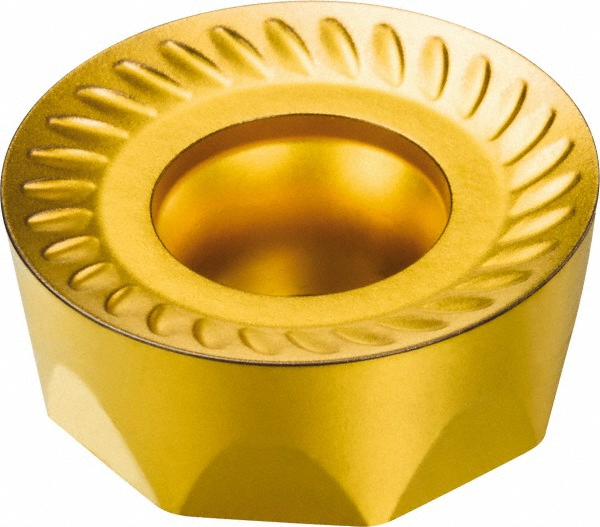

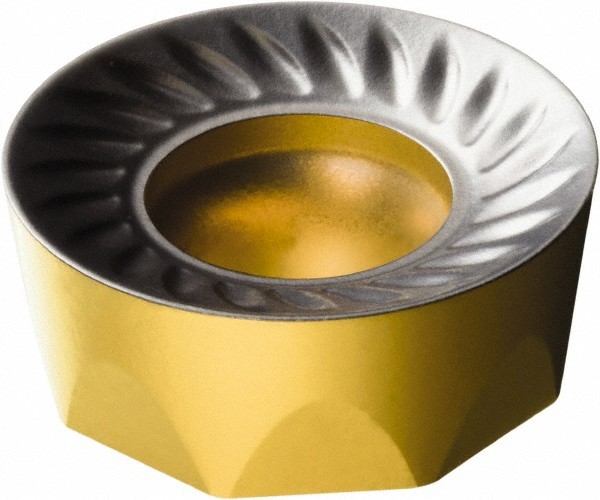

TiCN, Al2O3 & TiN Finish, 4.76 mm Thick
| Insert Style | RCKT |
|---|---|
| Insert Size | 13 |
| Insert Material | Solid Carbide |
| Insert Shape | Round |
| Manufacturer Grade | 4220 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Corner Radius (mm) | 6.35 |
| Number Of Cutting Edges | 8 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1875 |
| Thickness (mm) | 4.76 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 7.00 |
| Insert Size Code | 130400 |
| Material Grade | H25; P20 |
| Width (Inch) | 1/2 |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |

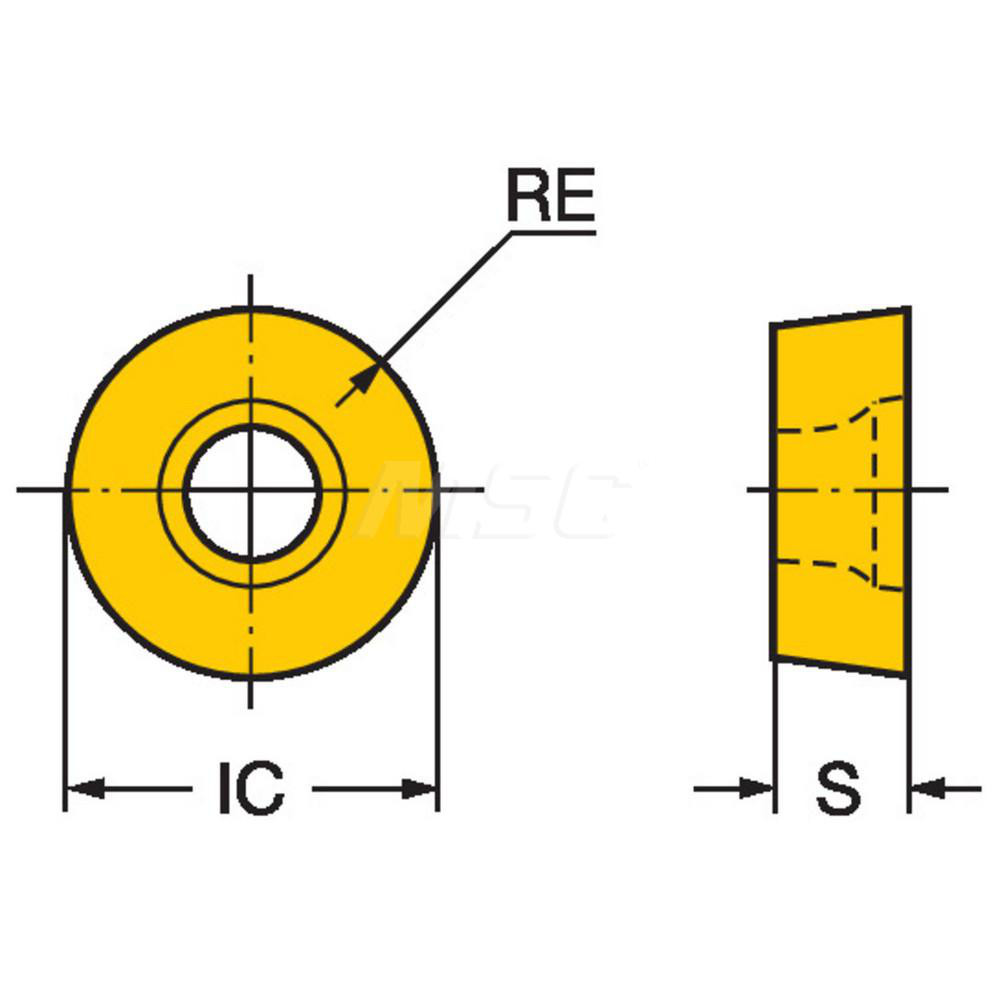

| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (mm) | 12.70 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Inch) | 1/4 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.0732 |
| Maximum Depth of Cut (mm) | 1.86 |
| Series | RCKT |
| Coating Process | CVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.16 |
| Hole Diameter (Decimal Inch) | 0.1575 |
| Rake | Positive |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | RCKT 13 04 00-PH 4220 |
| Iso Code | RCKT 13 04 00-PH 4220 |
| Standards | ISO; ANSI |
| Convex Radius (Decimal Inch) | 0.2500 |
| Cutting Edge Style | Rounded |
| Manufacturers Catalog Number | RCKT 13 04 00-PH 4220 |

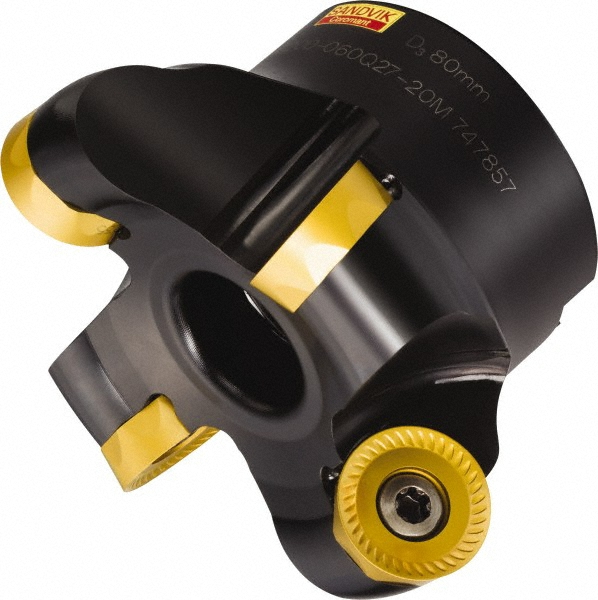

| Cutter Series Compatibility | RA200; R331.32; N331.32 |
| Chip Breaker | PH |
| UNSPSC Code | 23291601 |
| Material Application | Hard Material; Cast Iron; Steel |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5000 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 52886710 |
