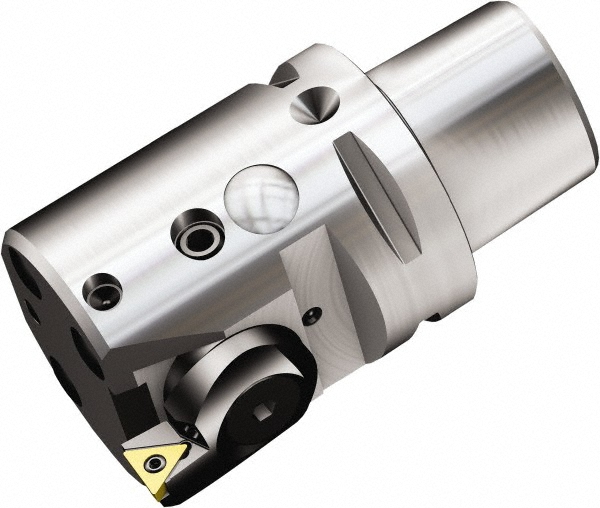

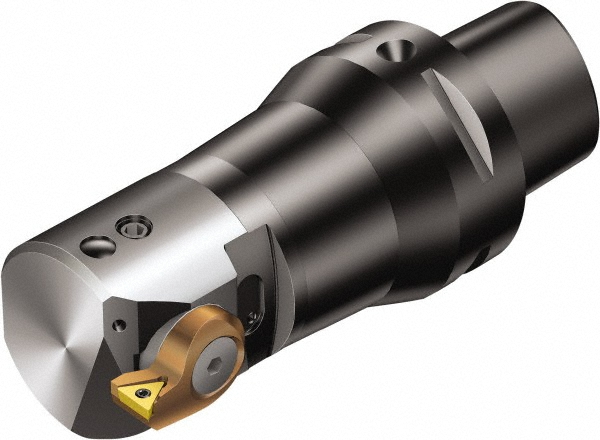

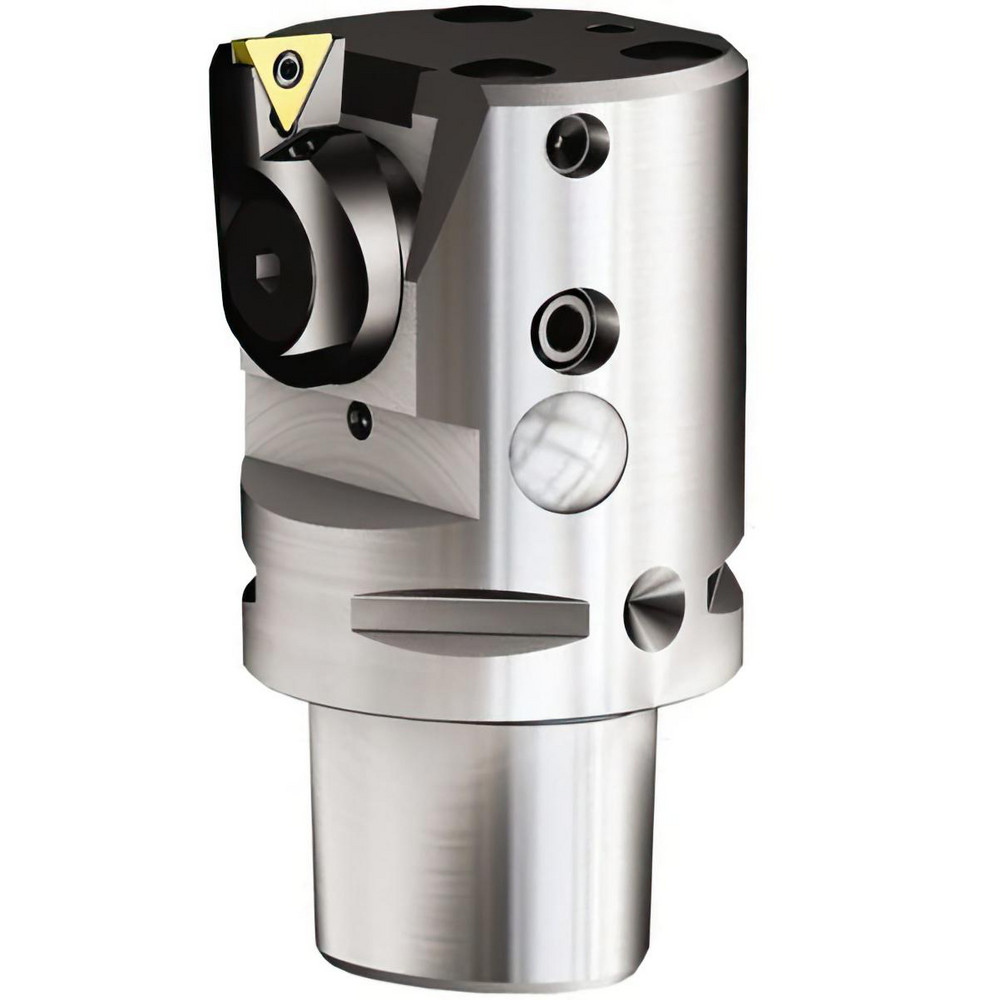

Through Coolant, Series CoroBore 826, Steel
| System Size | C4 |
|---|---|
| Minimum Bore Diameter (mm) | 44.45 |
| Maximum Bore Depth (Decimal Inch) | 2.2047 |
| Maximum Bore Depth (mm) | 56.00 |
| Cutting Direction | Right Hand |
| Tool Material | Steel |
| Insert Style | TCMT 1.8(1.5)1; TCMT 09 02 04 |
| Modular Connection Size | C4 |
| Series | CoroBore 826 |
| Connection Size | C4 |
| Maximum Bore Diameter (Decimal Inch) | 1.7933 |
| Maximum Bore Diameter (mm) | 45.55 |
| Head Diameter Excluding Insert (mm) | 40.00 |
| Head Diameter Excluding Insert (Decimal Inch) | 1.5748 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Complete Insert Compatibility | TCMT 1.8(1.5)1; TCMT 09 02 04 |
| Includes | Adaptor; Cartridge; Key |
| Neck Diameter (mm) | 40.00 |
| Head Length Projection (mm) | 56.00 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 2.2047 |
| UNSPSC Code | 23291900 |
| Country of Origin | Netherlands |
| undefined | undefined |
| MSC Number | MSC# 49661143 |
