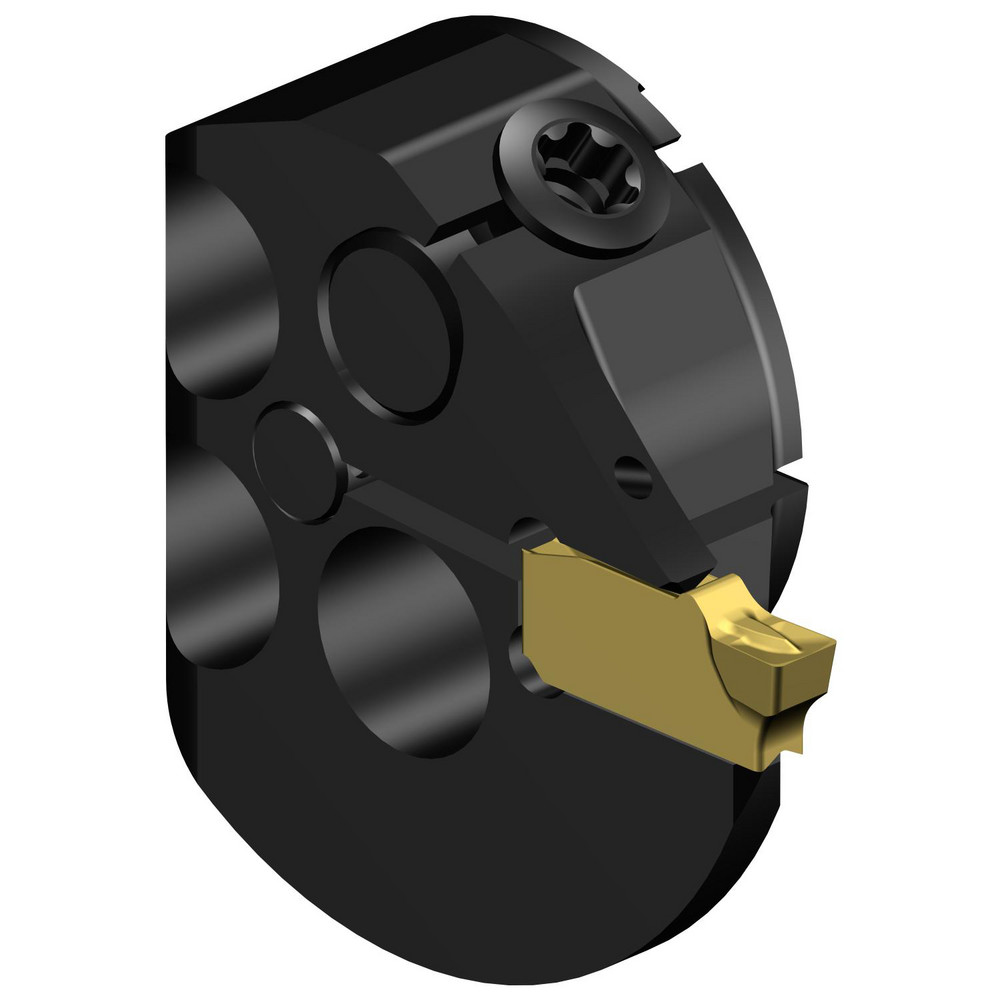

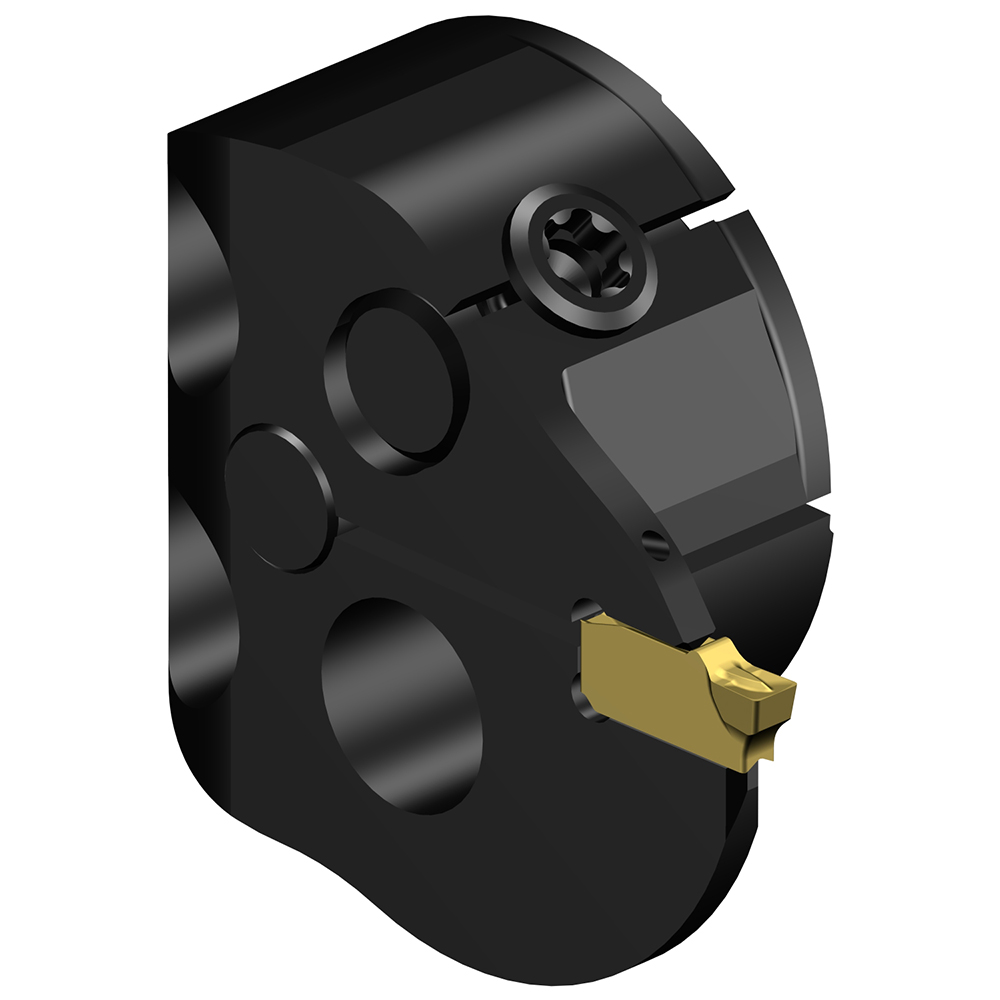

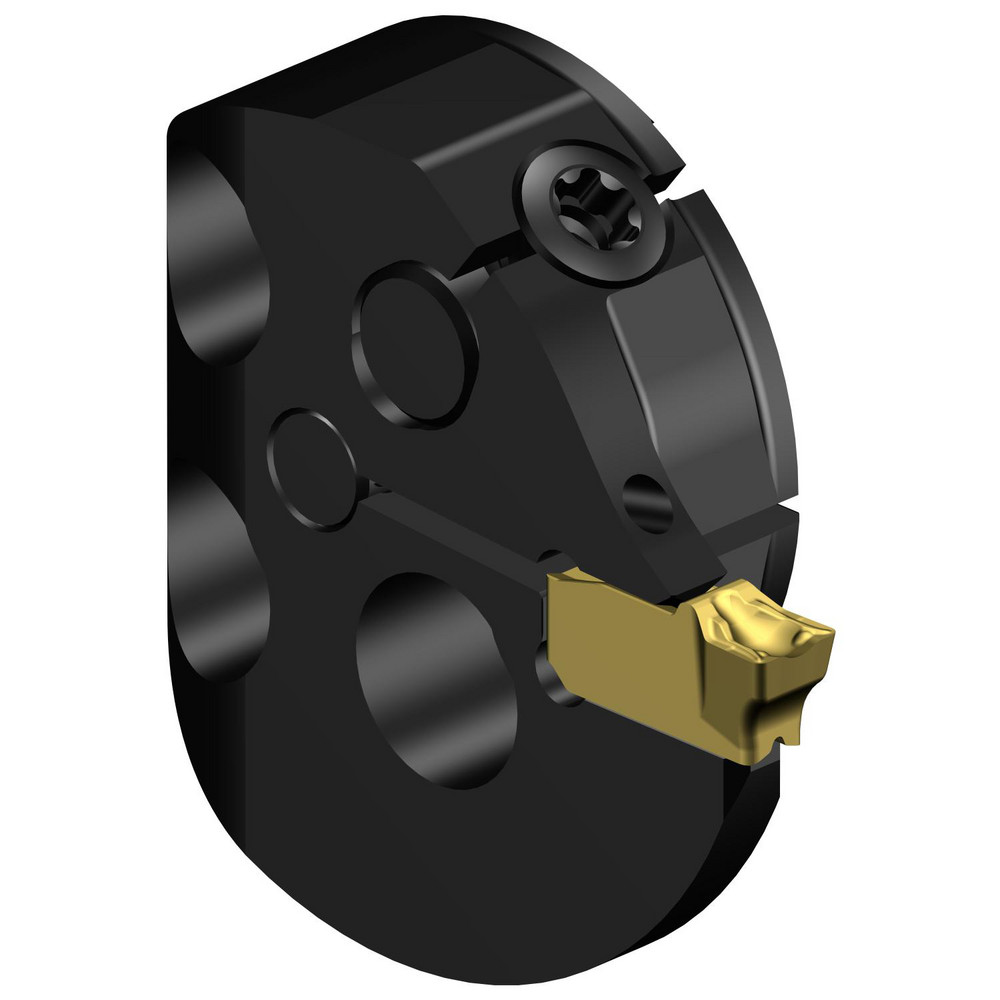

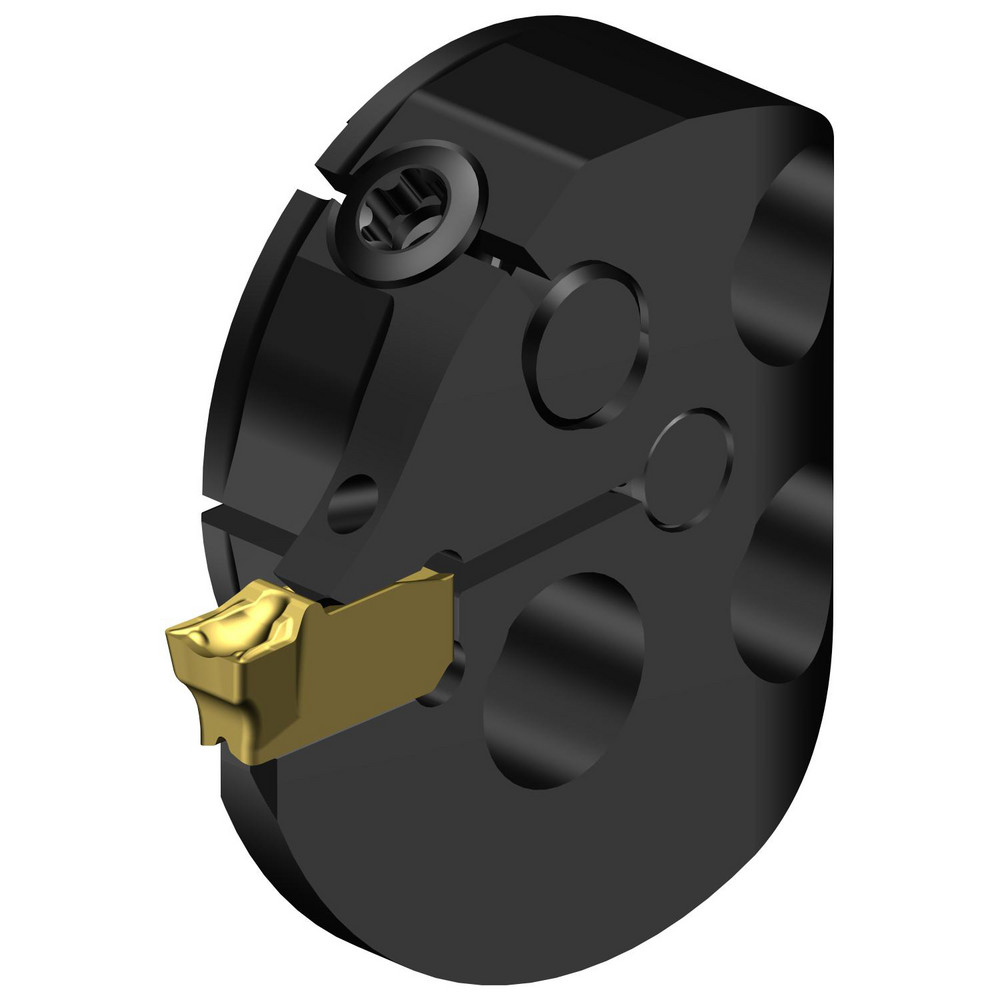

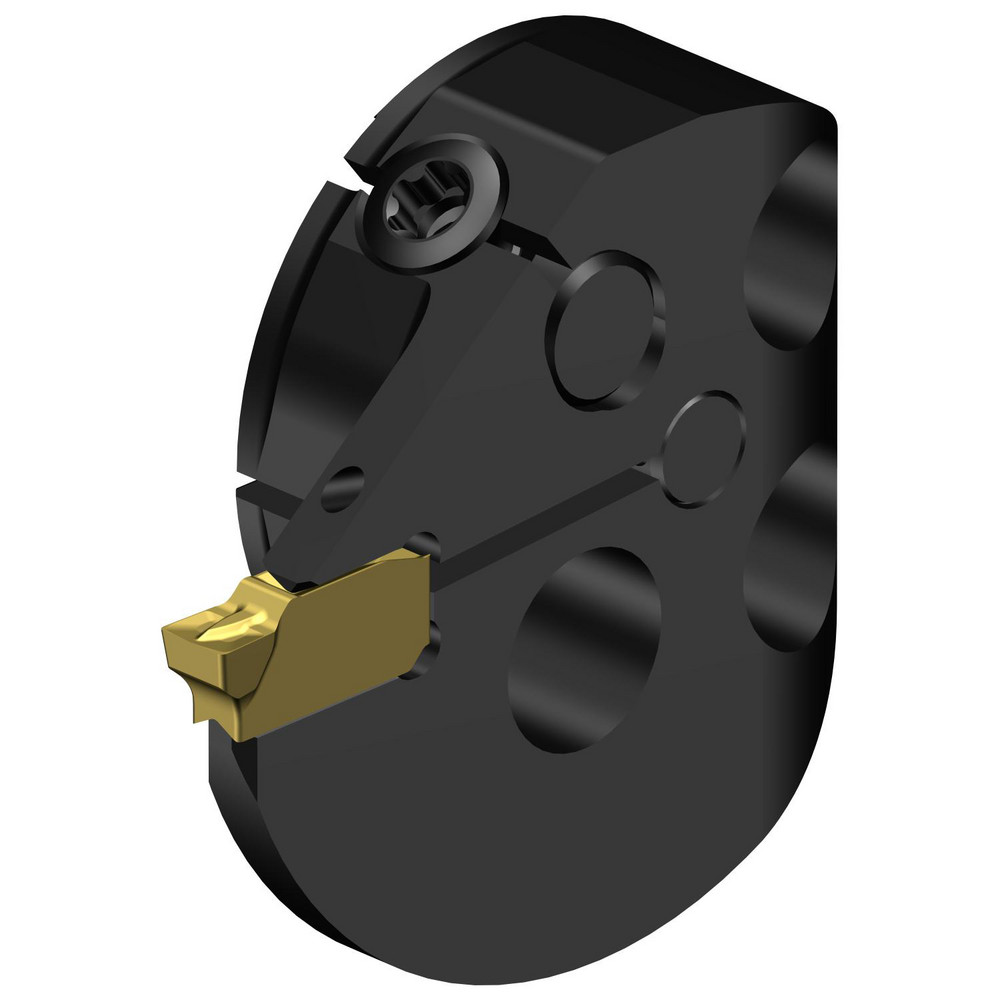

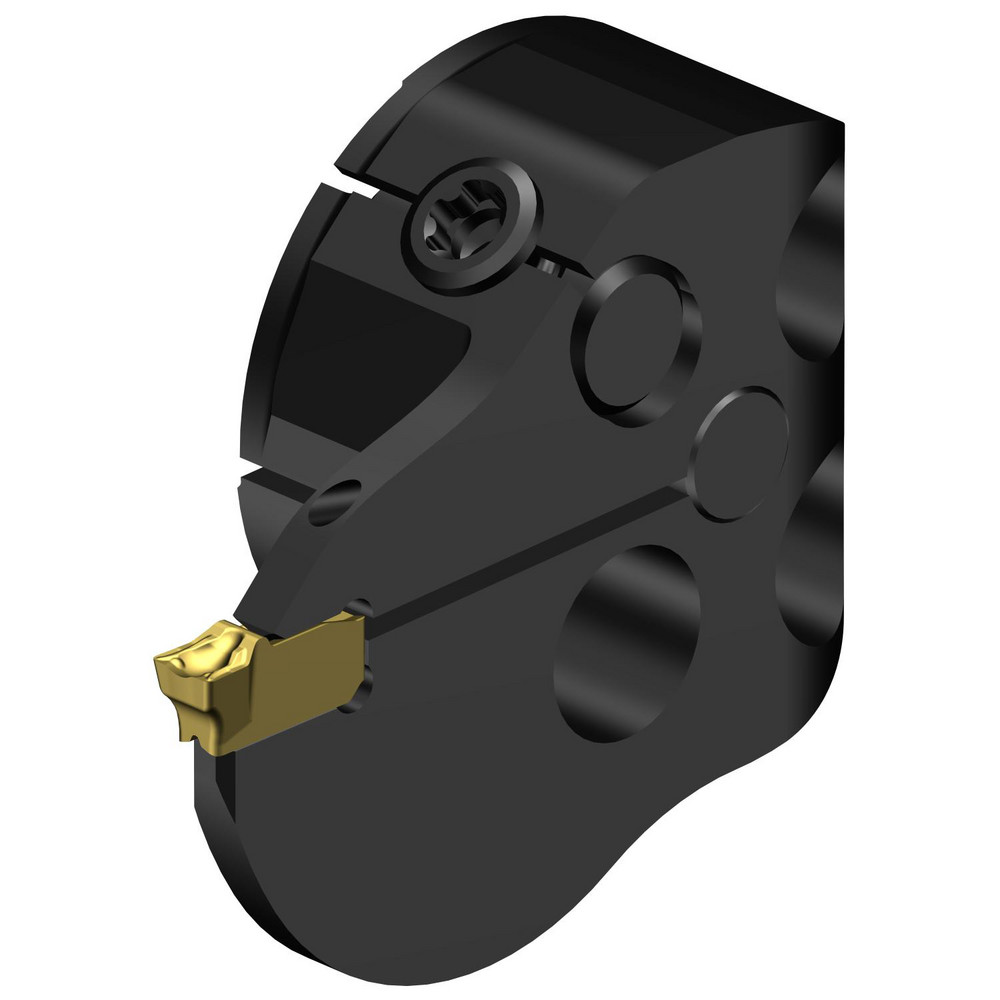

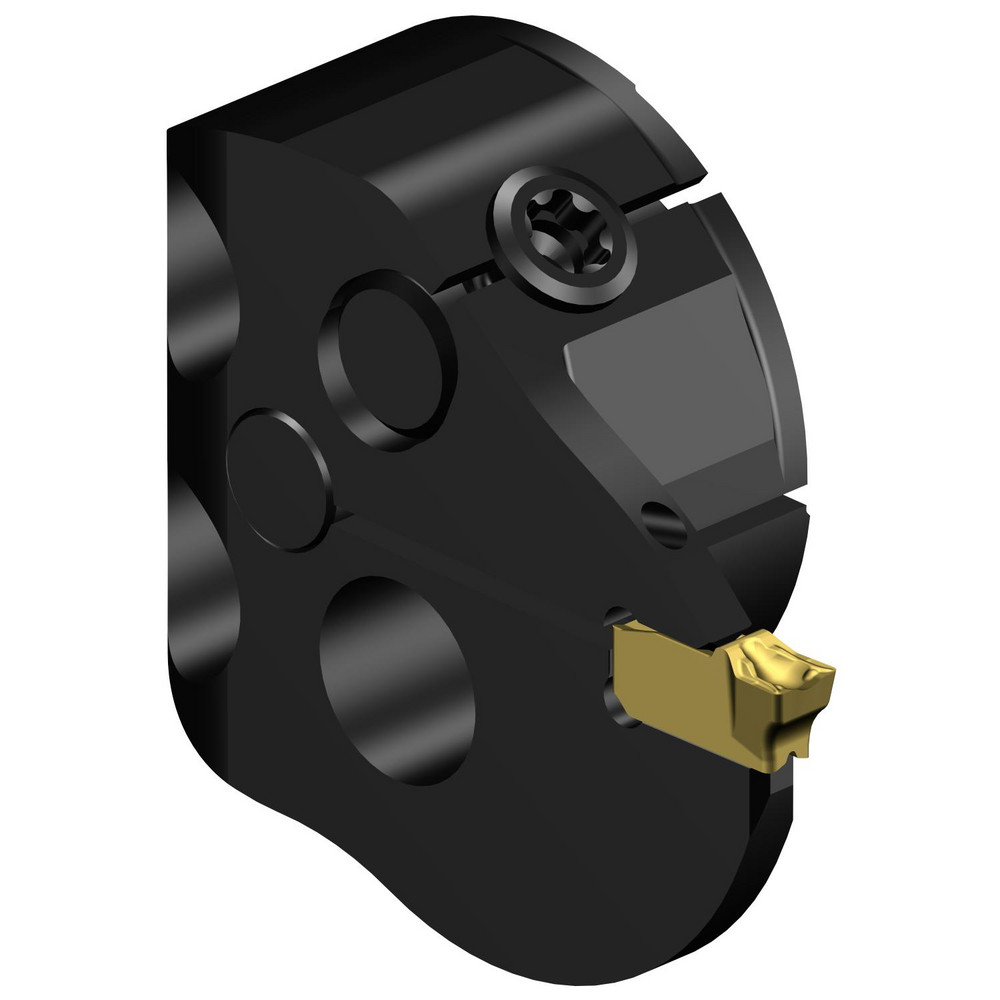

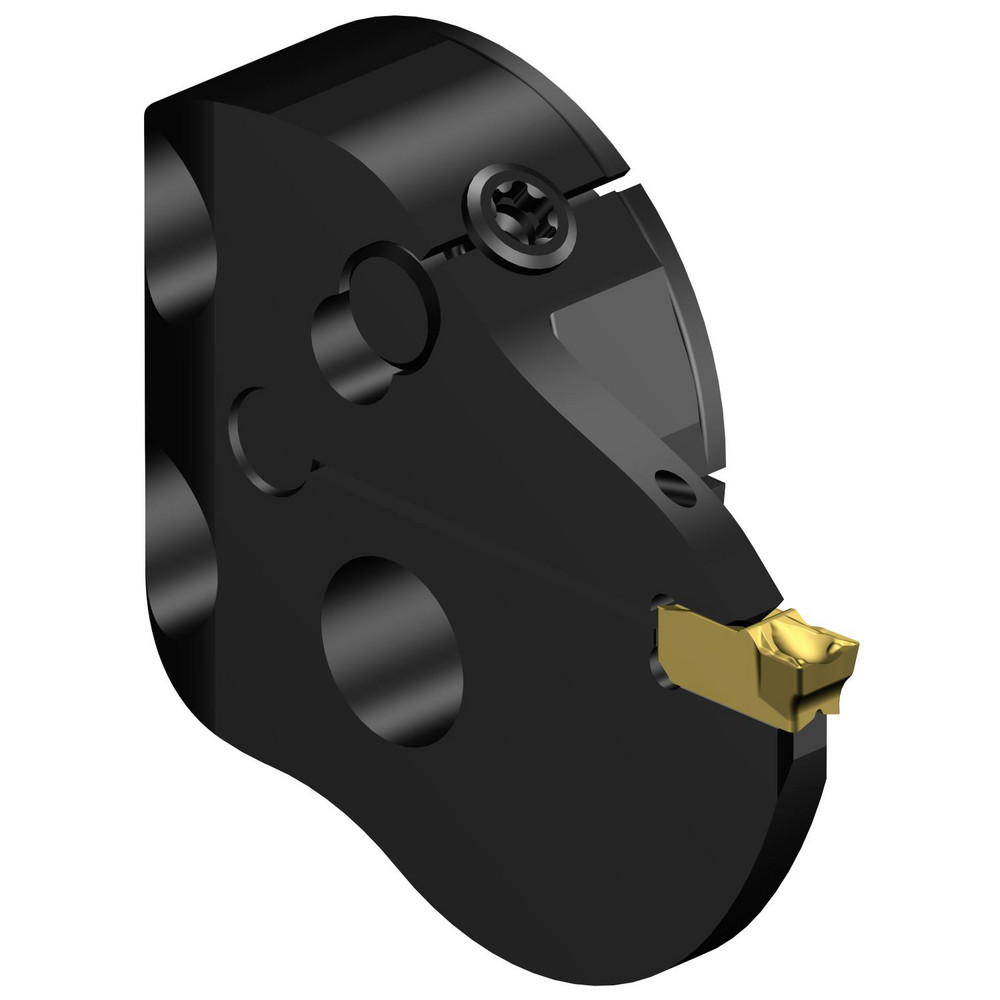

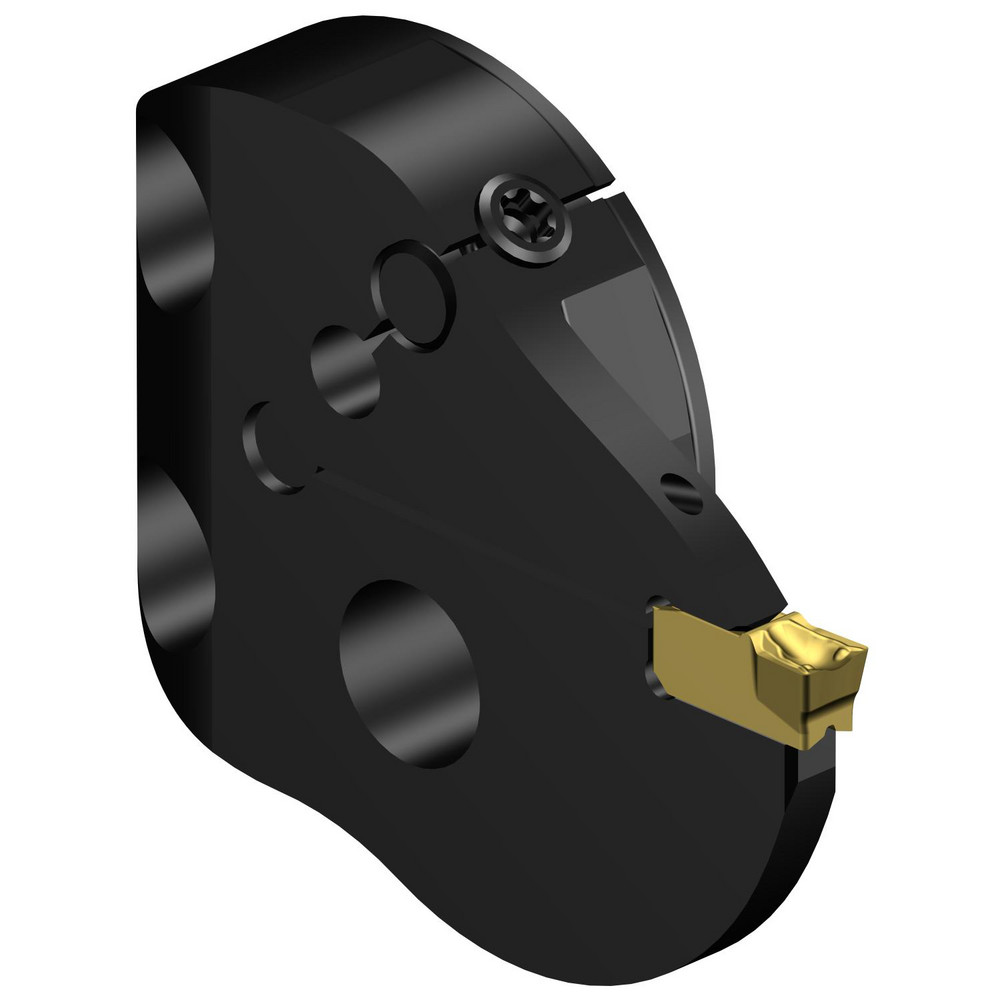

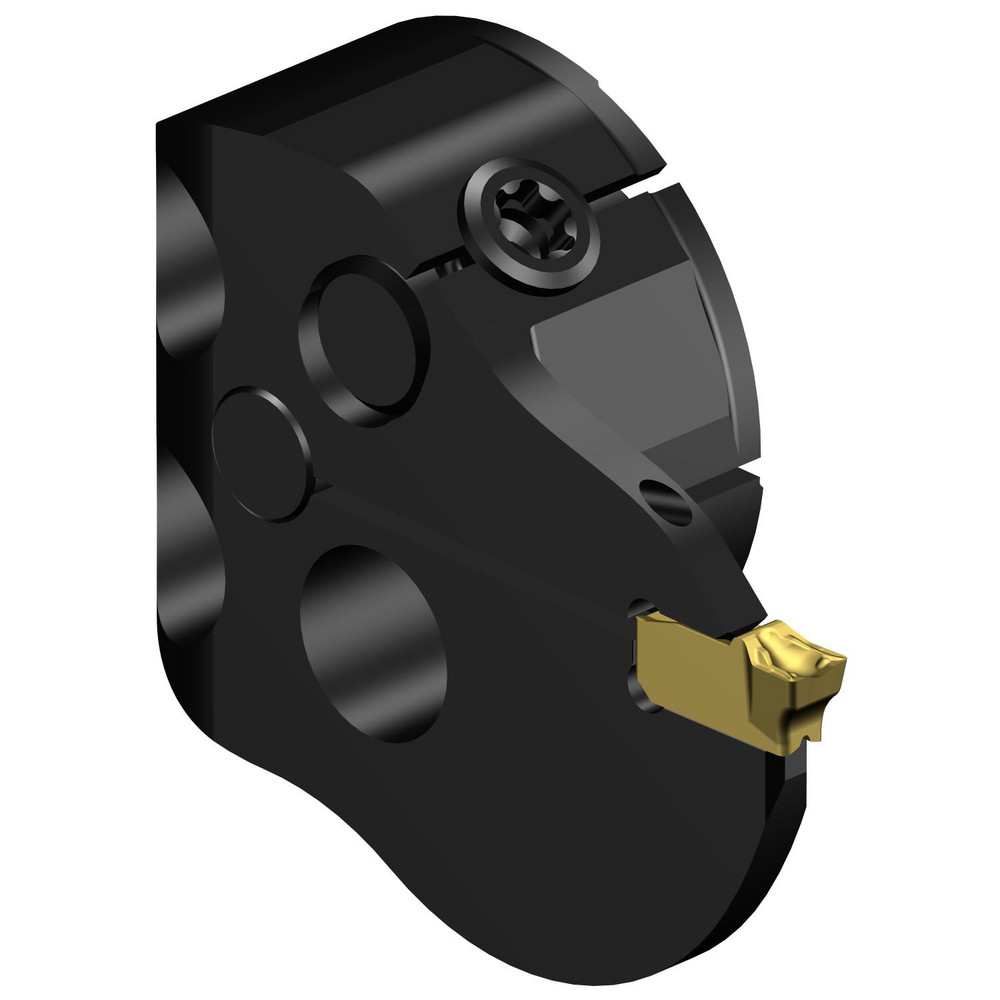

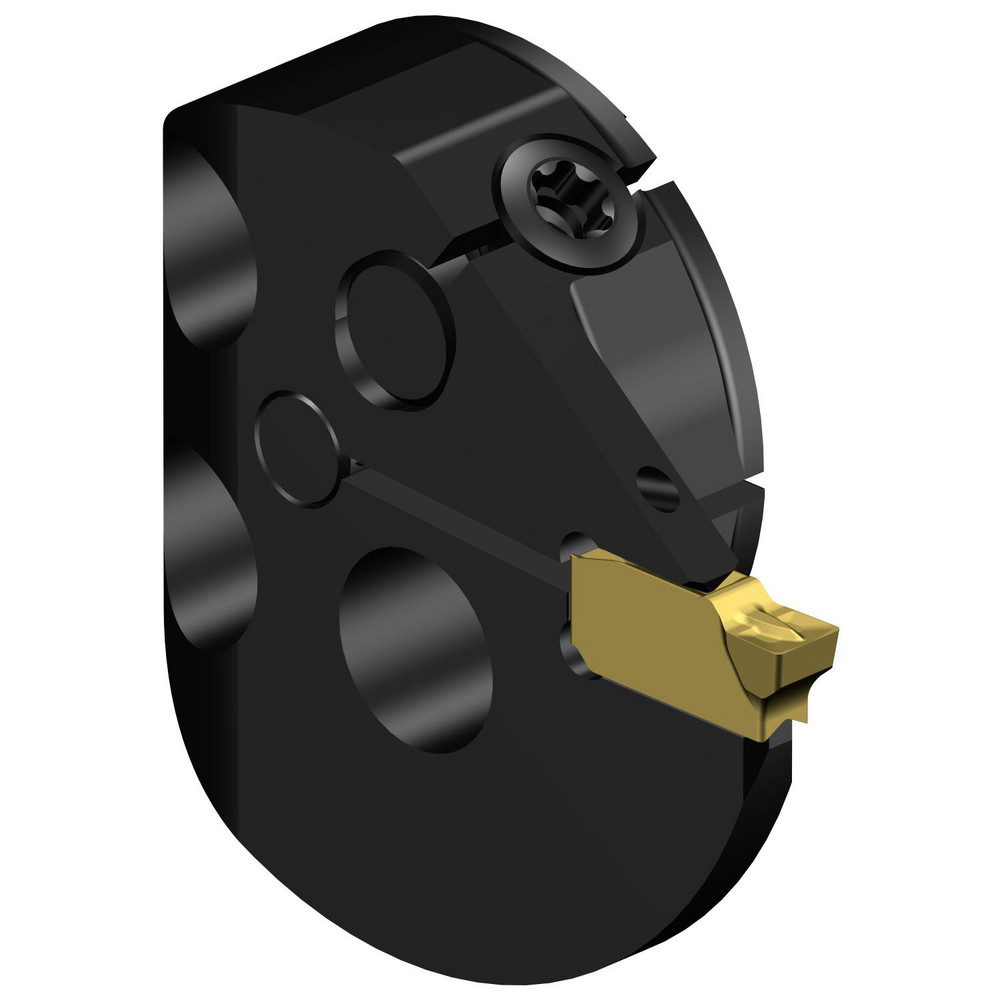

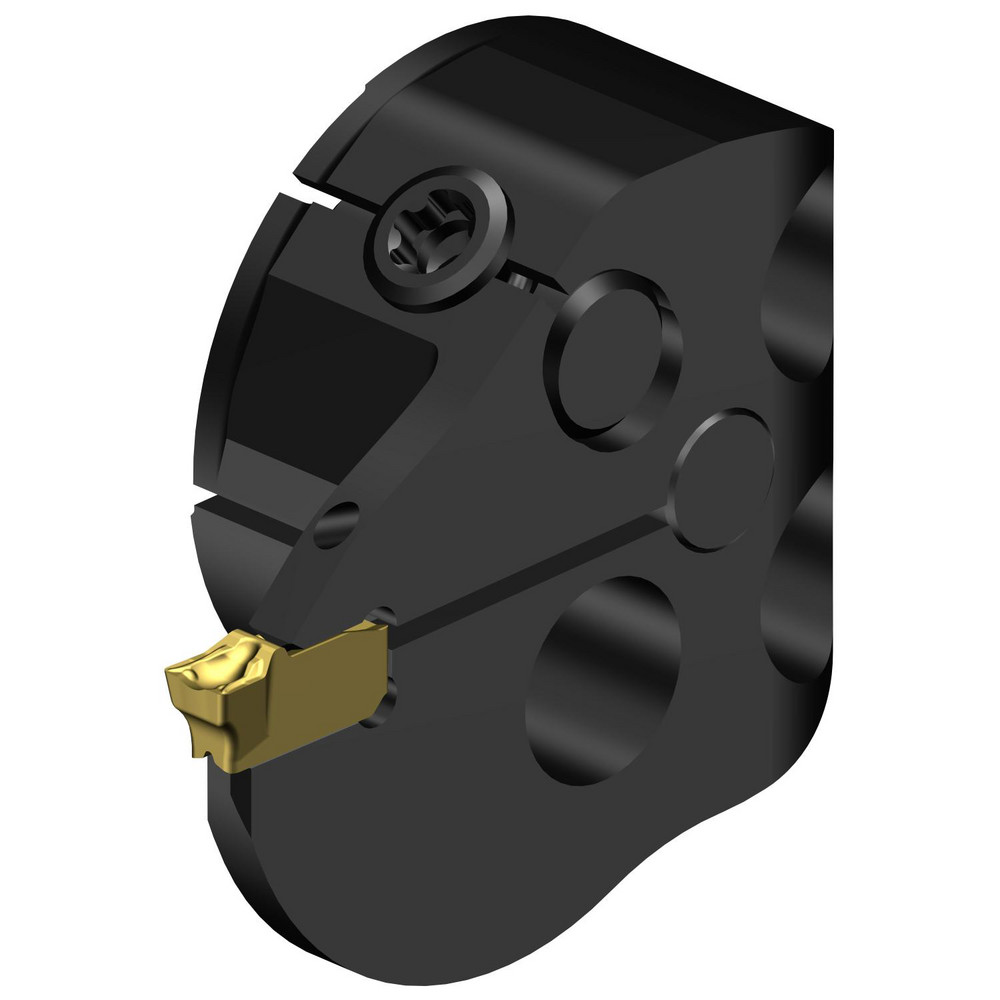

0.2362" Max Depth of Cut, Through Coolant, Series CoroCut QI
| System Size | 20 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 6.00 |
| Minimum Groove Width (Decimal Inch) | 0.1181 |
| Maximum Groove Width (Decimal Inch) | 0.1421 |
| Cutting Direction | Left Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | QI-N |
| Compatible Insert Size Code | G |
| Series | CoroCut QI |

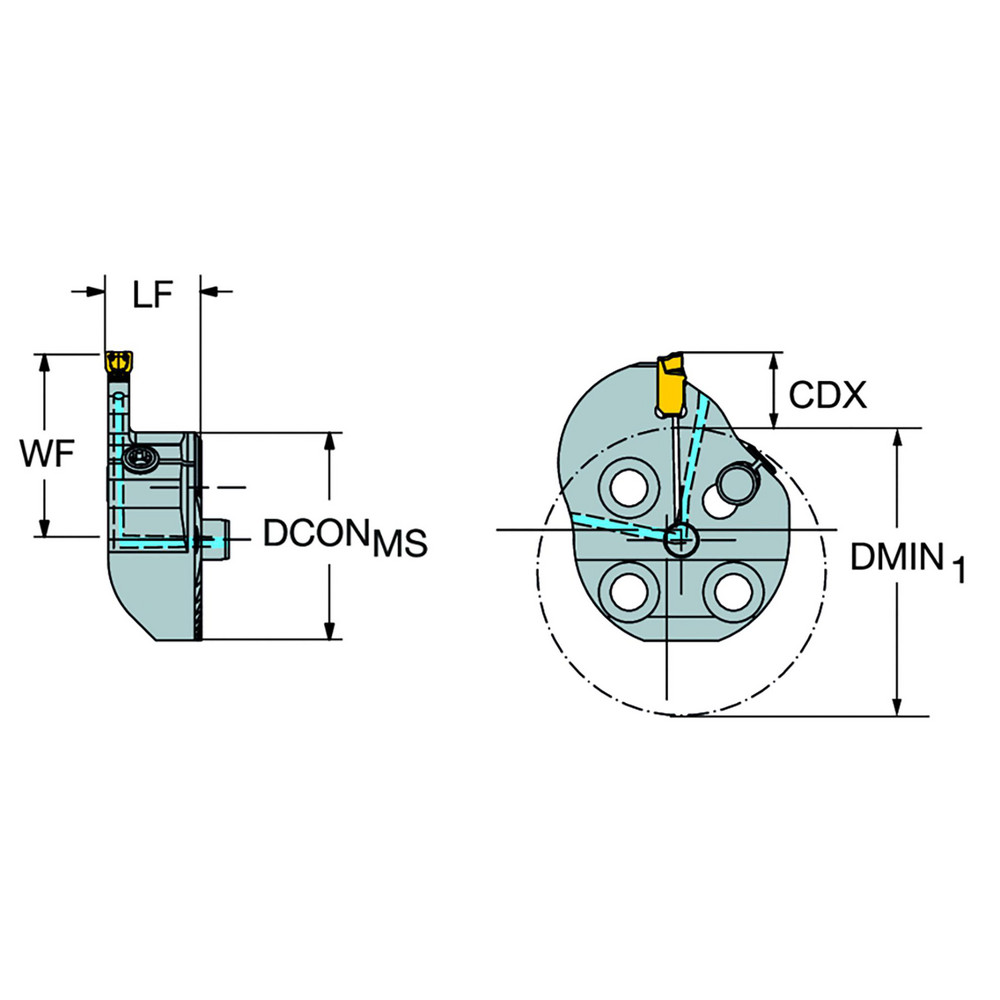

| Center to Cutting Edge (Decimal Inch) | 0.7598 |
| Head Length Projection (Decimal Inch) | 0.5512 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 14.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | India |
| MSC Number | MSC# 96010608 |
