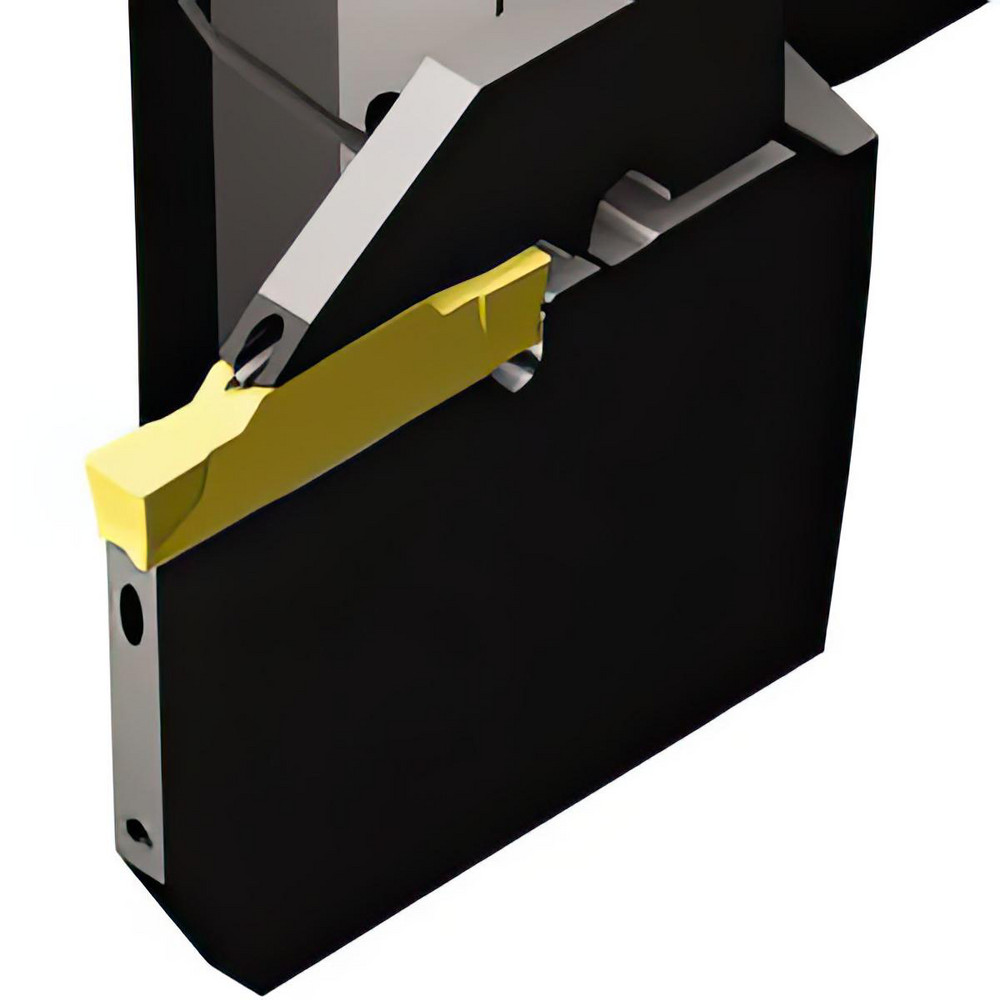

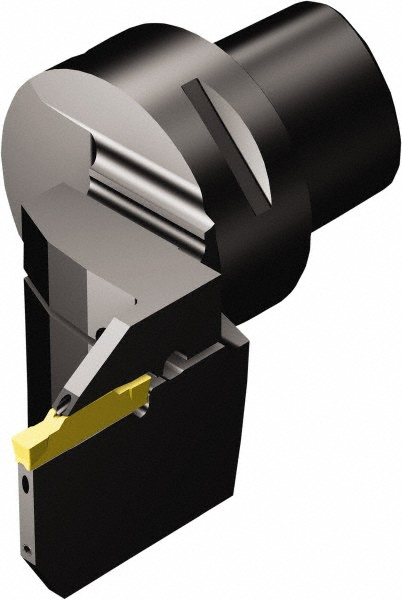

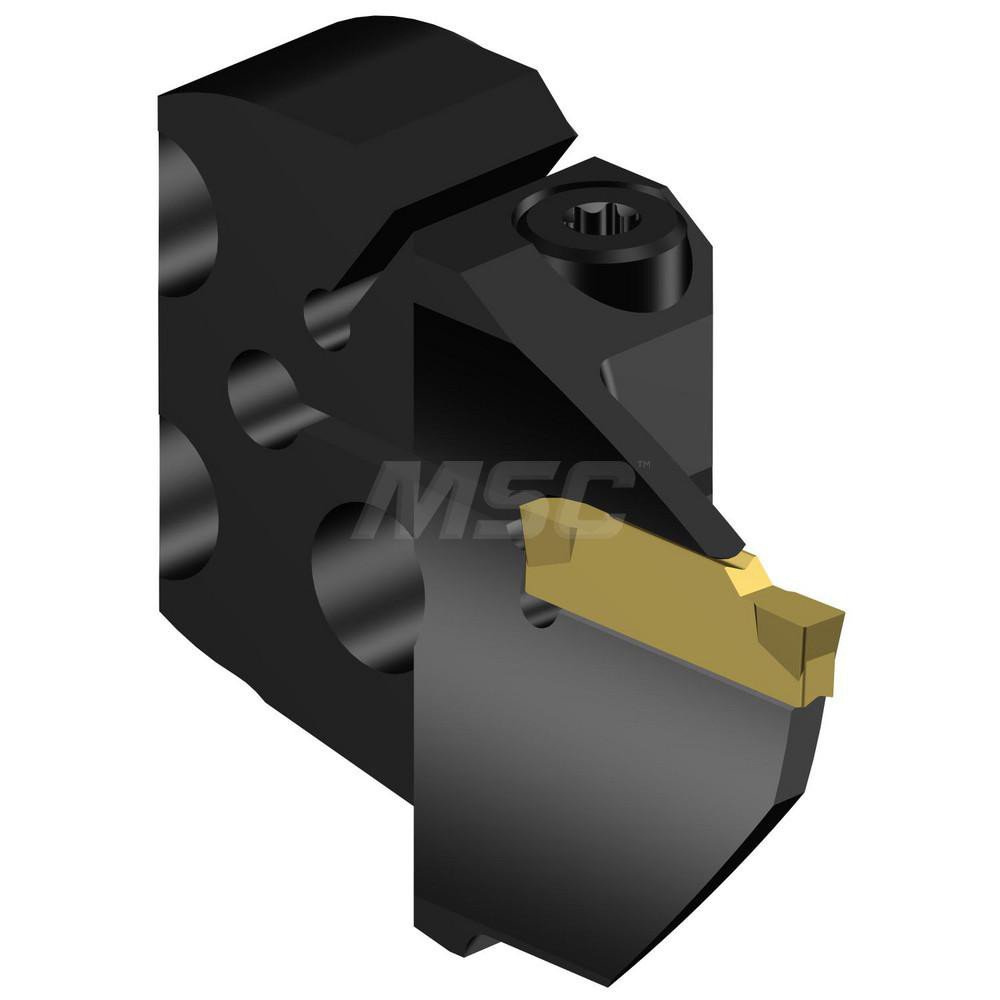

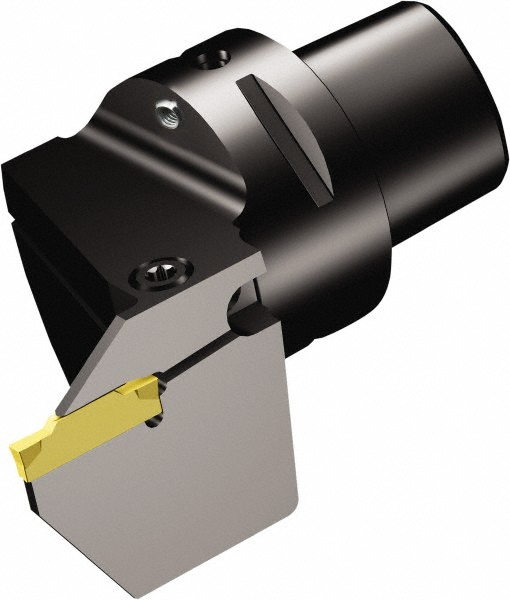

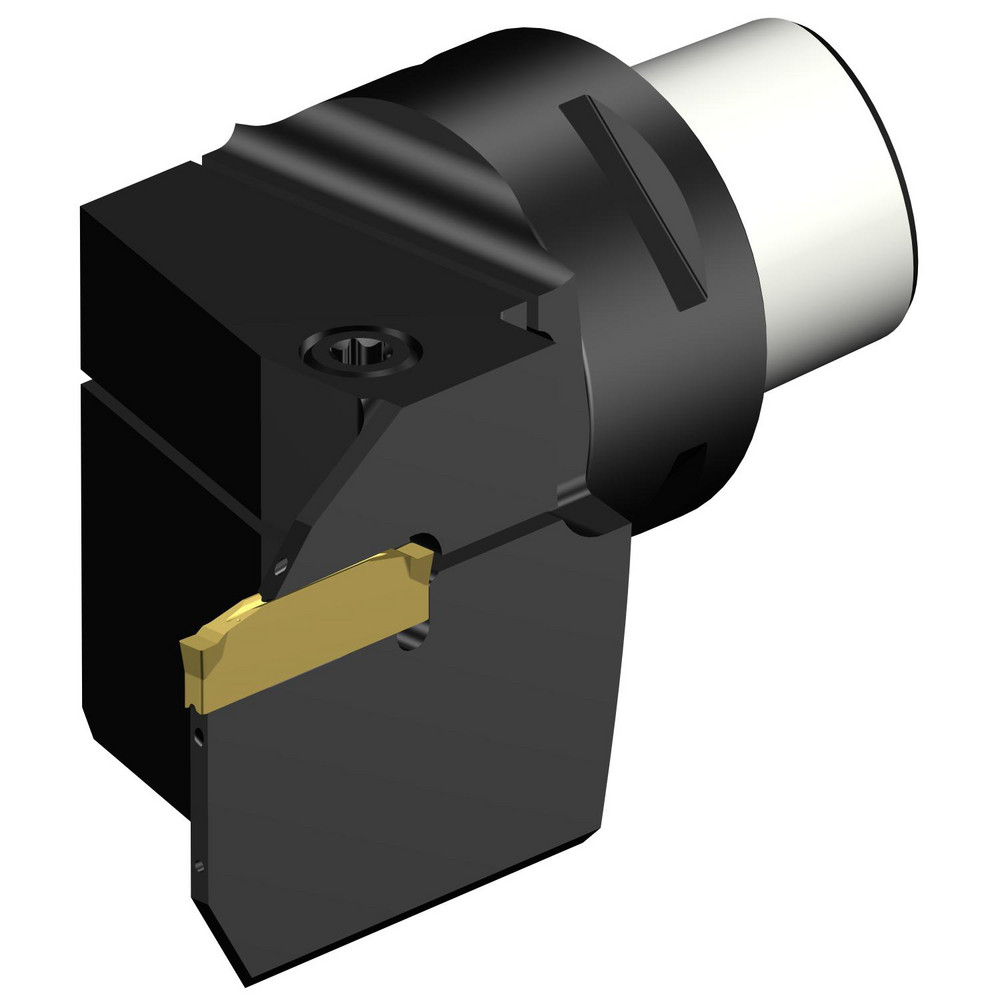

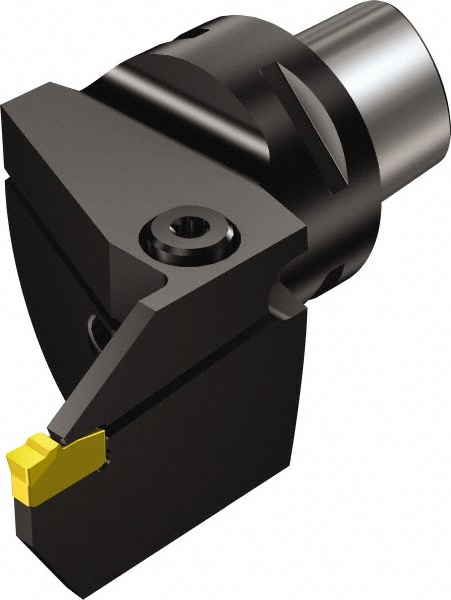

0.5906" Max Depth of Cut, Through Coolant, Series CoroCut 1-2 Cutting Unit for Parting & Grooving
| System Size | C3 |
|---|---|
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Cutting Direction | Right Hand |
| Modular Head Style | Cutting Head |
| Compatible Insert Style | N123E2-0200-0002-CM |
| Series | CoroCut 1-2 Cutting Unit for Parting & Grooving |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Complete Insert Compatibility | N123E2-0200-0002-CM |
| Head Length Projection (Decimal Inch) | 2.1654 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 55.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49545650 |
