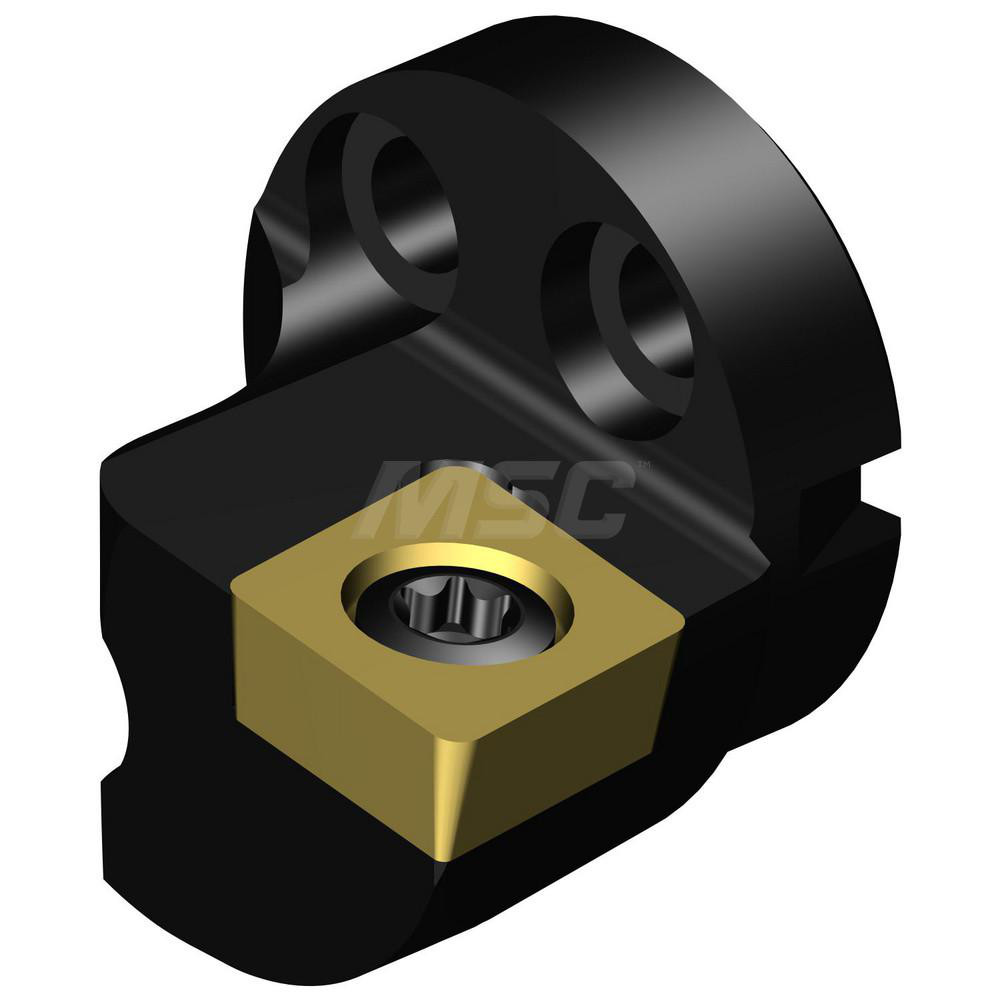

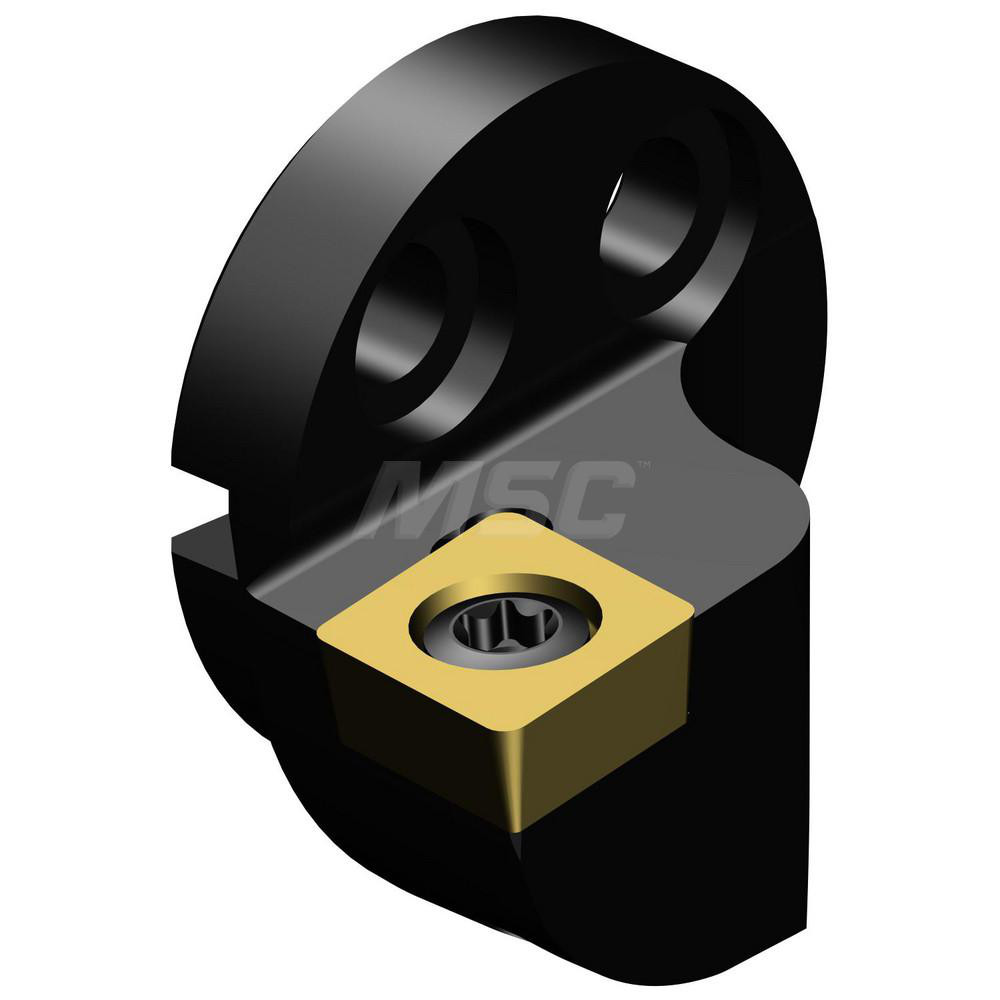

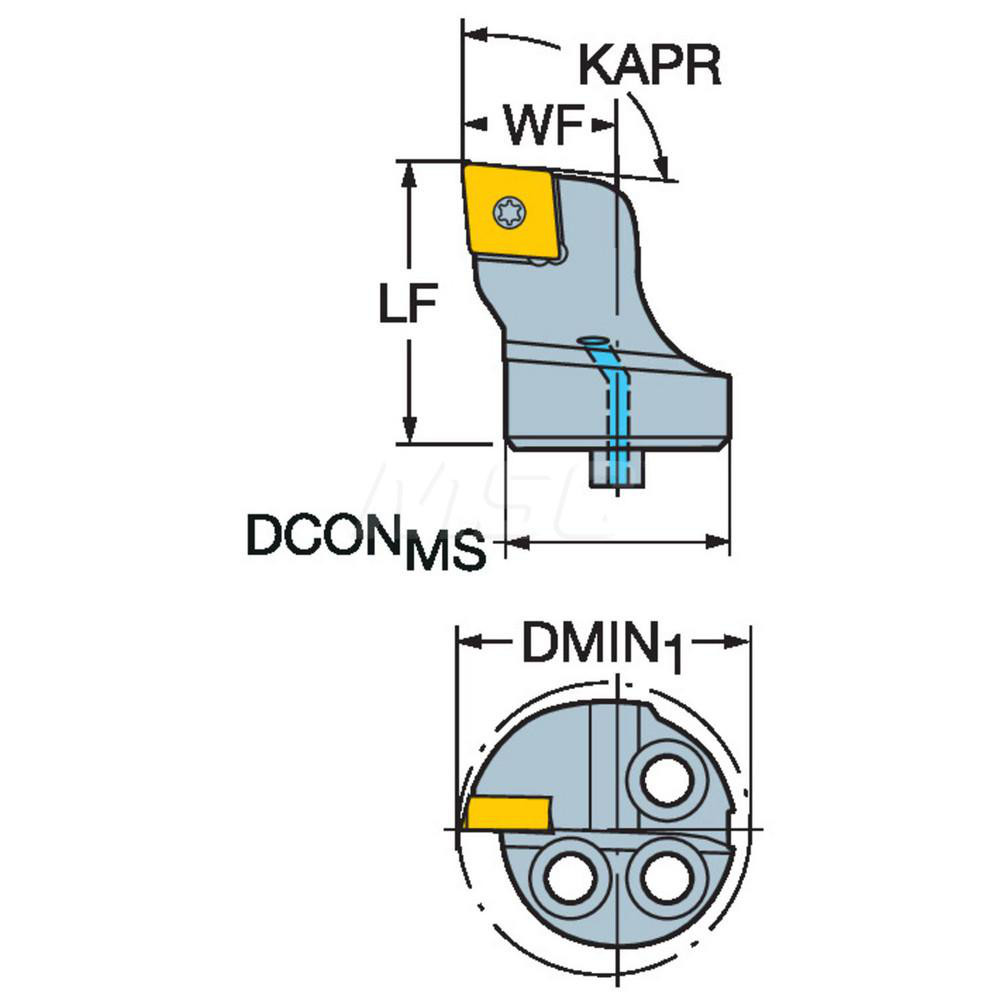

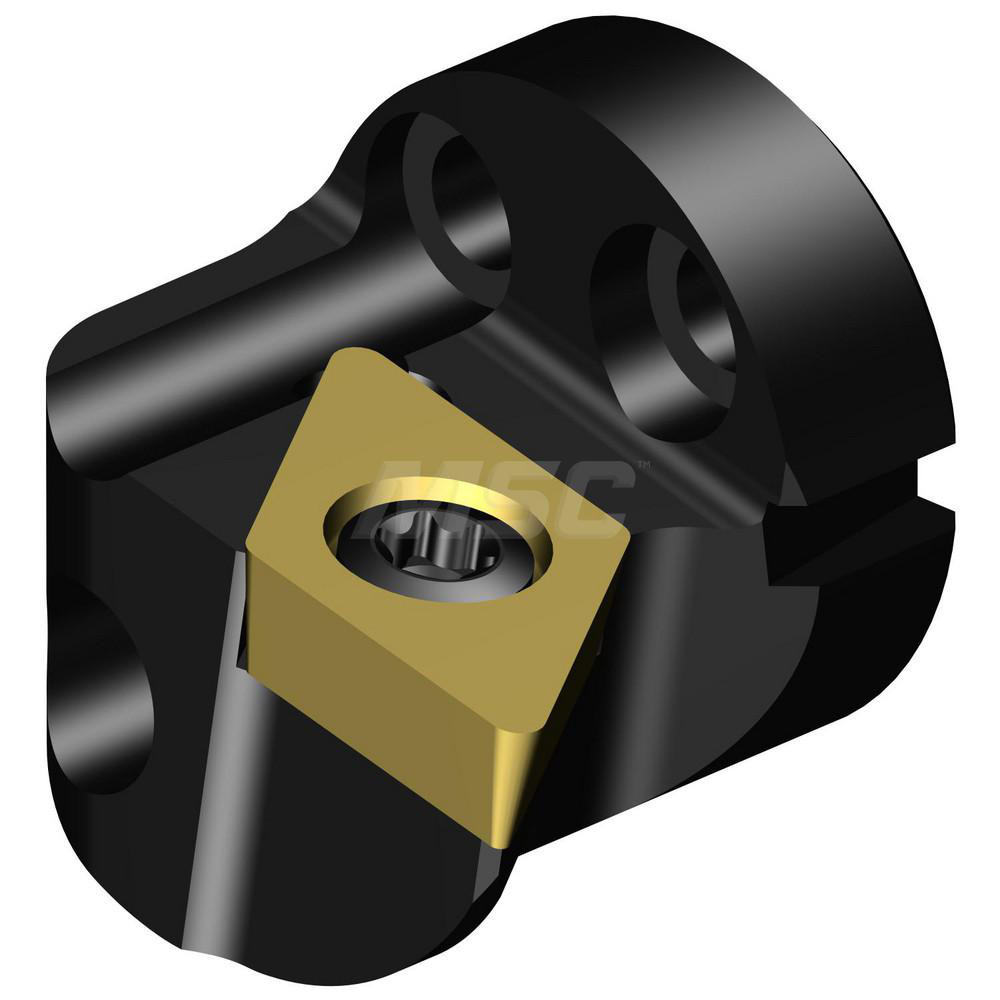

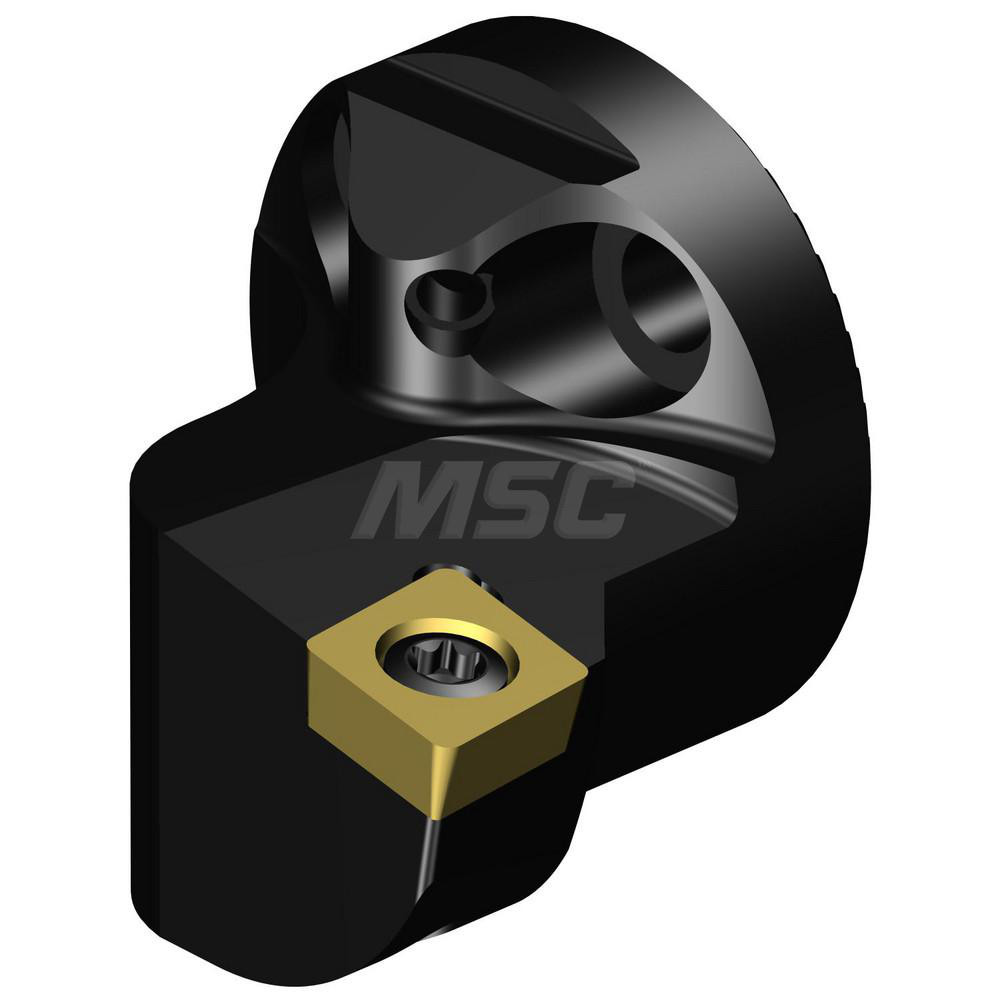

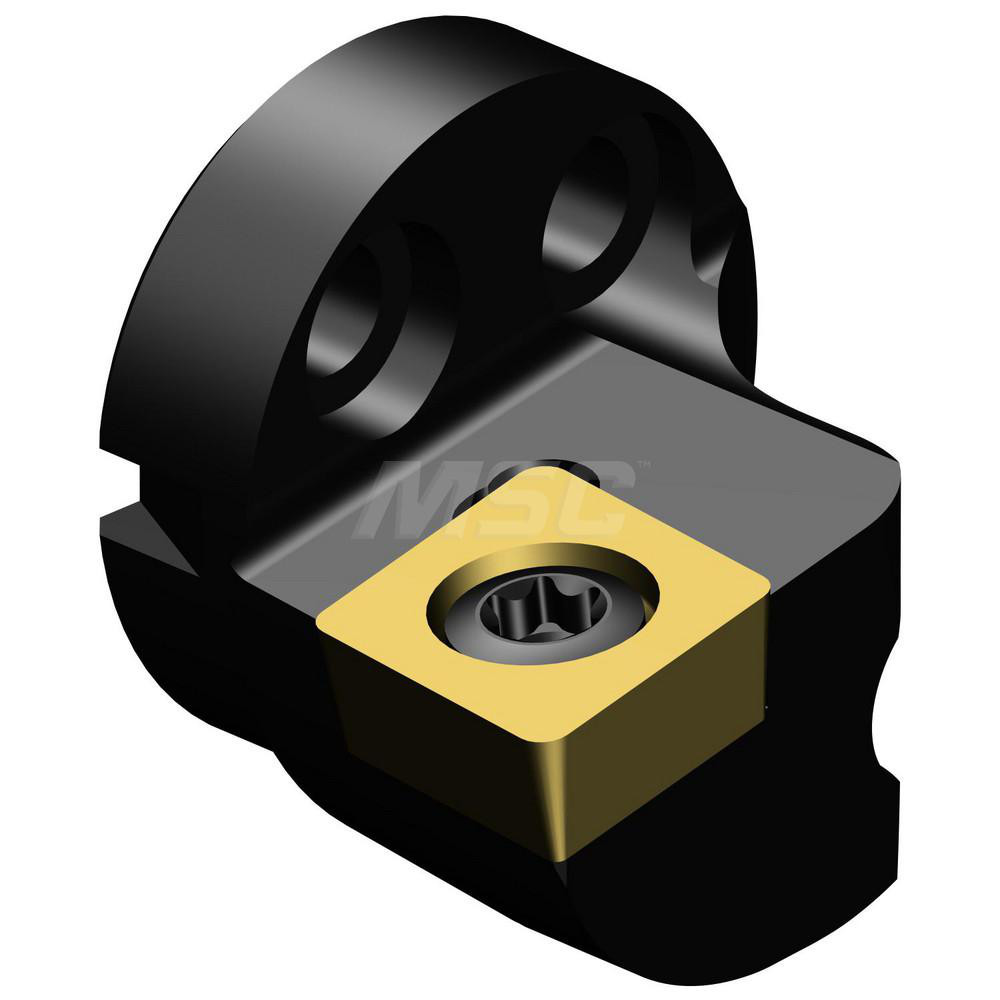

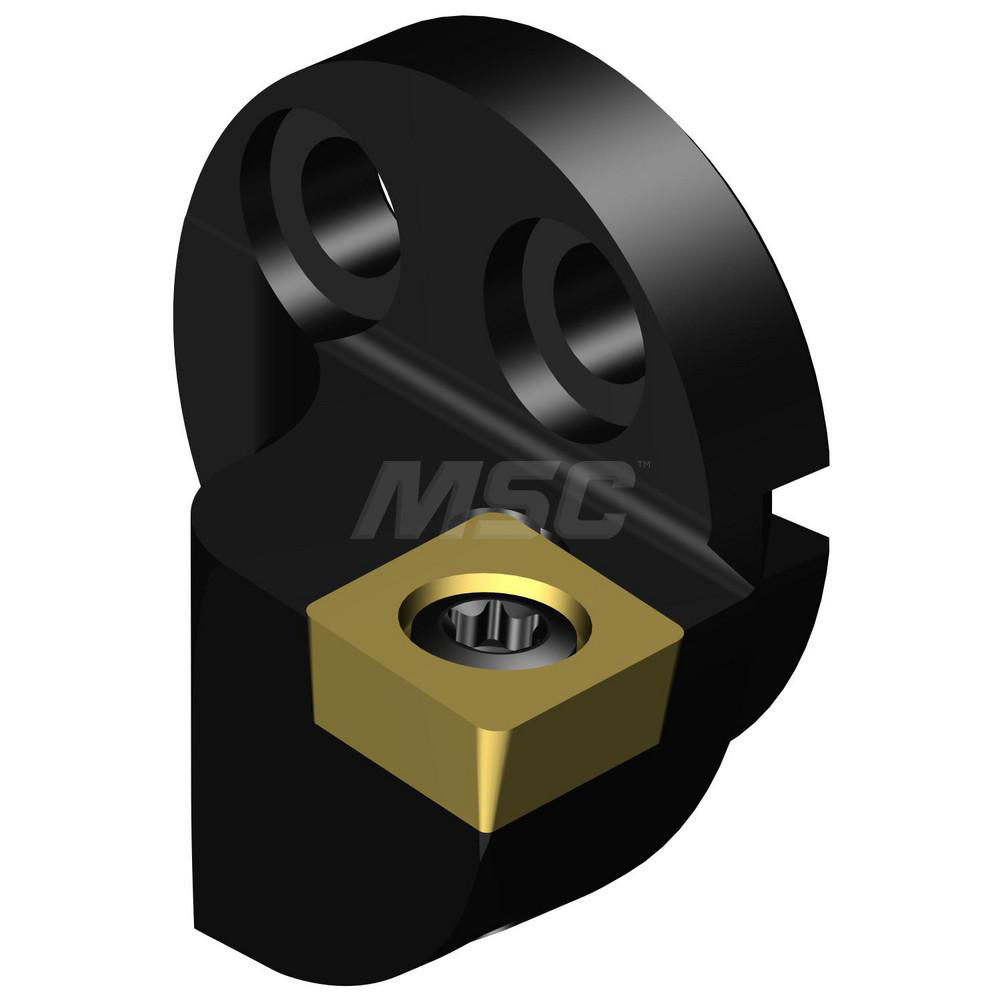

13 mm Center to Cutting Edge, Uses CCMT 09T308 Inserts, Through Coolant
| System Size | 20 |
|---|---|
| Cutting Direction | Right Hand |

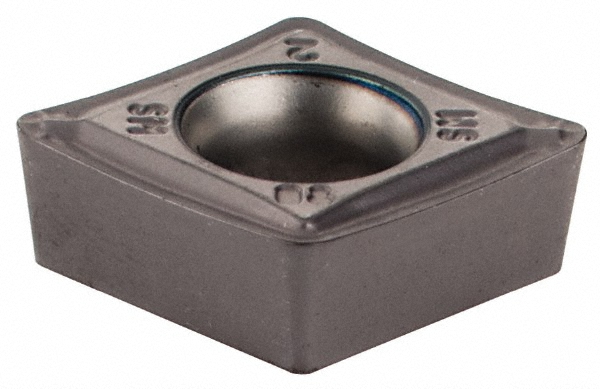

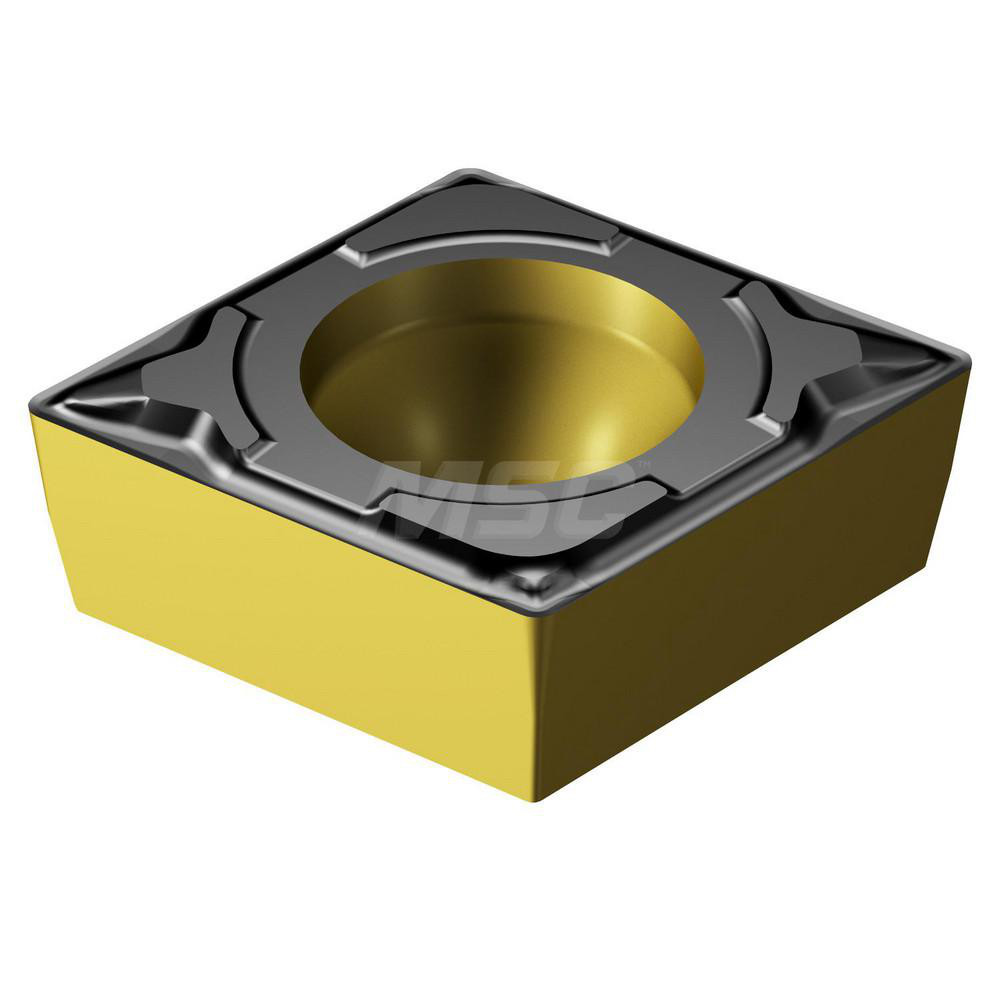

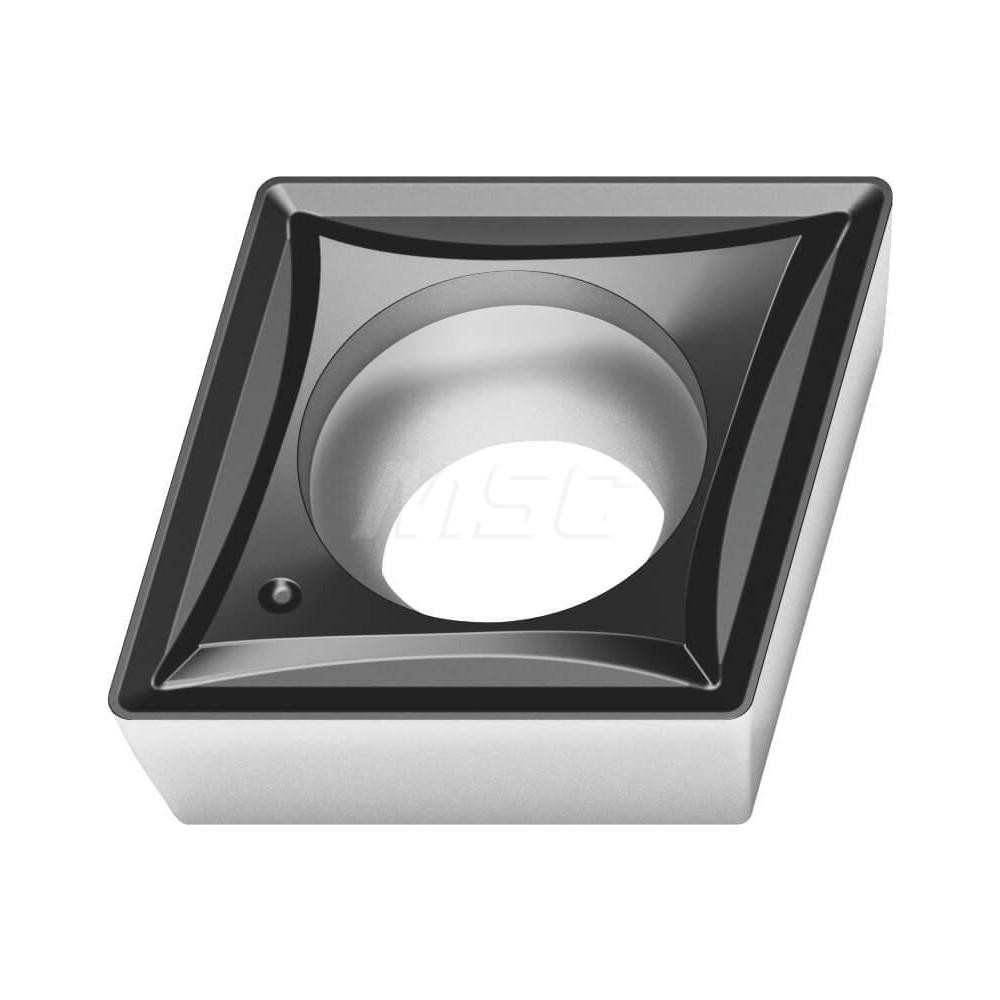

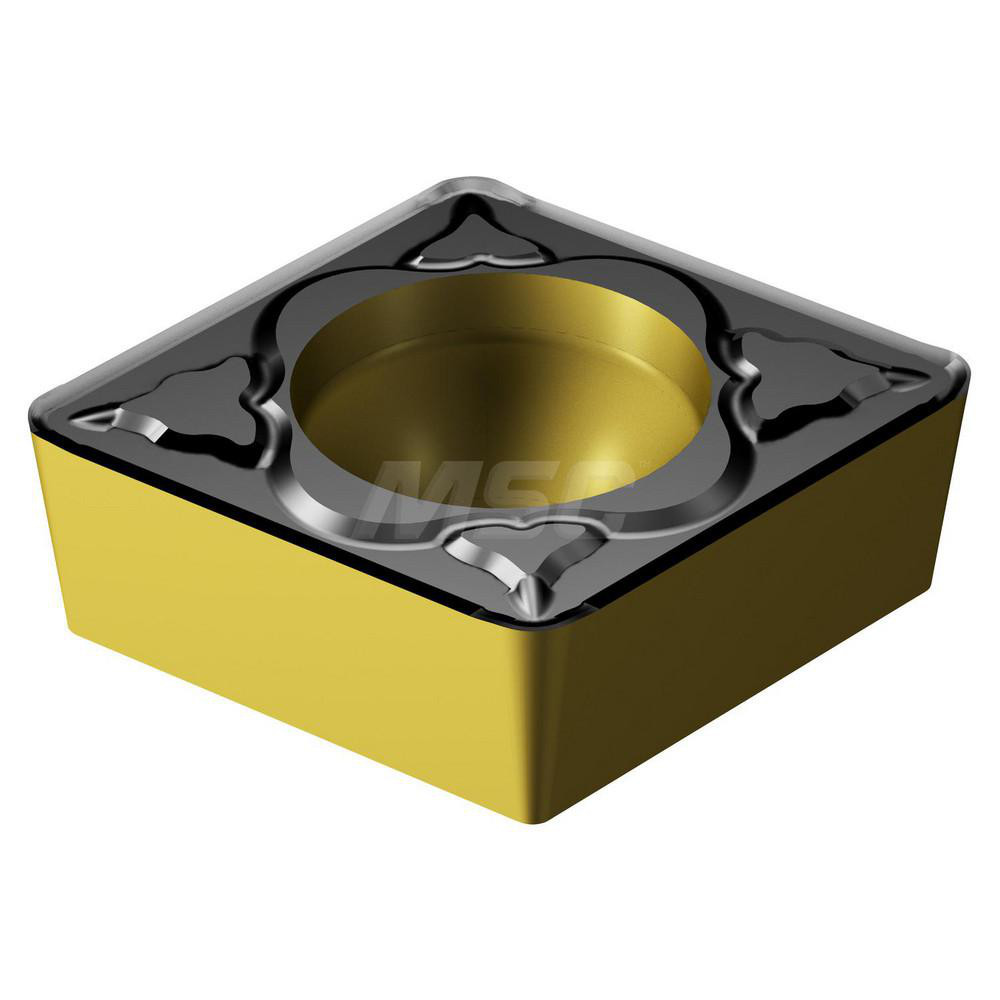

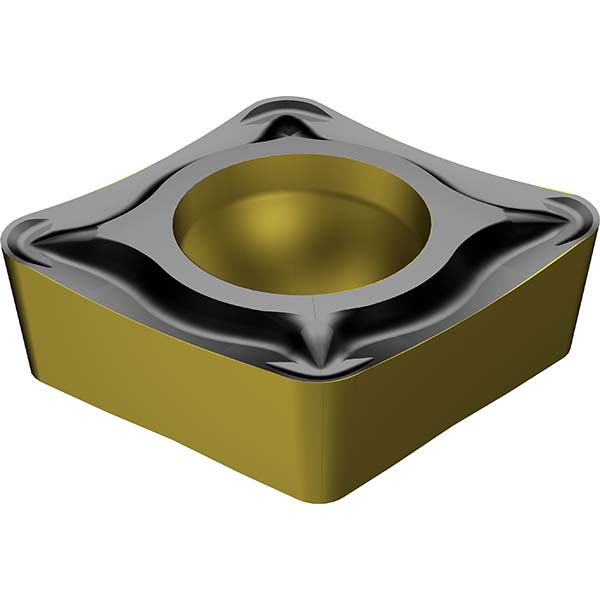

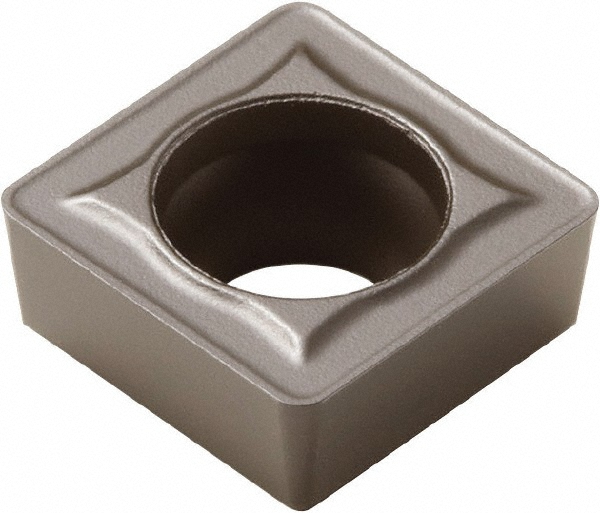

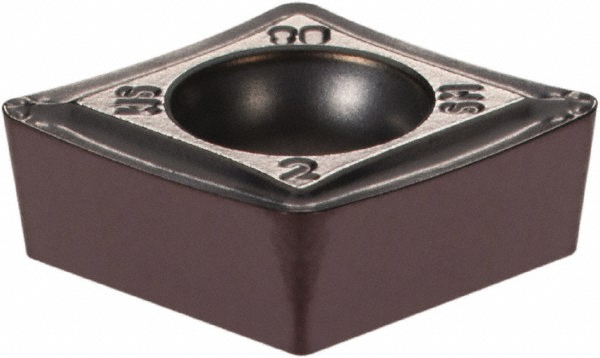

| Compatible Insert Style | CCMT 09T308 |

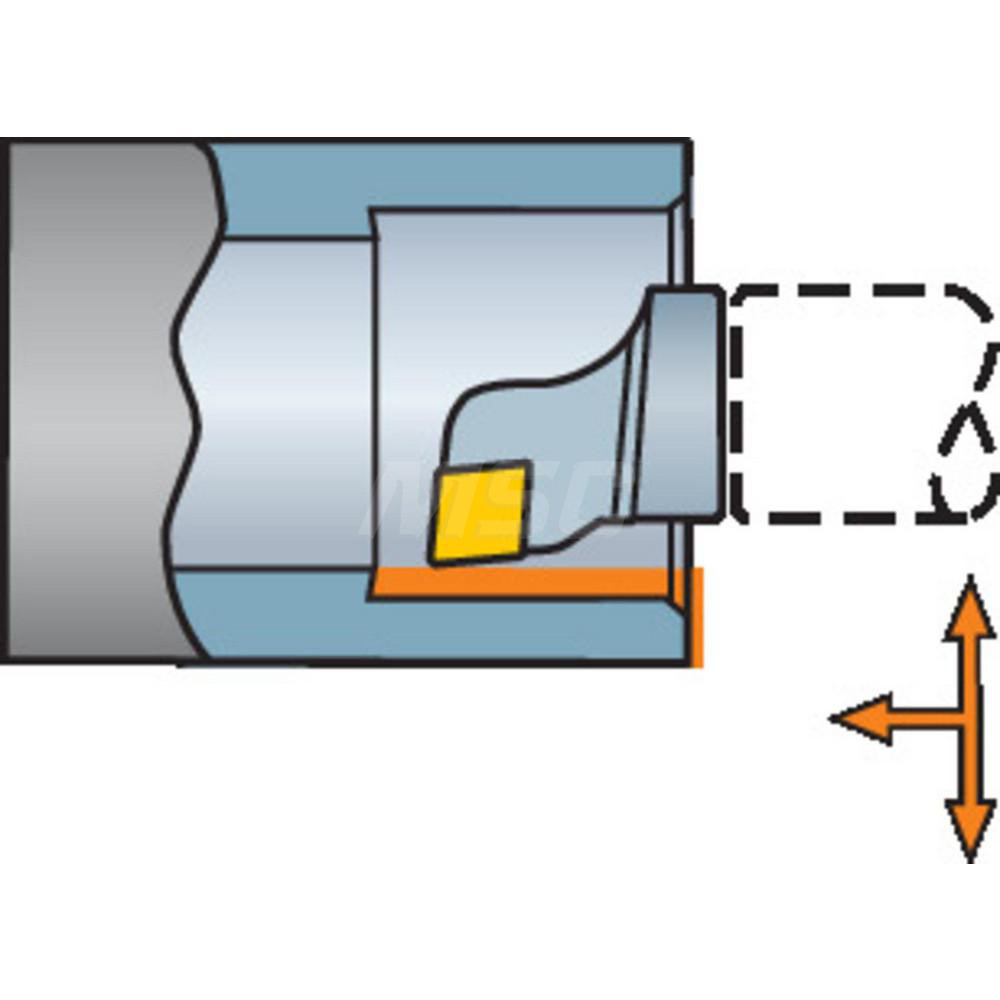

| Internal or External | Internal |

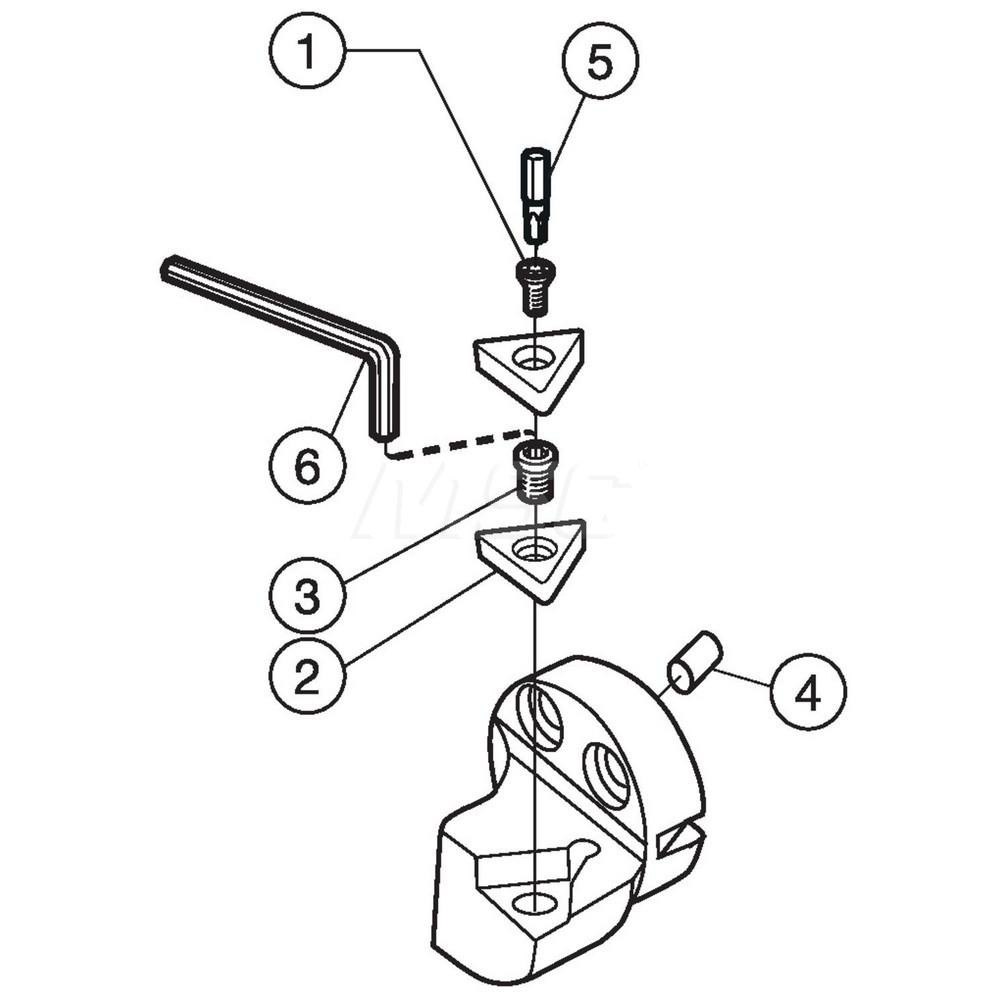

| Insert Holding Method | Screw; Clamp |
| Center to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (Decimal Inch) | 0.5118 |
| Series | CoroTurn 107 |
| Neck Diameter (mm) | 20.00 |
| Neck Diameter (Decimal Inch) | 0.7874 |
| Axial Rake Angle | 0.00 |
| Radial Rake Angle (Degrees) | -8 |
| Head Connection Size | 40 |
| Complete Insert Compatibility | CCMT 09T308 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 0.7874 |
| Head Length Projection (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.9843 |
| Minimum Hole Diameter (mm) | 25.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Norway |
| undefined | undefined |
| MSC Number | MSC# 54475389 |
