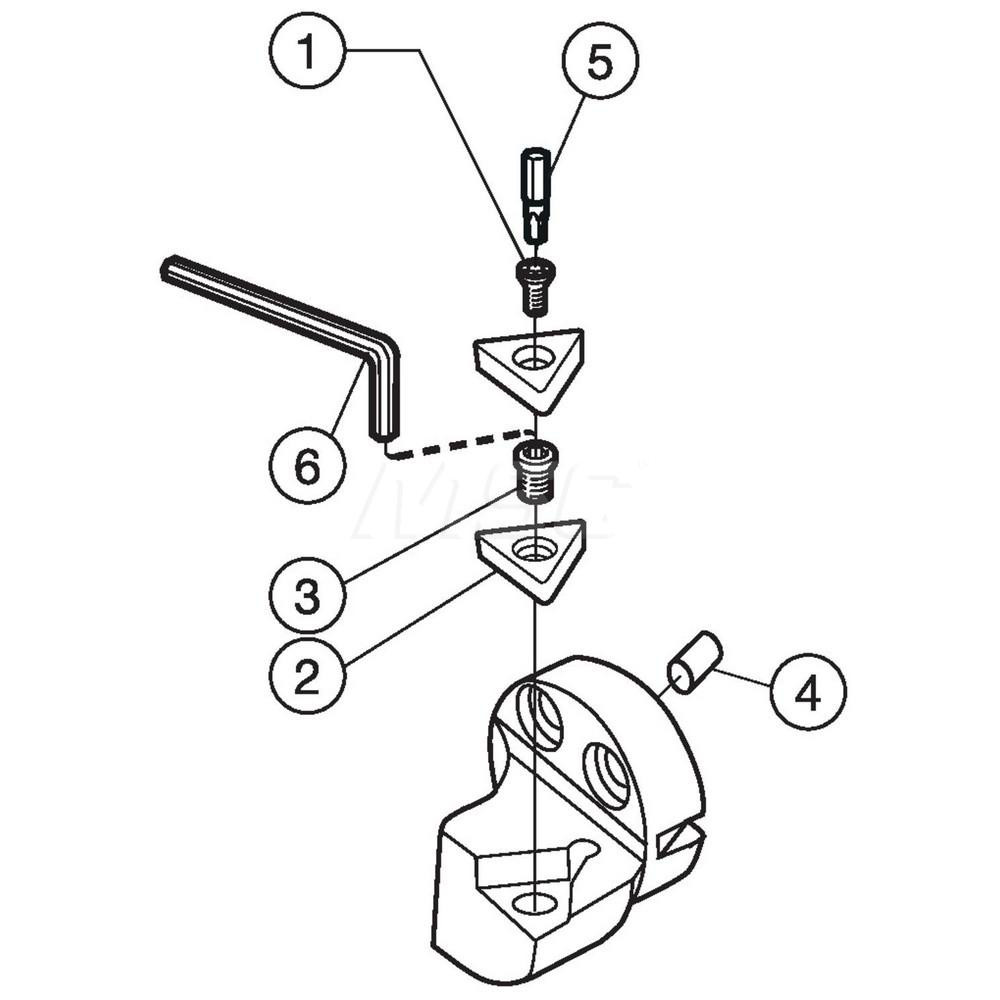

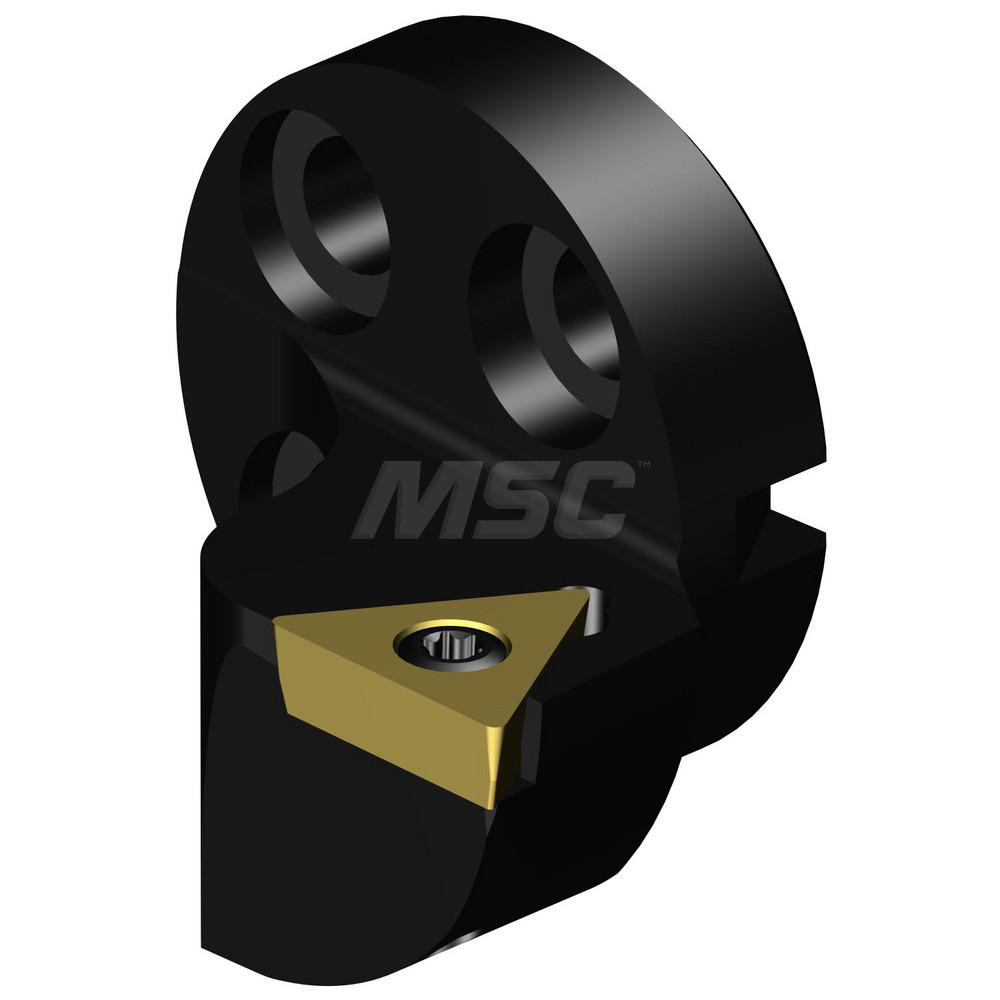

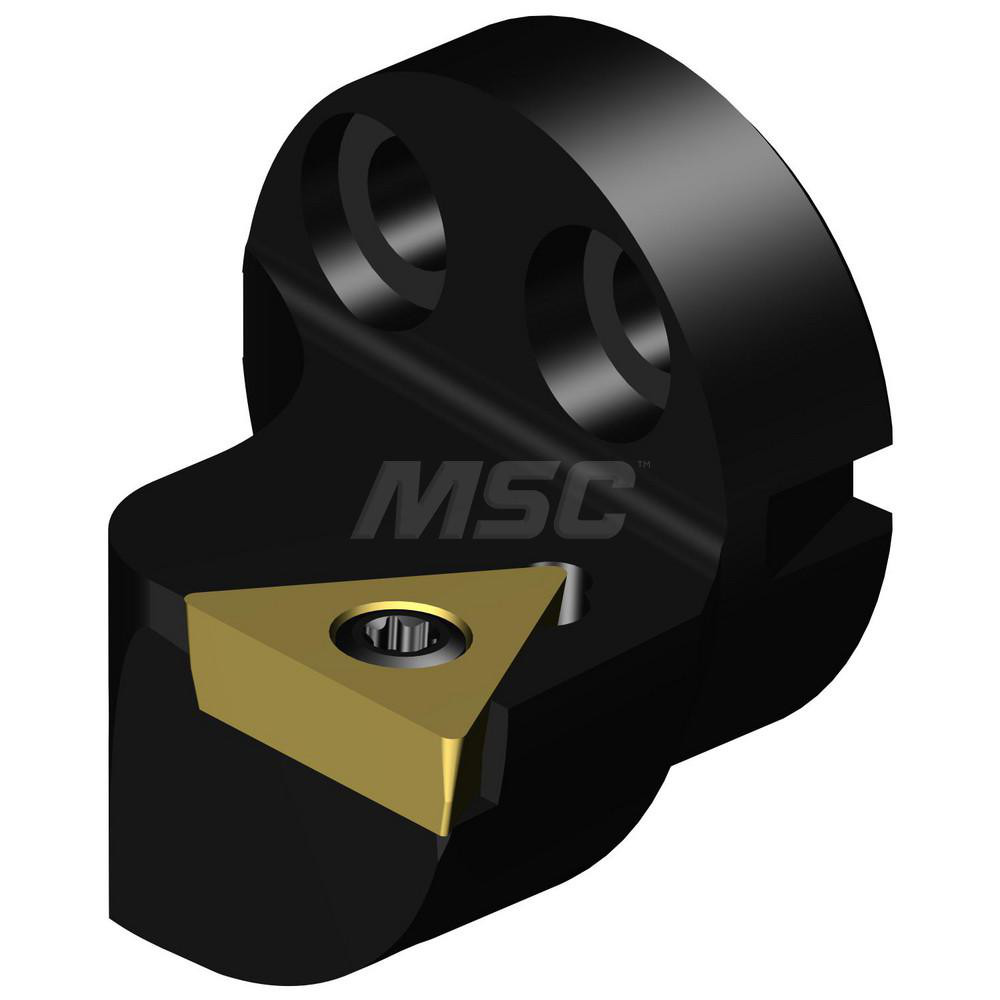

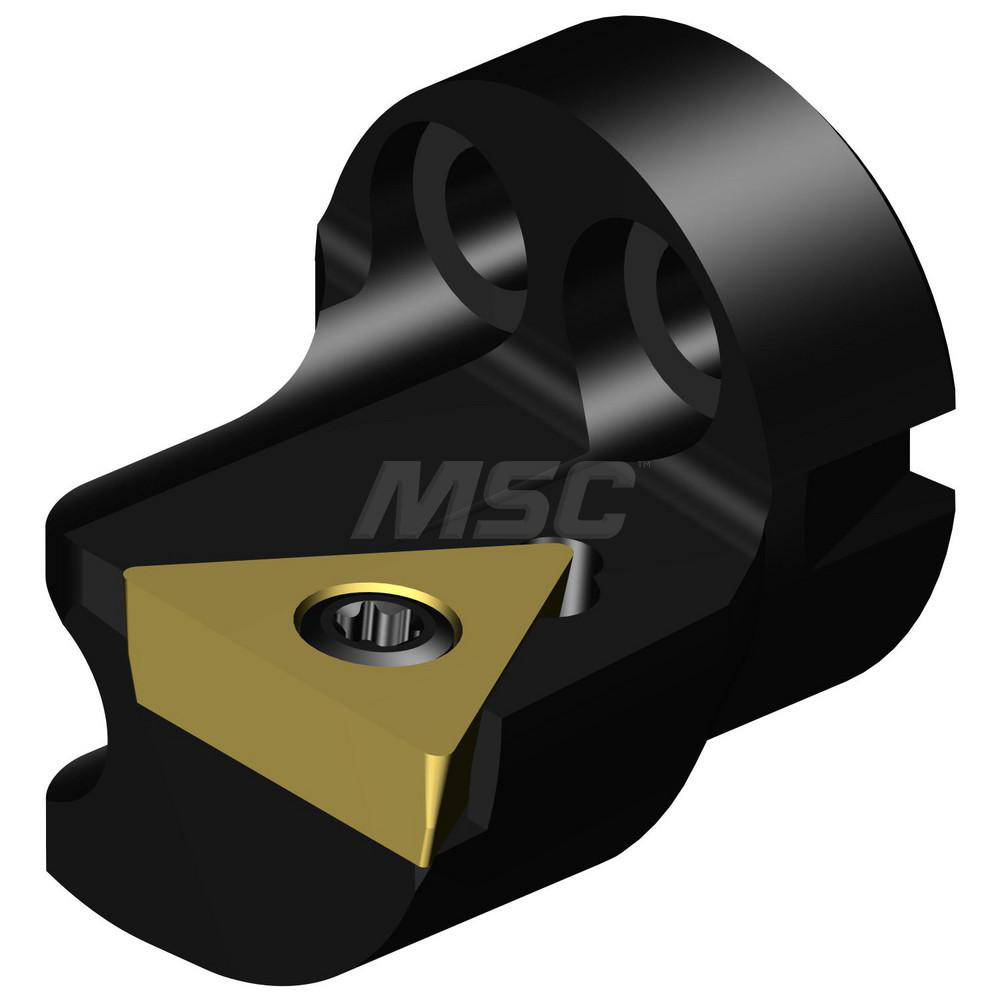

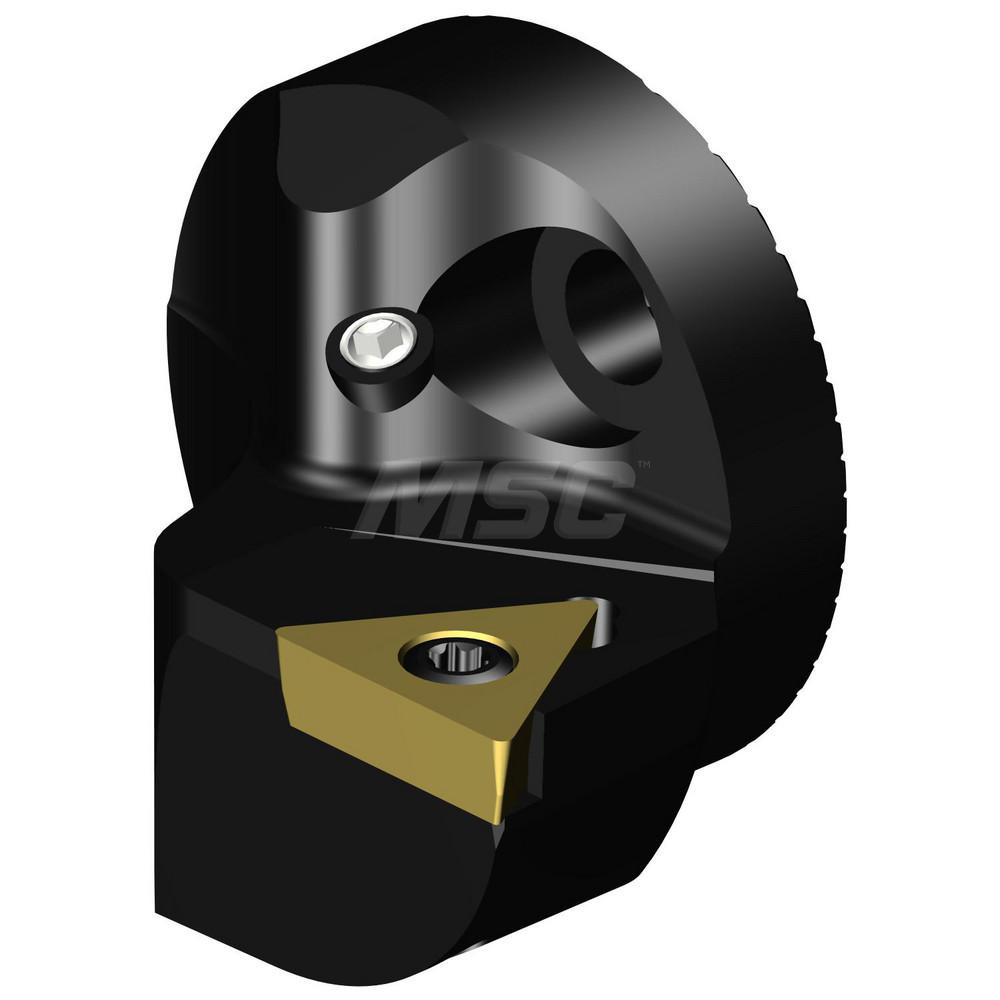

17 mm Center to Cutting Edge, Uses TCMT 110304 Inserts, Through Coolant
| System Size | 25 |
|---|---|
| Cutting Direction | Right Hand |

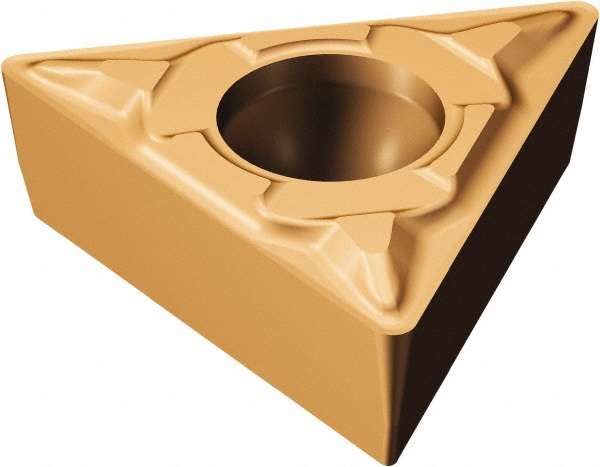

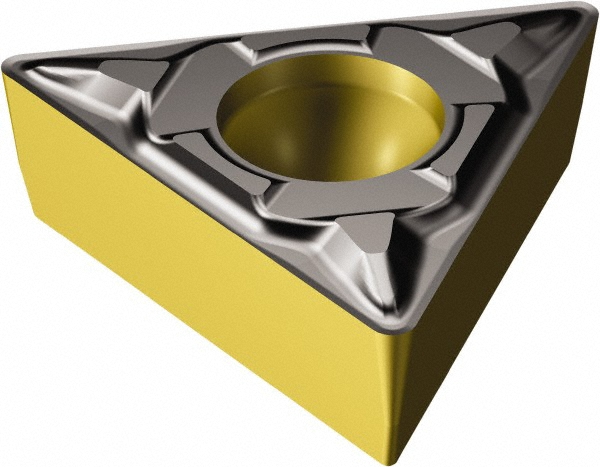

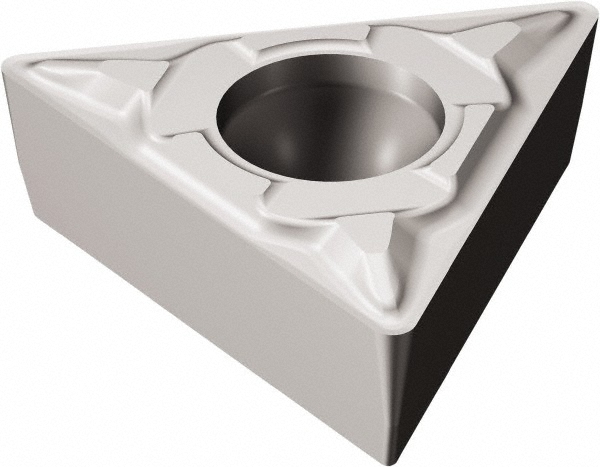

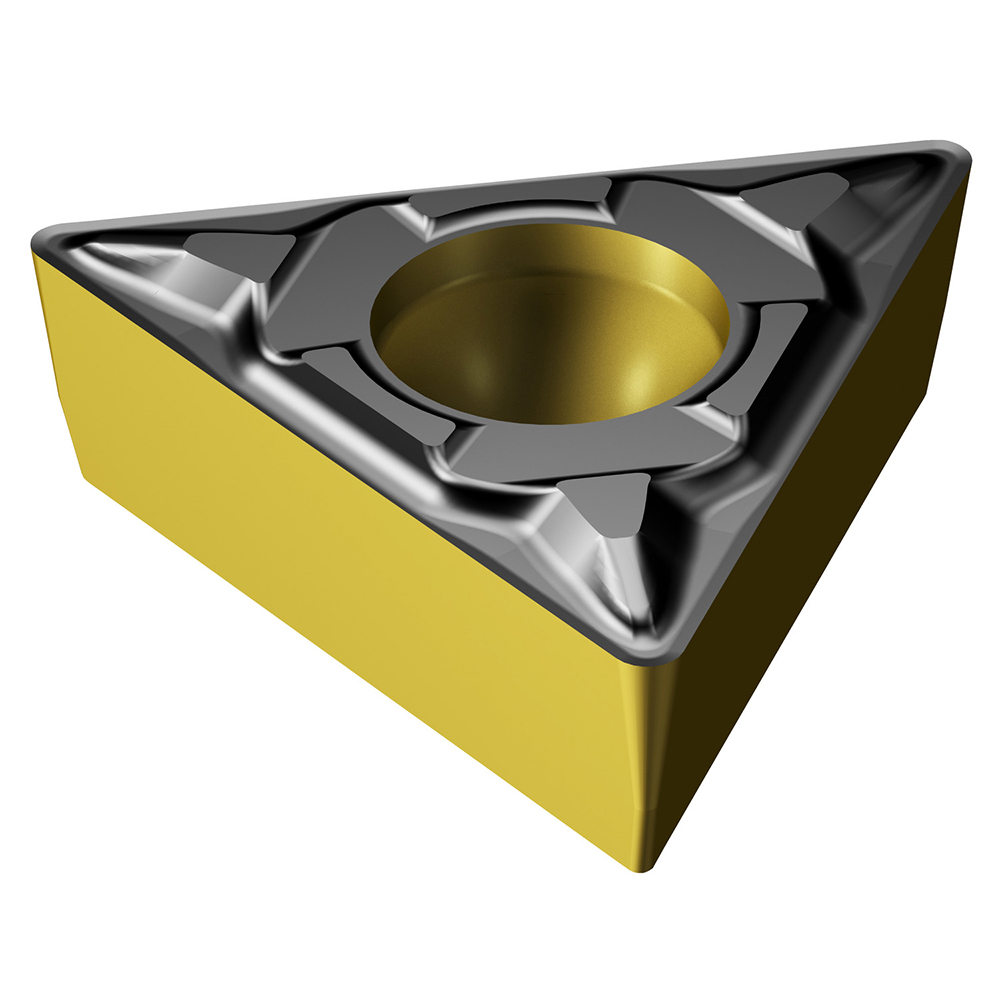

| Compatible Insert Style | TCMT 110304 |

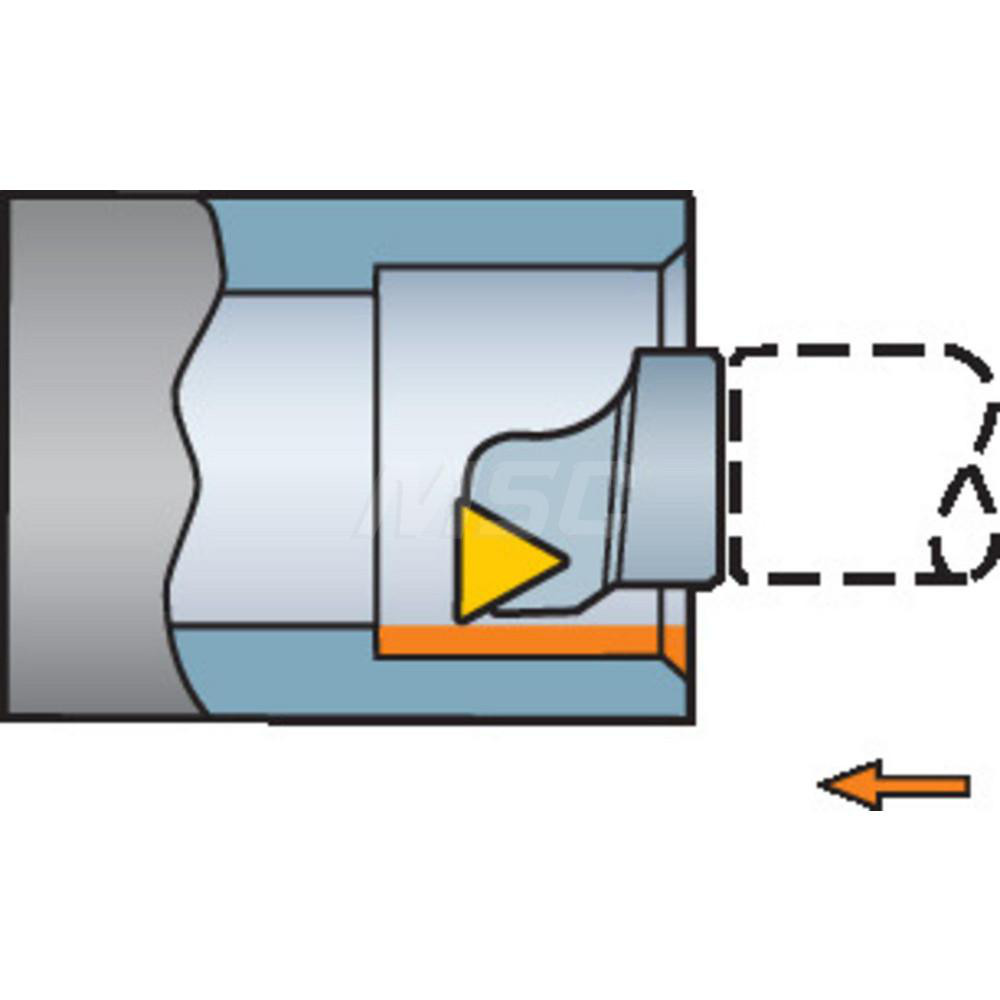

| Internal or External | Internal |
| Insert Holding Method | Screw; Clamp |

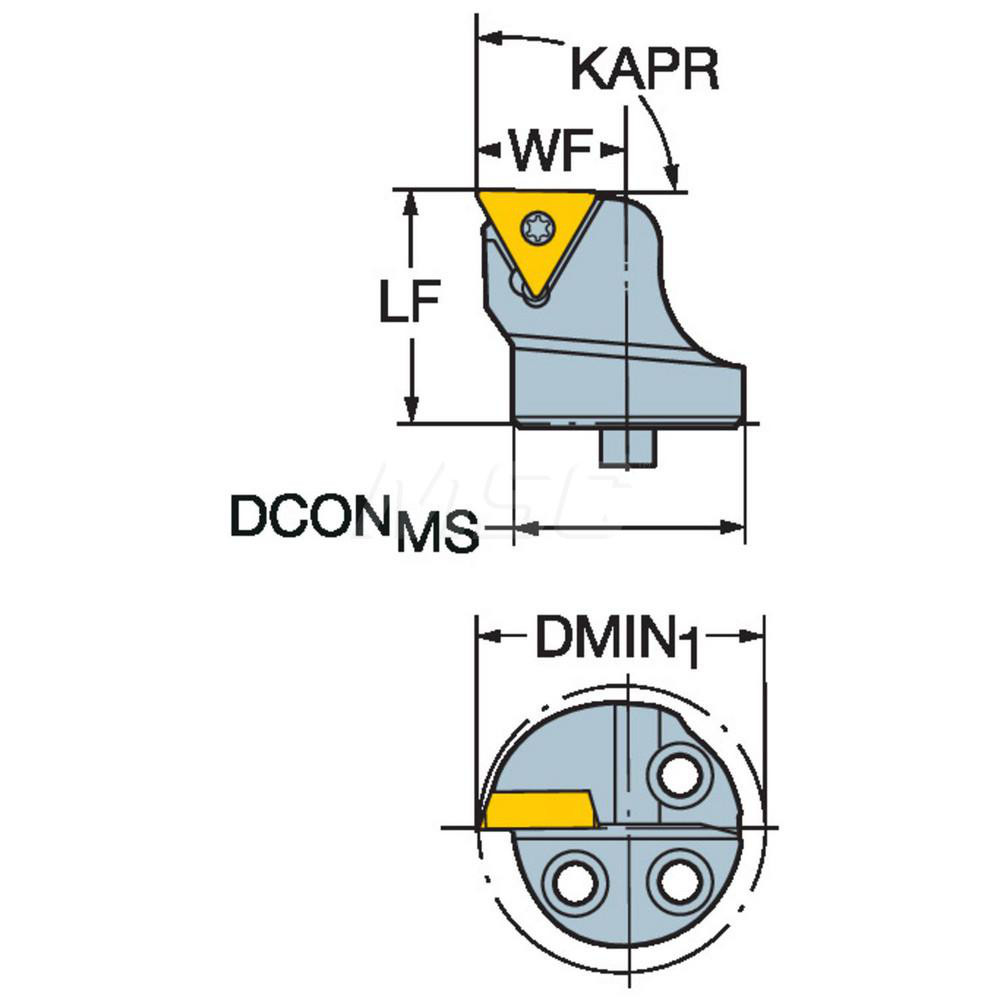

| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Series | CoroTurn 107 |
| Neck Diameter (mm) | 25.00 |
| Neck Diameter (Decimal Inch) | 0.9843 |
| Axial Rake Angle | 0.00 |
| Radial Rake Angle (Degrees) | -2 |
| Head Connection Size | C5 |
| Complete Insert Compatibility | TCMT 110304 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 0.7874 |
| Head Length Projection (mm) | 20.00 |
| Maximum Hole Depth (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 20.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.2598 |
| Minimum Hole Diameter (mm) | 32.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Norway |
| undefined | undefined |
| MSC Number | MSC# 64545478 |
