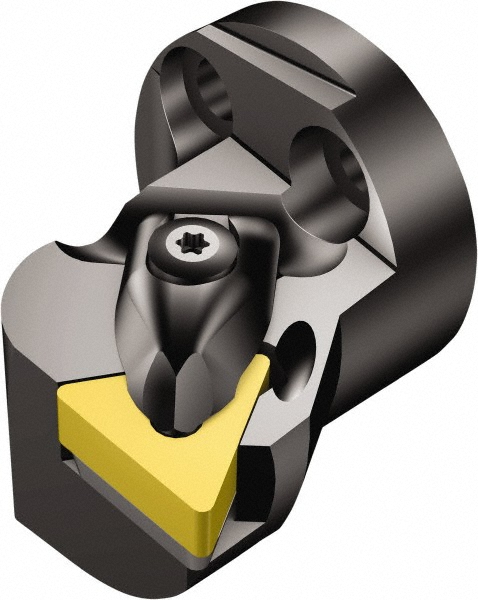

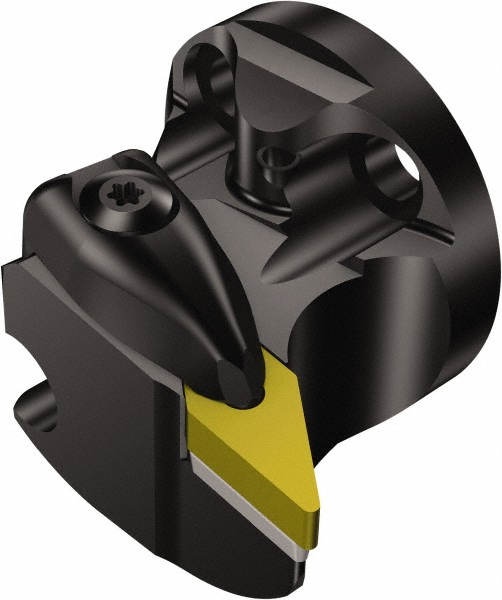

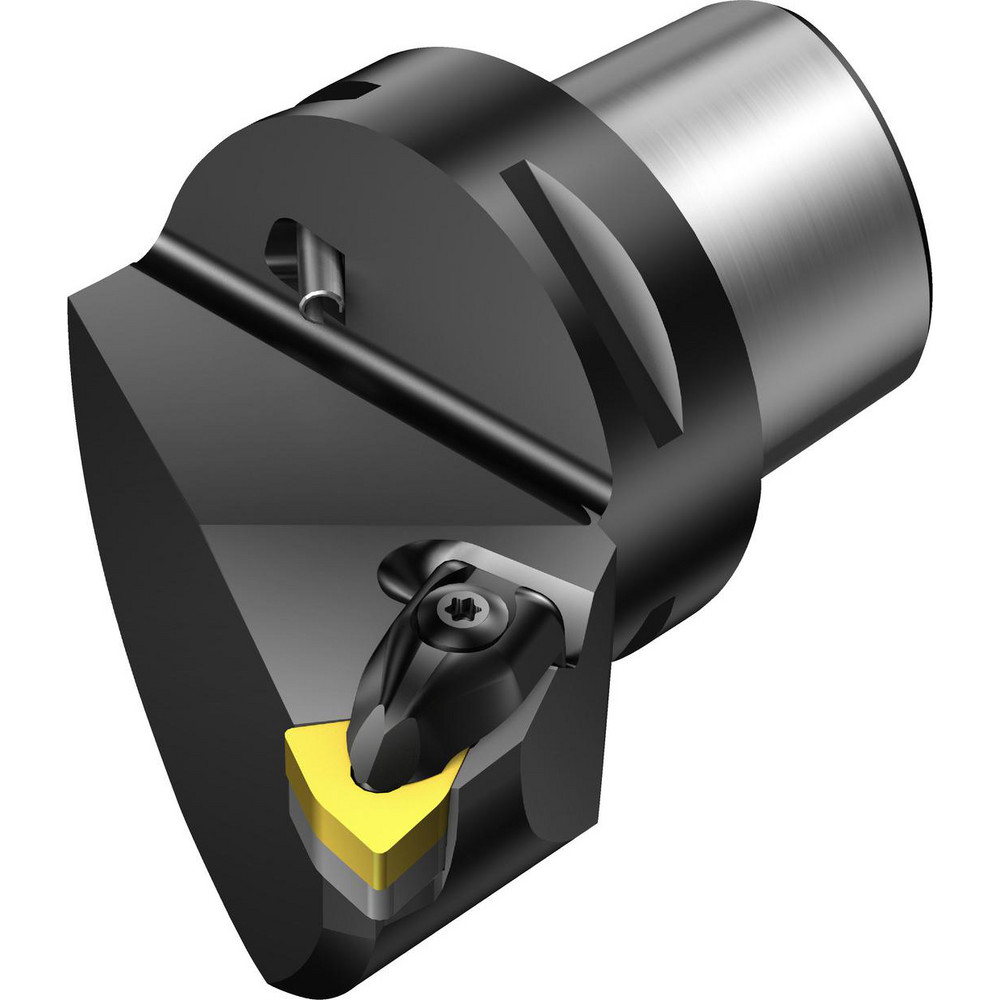

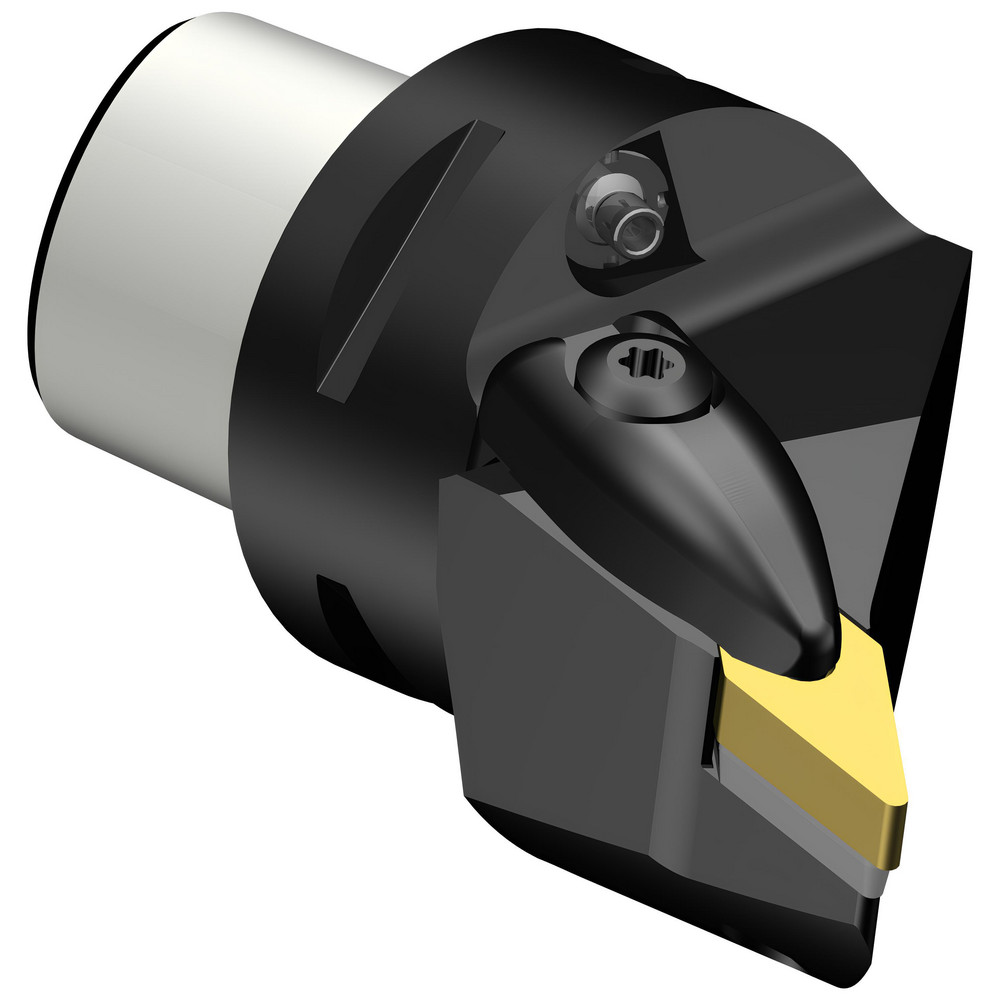

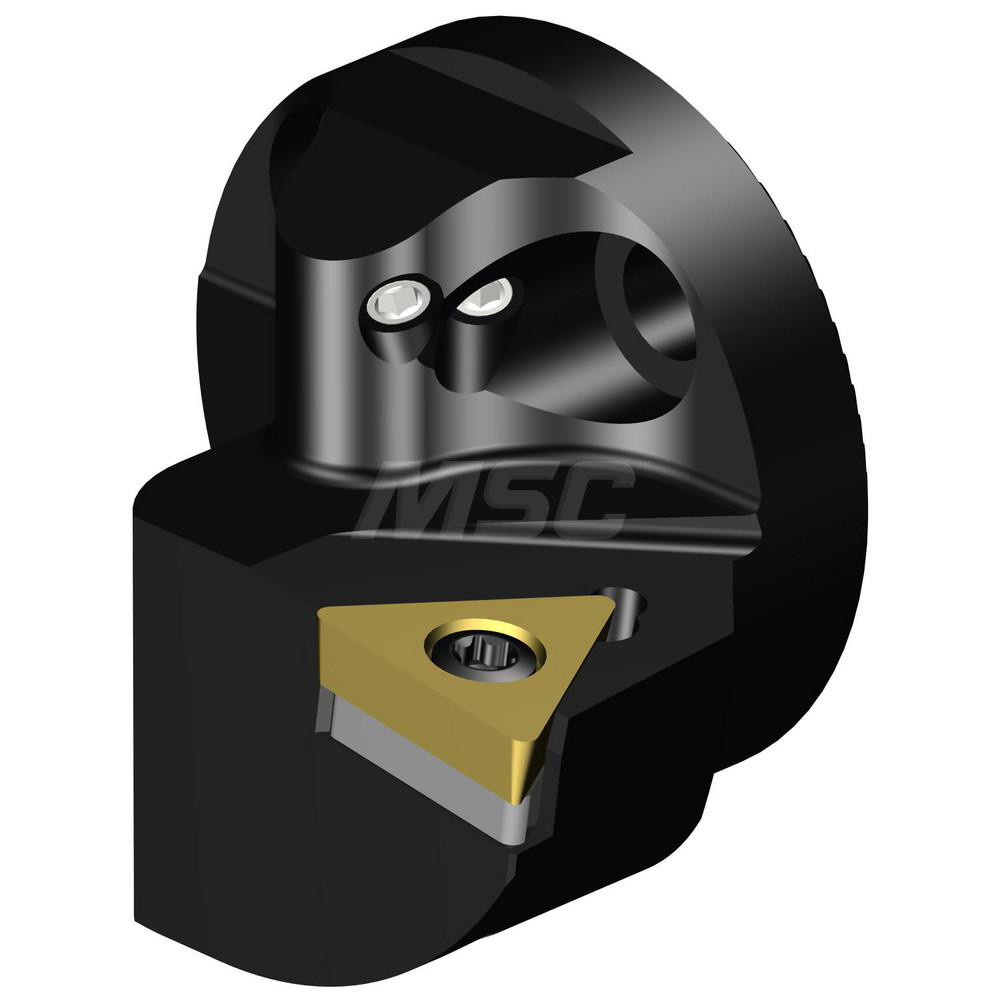

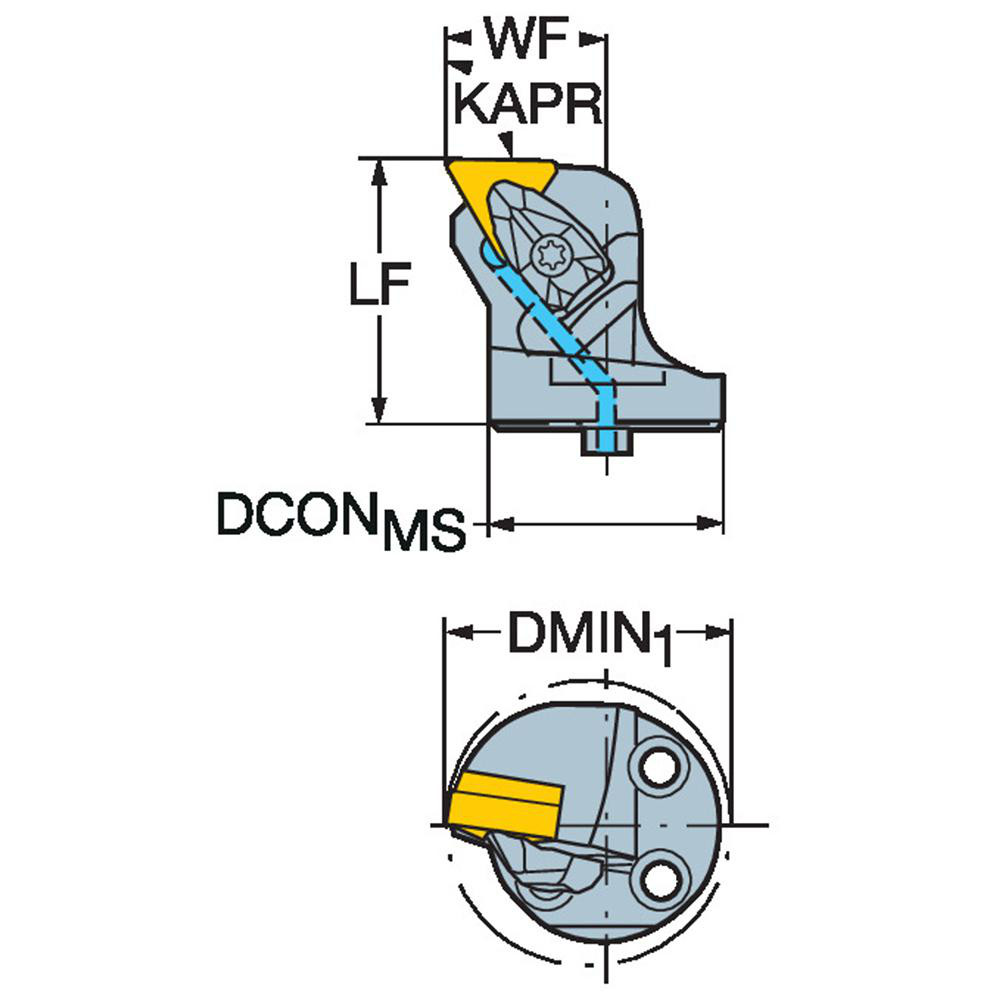

27 mm Center to Cutting Edge, Uses TNMG 160408 Inserts, Through Coolant
| System Size | 40 |
|---|---|
| Cutting Direction | Right Hand |
| Compatible Insert Style | TNMG 160408 |
| Internal or External | Internal or External |

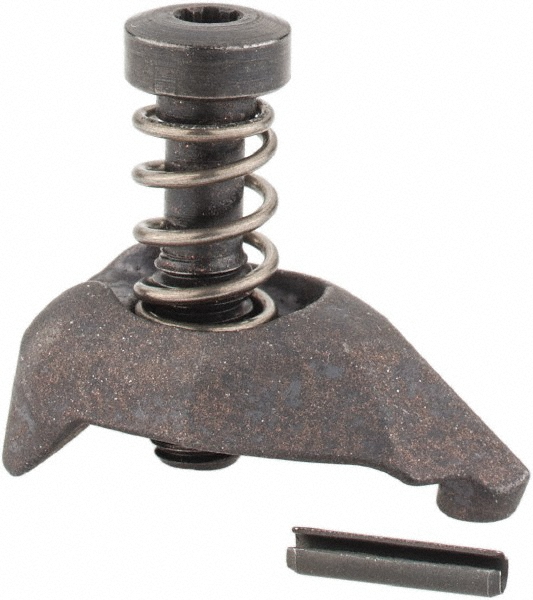

| Insert Holding Method | Wedge |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Series | T-Max P |
| Neck Diameter (mm) | 40.00 |
| Neck Diameter (Decimal Inch) | 1.5748 |
| Axial Rake Angle | -6.00 |
| Radial Rake Angle (Degrees) | -10 |
| Complete Insert Compatibility | TNMG 160408 |
| Coolant Through | Yes |
| Head Length Projection (Decimal Inch) | 1.4173 |
| Head Length Projection (mm) | 36.00 |
| Maximum Hole Depth (Decimal Inch) | 1.4173 |
| Maximum Hole Depth (mm) | 36.00 |
| Minimum Hole Diameter (Decimal Inch) | 1.9685 |
| Minimum Hole Diameter (mm) | 50.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Norway |
| MSC Number | MSC# 52071701 |
