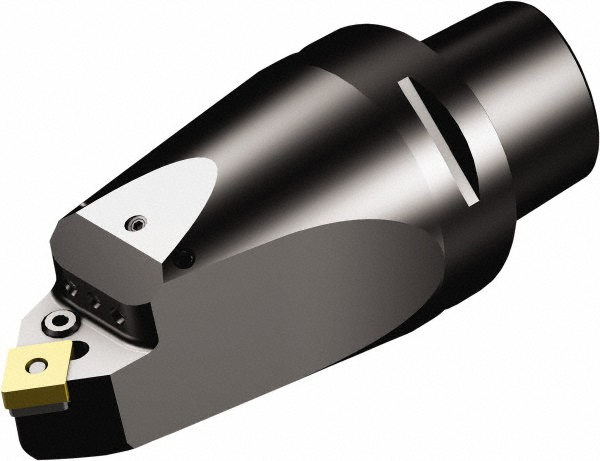

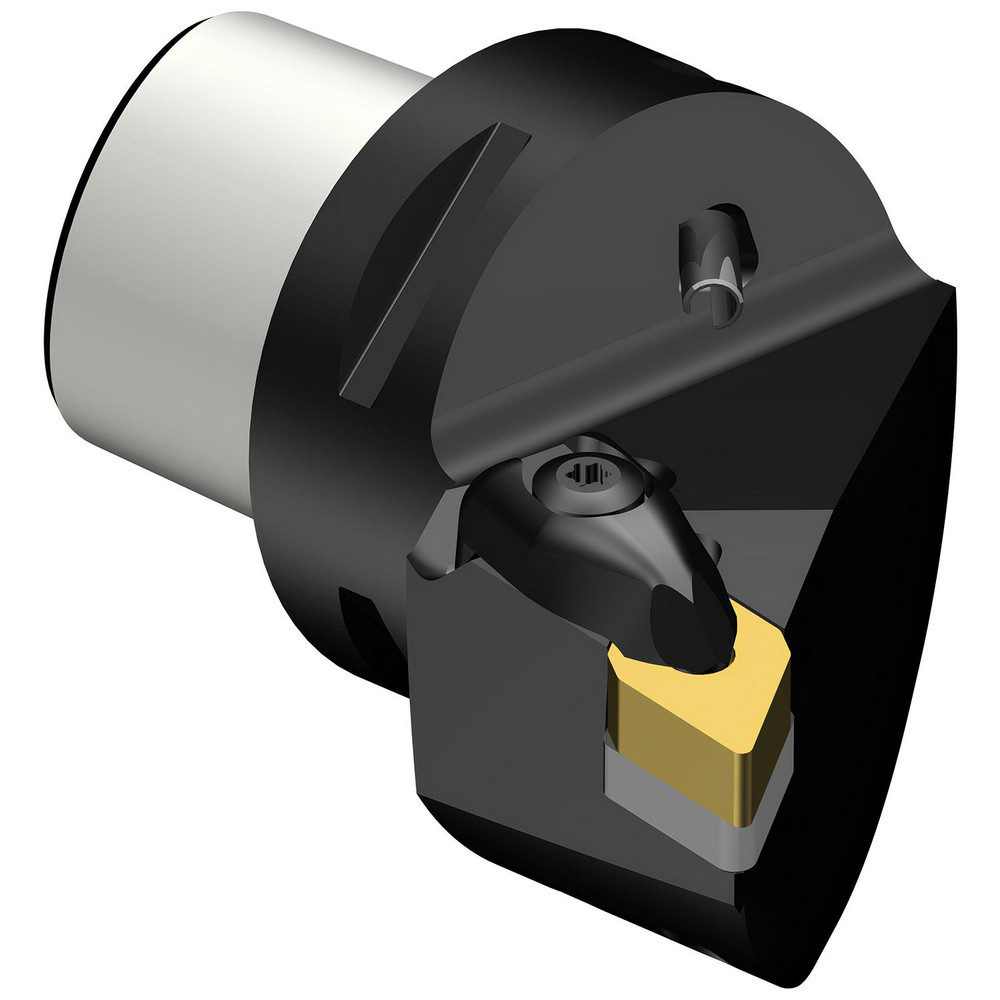

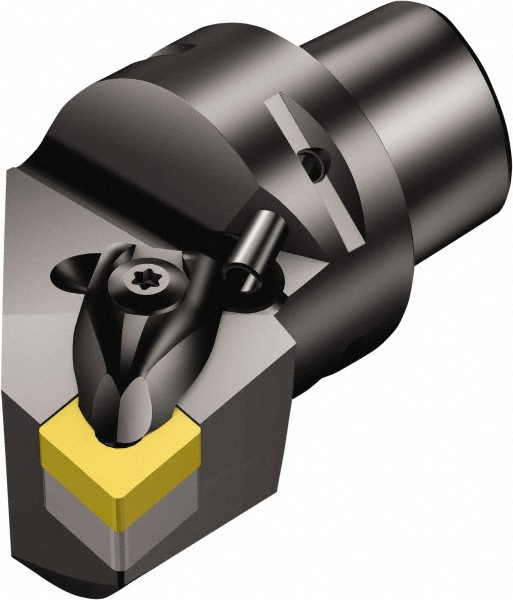

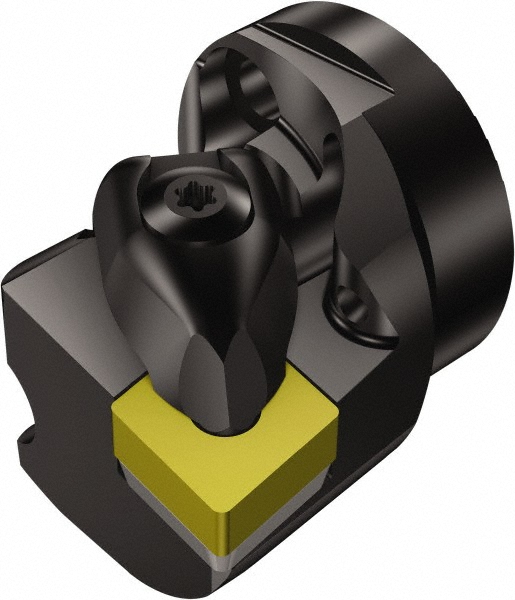

35 mm Center to Cutting Edge, Uses CNMG 160612, CNMG 543 Inserts, Through Coolant
| System Size | C5 |
|---|---|
| Cutting Direction | Right Hand |
| Compatible Insert Style | CNMG 543; CNMG 160612 |
| Internal or External | External |
| Insert Holding Method | Lever |
| Center to Cutting Edge (mm) | 35.00 |
| Center to Cutting Edge (Decimal Inch) | 1.3780 |
| Series | T-Max P |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Head Connection Size | C5 |
| Center to Cutting Height (mm) | 129.00 |
| Center to Cutting Height (Decimal Inch) | 5.0787 |
| Complete Insert Compatibility | CNMG 543; CNMG 160612 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 150.00 |
| Maximum Hole Depth (Decimal Inch) | 5.9055 |
| Maximum Hole Depth (mm) | 150.00 |
| Minimum Hole Diameter (Decimal Inch) | 2.4803 |
| Minimum Hole Diameter (mm) | 63.00 |
| UNSPSC Code | 23242100 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49480163 |
