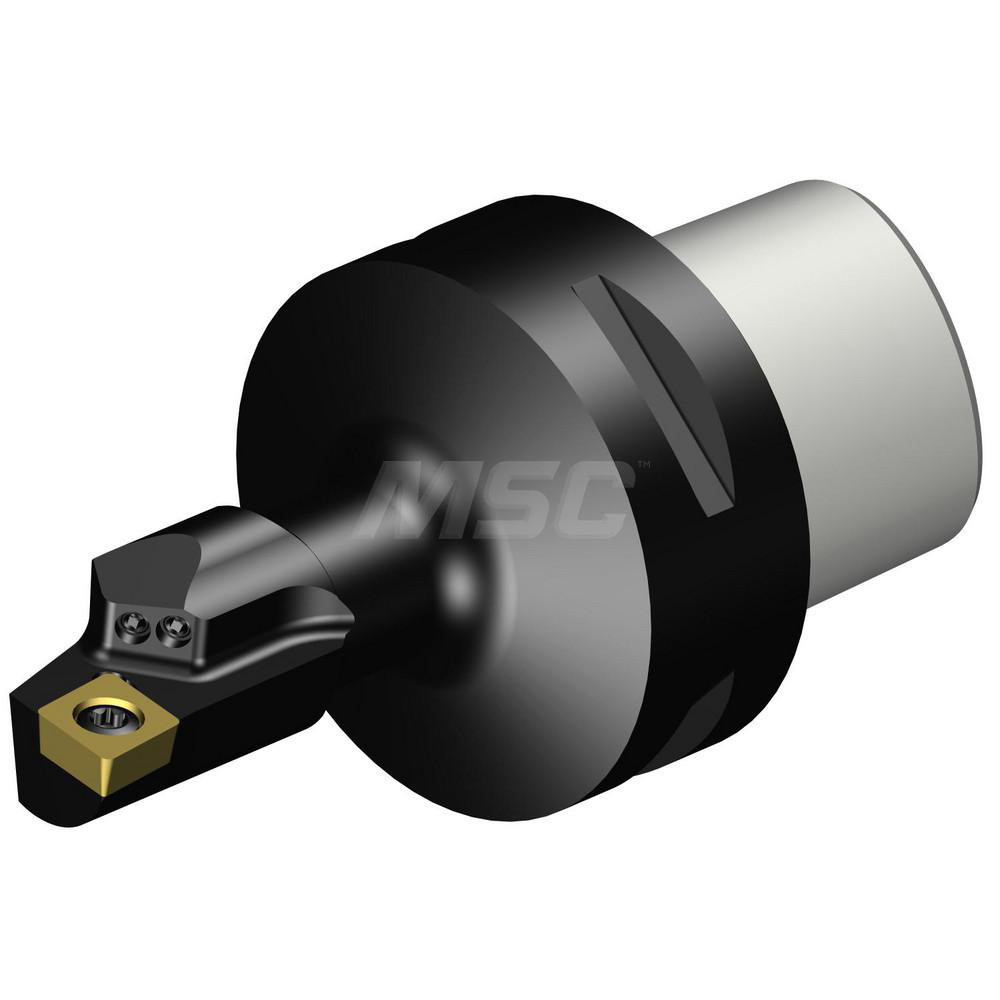

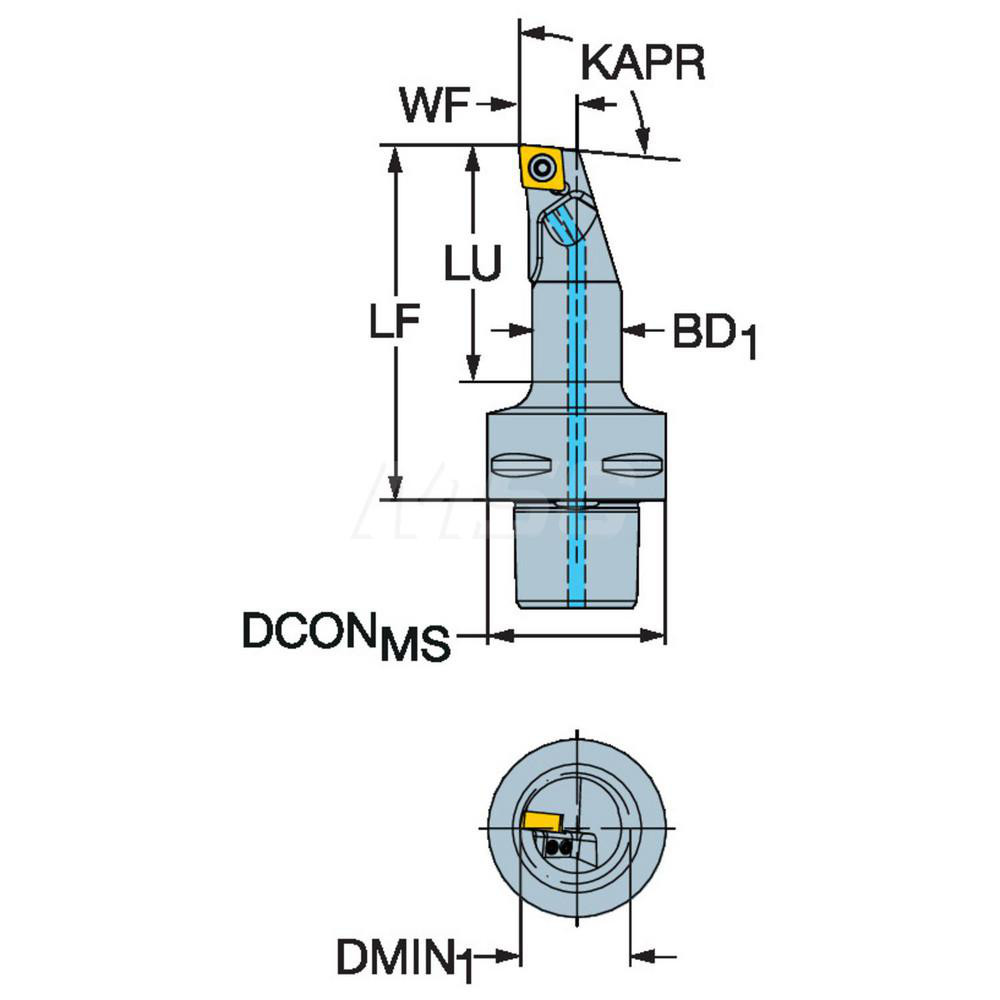

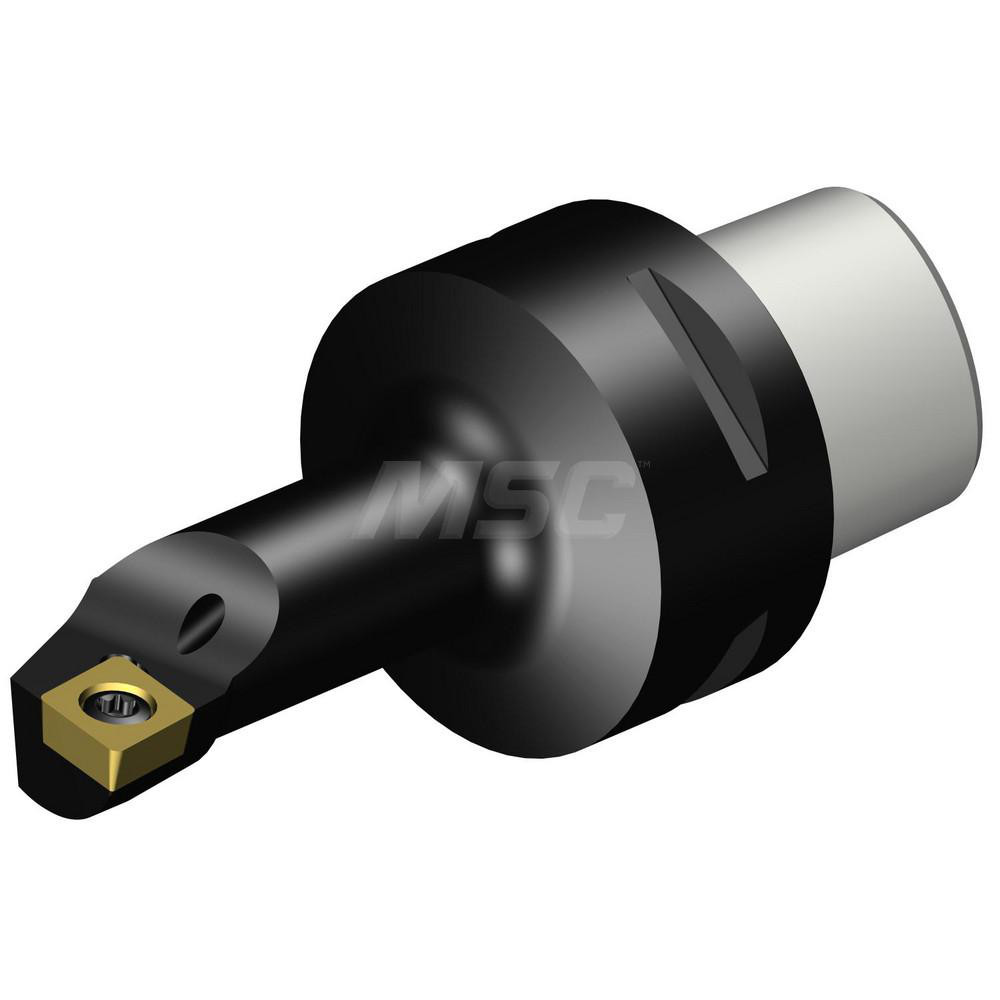

11 mm Center to Cutting Edge, Uses CCMT 09T308, CCMT 3(2.5)2 Inserts, Through Coolant
| System Size | C5 |
|---|---|
| Cutting Direction | Right Hand |
| Compatible Insert Style | CCMT 3(2.5)2; CCMT 09T308 |
| Internal or External | Internal |
| Insert Holding Method | Screw; Clamp |
| Center to Cutting Edge (mm) | 11.00 |
| Center to Cutting Edge (Decimal Inch) | 0.4331 |
| Series | CoroTurn 107 |
| Neck Diameter (mm) | 50.00 |
| Neck Diameter (Decimal Inch) | 1.9685 |
| Head Connection Size | C5 |
| Center to Cutting Height (mm) | 46.00 |
| Center to Cutting Height (Decimal Inch) | 1.8110 |
| Complete Insert Compatibility | CCMT 3(2.5)2; CCMT 09T308 |
| Coolant Through | Yes |
| Head Length Projection (mm) | 70.00 |
| Maximum Hole Depth (Decimal Inch) | 2.7559 |
| Maximum Hole Depth (mm) | 70.00 |
| Minimum Hole Diameter (Decimal Inch) | 0.8465 |
| Minimum Hole Diameter (mm) | 21.50 |
| UNSPSC Code | 23242100 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49482276 |
