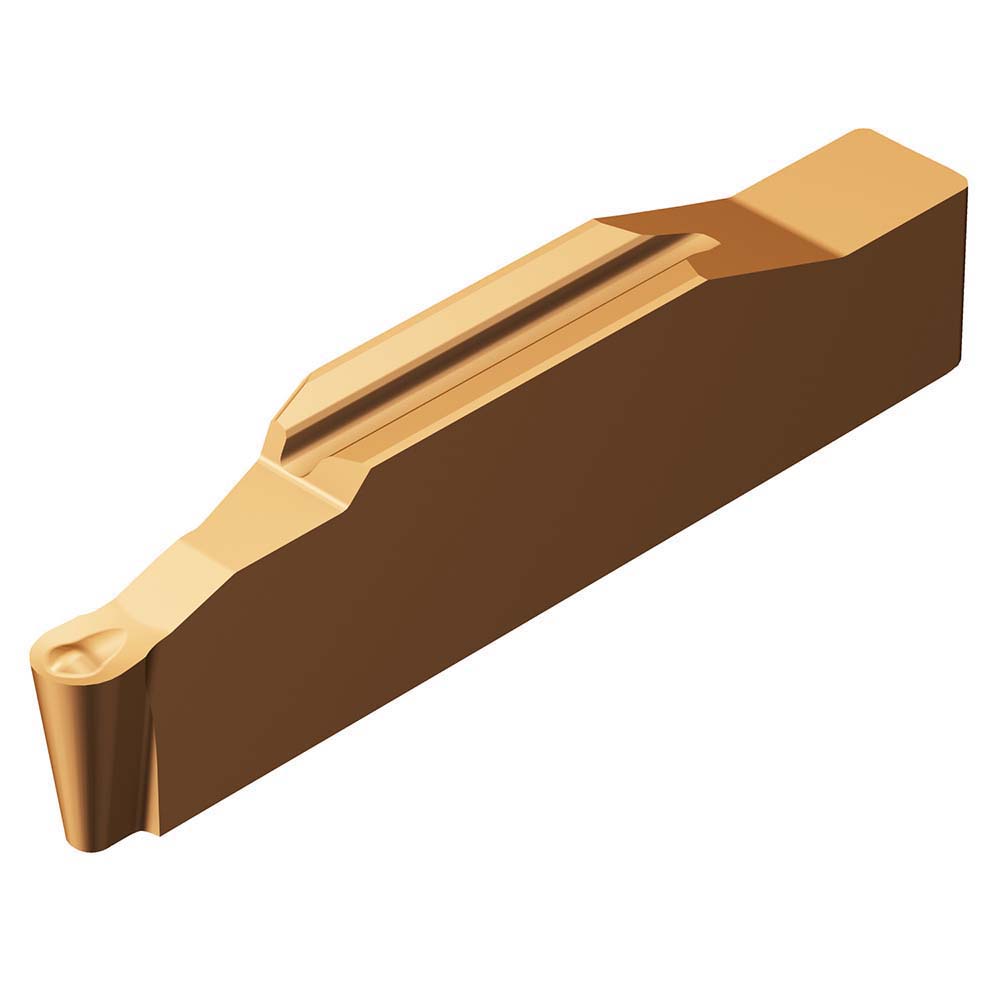

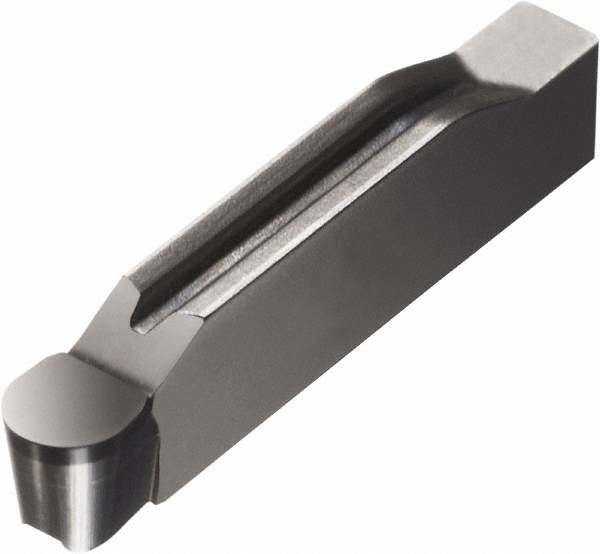

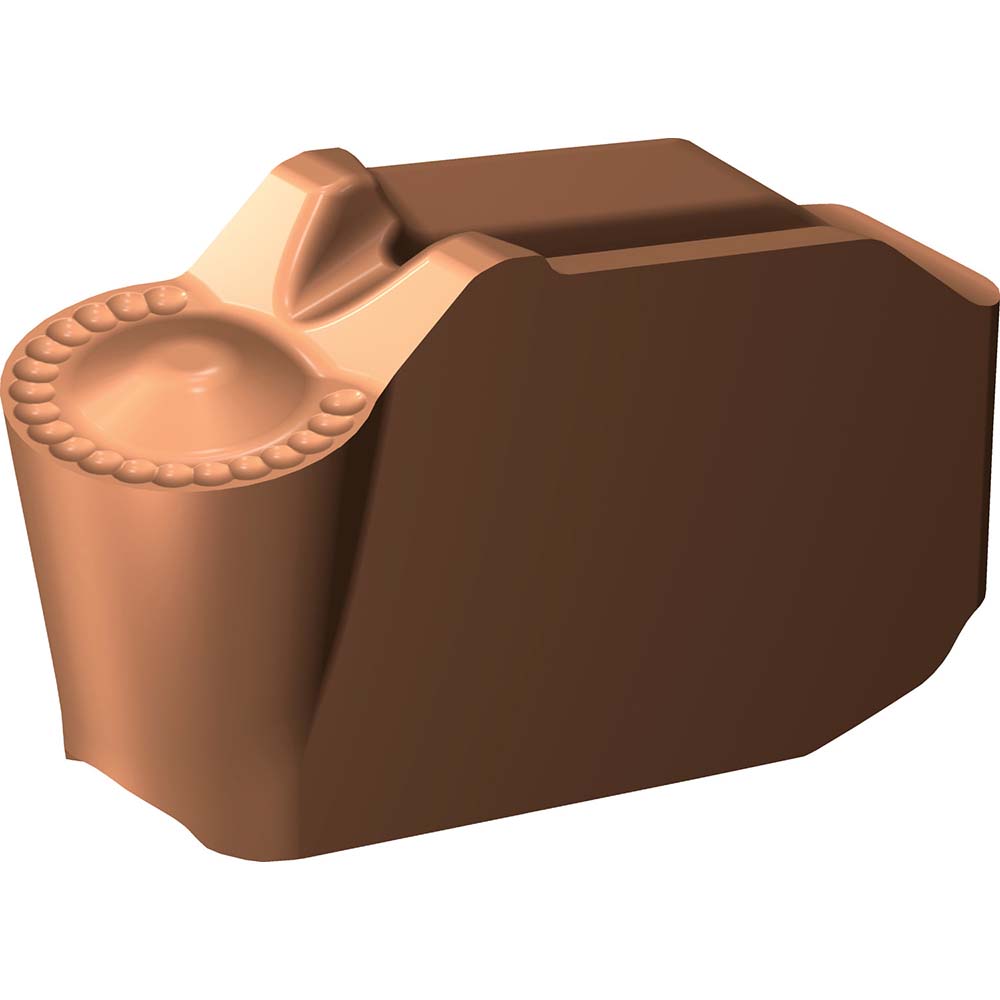

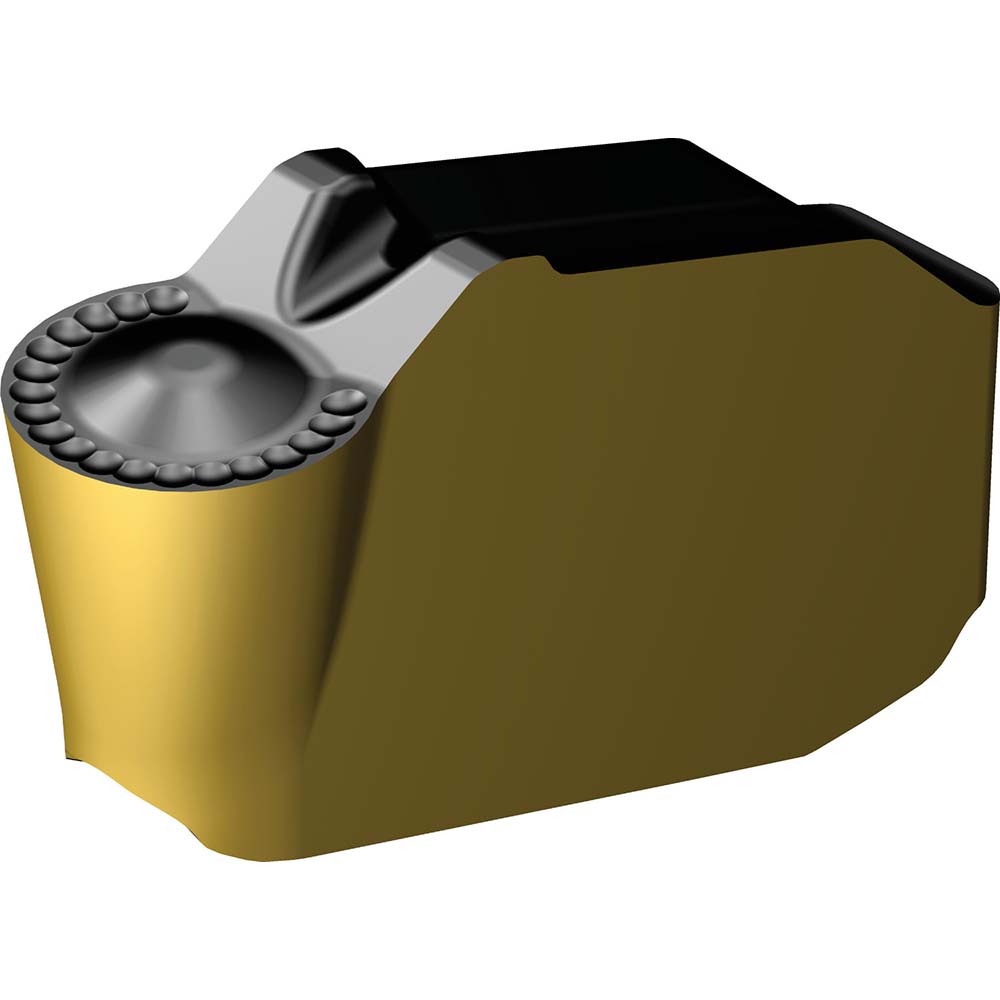

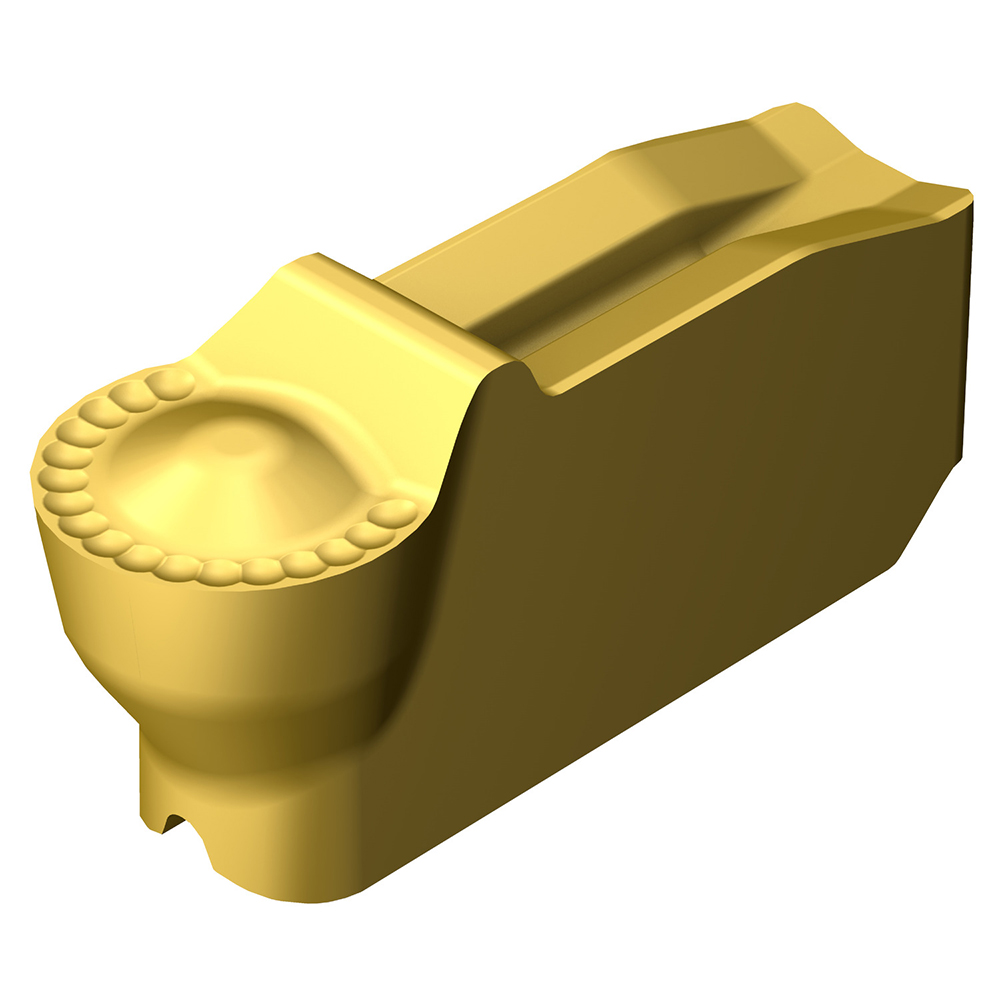

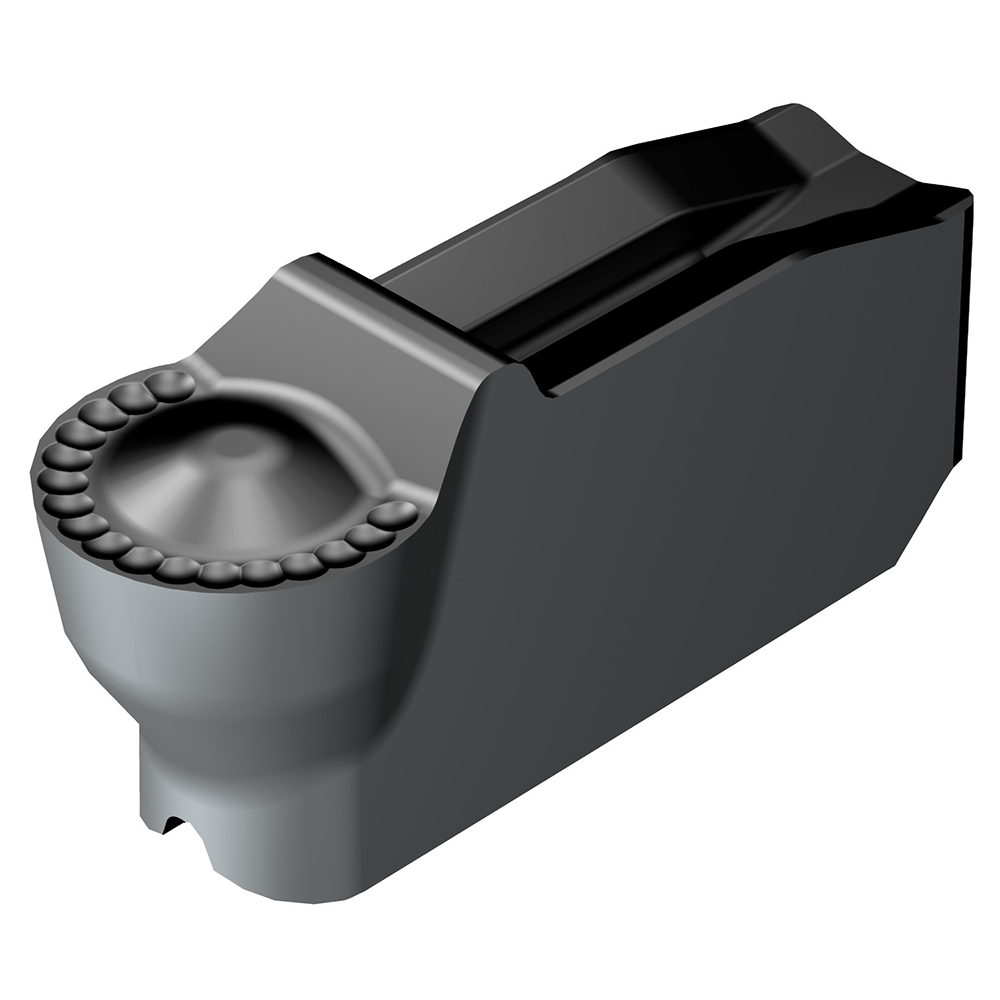

Carbide, 0.0788" Corner Radius, Series CoroCut QI
| Insert Style | QI |
|---|---|
| Insert Size Code | 0400 |
| Insert Material | Carbide |
| Material Grade | M25; S25 |
| Manufacturer Grade | 1125 |
| Insert Height (Decimal Inch) | 0.1241 |
| Maximum Depth of Cut (Decimal Inch) | 0.0788 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |

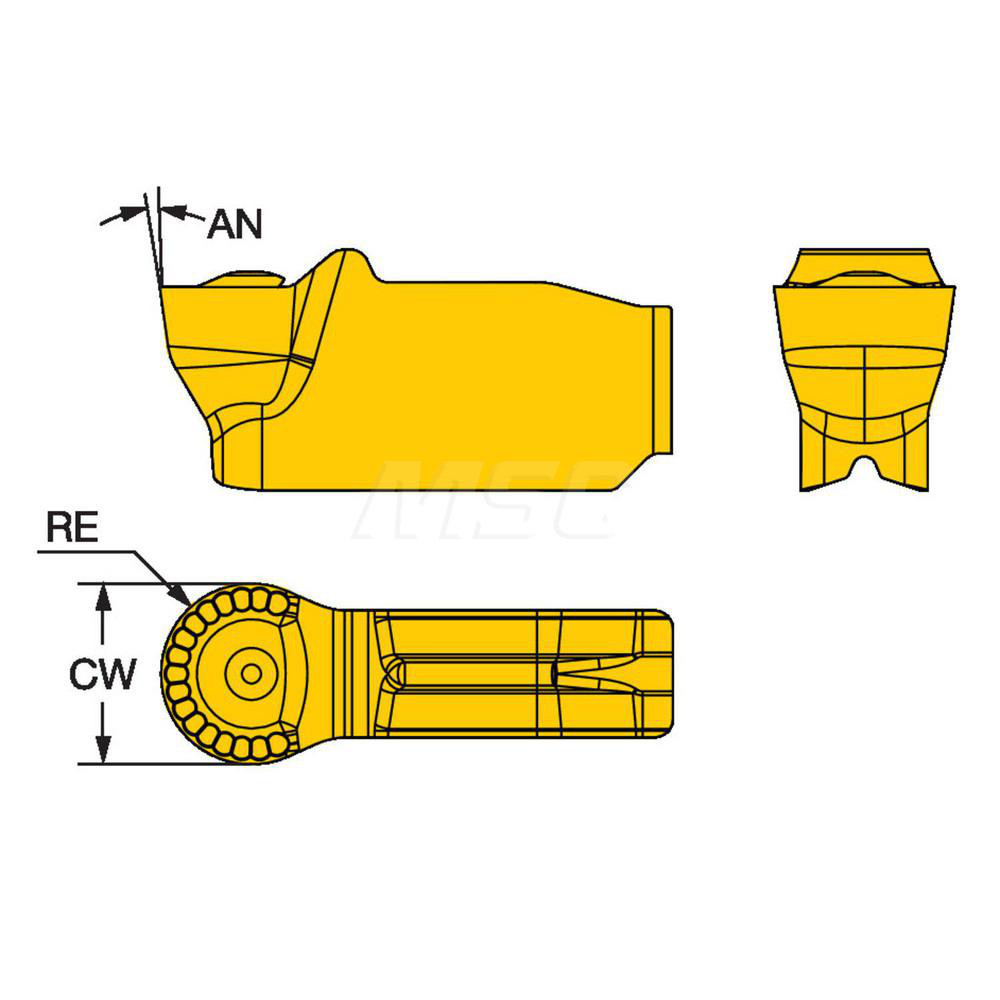

| Corner Radius (Decimal Inch) | 0.0788 |
| Included Angle | 360 |
| Relief Angle | 8 |
| Chipbreaker | RM |
| Inscribed Circle (Decimal Inch) | 0.1576 |
| Series | CoroCut QI |
| Coating Process | PVD |
| Rake | Positive |
| Number Of Cutting Edges | 1 |
| Hole Diameter (Decimal Inch) | 0.0000 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Secondary Workpiece Material | Stainless Steel |
| Iso Code | QI-NH-0400-RM 1125 |
| Standards | QI-NH-0400-RM 1125 |
| Shape | Rectangle |

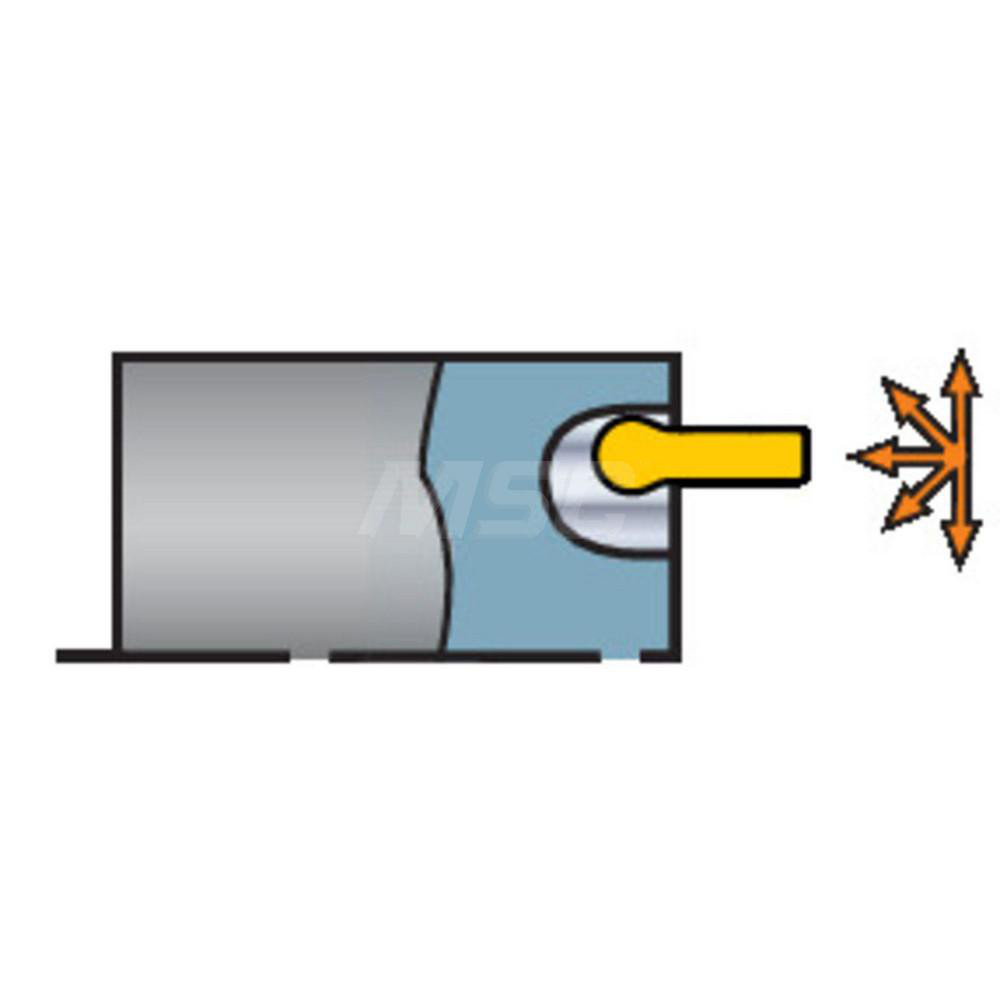

| Applications | Profiling; Turning |
| MSC/Manufacturer Number | QI-NH-0400-RM 1125 |
| Coating Classification | PVD |
| Coating/Finish | TiAlN |
| Thickness (Decimal Inch - 4 Decimals) | 0.1241 |
| Width (Decimal Inch - 4 Decimals) | 0.1576 |
| UNSPSC Code | 23171618 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 17698689 |
