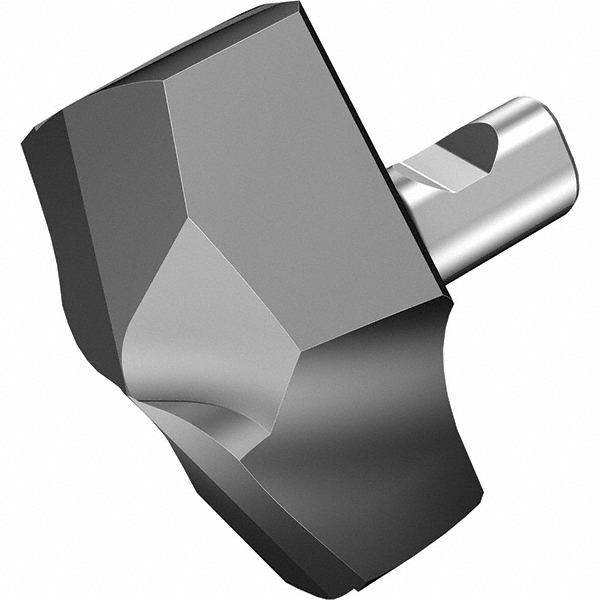

Seat Size 20, TiAlN Finish

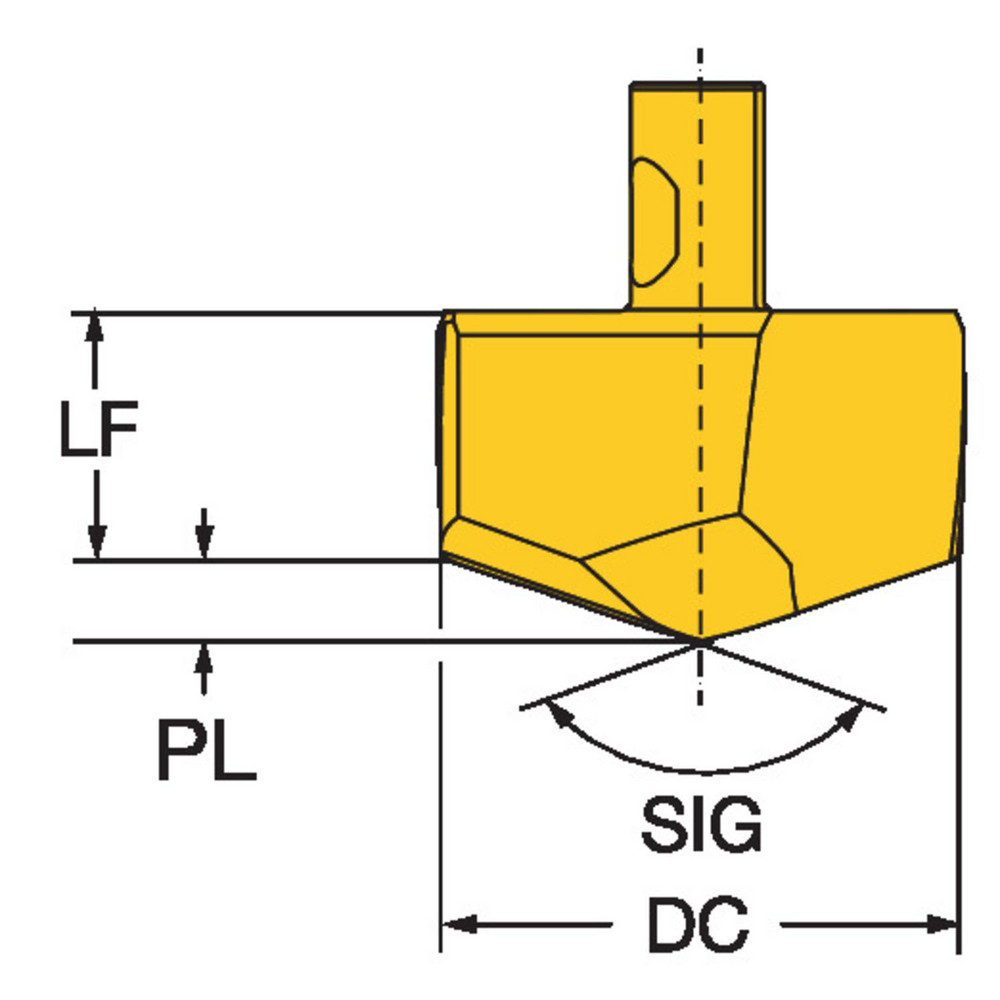

| Cutting Diameter (Decimal Inch) | 0.7874 |
|---|---|
| Cutting Diameter (mm) | 20.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | 4334 |
| Material Grade | Fine Grain |
| Series | CoroDrill 870 |
| Coating Process | PVD |
| Insert Geometry | PM |
| Insert Seat Size | 20 |
| Functional Length (Decimal Inch) | 0.3732 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Height (mm) | 12.00 |
| Overall Length/Projection (Decimal Inch) | 0.4921 |
| Drill Point Angle | 142 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | 870-2000-20-PM 4334 |
| Coolant Through | No |
| Flute Length (mm) | 9.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | CoroDrill 870 |
| UNSPSC Code | 23242105 |
| Applications | SolidDrilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 142 |
| Number Of Flutes | 2 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 31233067 |
