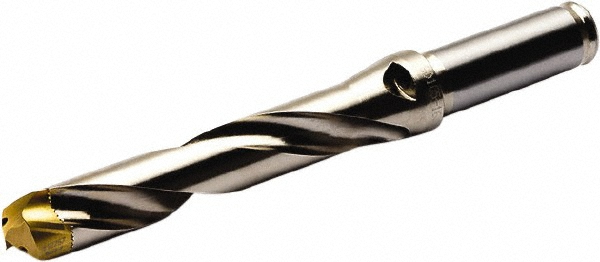

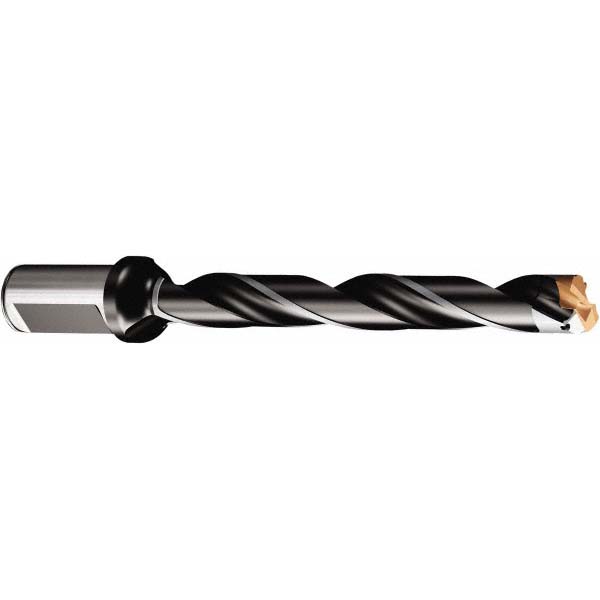

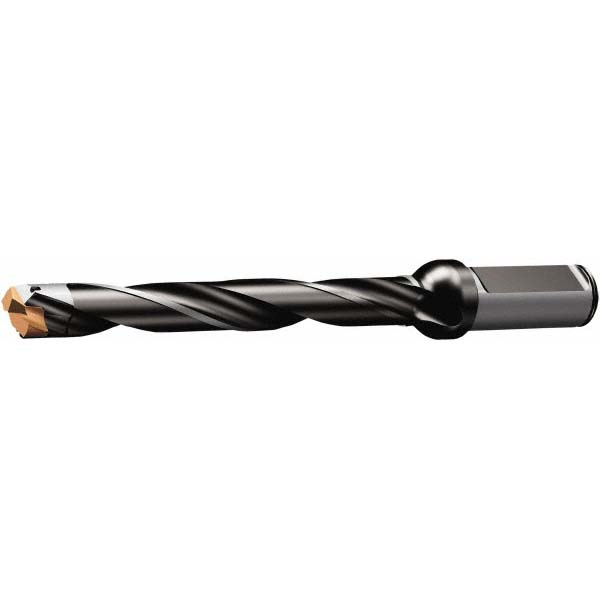

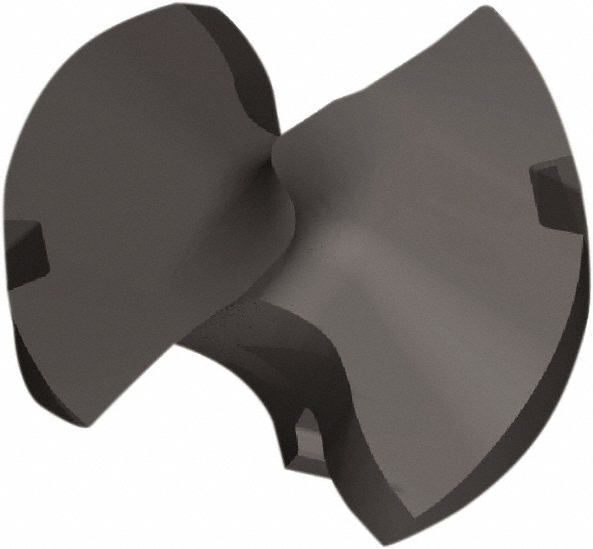

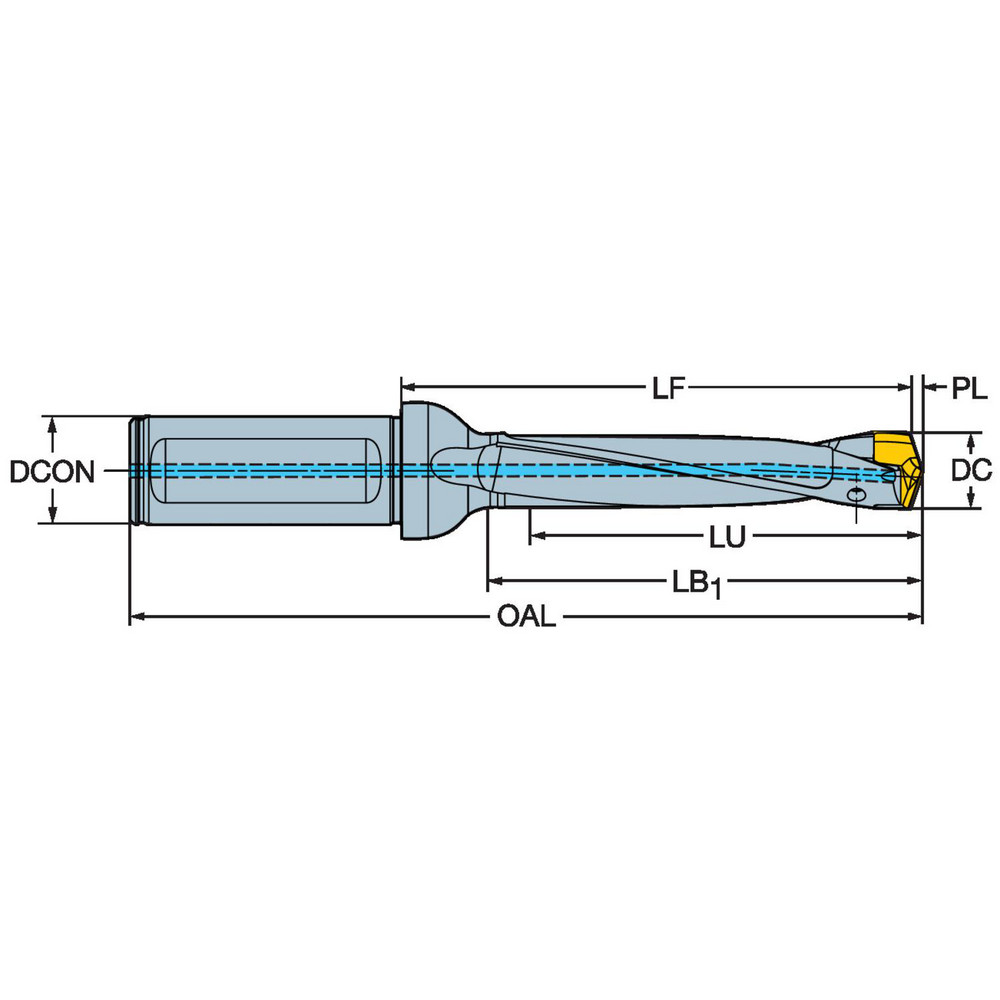

Uses 870-1140-8-PM Inserts, Seat Size 8, 122 mm OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
|---|---|
| Minimum Drill Diameter (mm) | 11.00 |
| Maximum Drill Diameter (mm) | 11.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4524 |
| Maximum Drill Depth (mm) | 59.21 |
| Maximum Drill Depth (Decimal Inch) | 2.3311 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Seat Size | 8 |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 1.5000 to 2.5000 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Compatible Insert Style | 870-1140-8-PM |
| Overall Length (mm) | 122 |
| Overall Length (Decimal Inch) | 4.8032 |
| Series | CoroDrill 870 |
| Toolholder Style | 870 L-5 |
| Body Length (Decimal Inch) | 2.4016 |
| Body Length (mm) | 61.00 |
| Shank Length (Decimal Inch) | 1.9587 |
| Shank Length (mm) | 49.75 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 49335235 |
