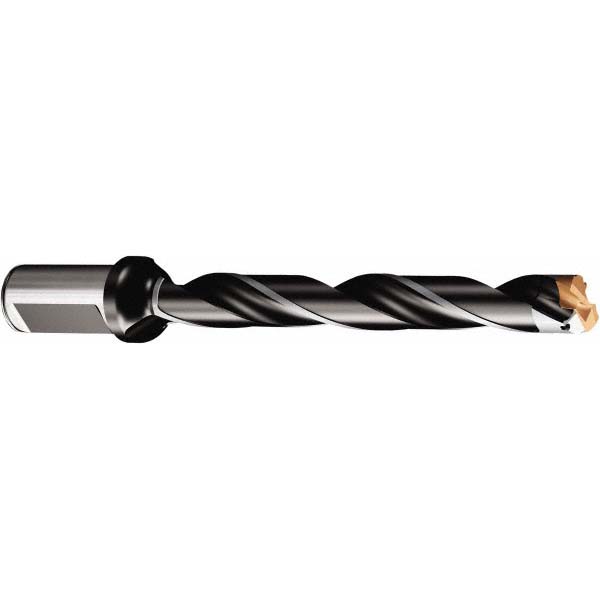

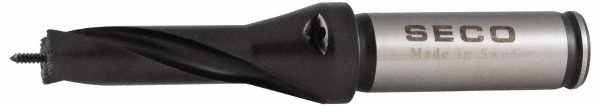

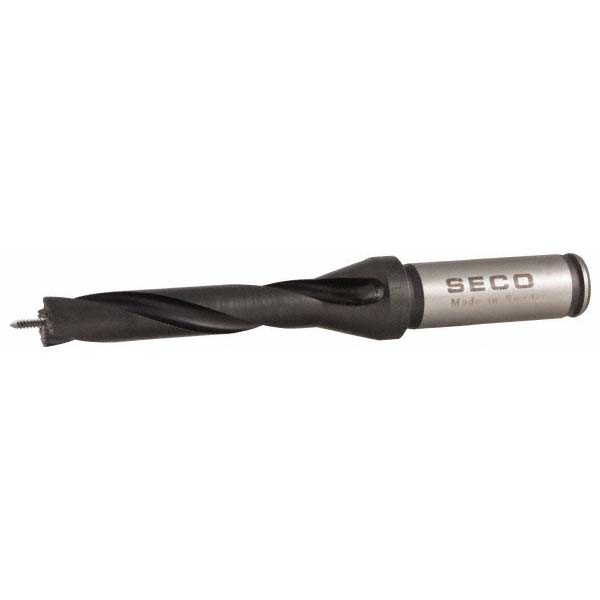

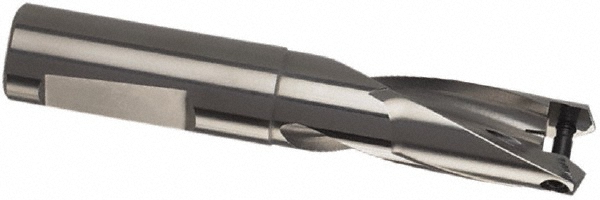

Uses 870-1240-10-PM Inserts, Seat Size 10, 5" OAL, Through Coolant
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
|---|---|
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Maximum Drill Depth (mm) | 64.36 |
| Maximum Drill Depth (Decimal Inch) | 2.5339 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Seat Size | 10 |
| Shank Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |

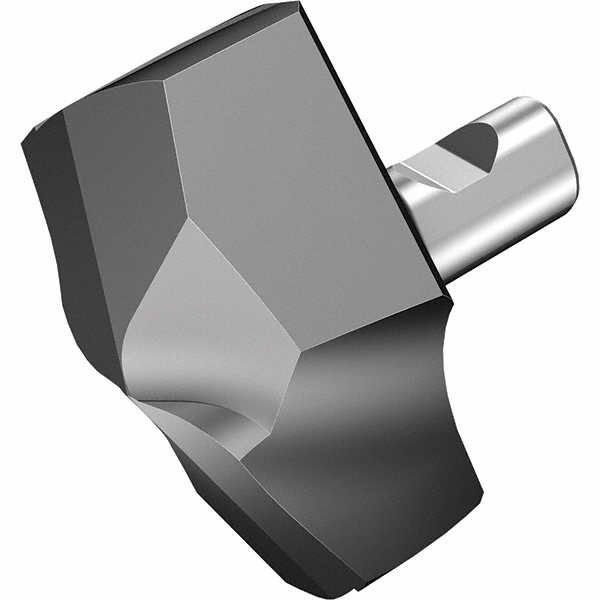

| Compatible Insert Style | 870-1240-10-PM |

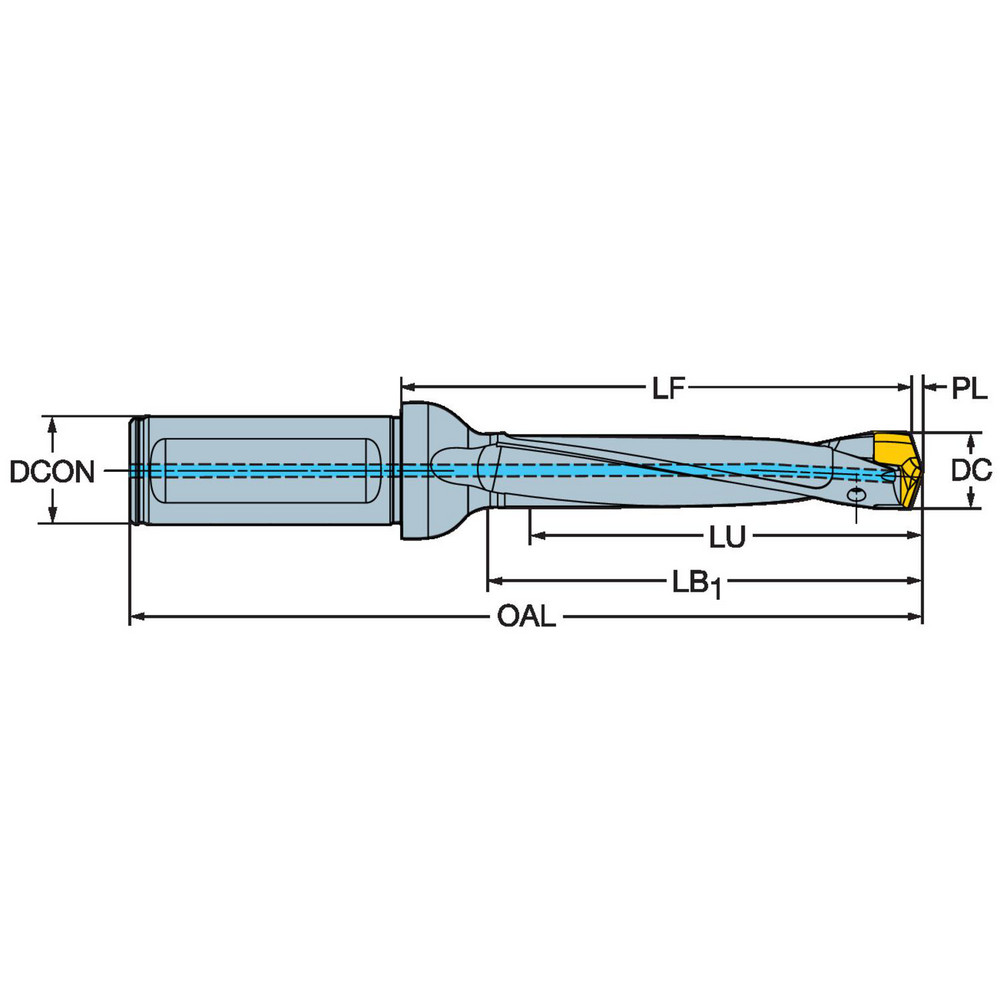

| Overall Length (Decimal Inch) | 5 |
| Overall Length (Inch) | 5 |
| Series | CoroDrill 870 |
| Toolholder Style | 870 L-5 |
| Body Length (Decimal Inch) | 2.5984 |
| Body Length (mm) | 66.00 |
| Shank Length (Decimal Inch) | 1.9646 |
| Shank Length (mm) | 49.90 |
| Coolant Through | Yes |
| UNSPSC Code | 23291502 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 65891780 |
