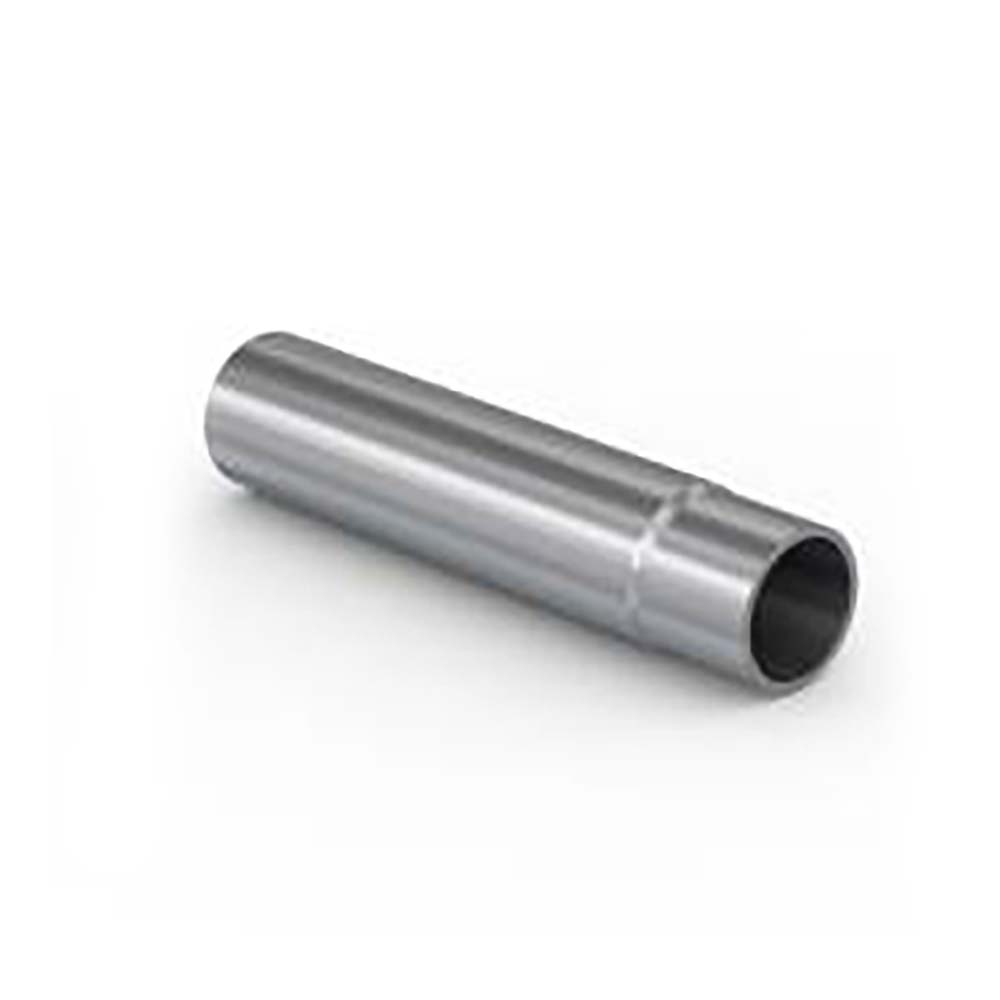

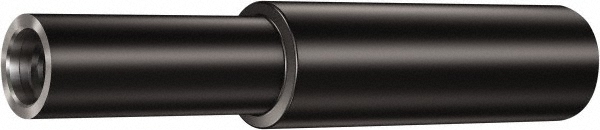

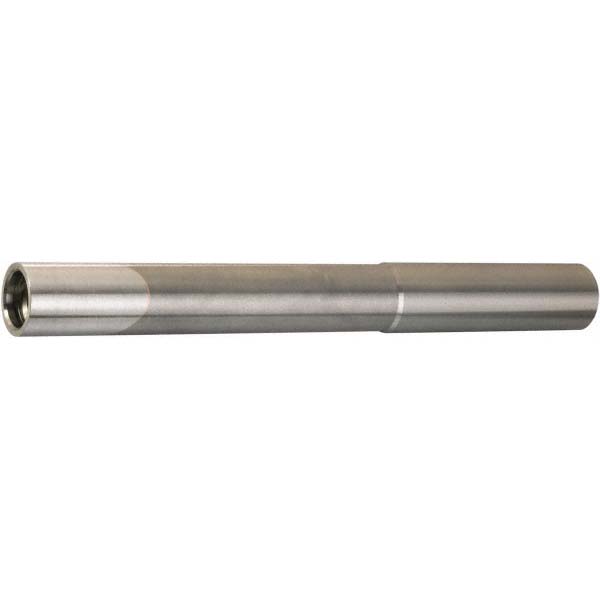

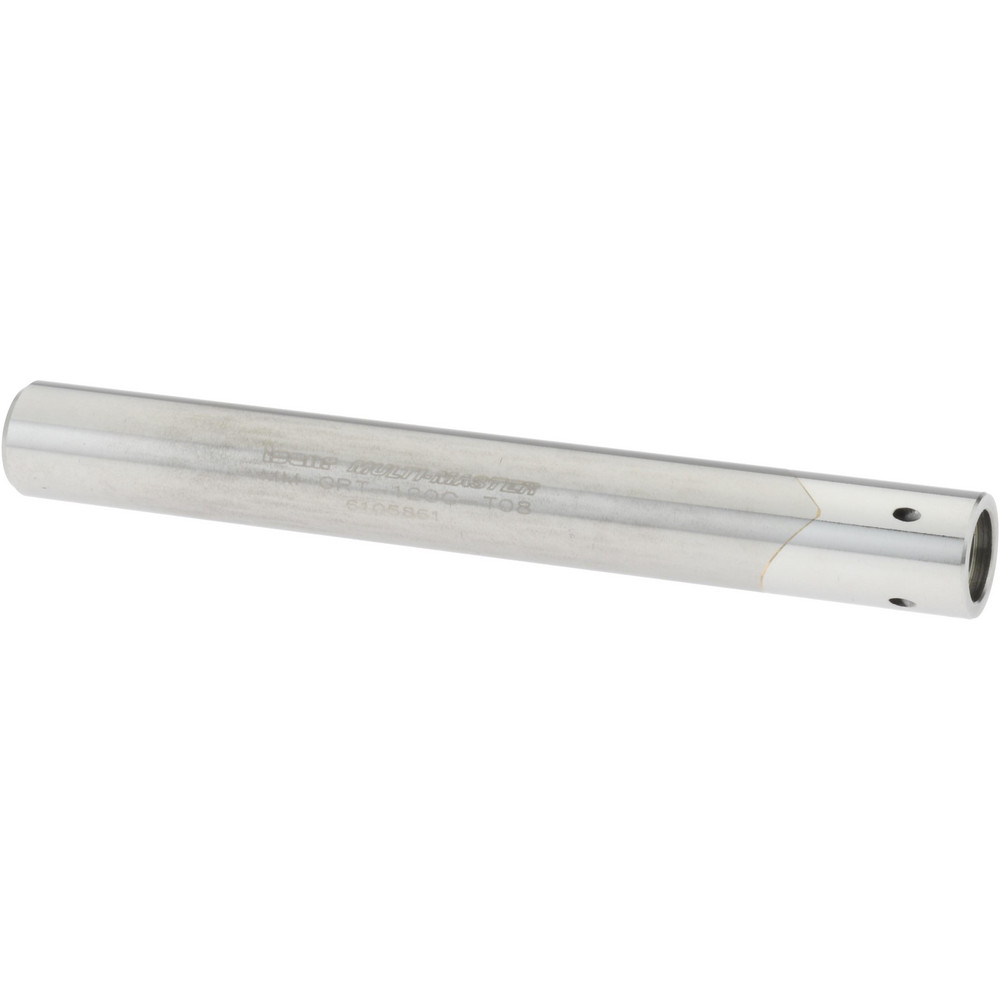

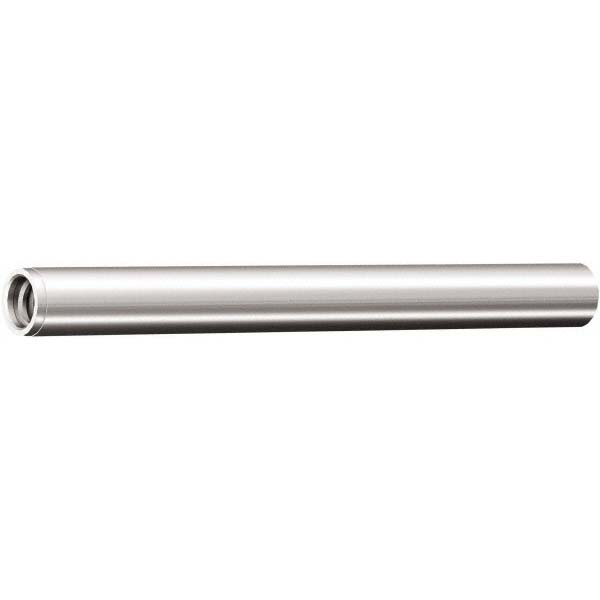

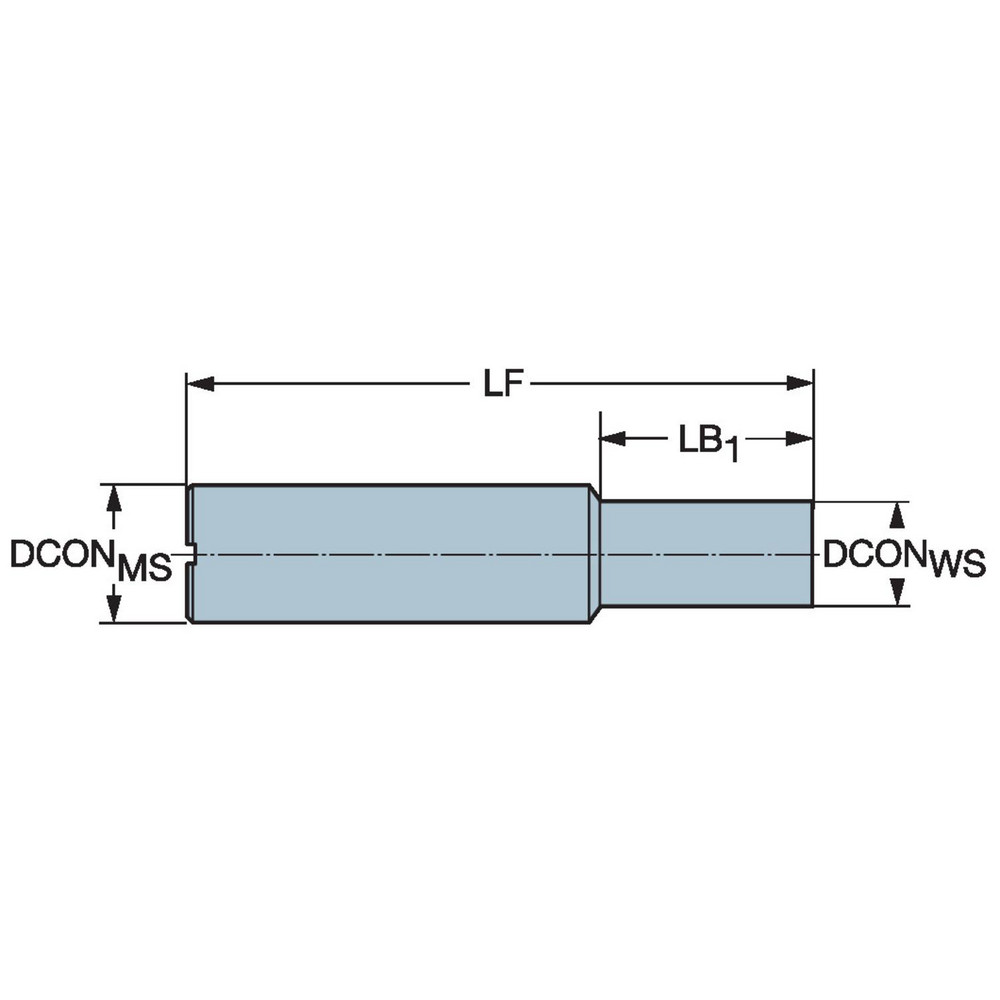

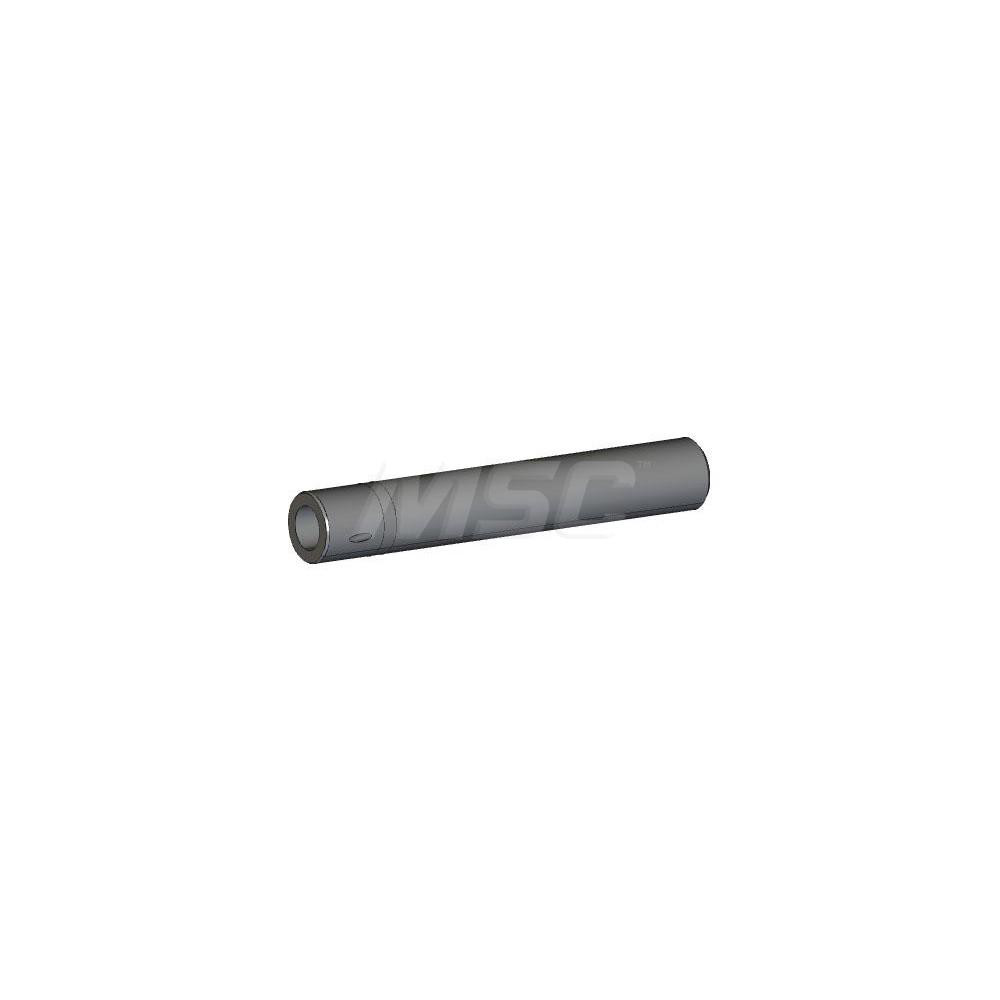

E12 Neck Thread, 0.4567" Neck Dia, 100 mm OAL, Steel
| Shank Type | Straight |
|---|---|
| Shank Diameter (mm) | 11.99 |
| Shank Diameter (Decimal Inch) | 0.4722 |
| Neck Thread Size | E12 |
| Overall Length (mm) | 100.00 |
| Overall Length (Decimal Inch) | 3.9370 |
| Shank Shape | Round |
| Tool Material | Steel |
| Neck Diameter (Decimal Inch) | 0.4567 |
| Coolant Through | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.4567 |
| Nose Diameter (Mm) ( - 2 Decimals) | 11.60 |
| Toolholder Style | Exx-Axx-SE |
| Series | Coromant EH |
| Head Length (Decimal Inch) | 1.8898 |
| Maximum Diameter (Decimal Inch) | 0.4567 |
| Maximum Diameter (mm) | 11.60 |
| Weldon Flat | No |
| Effective Length (mm) | 48.00 |
| Thread Size Connection to Tip | E12 |
| Projection (mm) | 48.00 |
| Projection (Decimal Inch) | 1.8898 |
| UNSPSC Code | 23291600 |
| Country of Origin | Germany |
| MSC Number | MSC# 54142278 |
