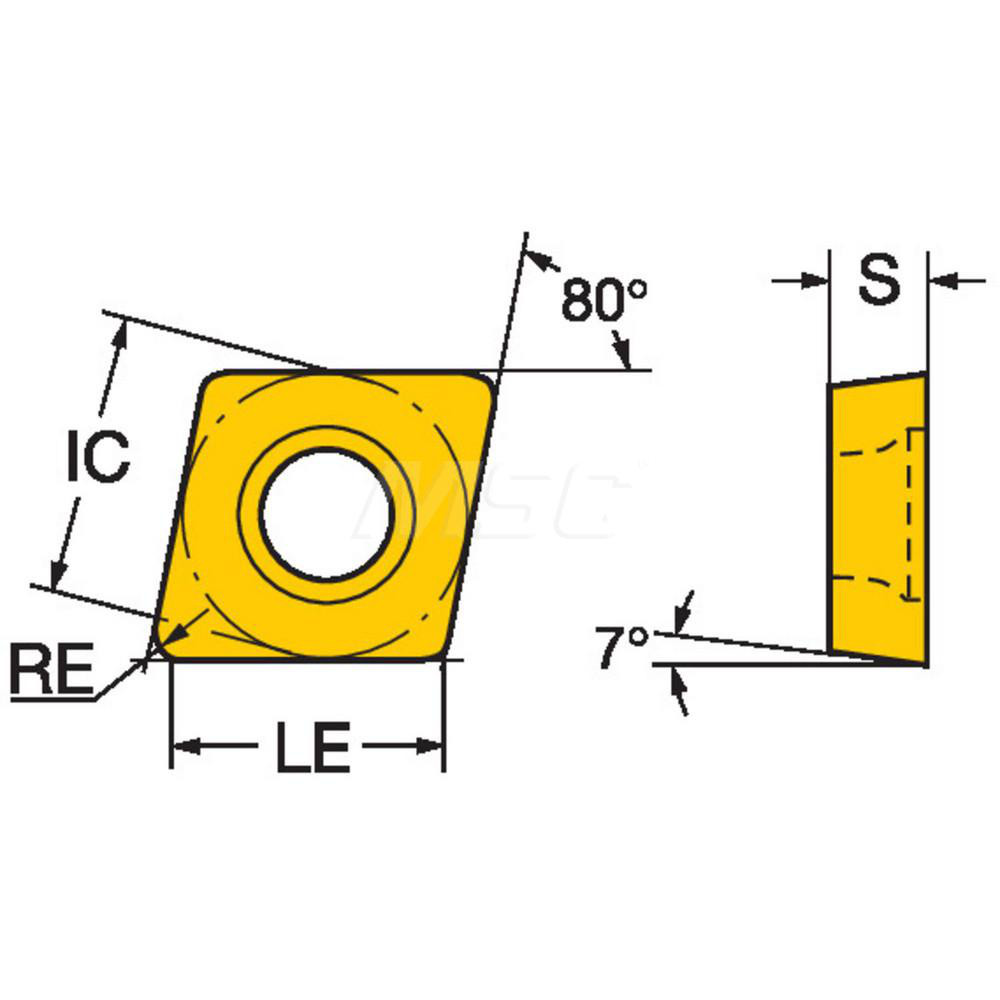

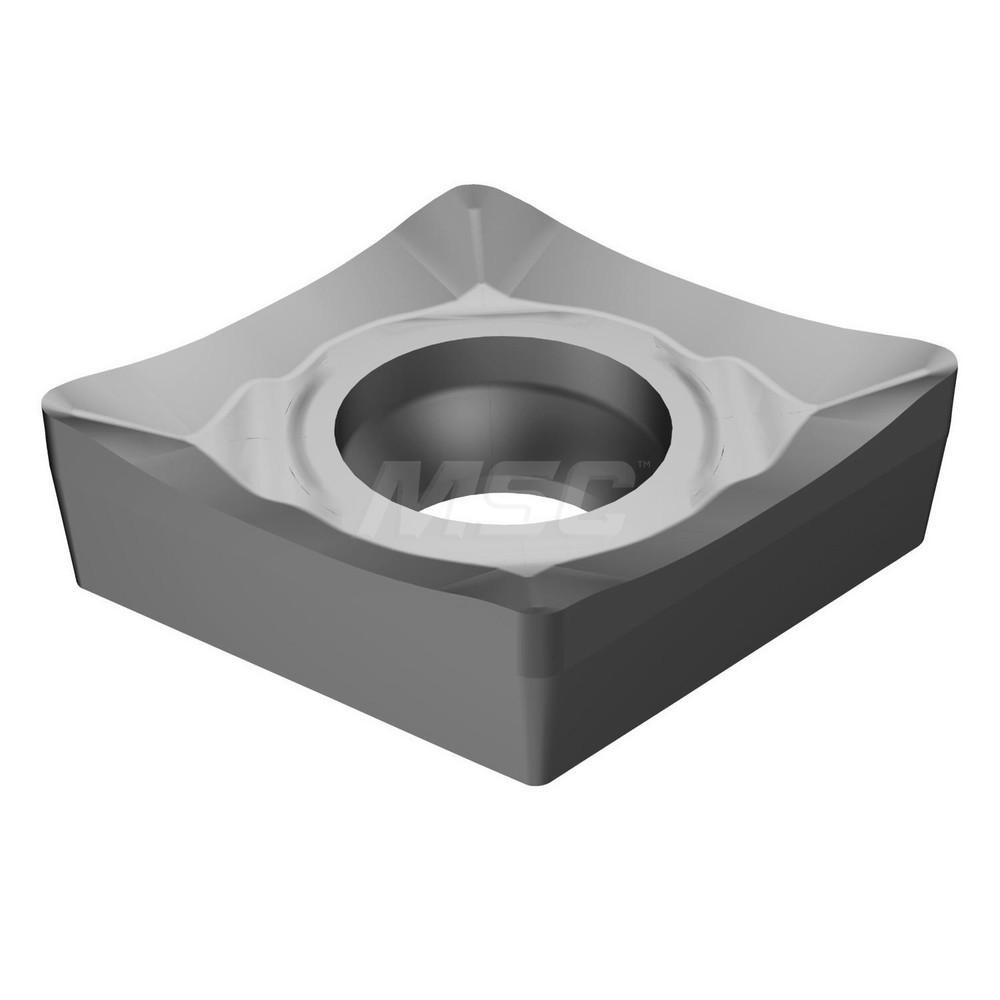

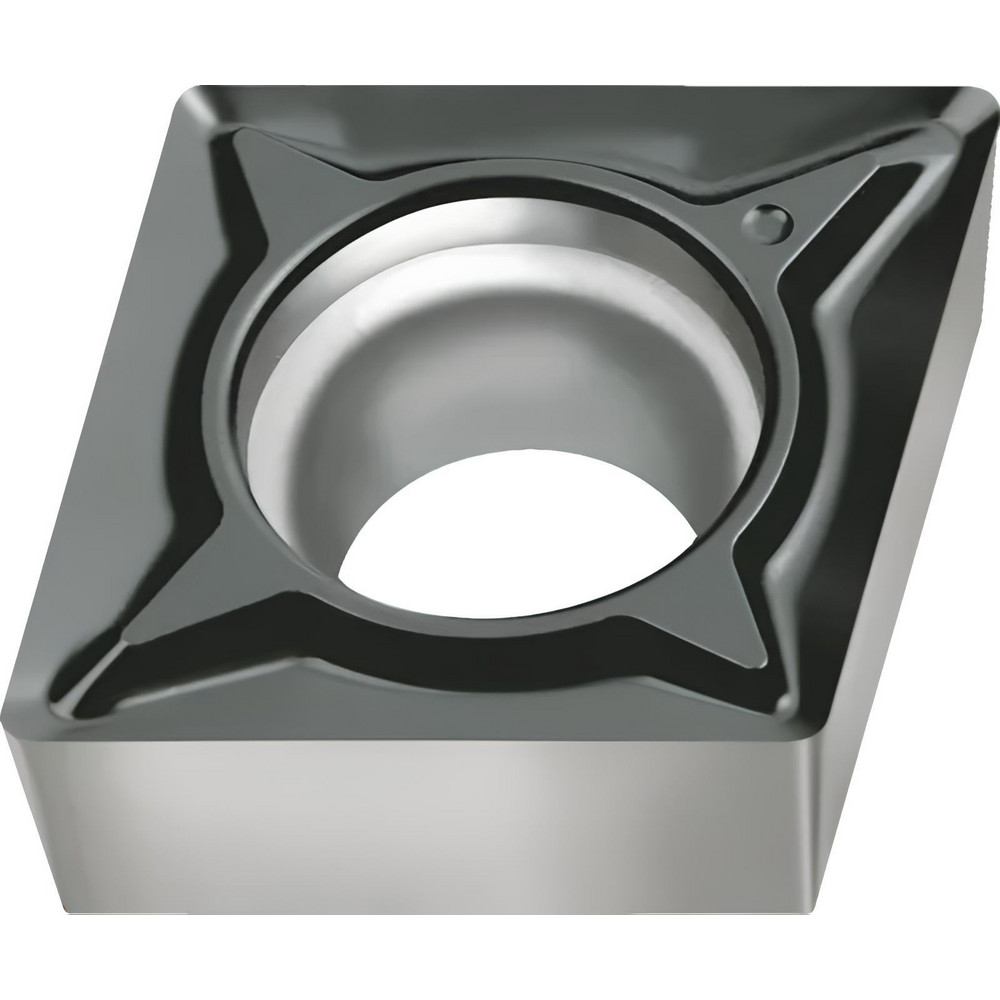

Diamond Finish, Neutral, 9.27 mm Long, 0.40 mm Corner Radius, 80.00 deg C - Diamond (Rhombic) 80-Deg, Series CoroTurn 107
| Insert Style | CCGX |
|---|---|
| ISO Size Code | 09T304 |
| ANSI Size Code | 32.51 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | H10 |
| Coating/Finish | Diamond |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1563 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| Maximum Depth of Cut (mm) | 9.27 |
| Maximum Depth of Cut (Decimal Inch) | 0.3650 |
| ISO Insert Code | CCGX09T304 |
| ANSI Insert Code | CCGX32.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3650 |
| Insert Length (mm) | 9.27 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | CCGX 09 T3 04-AL H10 |
| Manufacturers Catalog Number | CCGX 09 T3 04-AL H10 |
| Chip Breaker | AL |
| Width (mm - 2 Decimals) | 9.27 |
| Multi-Use Tool | Yes |
| Full Radius | Yes |
| Multi-Use Application | Turning |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Japan |
| MSC Number | MSC# 69924538 |
