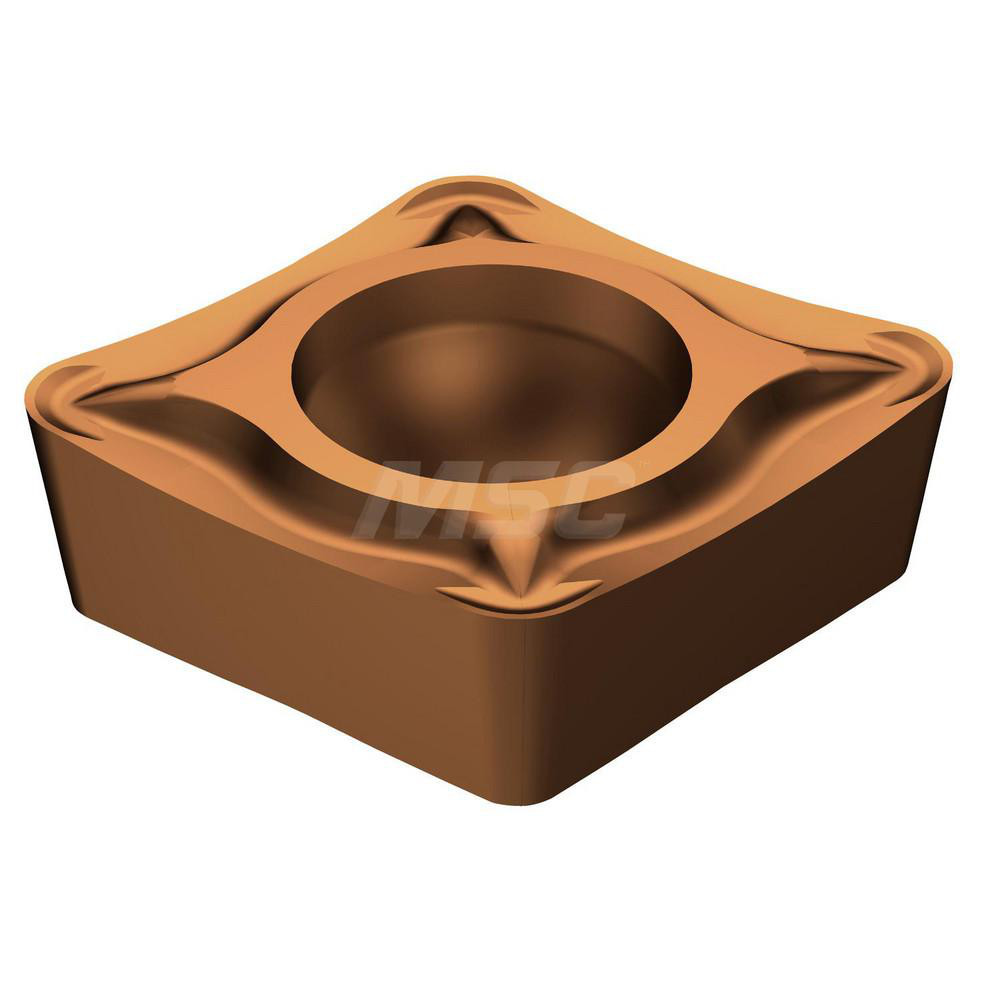

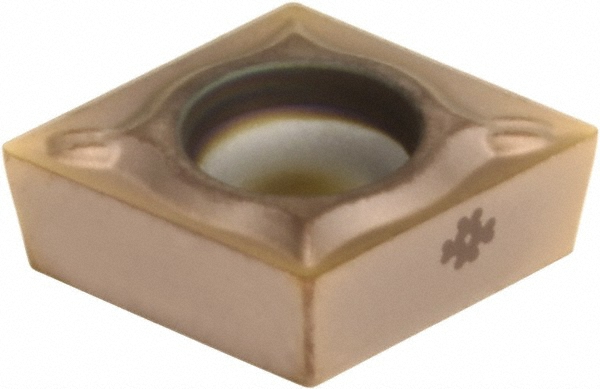

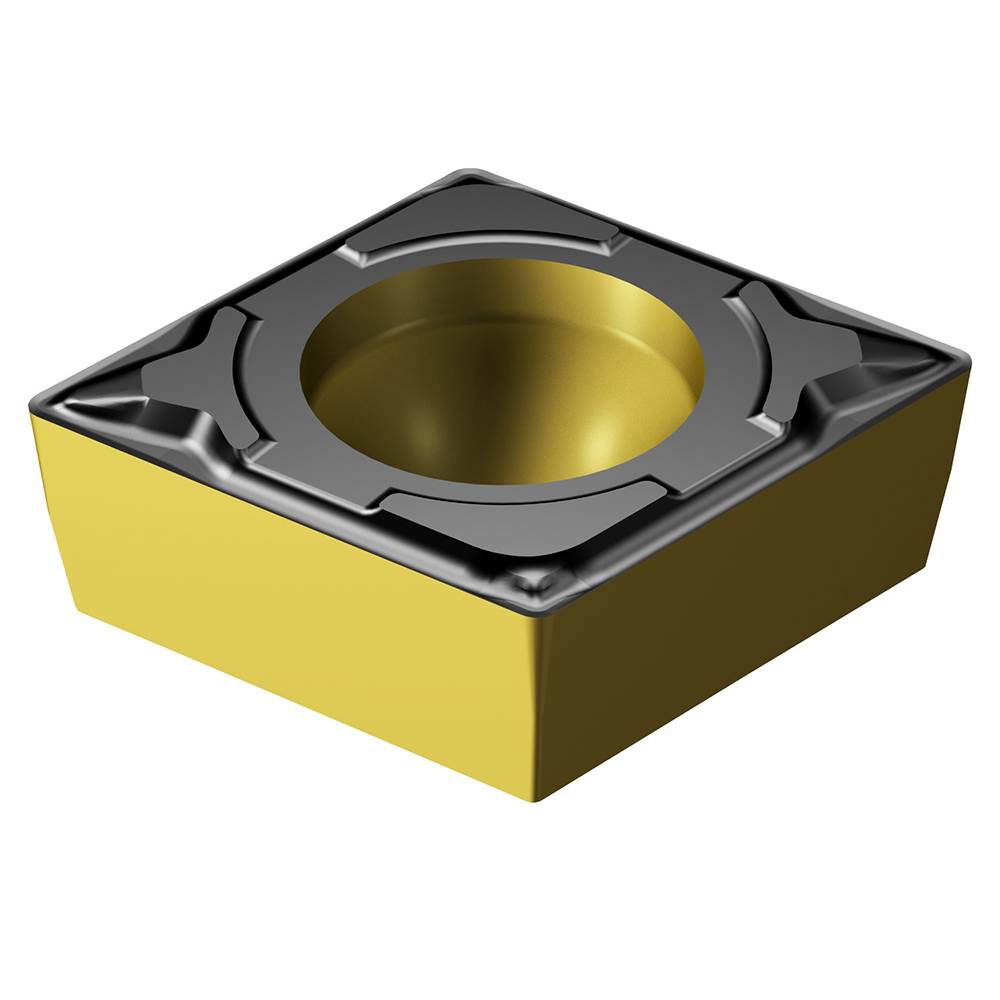

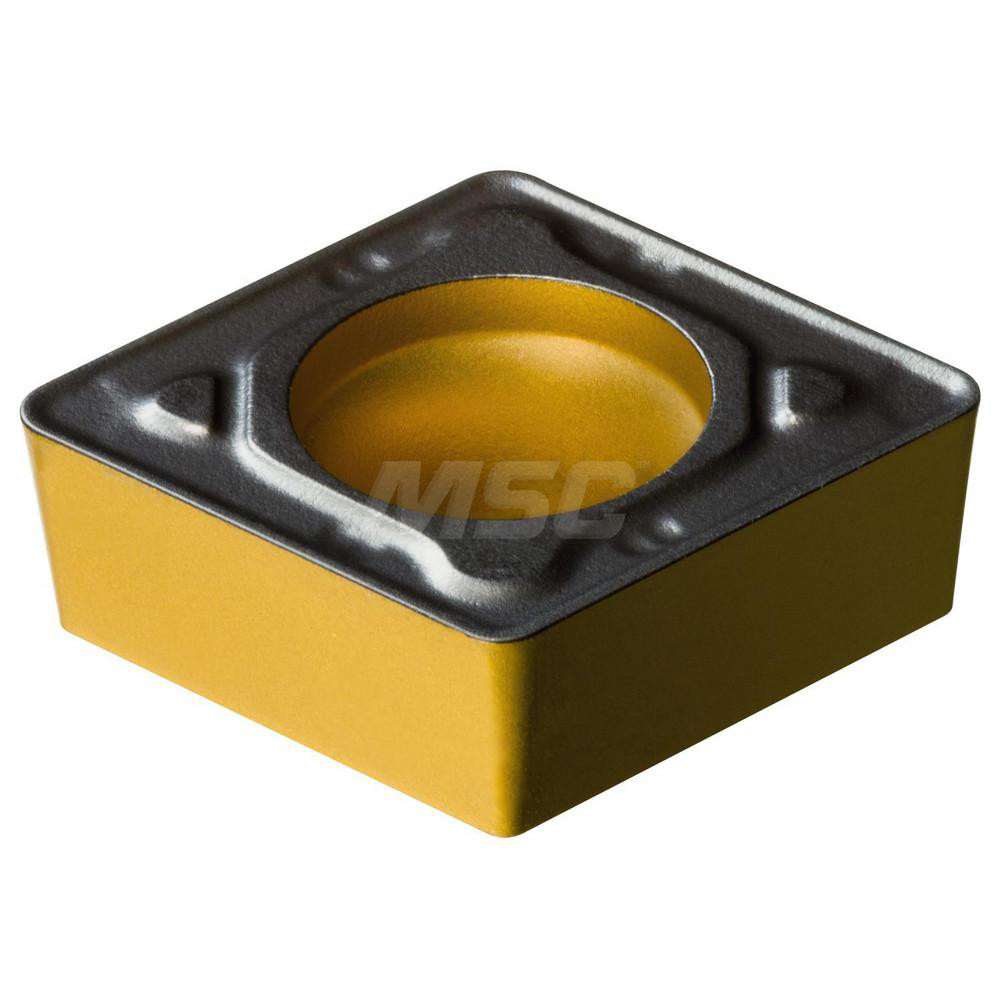

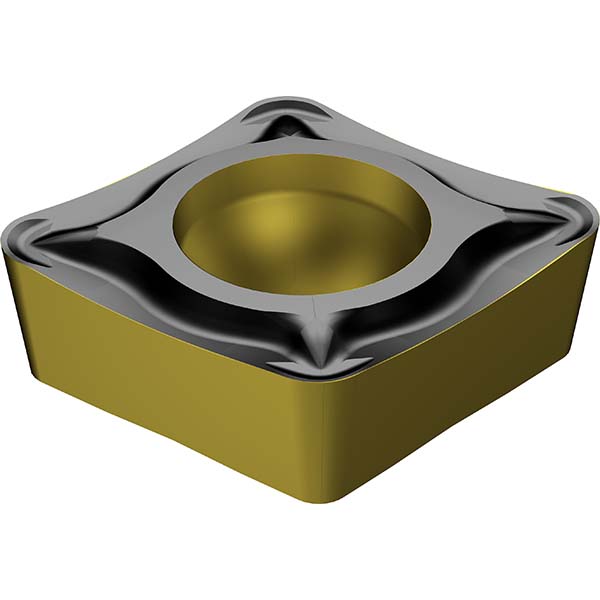

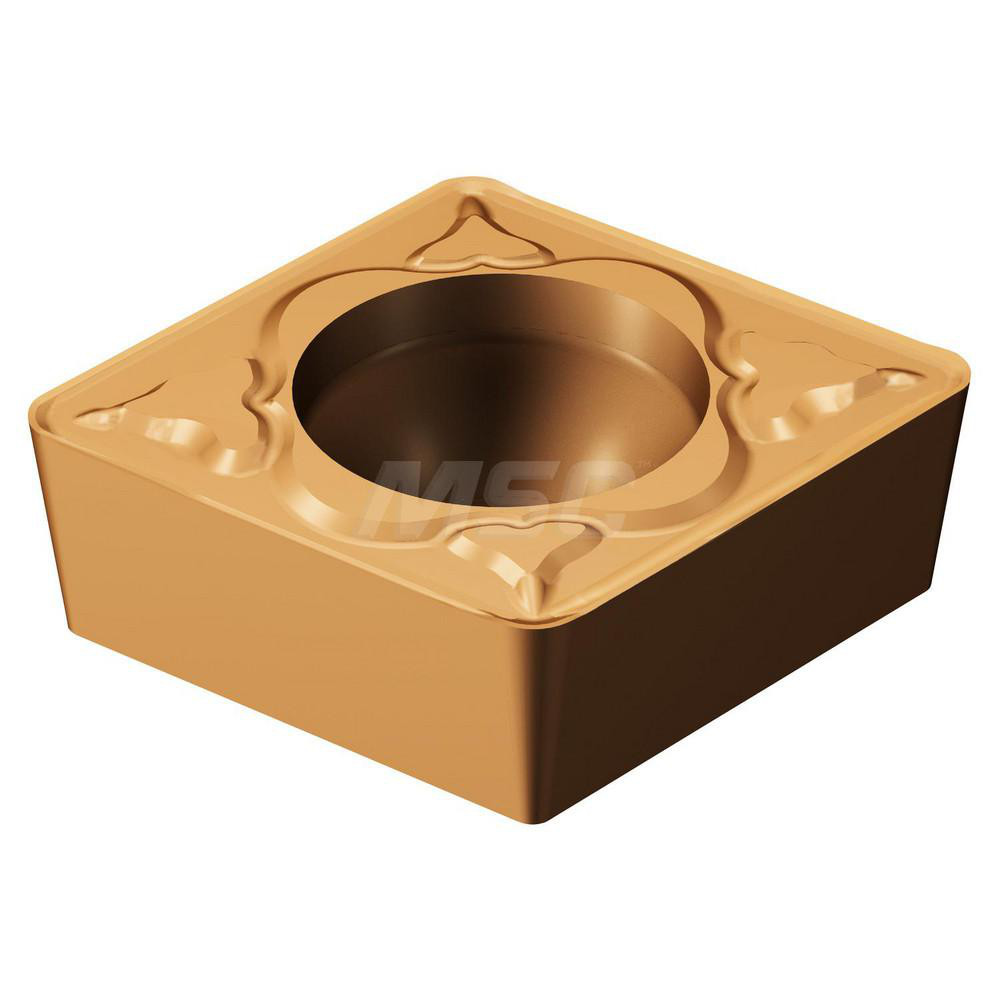

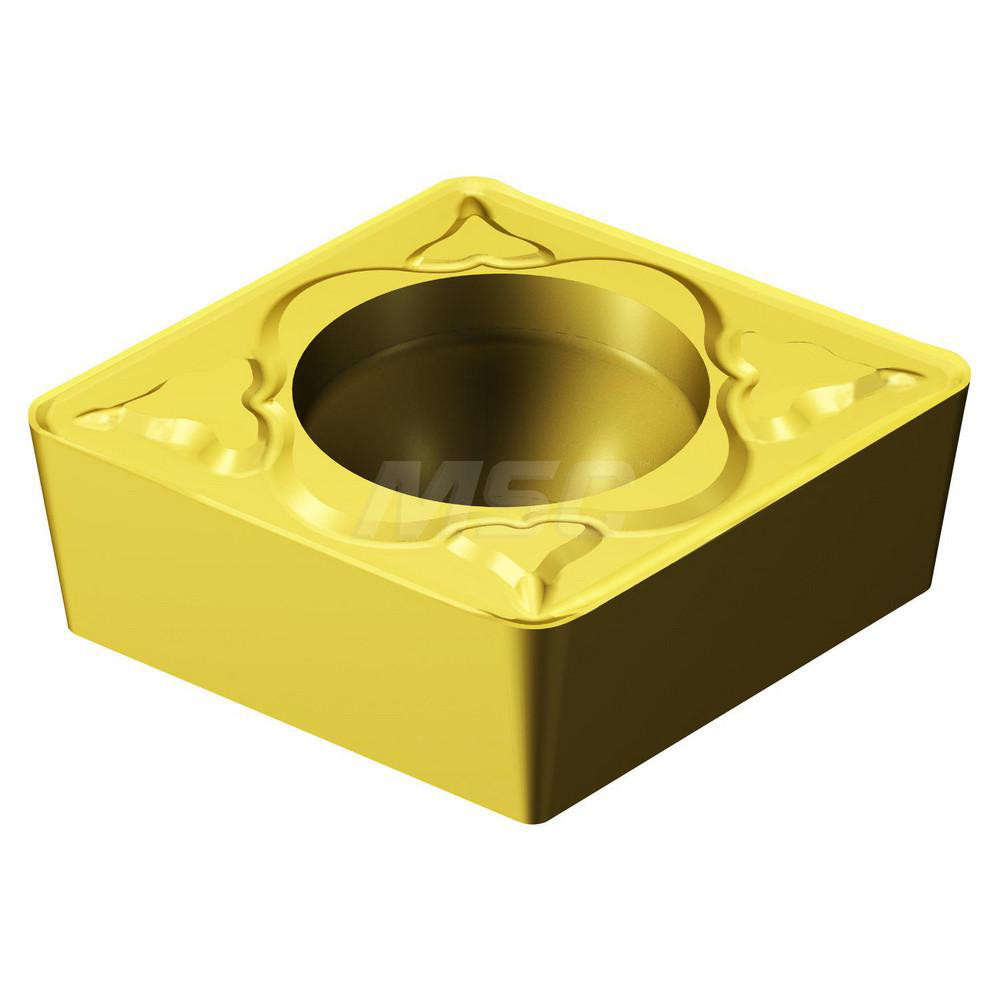

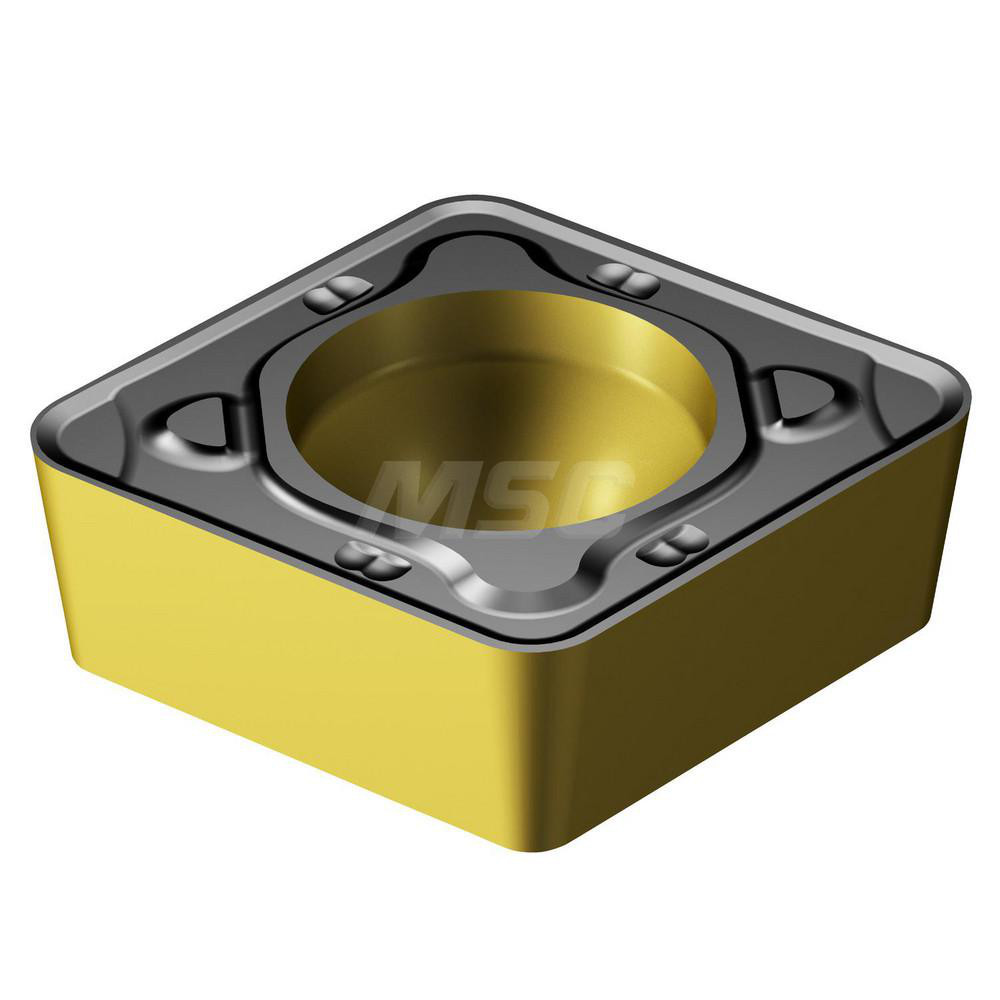

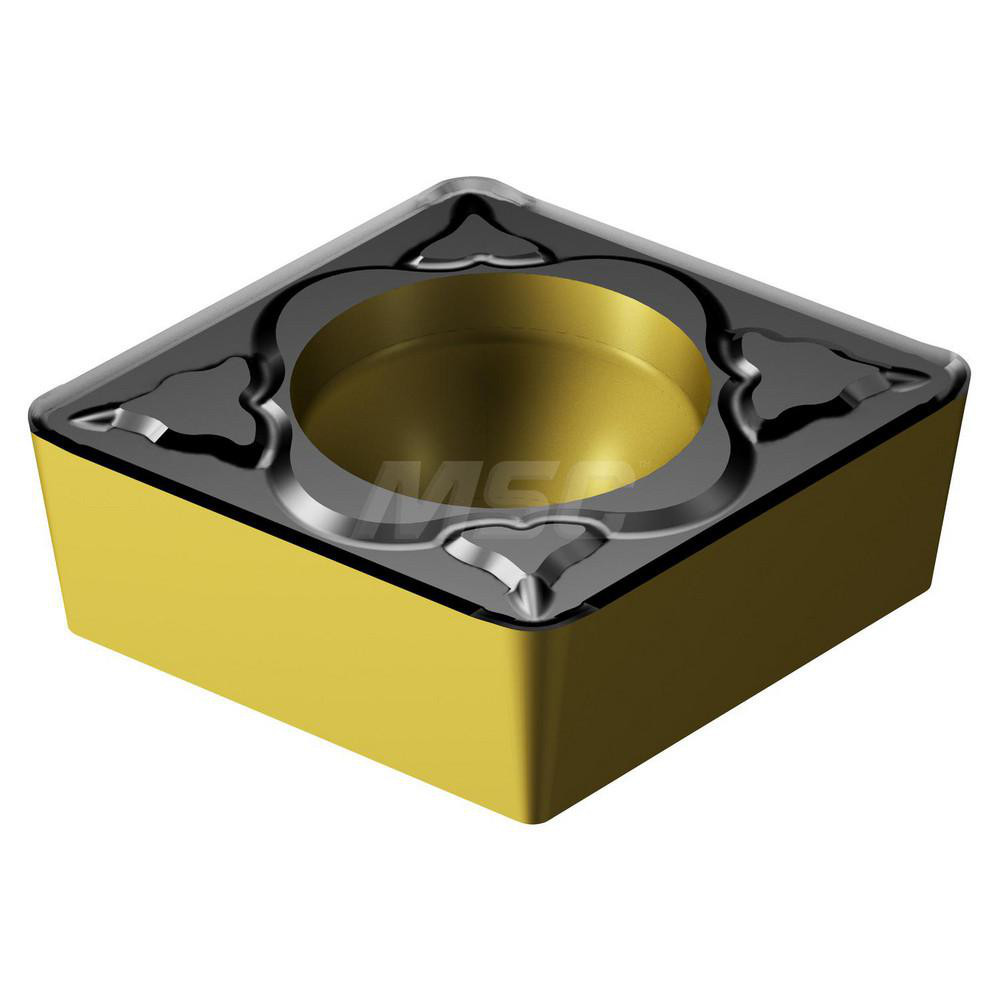

TiCN, Al2O3 & TiN Finish, Neutral, 0.3750" Inscribed Circle, 0.0313" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CoroTurn 107
| Insert Style | CCMT |
|---|---|
| ISO Size Code | 09T308 |
| ANSI Size Code | 32.52 |

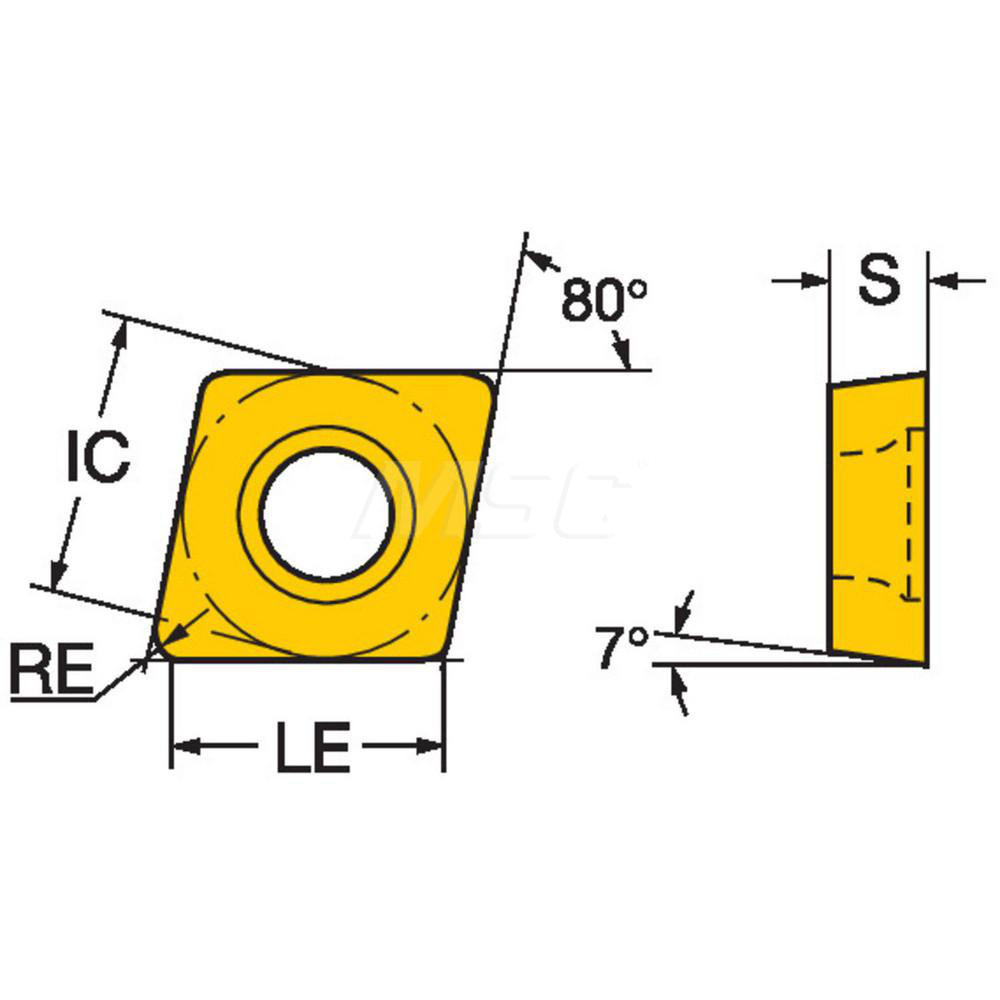

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | S205 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 7 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Chip Breaker Operation | Finishing |
| Side Clearance | Positive |
| Insert Shape Code | C |
| ISO Insert Code | CCMT09T308 |
| ANSI Insert Code | CCMT32.52 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | N |
| Iso Code | CCMT 09 T3 08-MF S205 |
| Manufacturers Catalog Number | CCMT 09 T3 08-MF S205 |

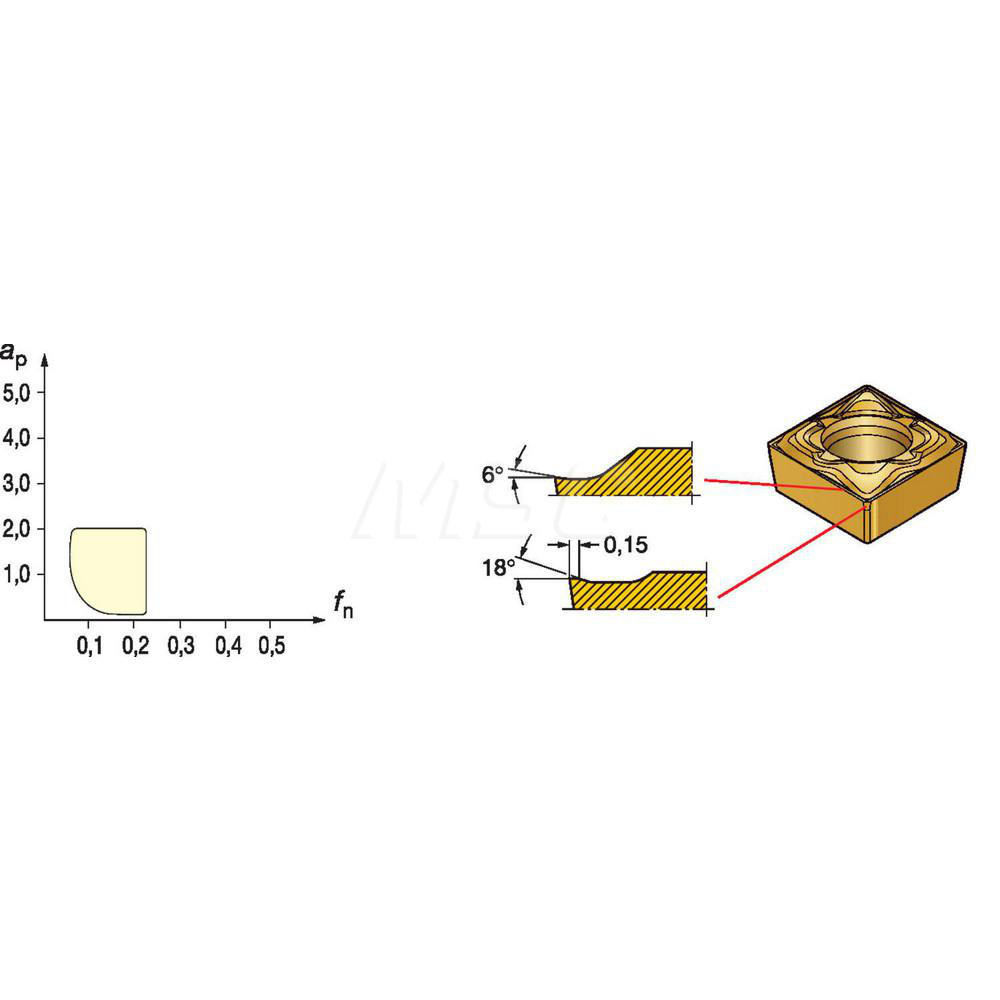

| Chip Breaker | MF |
| UNSPSC Code | 23242105 |
| Insert Size Code | 09T3 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 20169082 |
