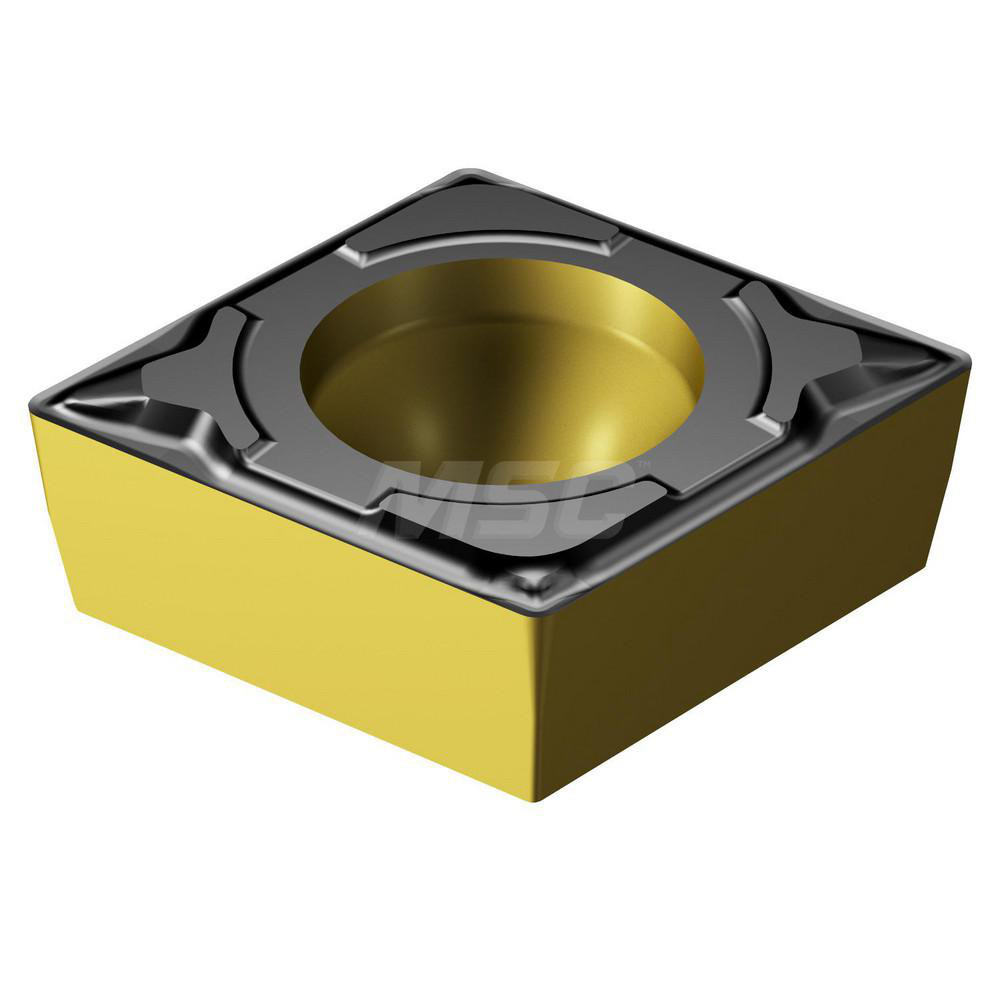

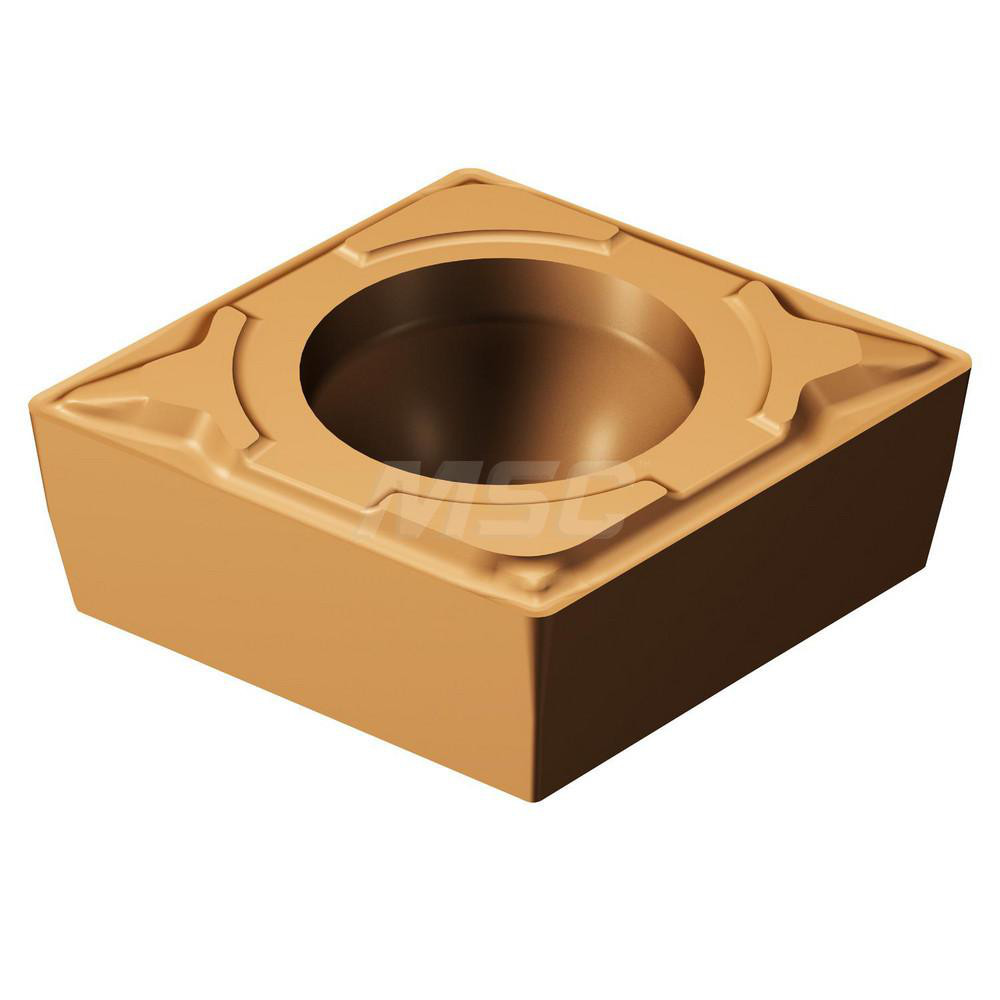

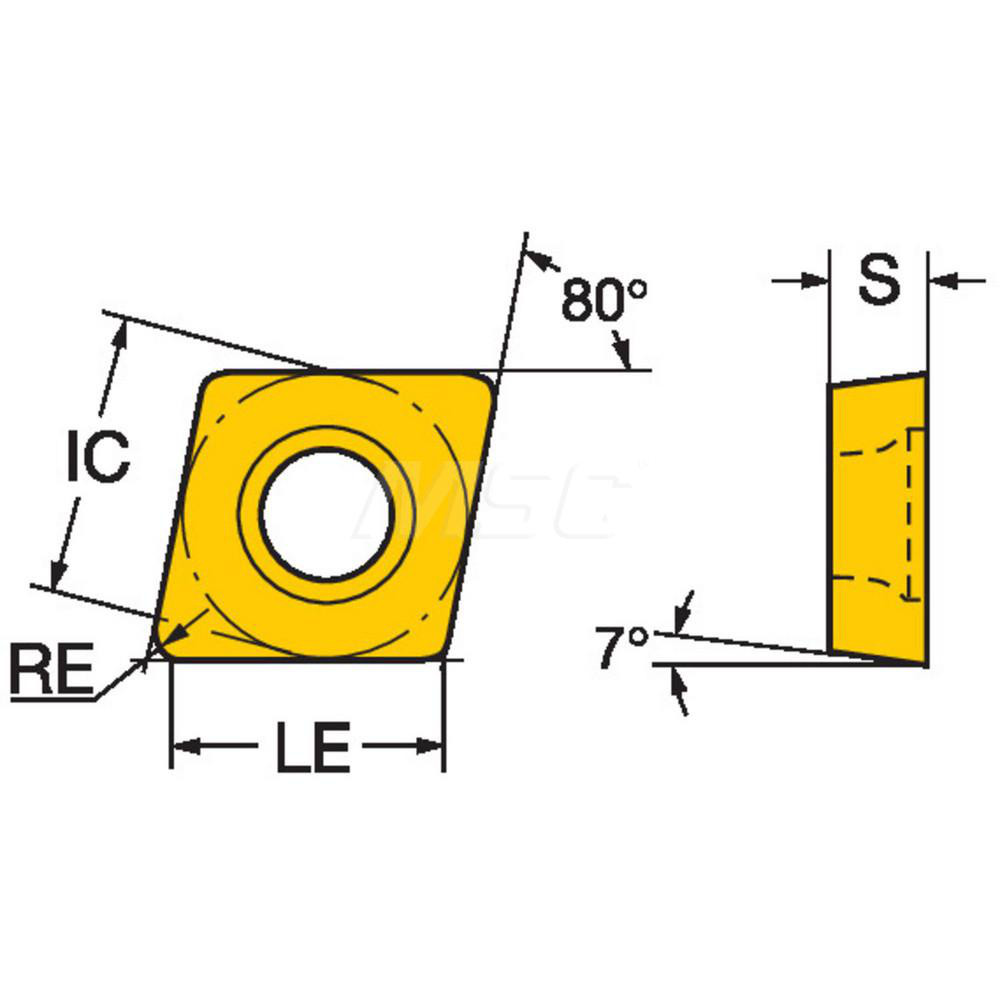

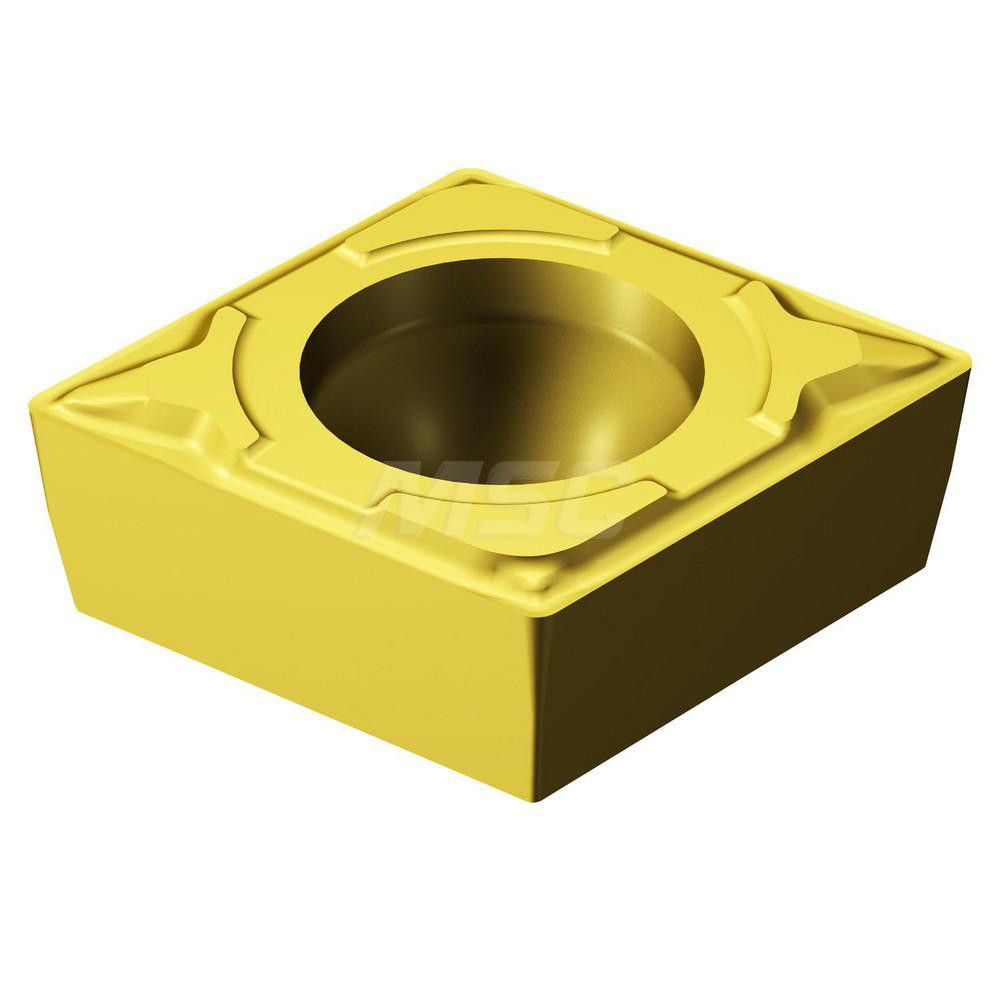

TiAlN & AlCr2O3 Finish, Neutral, 6.05 mm Long, 6.35 mm Inscribed Circle, 0.40 mm Corner Radius, 80.00 deg C - Diamond (Rhombic) 80-Deg, Series CoroTurn 107
| Insert Style | CCMT |
|---|---|
| ISO Size Code | 060204 |
| ANSI Size Code | 21.51 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80.00 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| ISO Insert Code | CCMT060204 |
| ANSI Insert Code | CCMT21.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (Decimal Inch) | 0.2381 |
| Insert Length (mm) | 6.05 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | CCMT 06 02 04-MM 1125 |

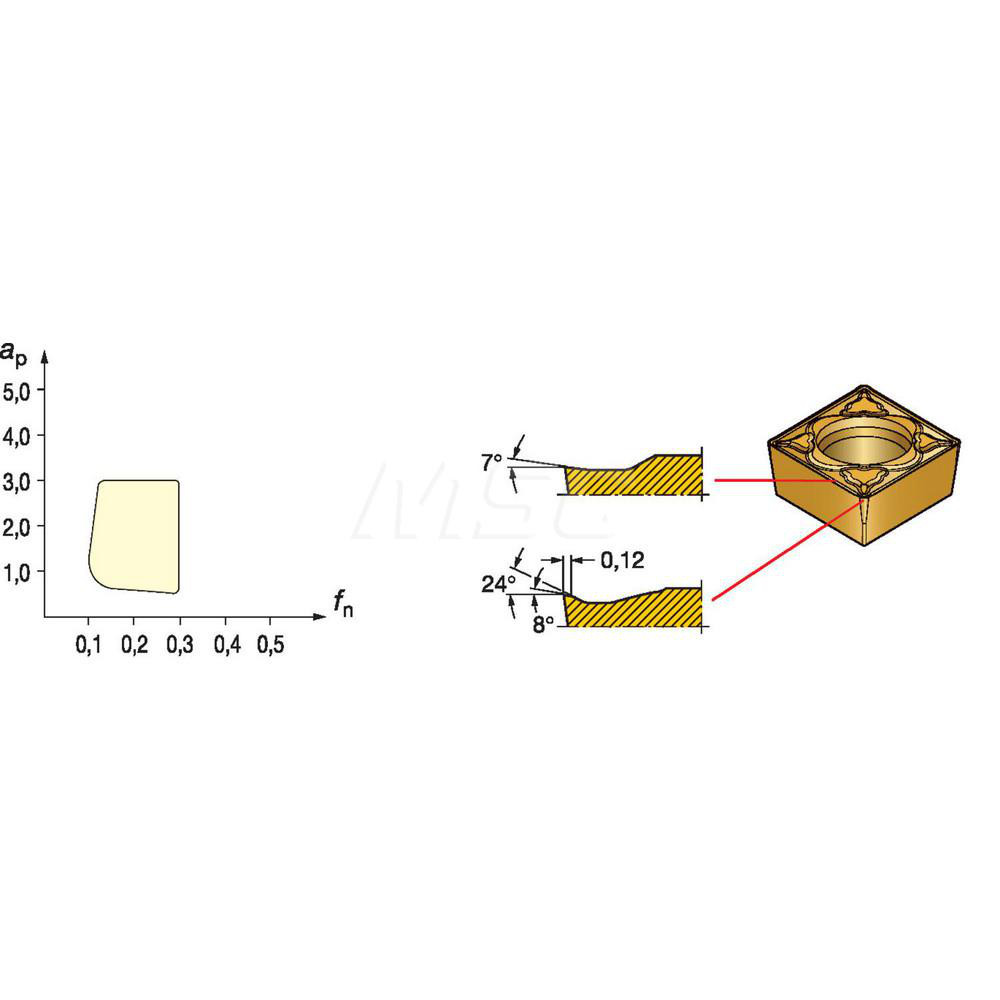

| Chip Breaker | MM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
| Country of Origin | UNITED STATES |
| MSC Number | MSC# 43194489 |
