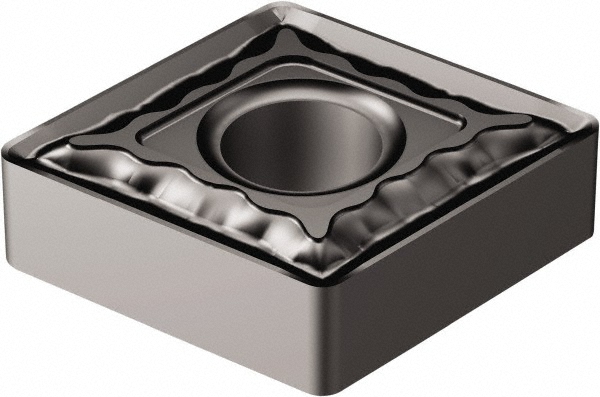

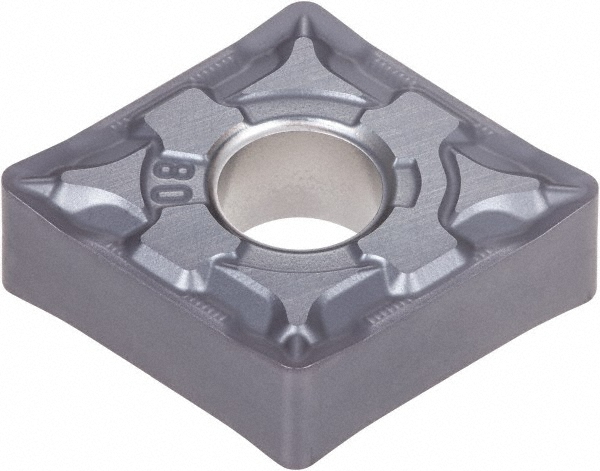

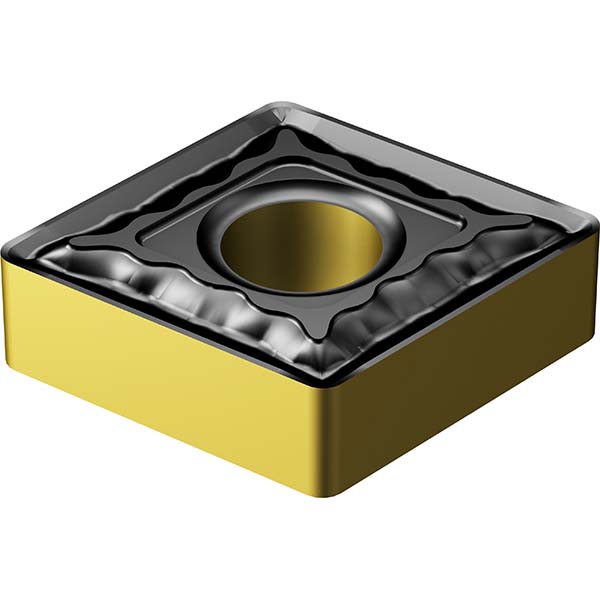

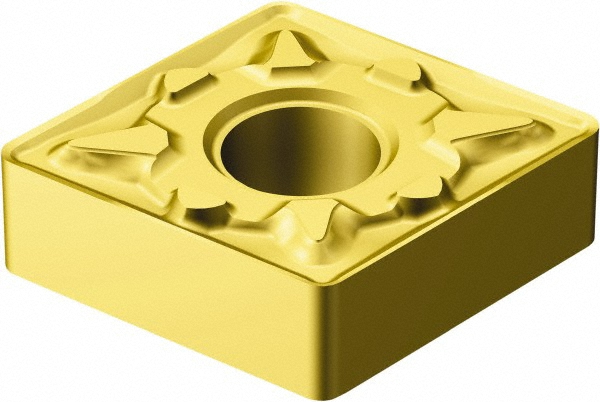

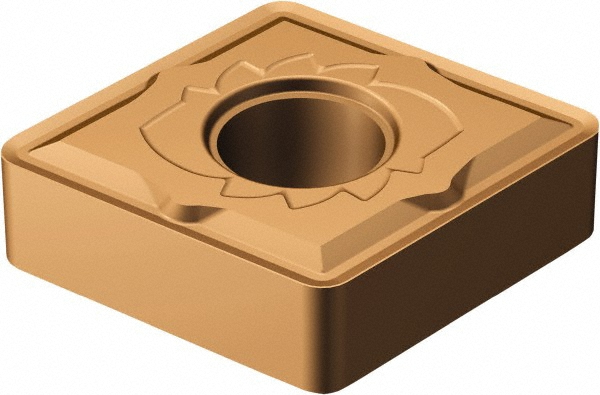

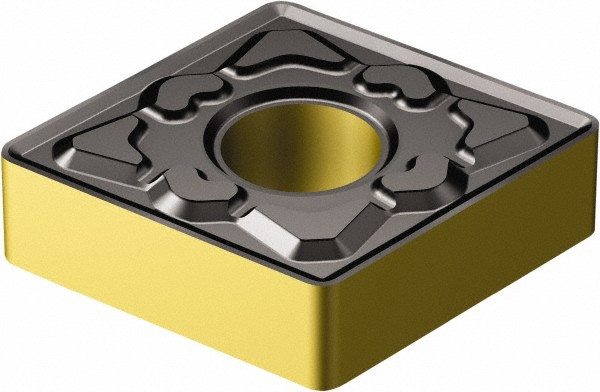

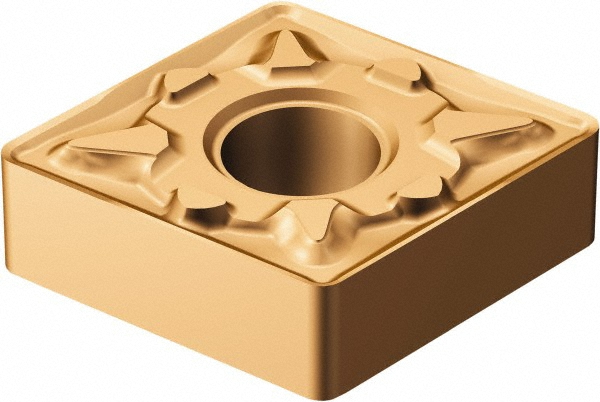

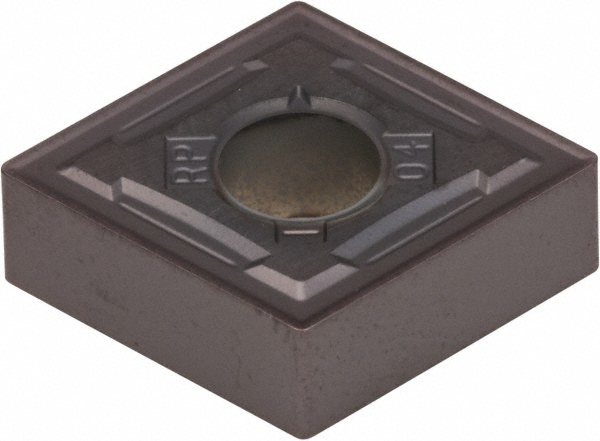

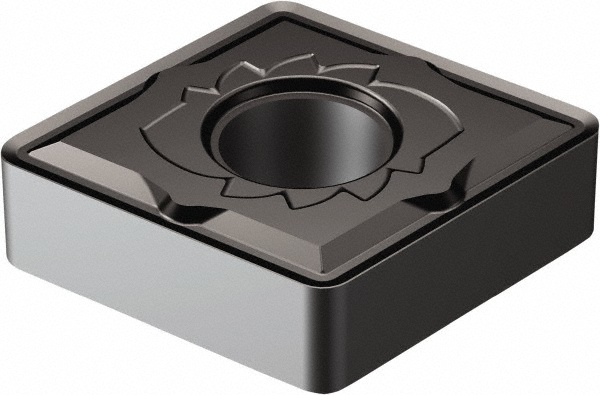

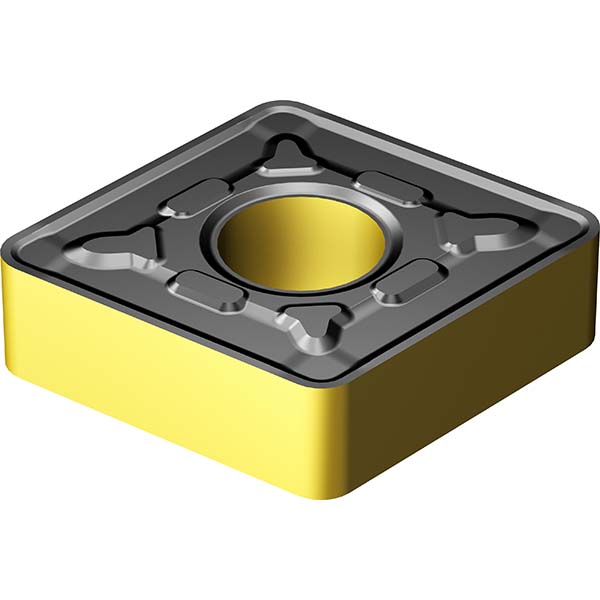

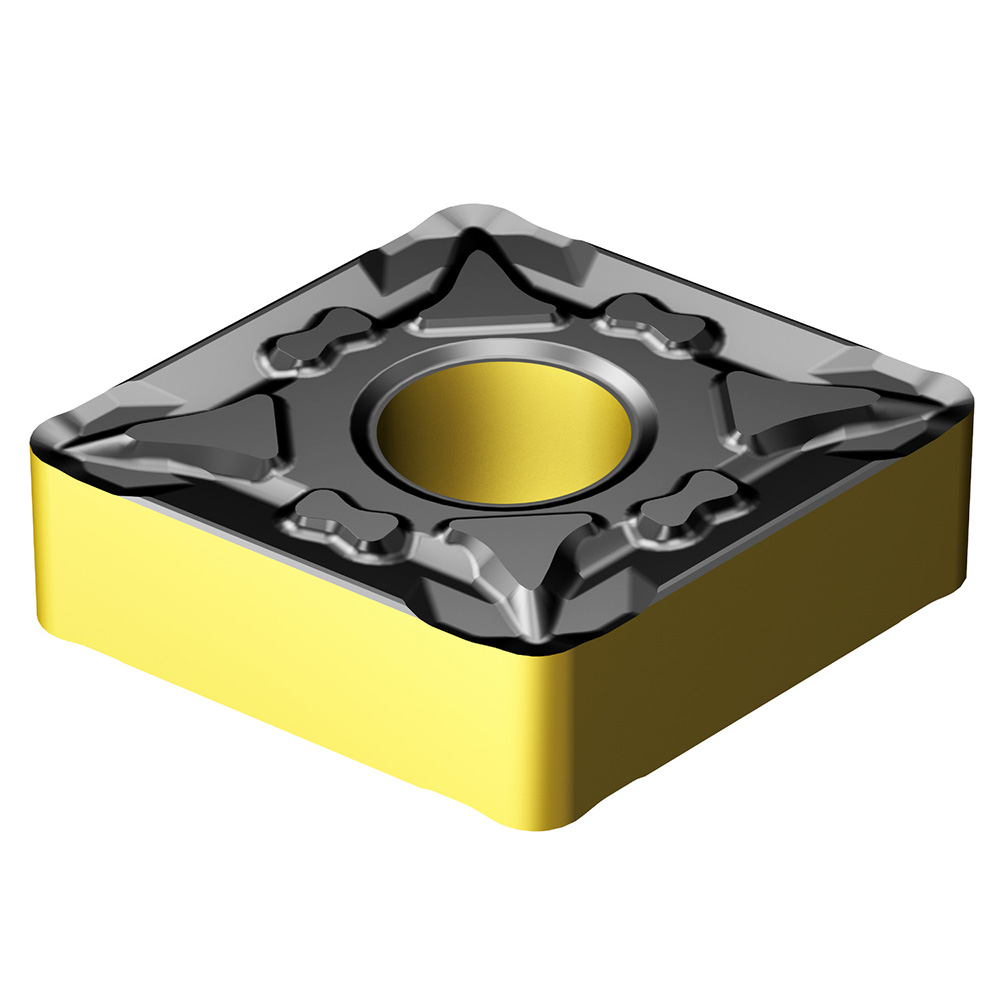

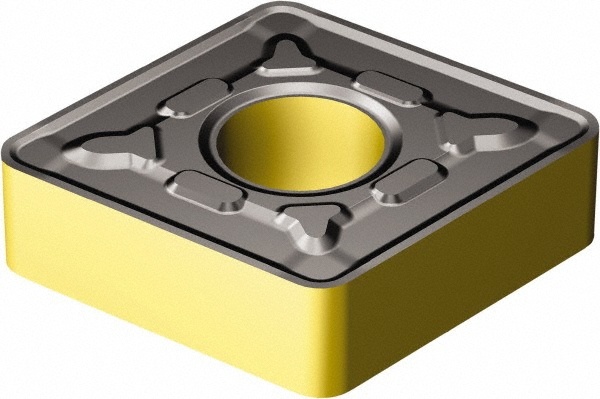

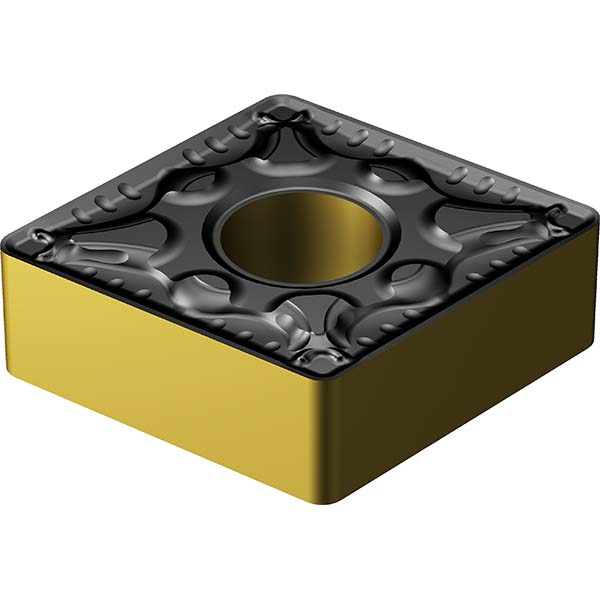

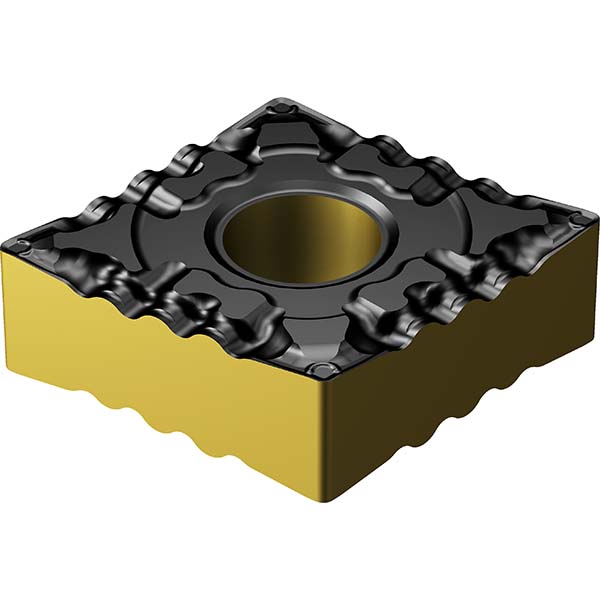

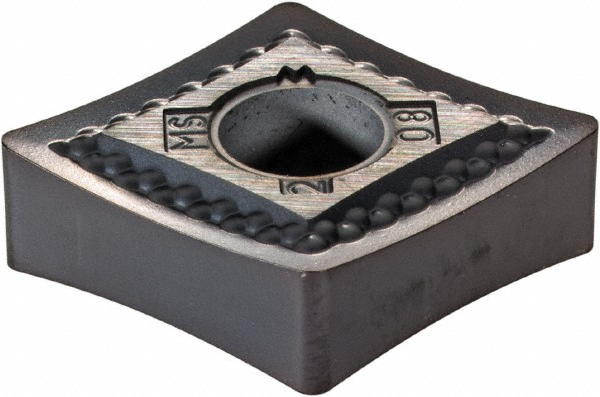

TiCN, Al2O3 & TiN Finish, Neutral, 0.5000" Inscribed Circle, 0.0313" Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series T-Max P
| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |

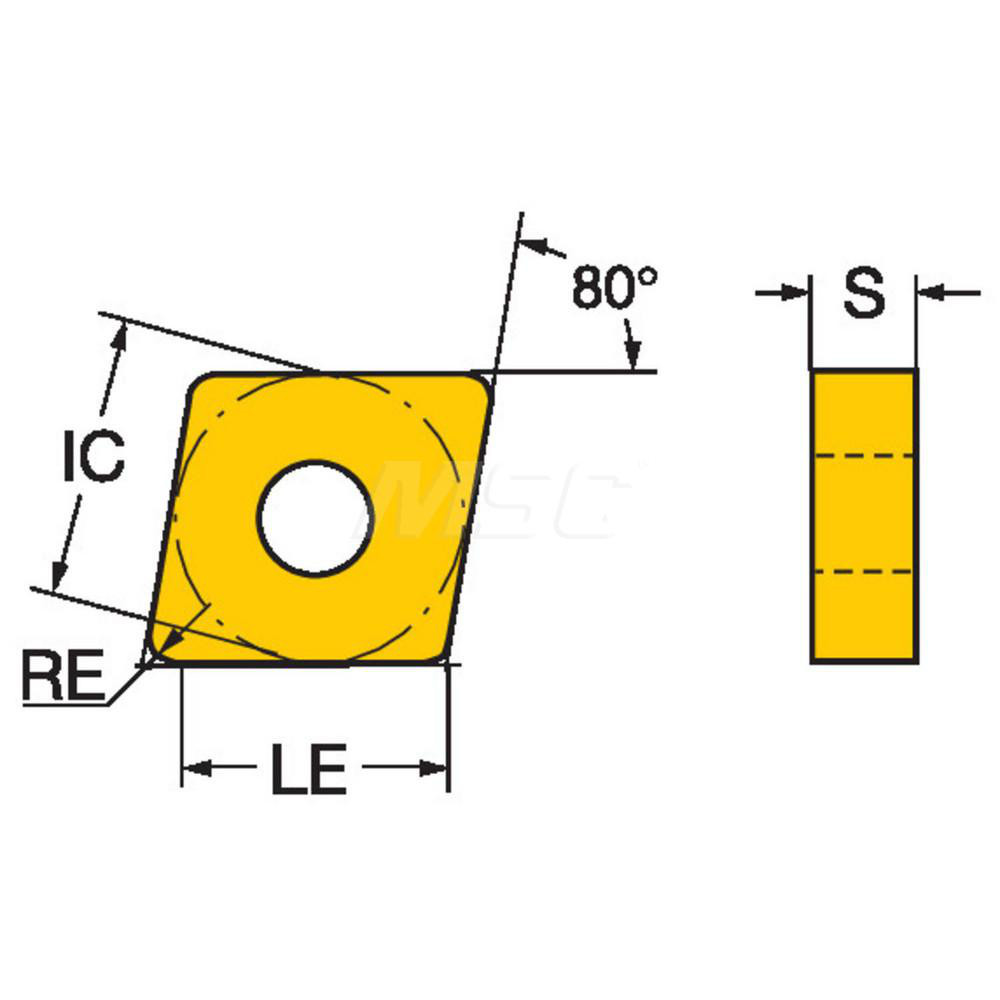

| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | S205 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Insert Shape Code | C |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Superalloy; Titanium |
| Primary Workpiece Material Code | N |
| Iso Code | CNMG 12 04 08-SMR S205 |
| Manufacturers Catalog Number | CNMG 12 04 08-SMR S205 |

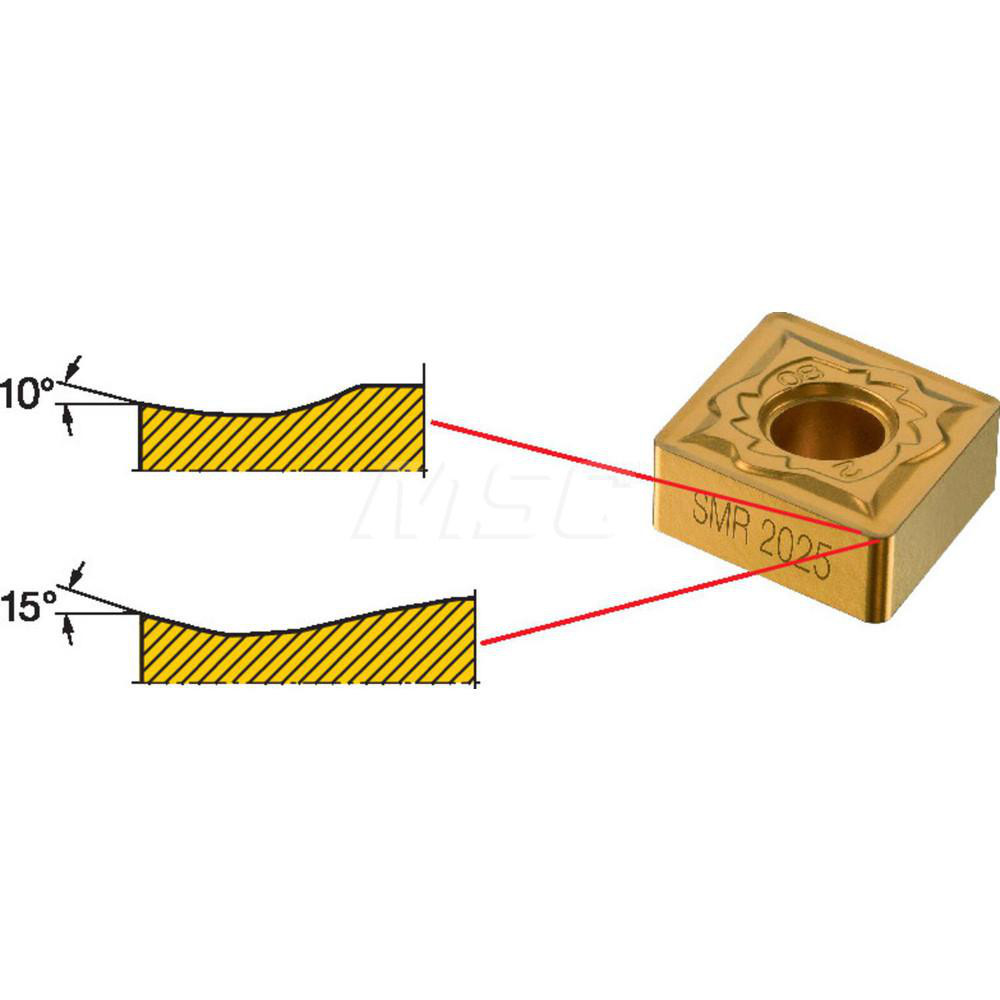

| Chip Breaker | SMR |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Sweden |
| MSC Number | MSC# 29260460 |
