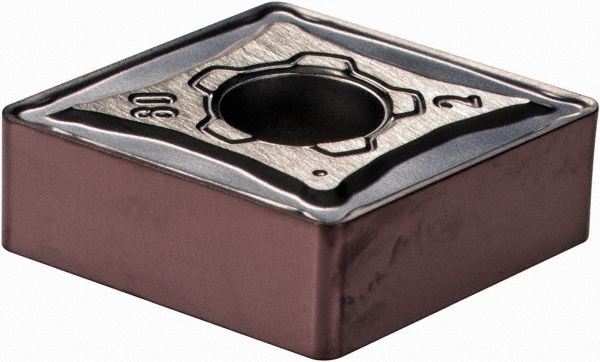

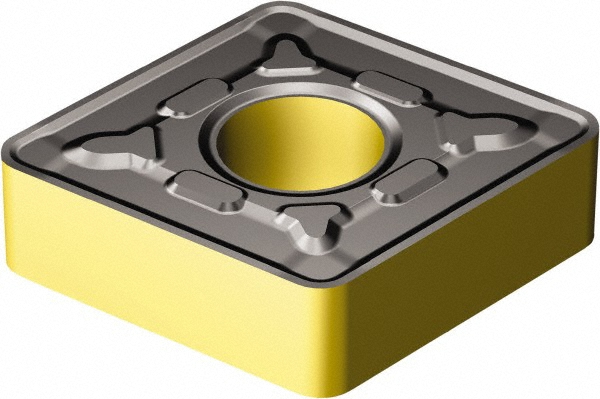

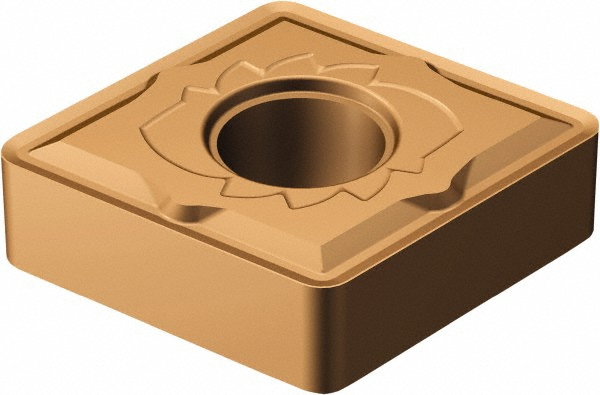

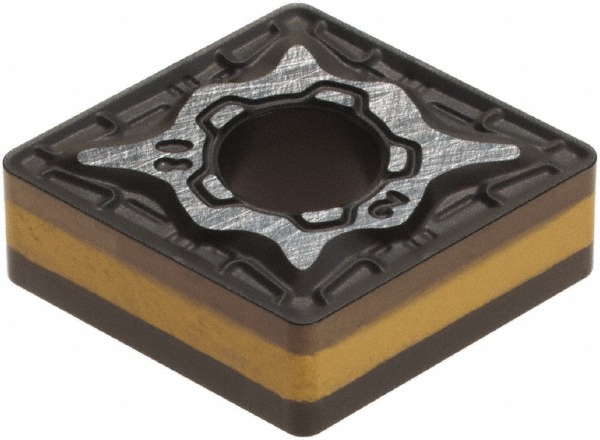

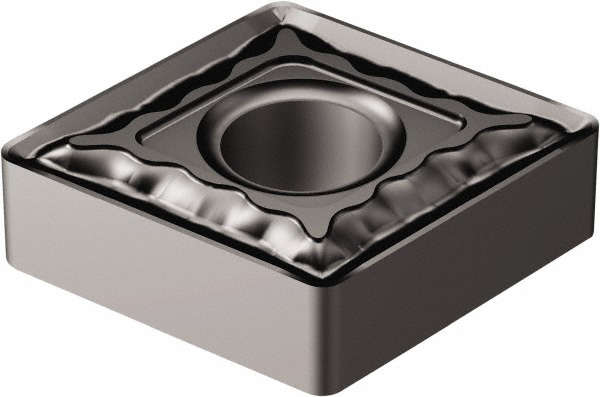

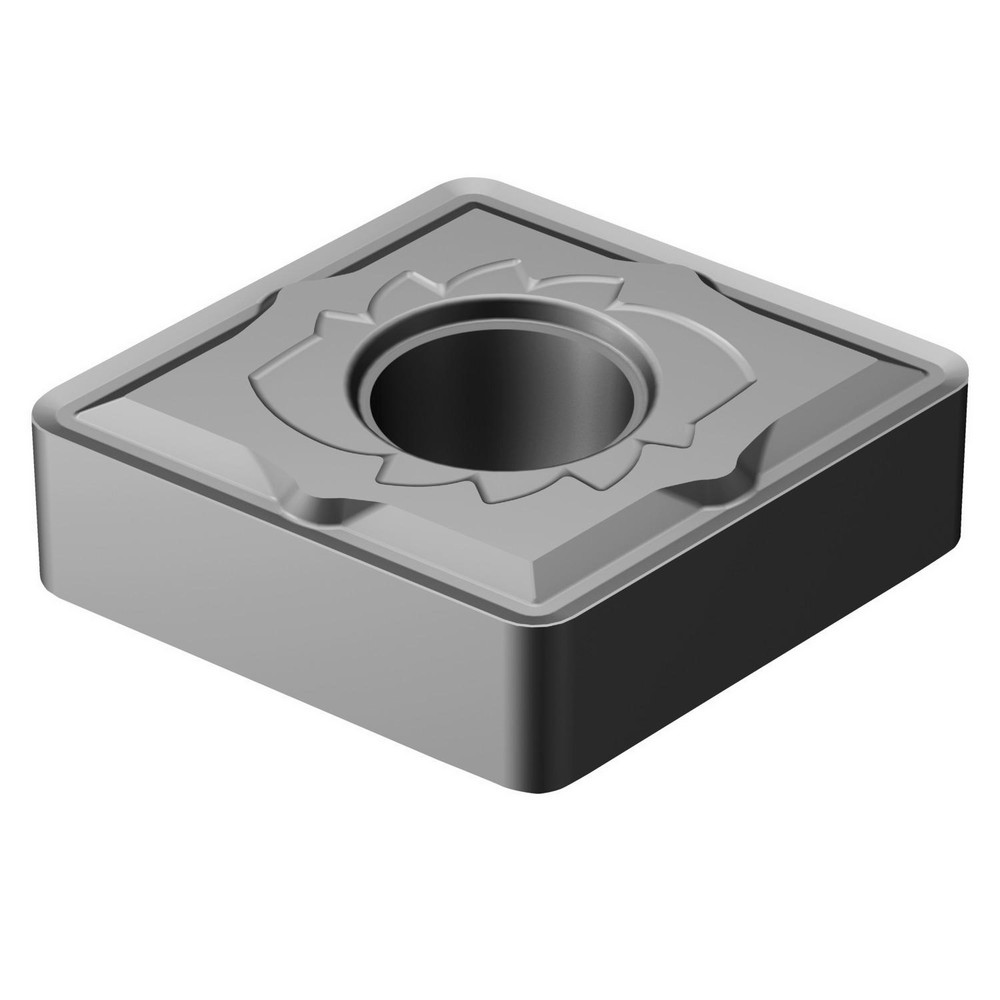

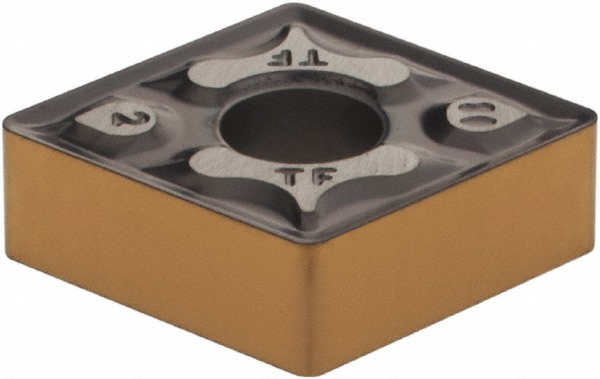

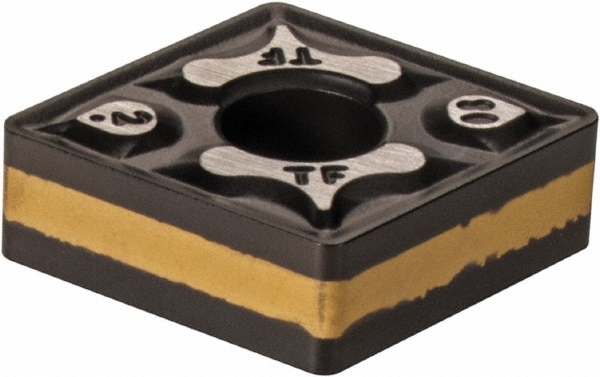

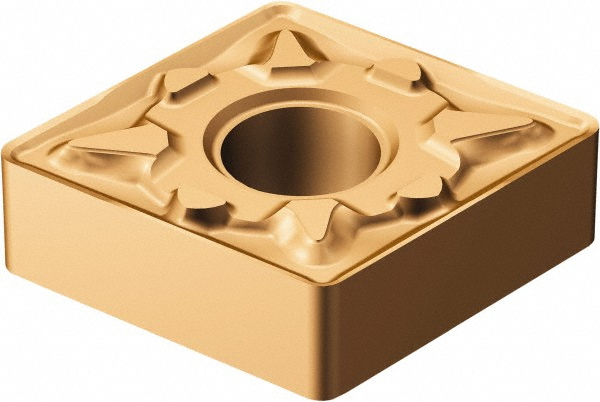

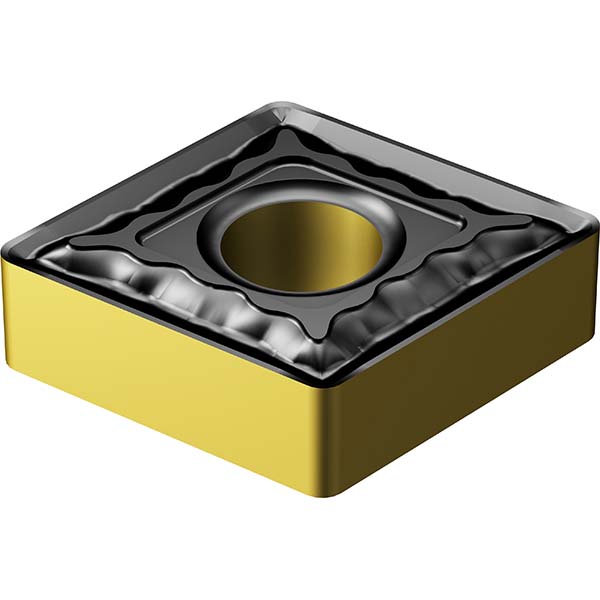

PVD & AlTiN Finish, Neutral, 12.70 mm Inscribed Circle, 0.79 mm Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series CNMG

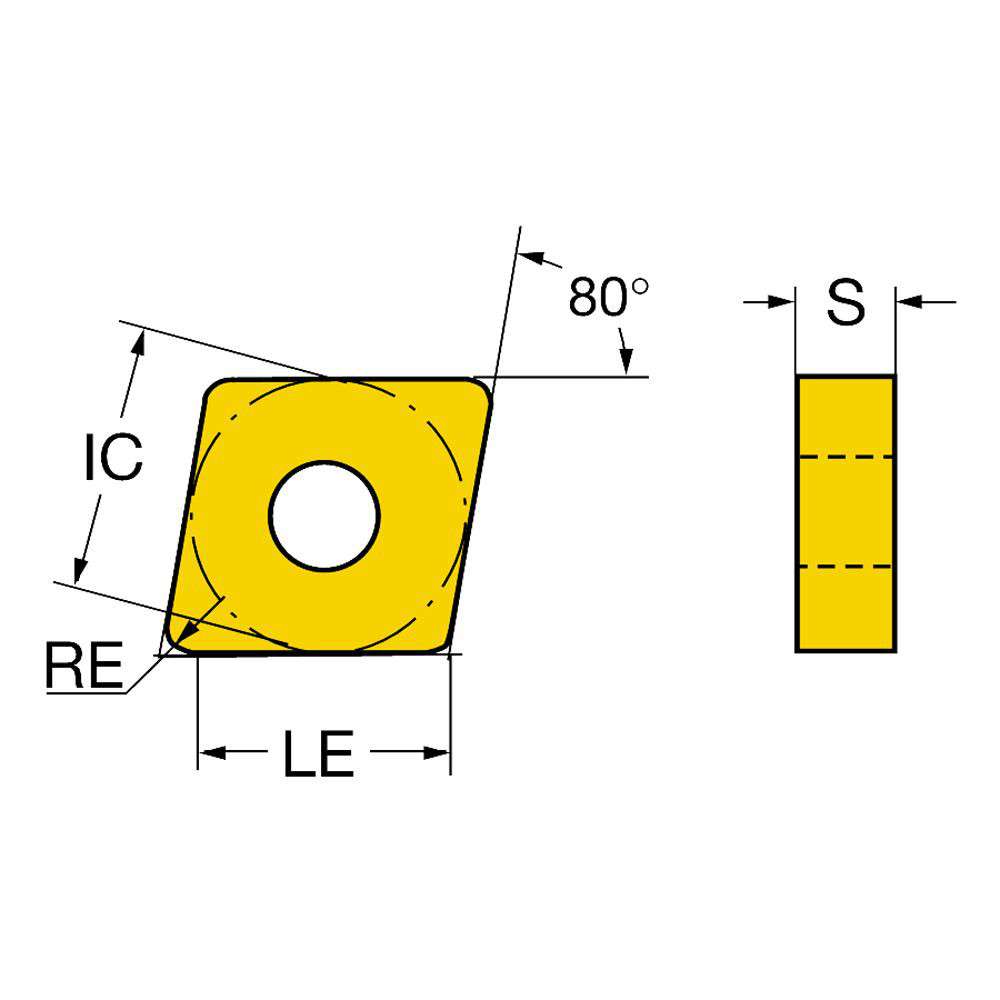

| Insert Style | CNMG |
|---|---|
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 1205 |
| Coating/Finish | AlTiN; PVD |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | CNMG |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| ISO Insert Code | CNMG |
| ANSI Insert Code | CNMG |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Secondary Workpiece Material | Super-Alloys & Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | CNMG 12 04 08-SM 1205 |
| Manufacturers Catalog Number | CNMG 12 04 08-SM 1205 |

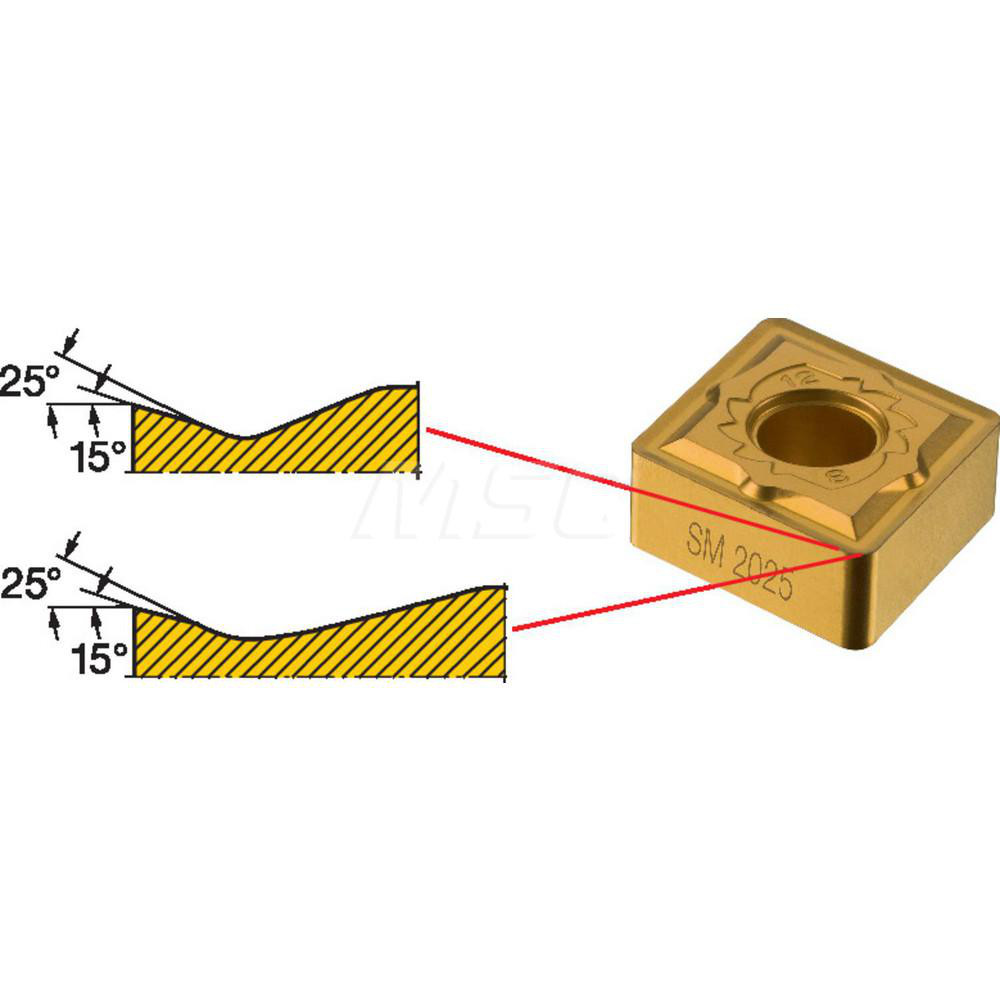

| Chip Breaker | SM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1204 |
| undefined | undefined |
| MSC Number | MSC# 84574706 |
