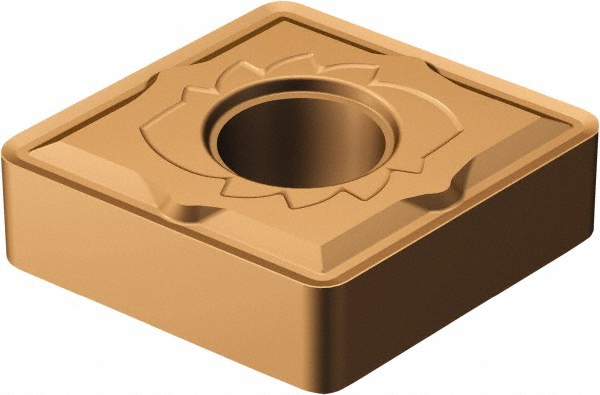

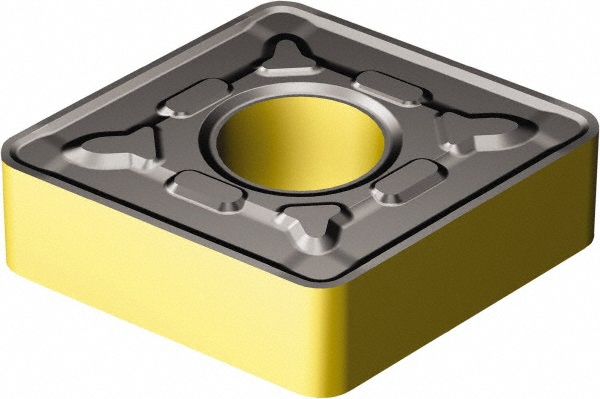

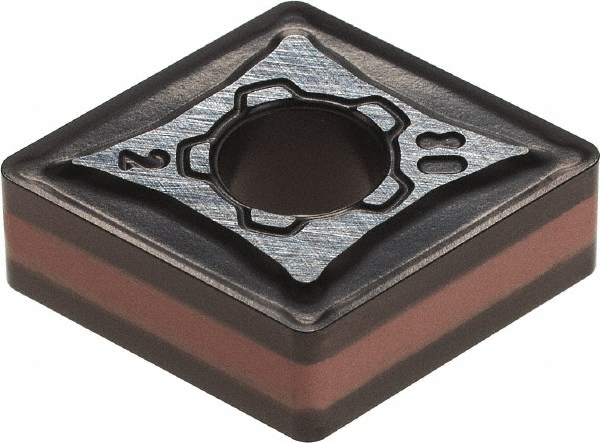

TiAlN & AlCr2O3 Finish, Neutral, 8.50 mm Long, 12.70 mm Inscribed Circle, 0.79 mm Corner Radius, 80 deg C - Diamond (Rhombic) 80-Deg, Series T-Max P

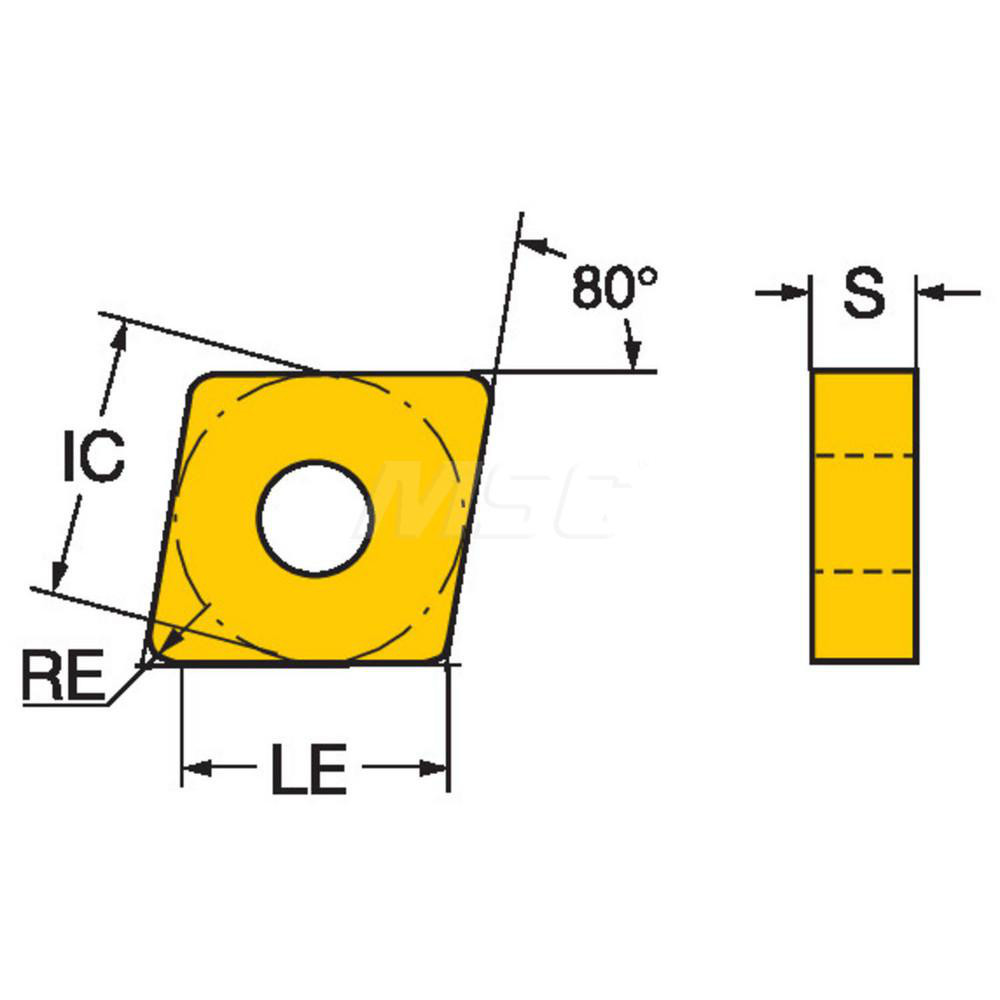

| Insert Style | CNMG |
|---|---|
| ISO Size Code | 120408 |
| ANSI Size Code | 432 |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| ISO Insert Code | CNMG120408 |
| ANSI Insert Code | CNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3346 |
| Insert Length (mm) | 8.50 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | CNMG120408-SMR 1115 |
| Chip Breaker | SMR |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Sweden |
| MSC Number | MSC# 62868773 |
