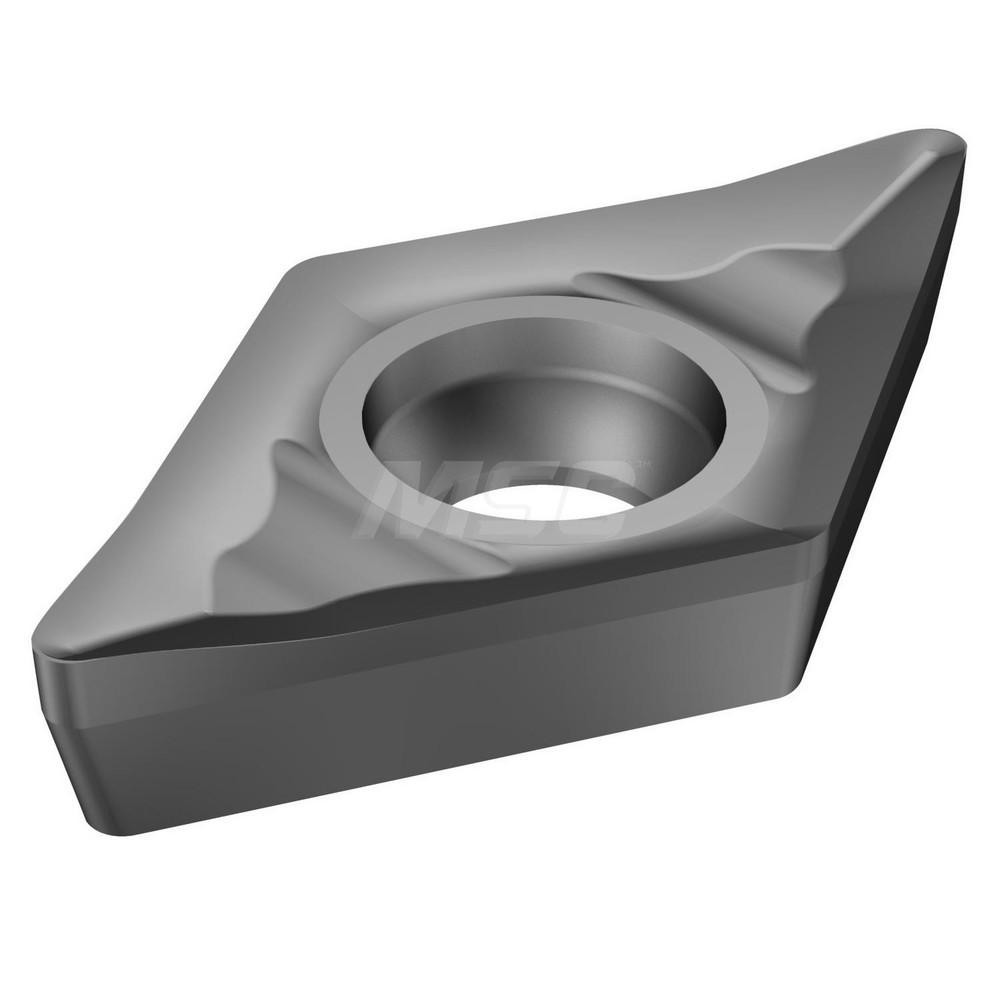

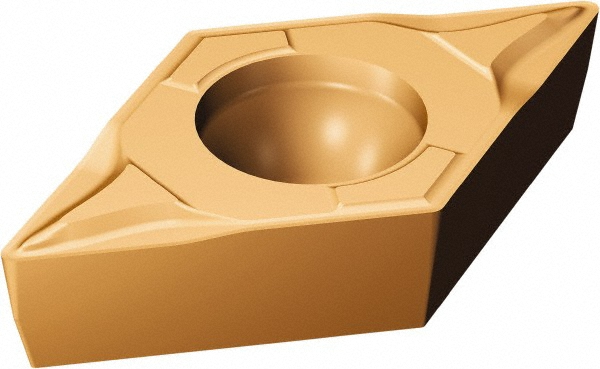

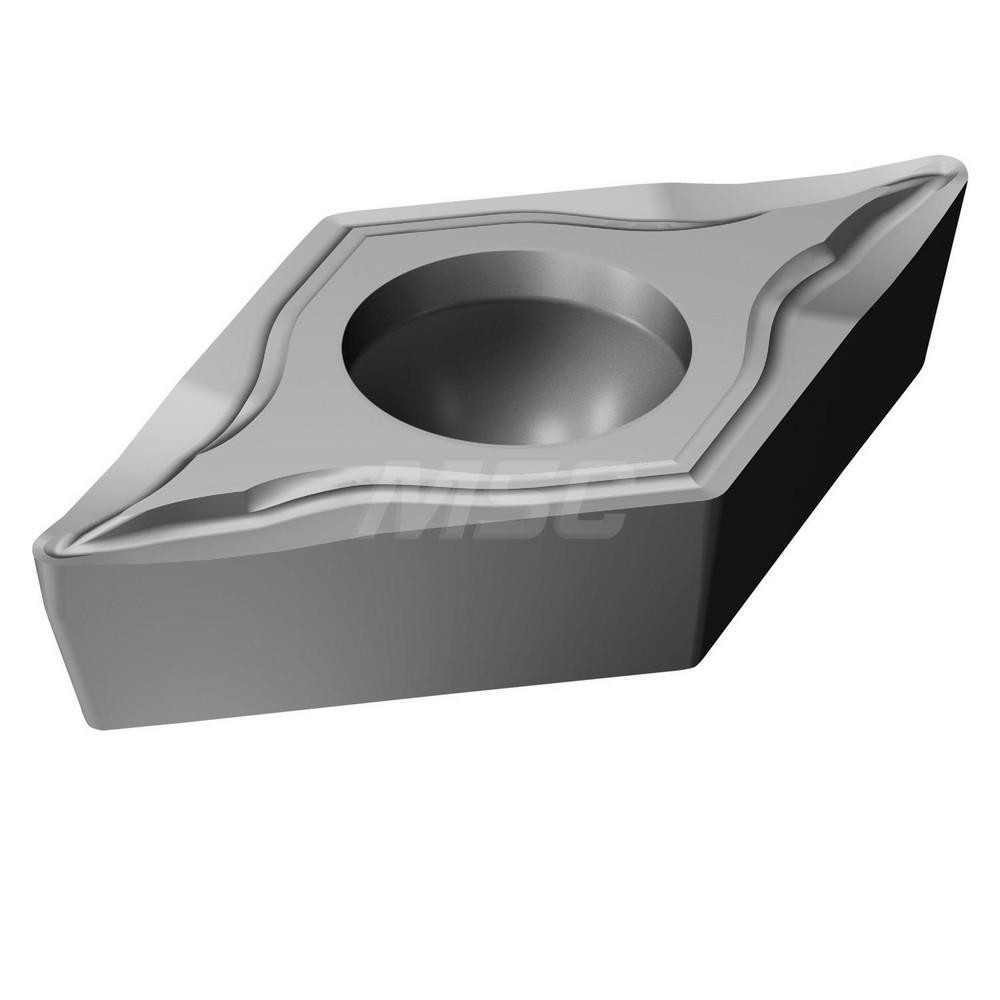

Bright/No Finish, Neutral, 11.23 mm Long, 0.40 mm Corner Radius, 55.00 deg D - Diamond (Rhombic) 55-Deg, Series CoroTurn 107
| Insert Style | DCGX |
|---|---|
| ISO Size Code | 11T304 |
| ANSI Size Code | 32.51 |

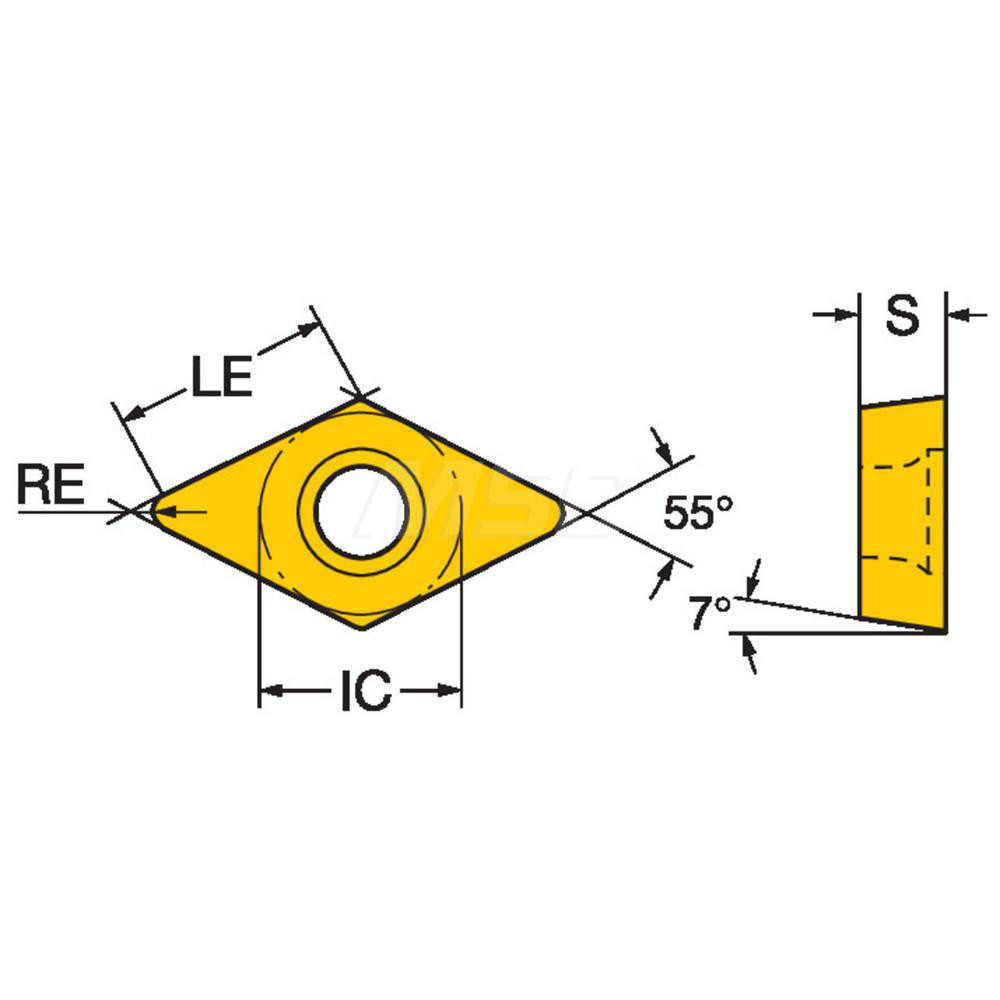

| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | H10 |
| Coating/Finish | Bright/Uncoated |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| ISO Insert Code | DCGX11T304 |
| ANSI Insert Code | DCGX32.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | G |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4420 |
| Insert Length (mm) | 11.23 |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | DCGX 11 T3 04-AL H10 |
| Chip Breaker | AL |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | Sweden |
| Pros | No Pros |
| Cons | No Cons |
| MSC Number | MSC# 78440450 |
