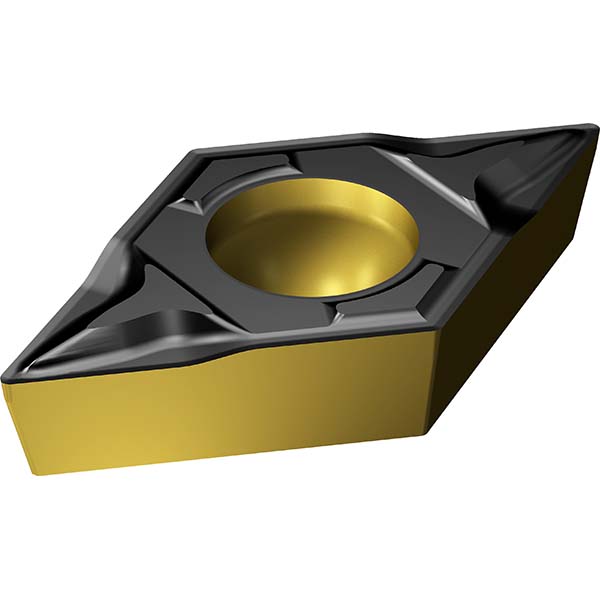

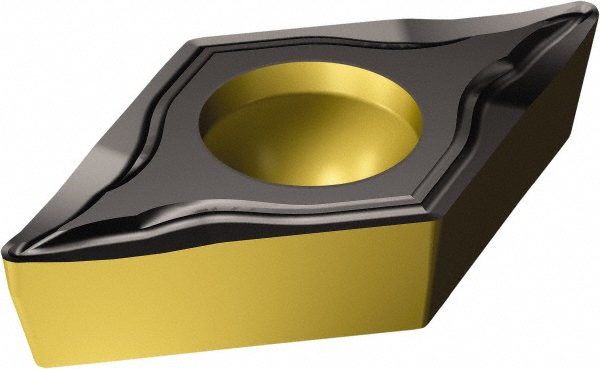

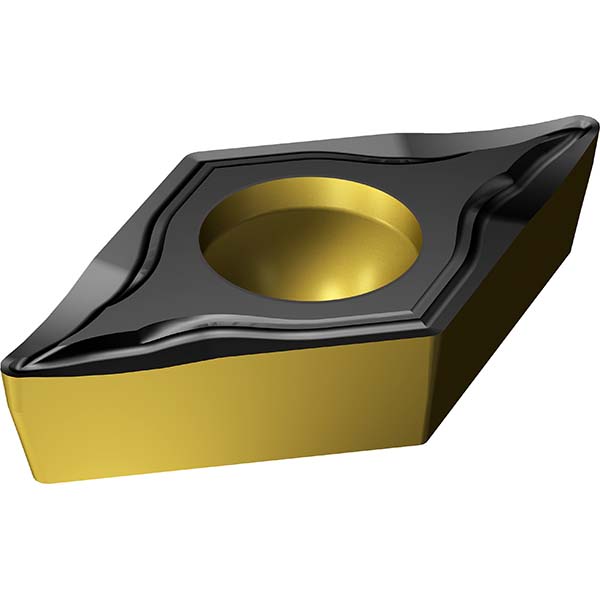

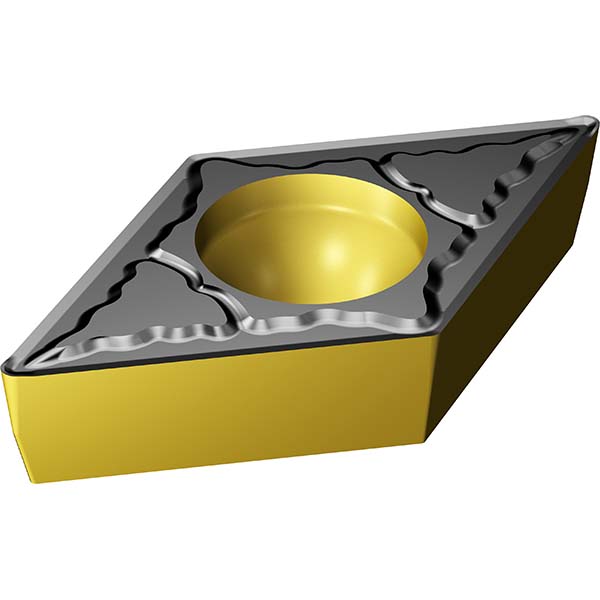

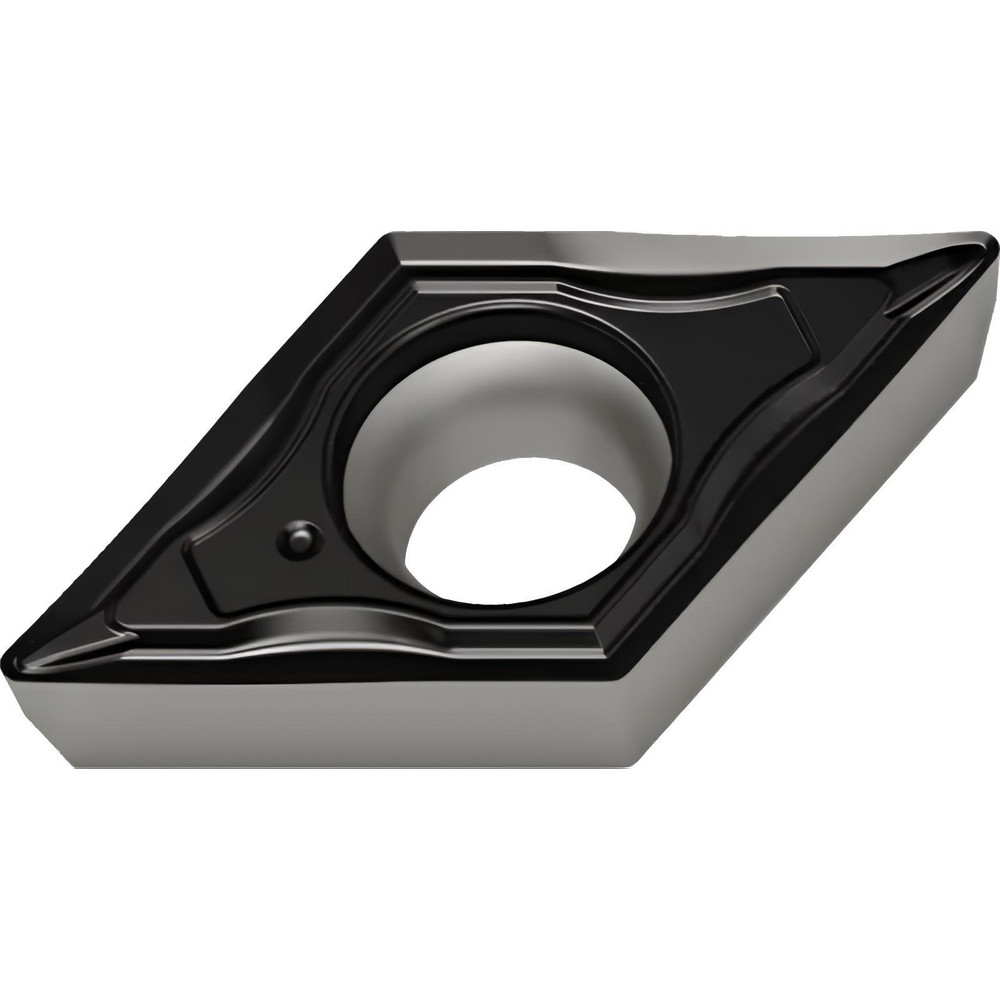

TiCN, Al2O3 & TiN Finish, Neutral, 11.63 mm Long, 0.40 mm Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg, Series CoroTurn 107

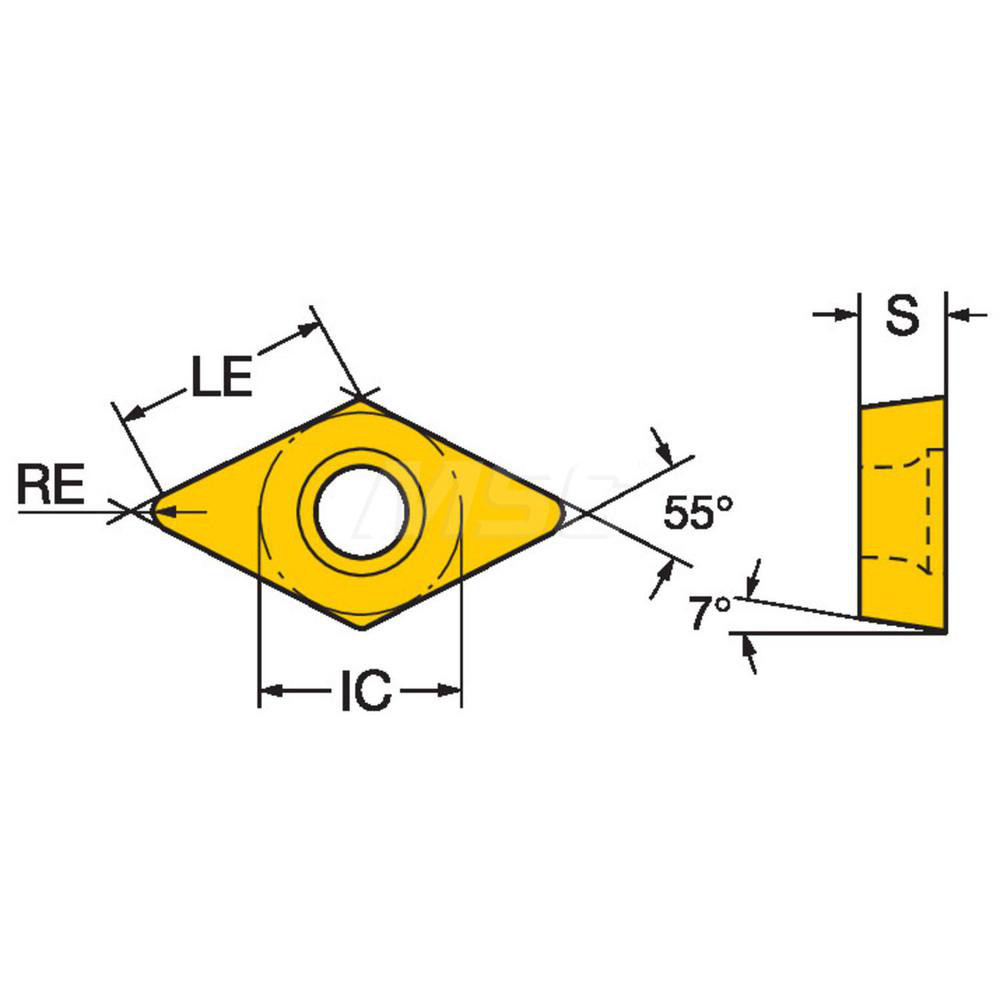

| Insert Style | DCMT |
|---|---|
| ISO Size Code | 11T304 |
| ANSI Size Code | 32.51 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (Decimal Inch) | 0.3752 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Material | Carbide |
| Manufacturer Grade | 1515 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Steel (P) - High Wear-Resistance |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| Maximum Depth of Cut (mm) | 11.23 |
| Maximum Depth of Cut (Decimal Inch) | 0.4421 |
| ISO Insert Code | DCMT11T304 |
| ANSI Insert Code | DCMT32.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4579 |
| Insert Length (mm) | 11.63 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | DCMT 11 T3 04-UM 1515 |
| Manufacturers Catalog Number | 5730984 |
| Chip Breaker | UM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.51 |
| Country of Origin | UNITED STATES |
| undefined | undefined |
| MSC Number | MSC# 69513489 |
