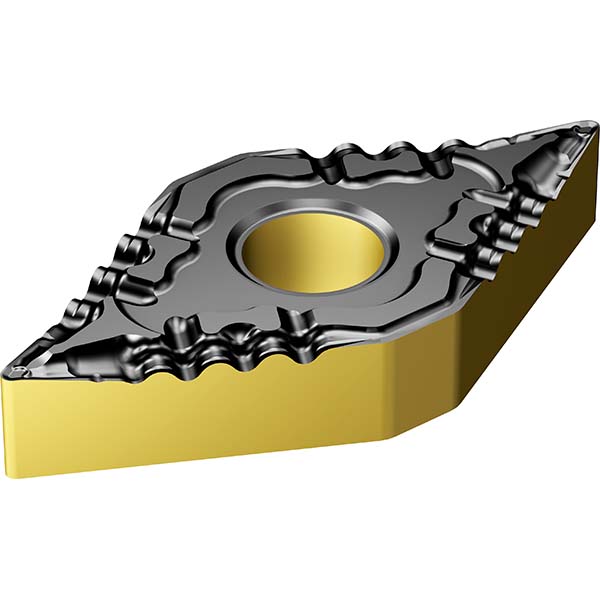

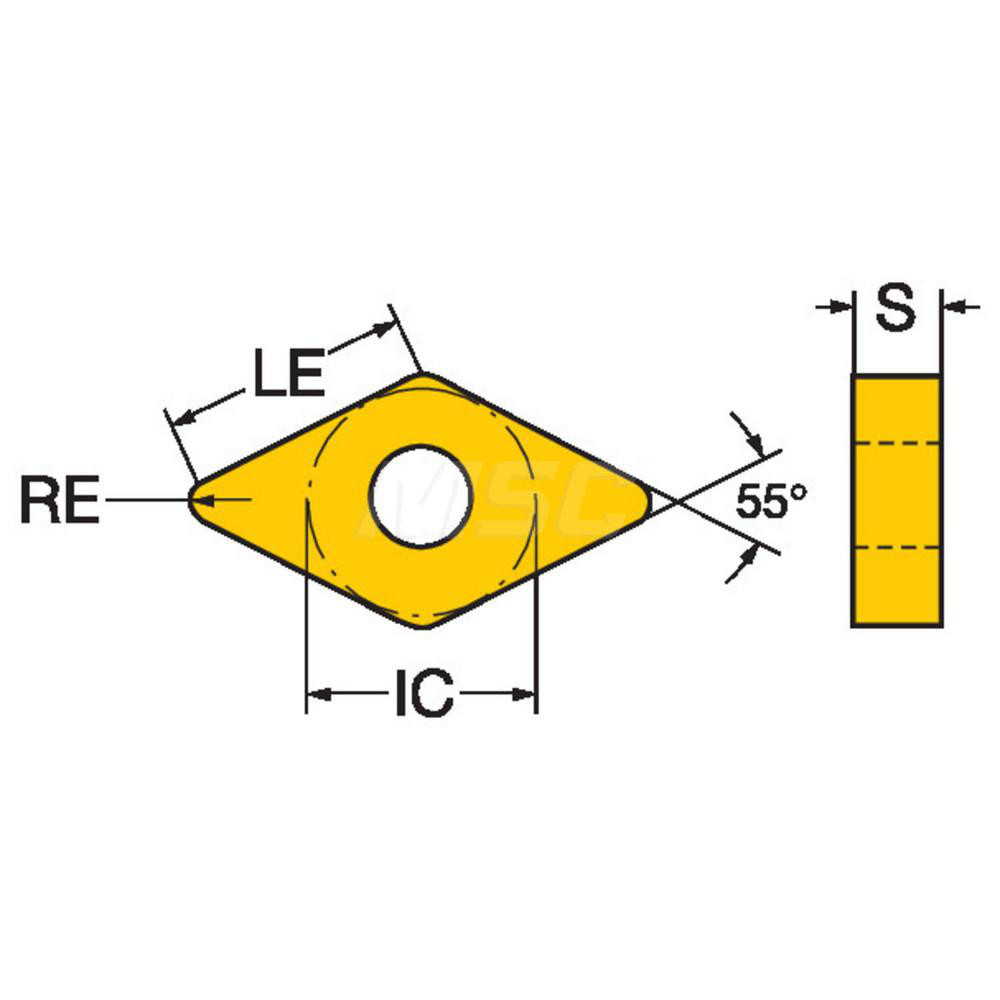

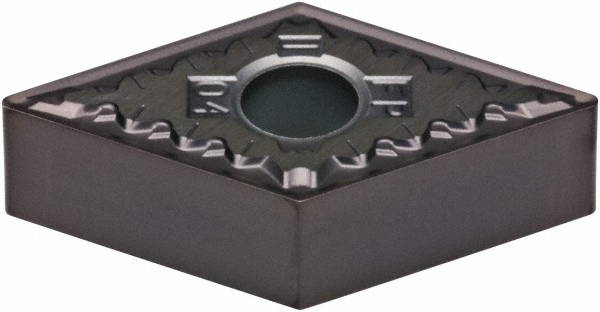

TiCN, Al2O3 & TiN Finish, Neutral, 0.5000" Inscribed Circle, 0.0156" Corner Radius, 55 deg D - Diamond (Rhombic) 55-Deg, Series T-Max P
| Insert Style | DNMG |
|---|---|
| ISO Size Code | 150404 |
| ANSI Size Code | 431 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| ISO Insert Code | DNMG150404 |
| ANSI Insert Code | DNMG431 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | DNMG 15 04 04-PF 4425 |
| Manufacturers Catalog Number | DNMG 431-PF 4425 |
| Chip Breaker | PF |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1504 |
| Country of Origin | Japan |
| undefined | undefined |
| MSC Number | MSC# 19106459 |
