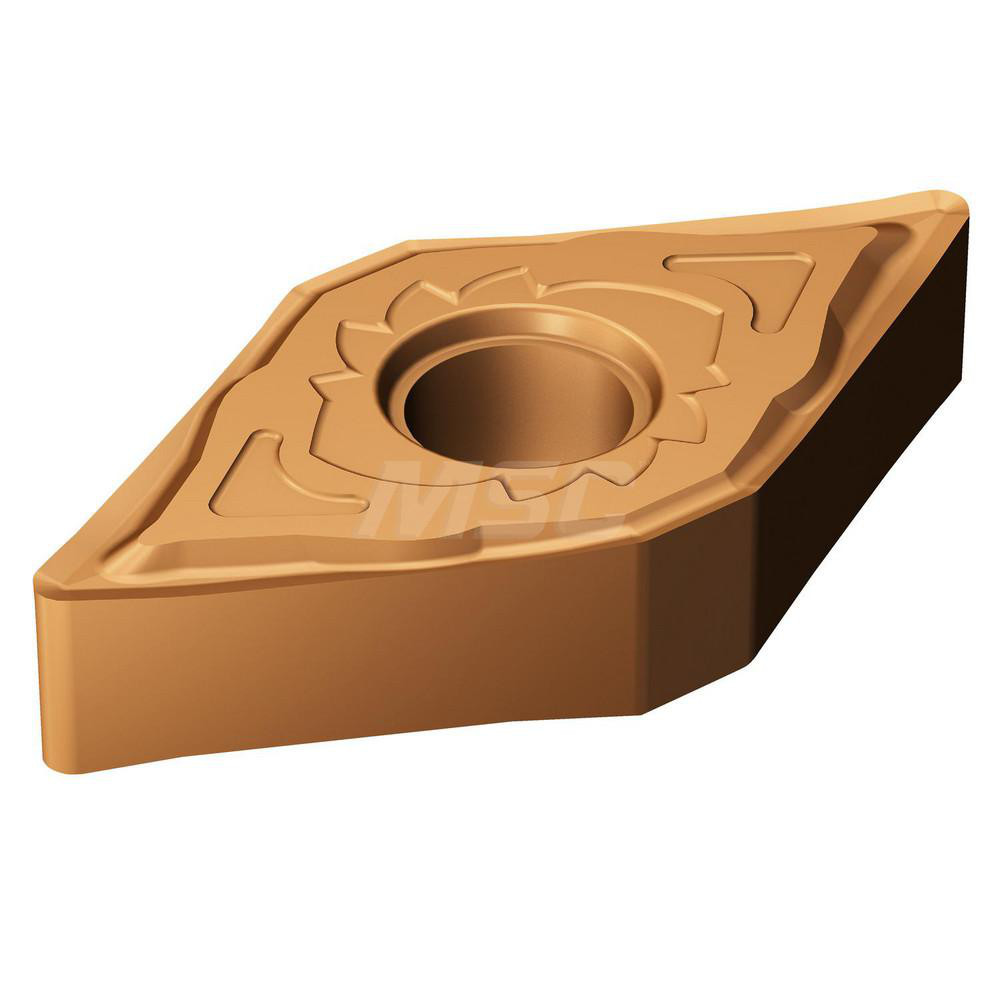

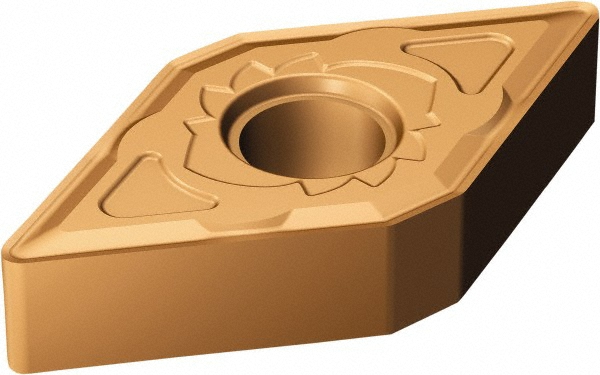

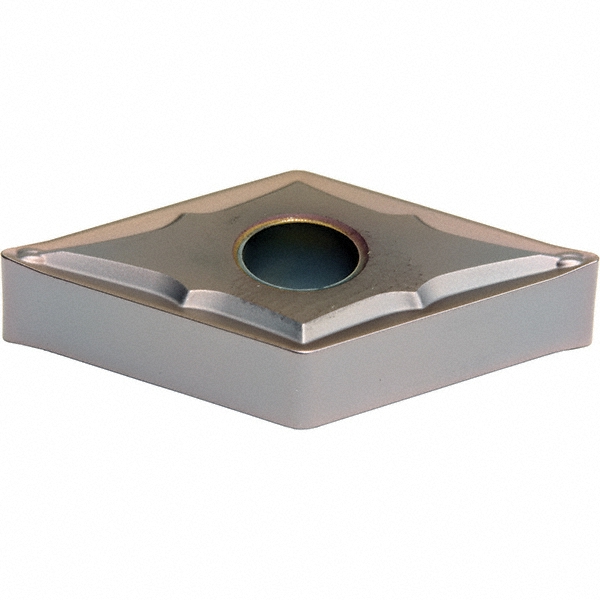

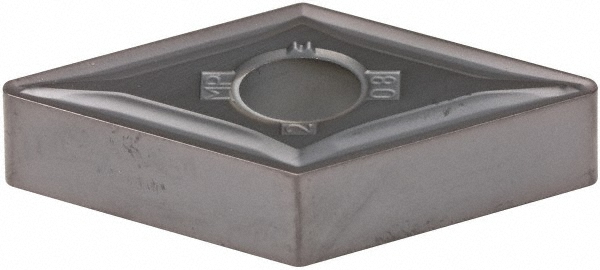

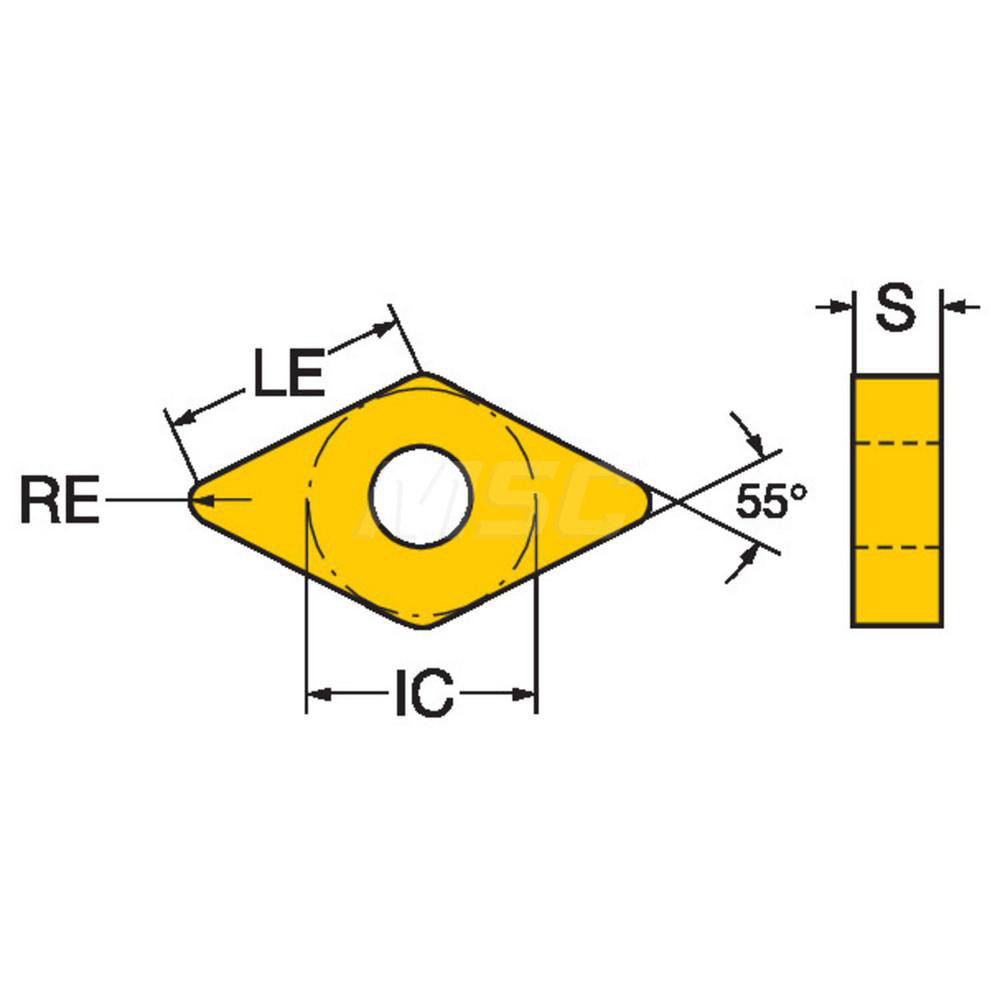

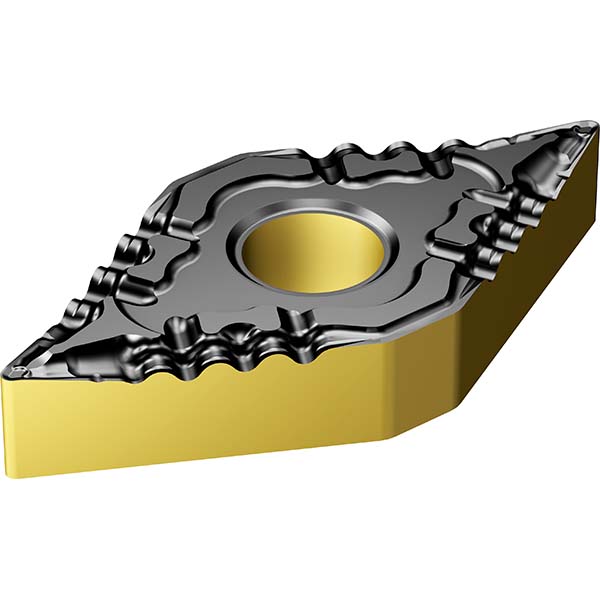

TiAlN & AlCr2O3 Finish, Neutral, 14.70 mm Long, 12.70 mm Inscribed Circle, 0.79 mm Corner Radius, 55.00 deg D - Diamond (Rhombic) 55-Deg, Series T-Max P
| Insert Style | DNMG |
|---|---|
| ISO Size Code | 150408 |
| ANSI Size Code | 432 |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Included Angle | 55.00 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 0.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 4 |
| Side Clearance | Negative |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.1600 |
| ISO Insert Code | DNMG150408 |
| ANSI Insert Code | DNMG432 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.5000 - 0.6000 |
| Insert Length (Decimal Inch) | 0.5789 |
| Insert Length (mm) | 14.70 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | DNMG 15 04 08-QM 1115 |
| Chip Breaker | QM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 432 |
| Country of Origin | Japan |
| MSC Number | MSC# 52081585 |
