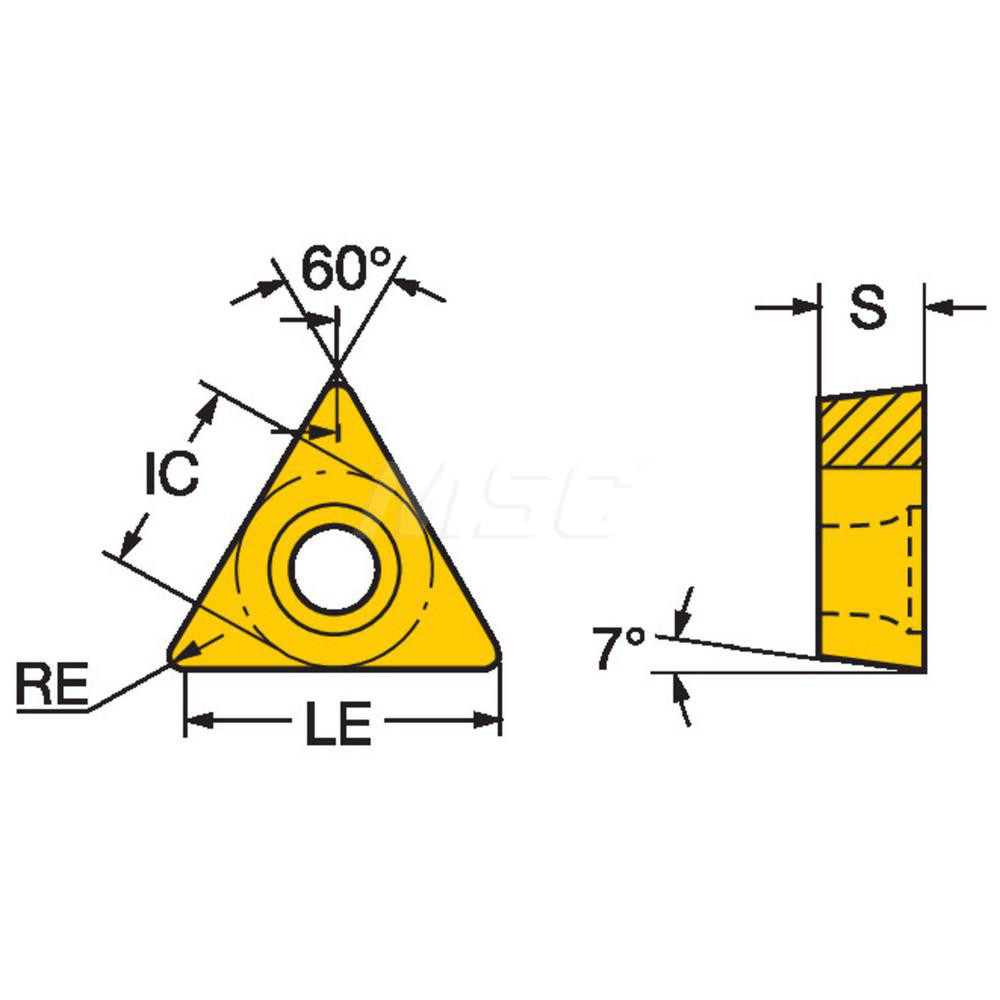

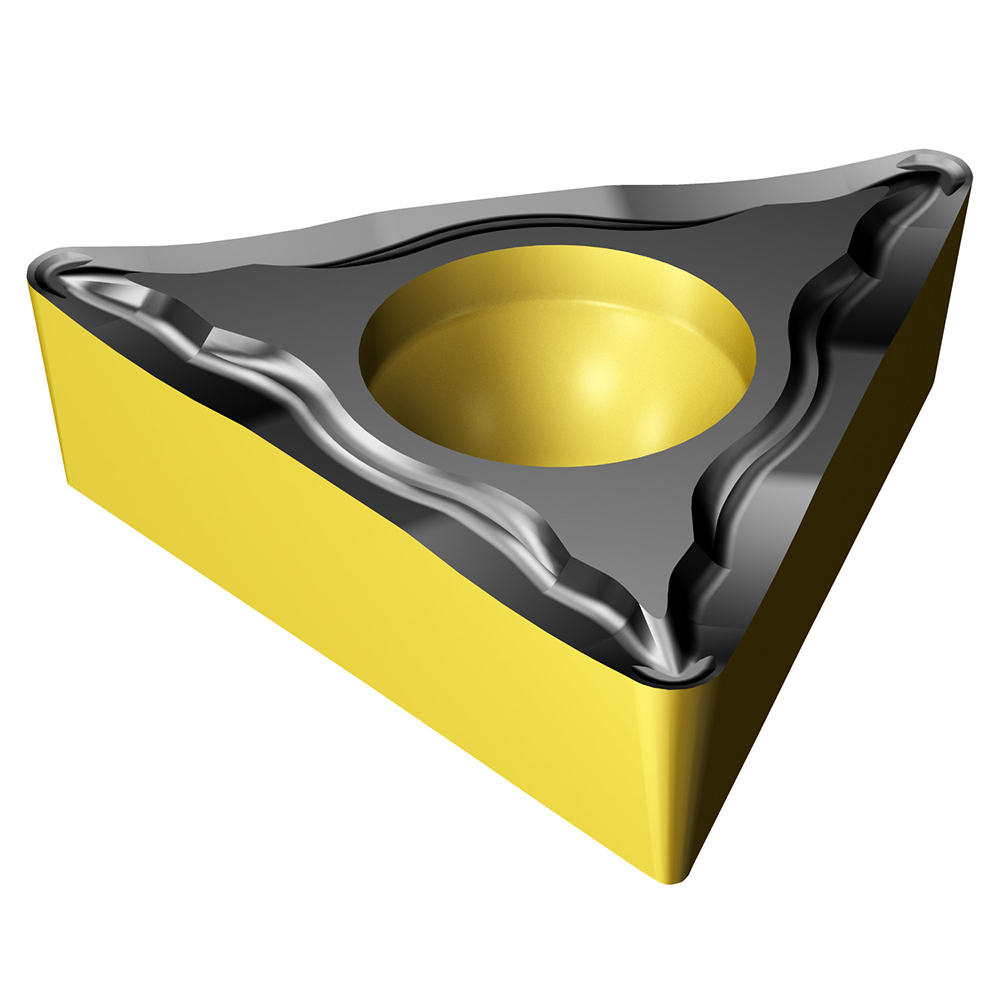

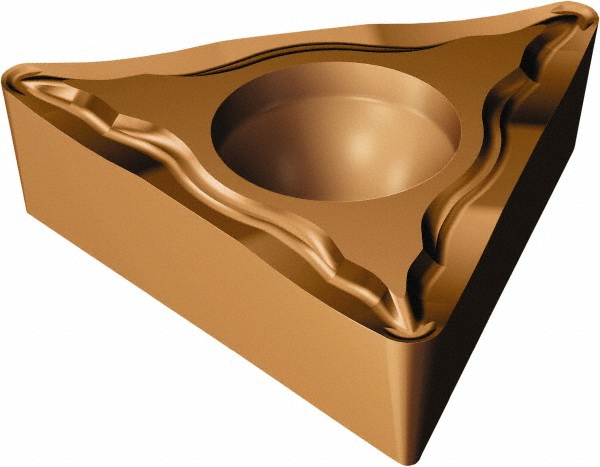

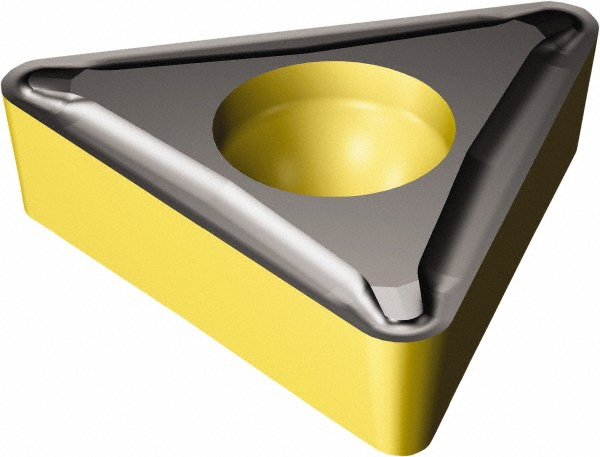

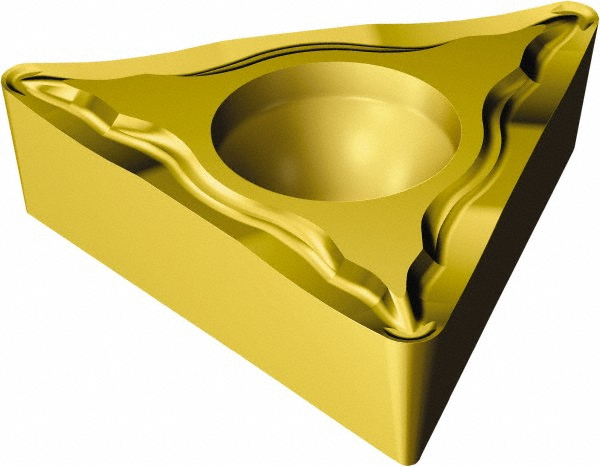

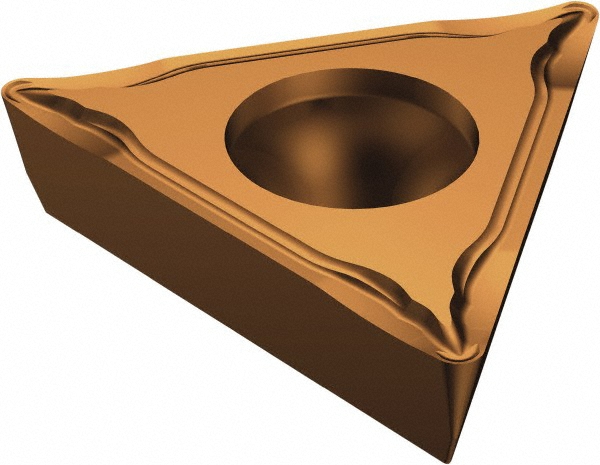

TiAlN & AlCr2O3 Finish, Neutral, 10.34 mm Long, 6.35 mm Inscribed Circle, 0.40 mm Corner Radius, 60 deg T - Triangle, Series CoroTurn 107
| Insert Style | TCMT |
|---|---|
| ISO Size Code | 110204 |
| ANSI Size Code | 21.51 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | 1125 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.80 |
| ISO Insert Code | TCMT110204 |
| ANSI Insert Code | TCMT21.51 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4071 |
| Insert Length (mm) | 10.34 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Non-Ferrous Metal; Superalloy; Stainless Steel; Titanium; Steel |
| Secondary Workpiece Material Code | P; S; M; N |
| Iso Code | TCMT 11 02 04-UM 1125 |
| Chip Breaker | UM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 21.51 |
| Country of Origin | Japan |
| MSC Number | MSC# 53549655 |
