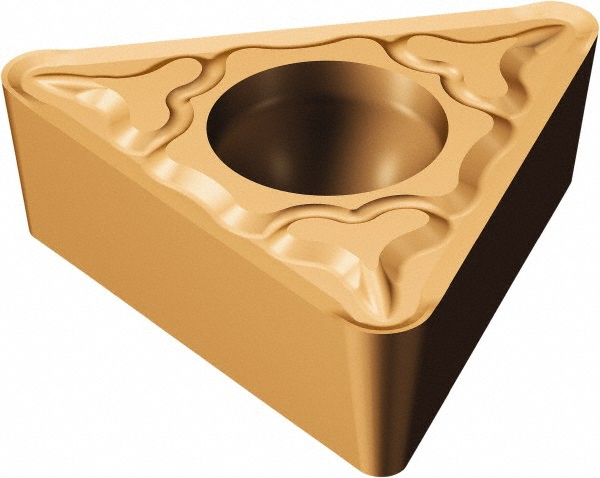

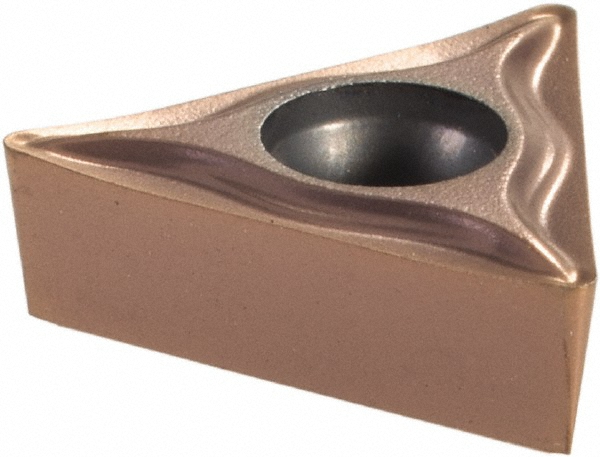

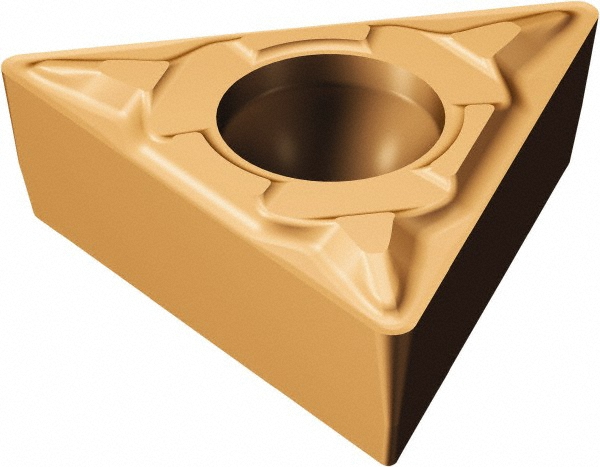

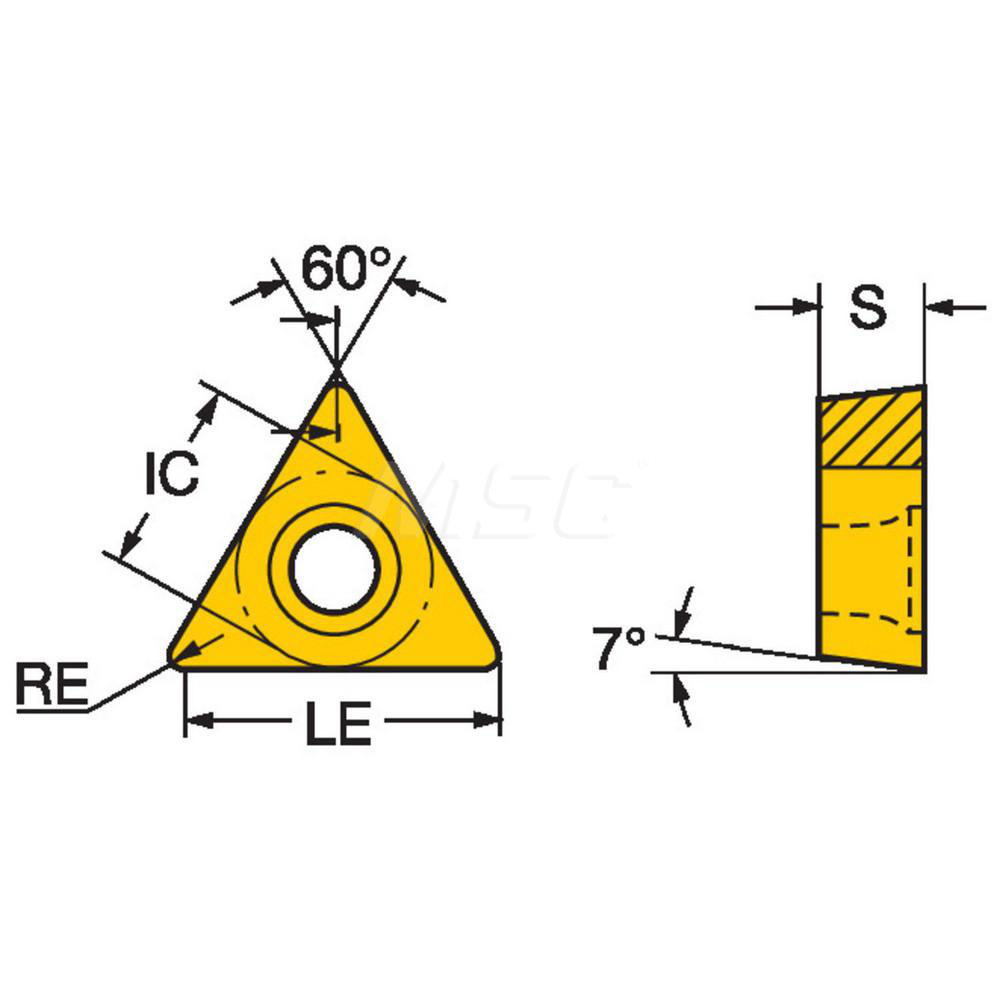

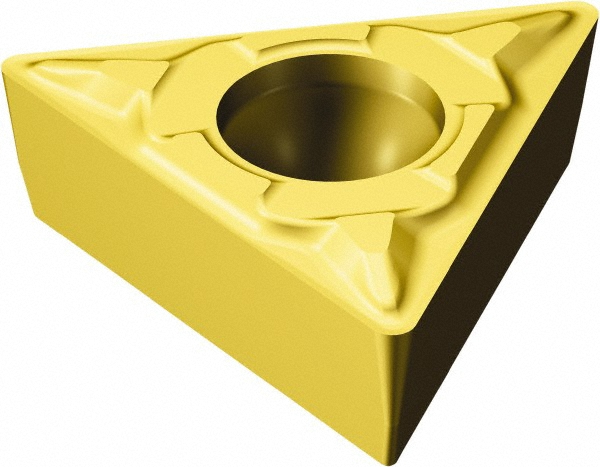

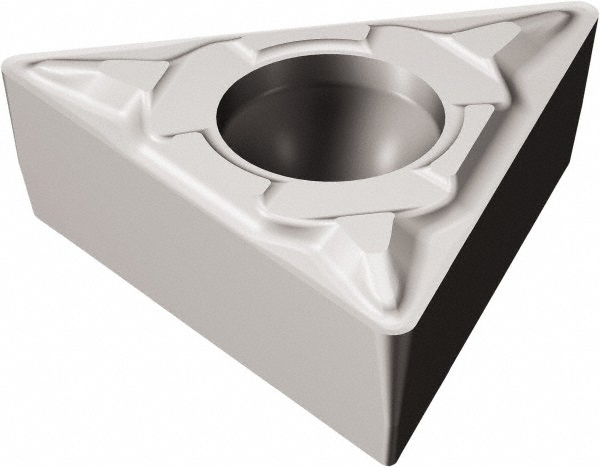

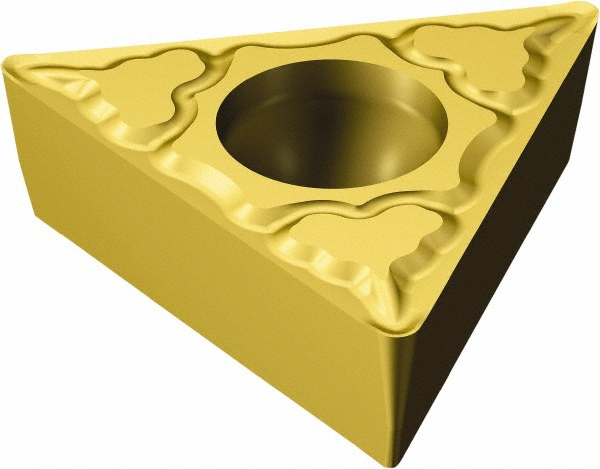

TiCN, AI2O3 & TiN Finish, Neutral, 10.34 mm Long, 6.35 mm Inscribed Circle, 0.40 mm Corner Radius, 60.00 deg T - Triangle, Series CoroTurn 107
| Insert Style | TCMT |
|---|---|
| ISO Size Code | 110304 |
| ANSI Size Code | 221 |
| Insert Shape | T - Triangle |
| Included Angle | 60.00 |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Insert Material | Carbide |
| Manufacturer Grade | 2015 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness | 3.17 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Finishing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.8000 |
| ISO Insert Code | TCMT110304 |
| ANSI Insert Code | TCMT221 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.4000 - 0.5000 |
| Insert Length (Decimal Inch) | 0.4071 |
| Insert Length (mm) | 10.34 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | M |
| Iso Code | TCMT 11 03 04-MF 2015 |
| Chip Breaker | MF |
| UNSPSC Code | 23242105 |
| Insert Size Code | 221 |
| Country of Origin | Sweden |
| MSC Number | MSC# 52071776 |
