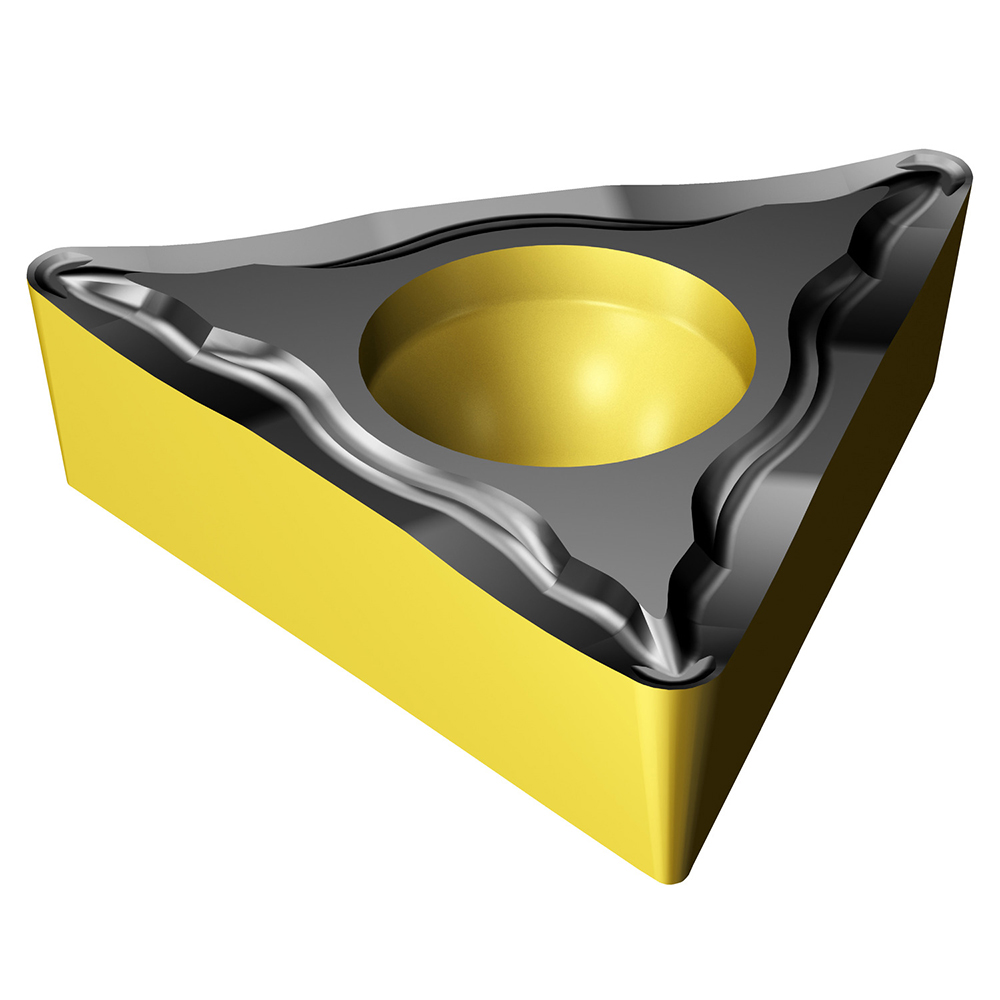

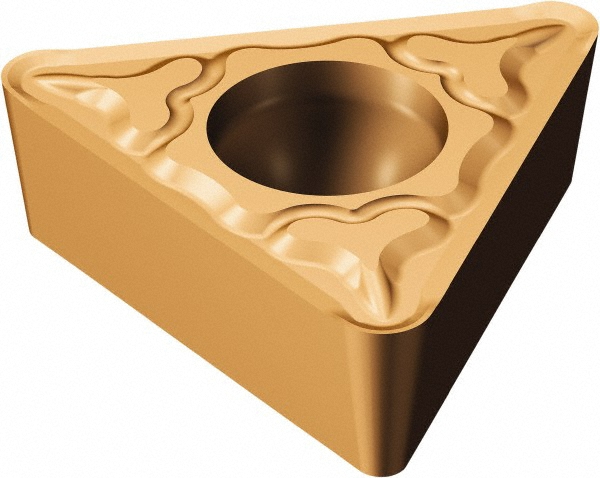

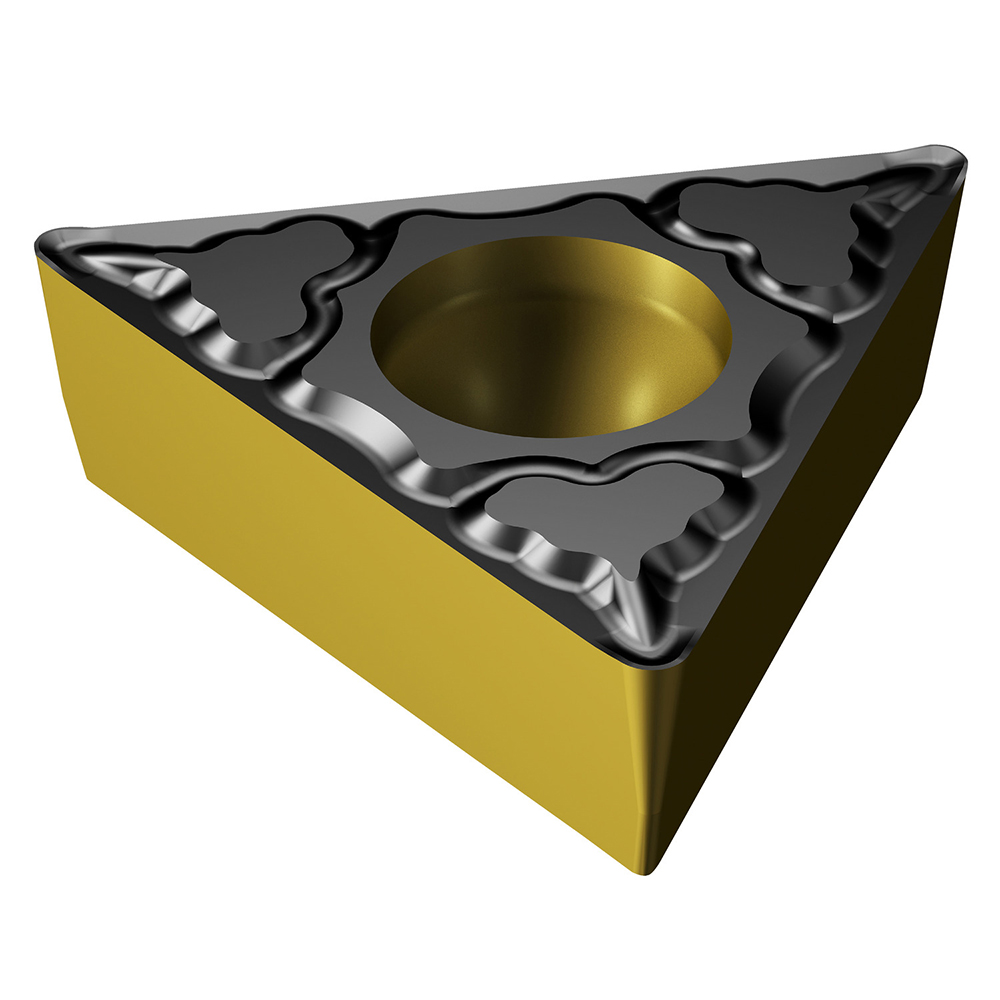

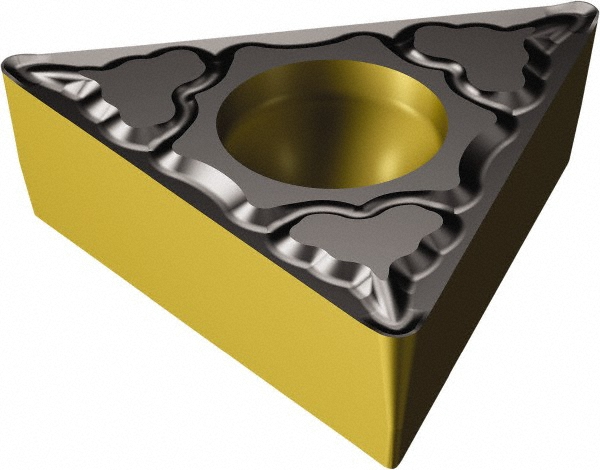

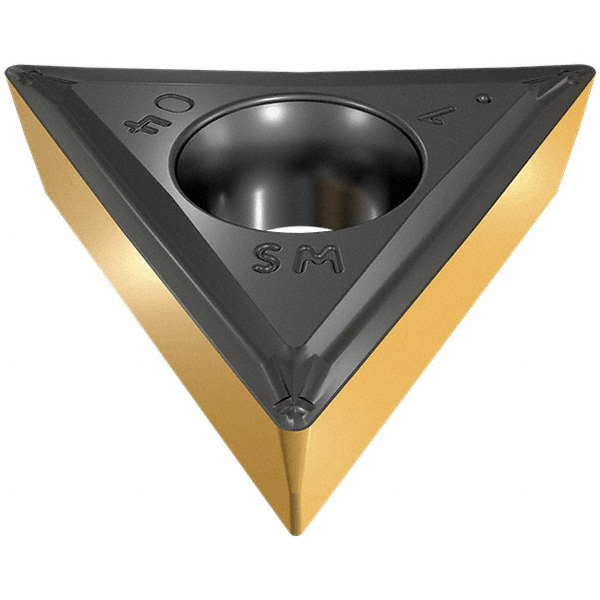

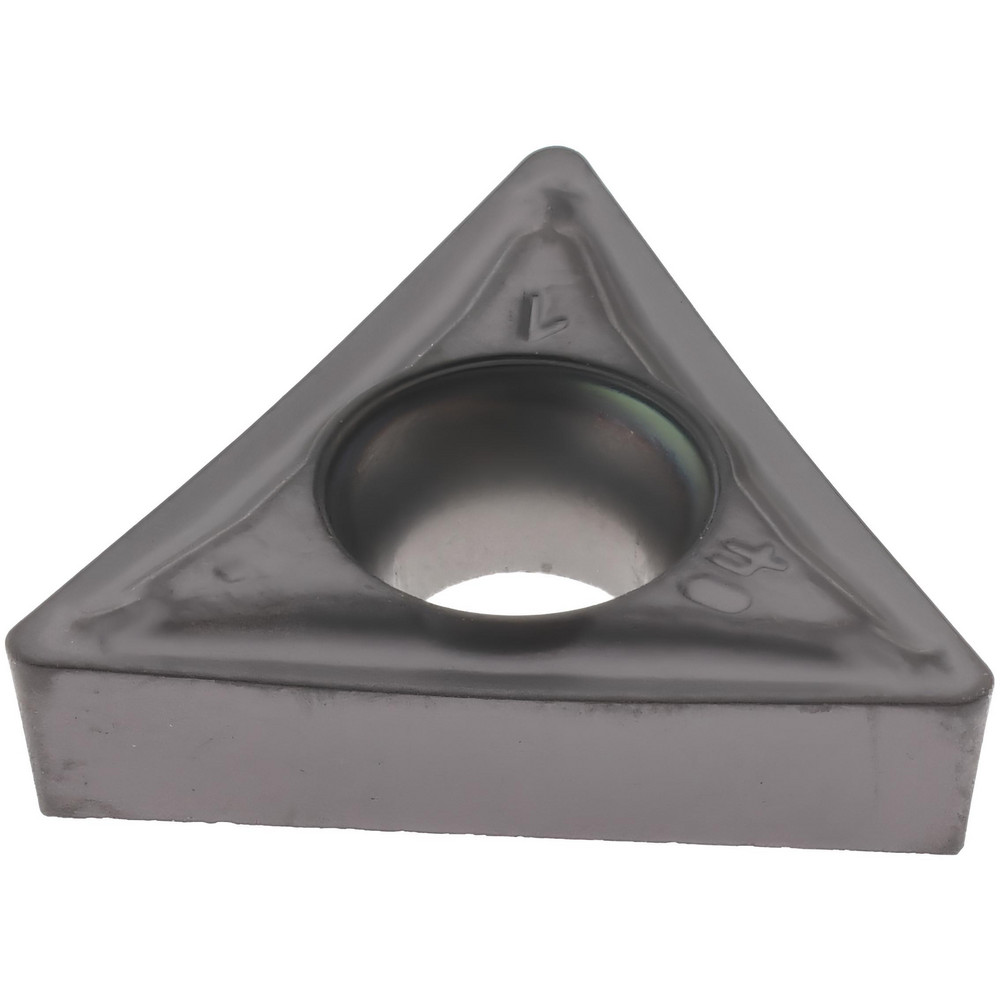

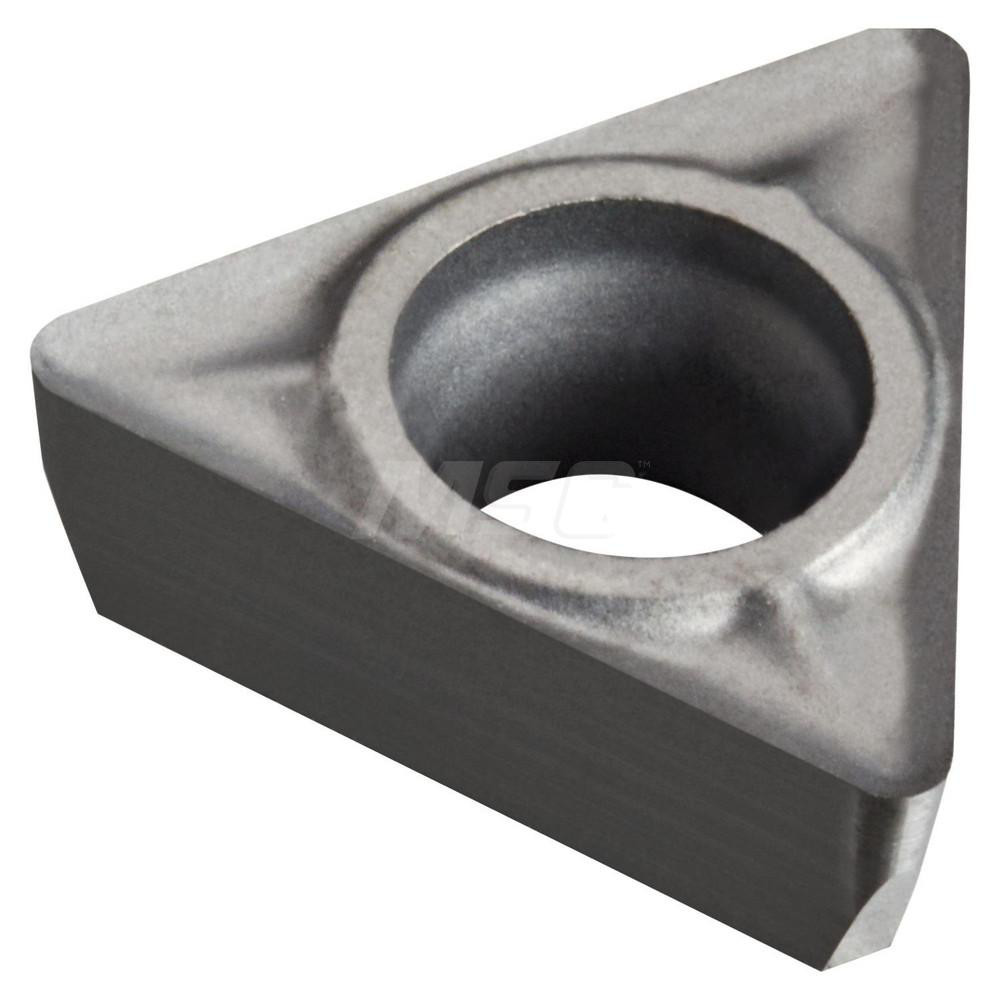

TiAlN & AlCr2O3 Finish, Neutral, 15.70 mm Long, 0.79 mm Corner Radius, 60.00 deg T - Triangle, Series CoroTurn 107
| Insert Style | TCMT |
|---|---|
| ISO Size Code | 16T308 |
| ANSI Size Code | 32.52 |

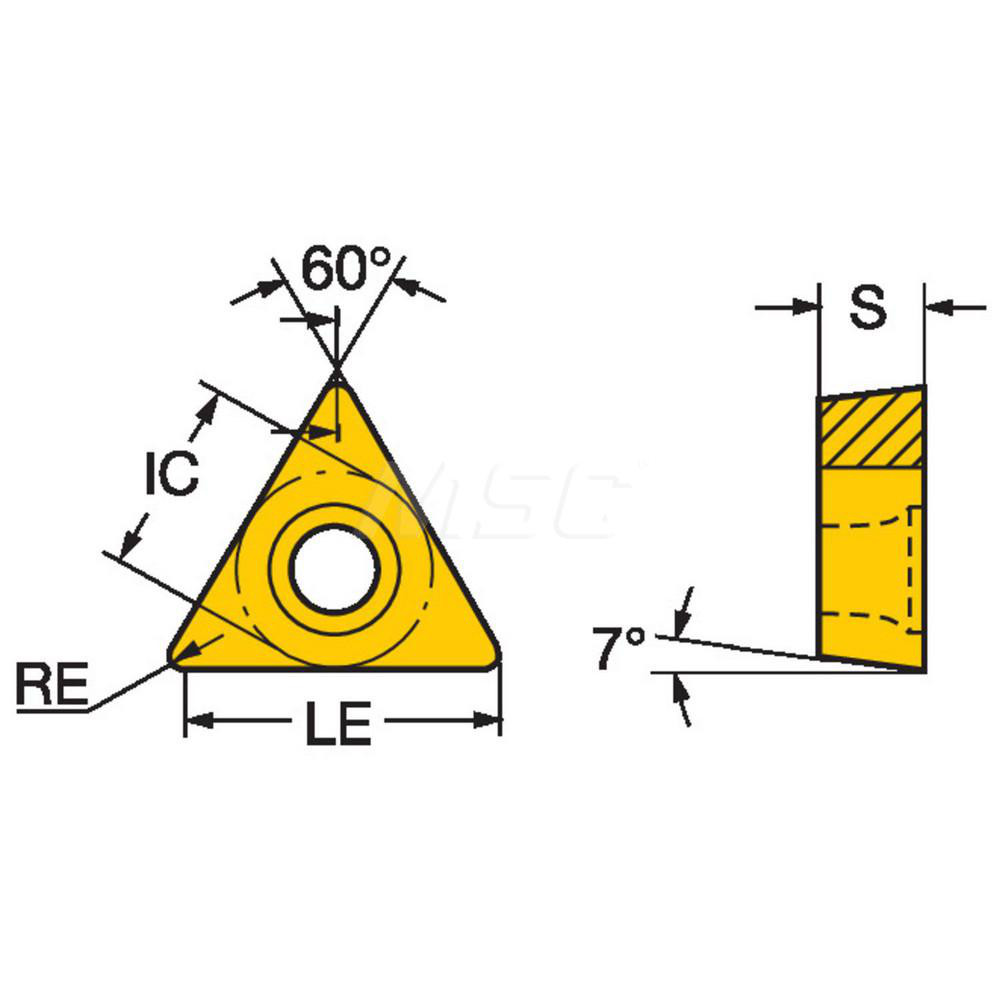

| Insert Shape | T - Triangle |
| Included Angle | 60.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 7.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness | 3.97 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| ISO Insert Code | TCMT16T308 |
| ANSI Insert Code | TCMT32.52 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6180 |
| Insert Length (mm) | 15.70 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | TCMT 16 T3 08-UM 1115 |
| Chip Breaker | UM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
| Country of Origin | Japan |
