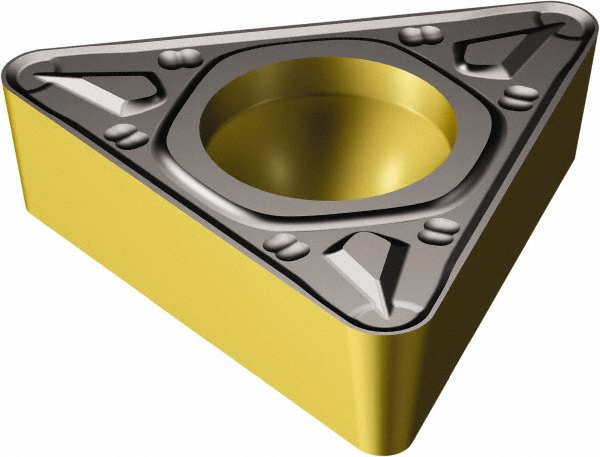

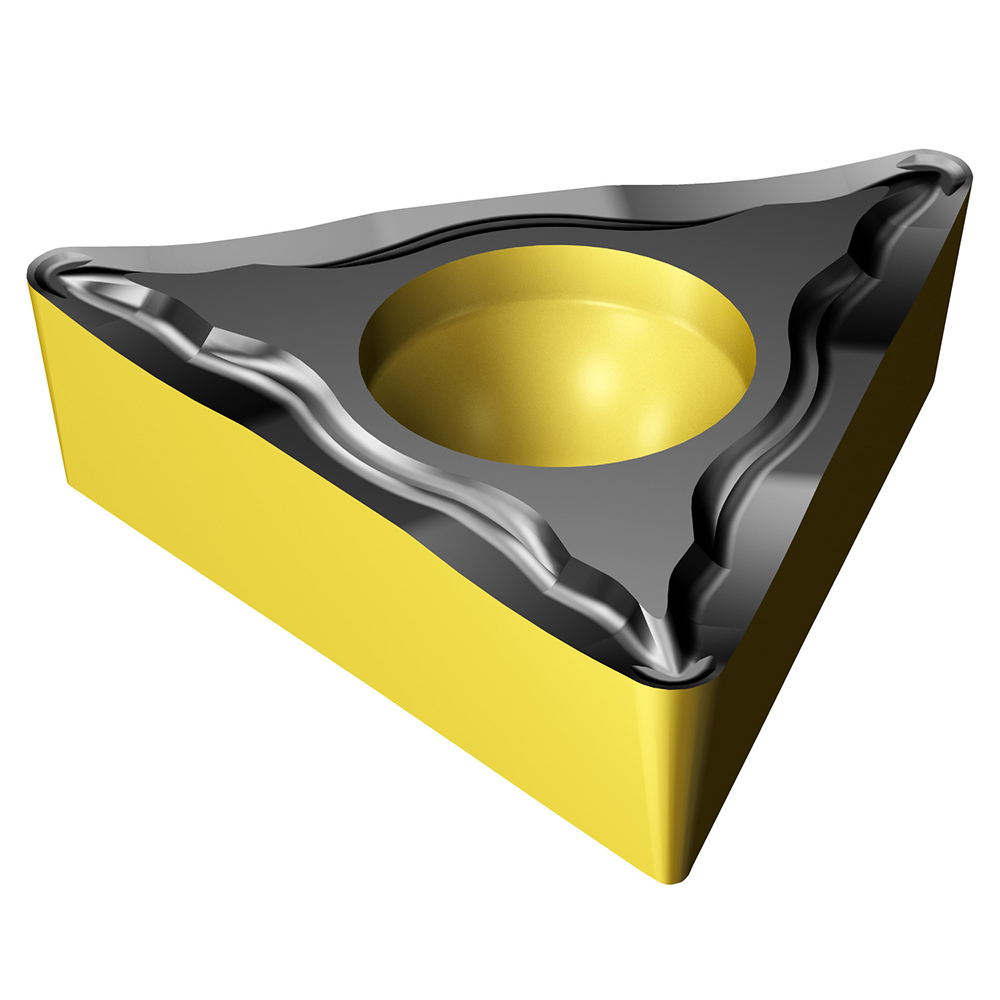

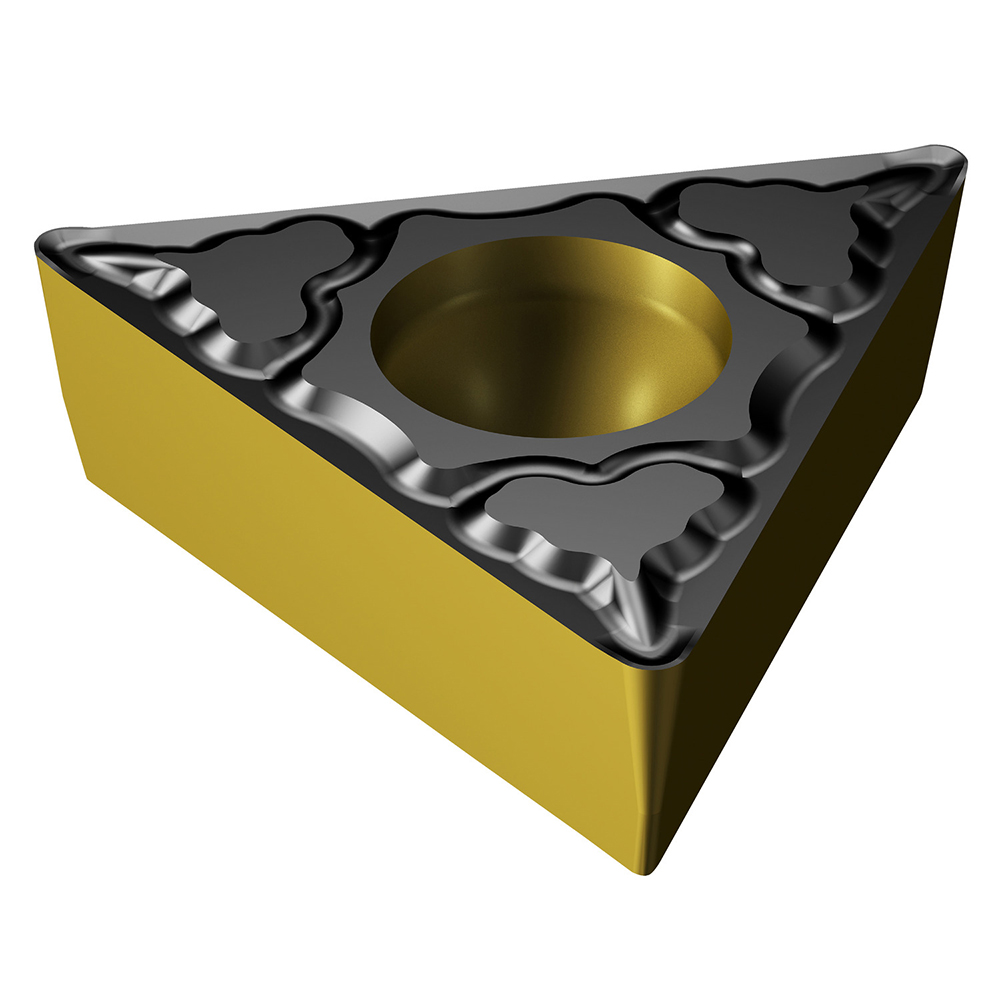

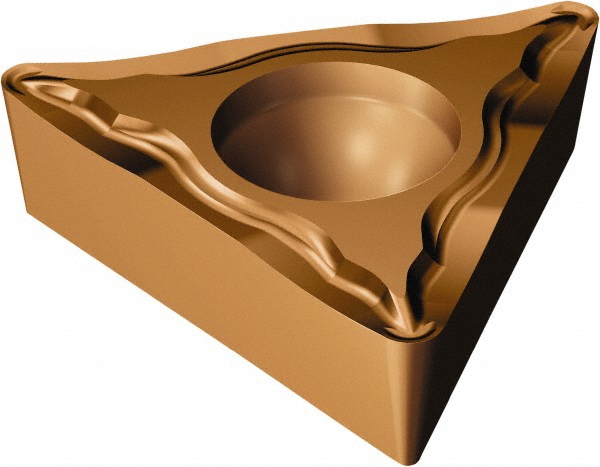

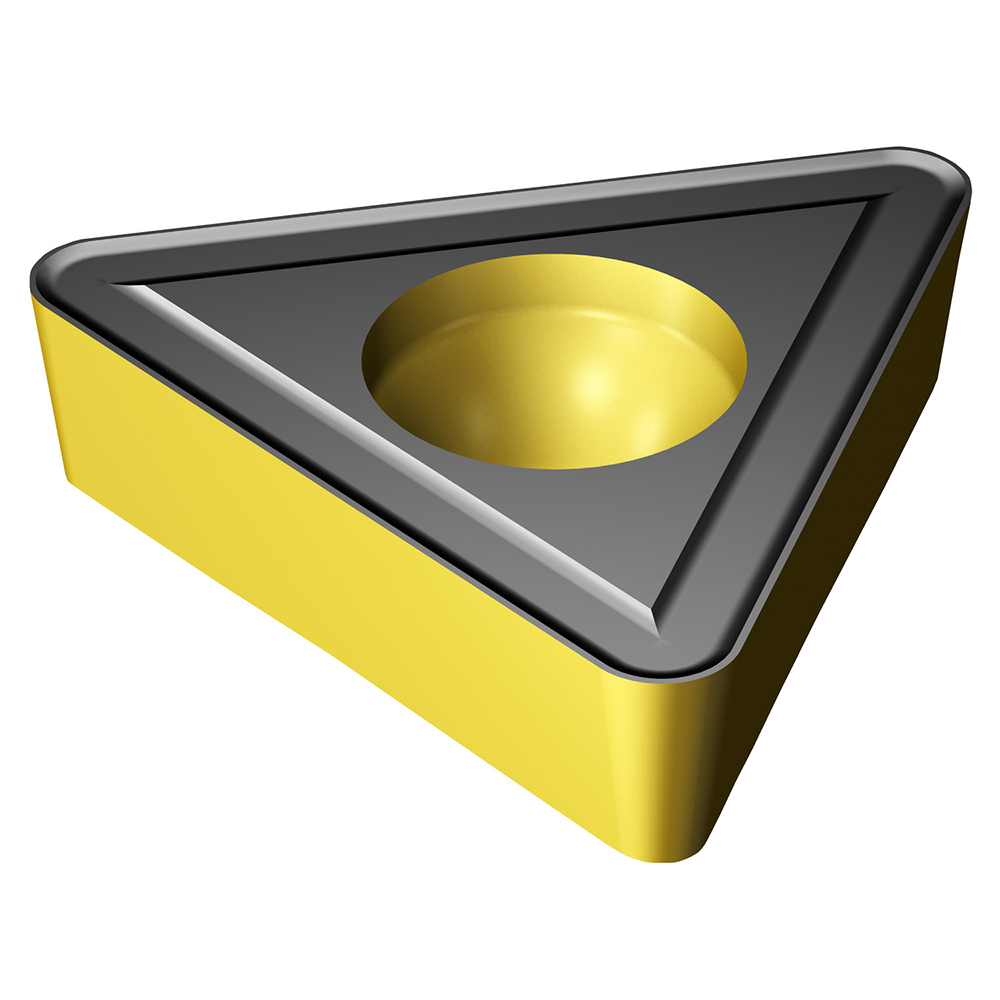

Al2O3, TiN & TiCN Finish, Neutral, 0.3750" Inscribed Circle, 0.0313" Corner Radius, 60 deg T - Triangle, Series CoroTurn 107
| Insert Style | TCMT |
|---|---|
| ISO Size Code | 16T308 |
| ANSI Size Code | 32.52 |

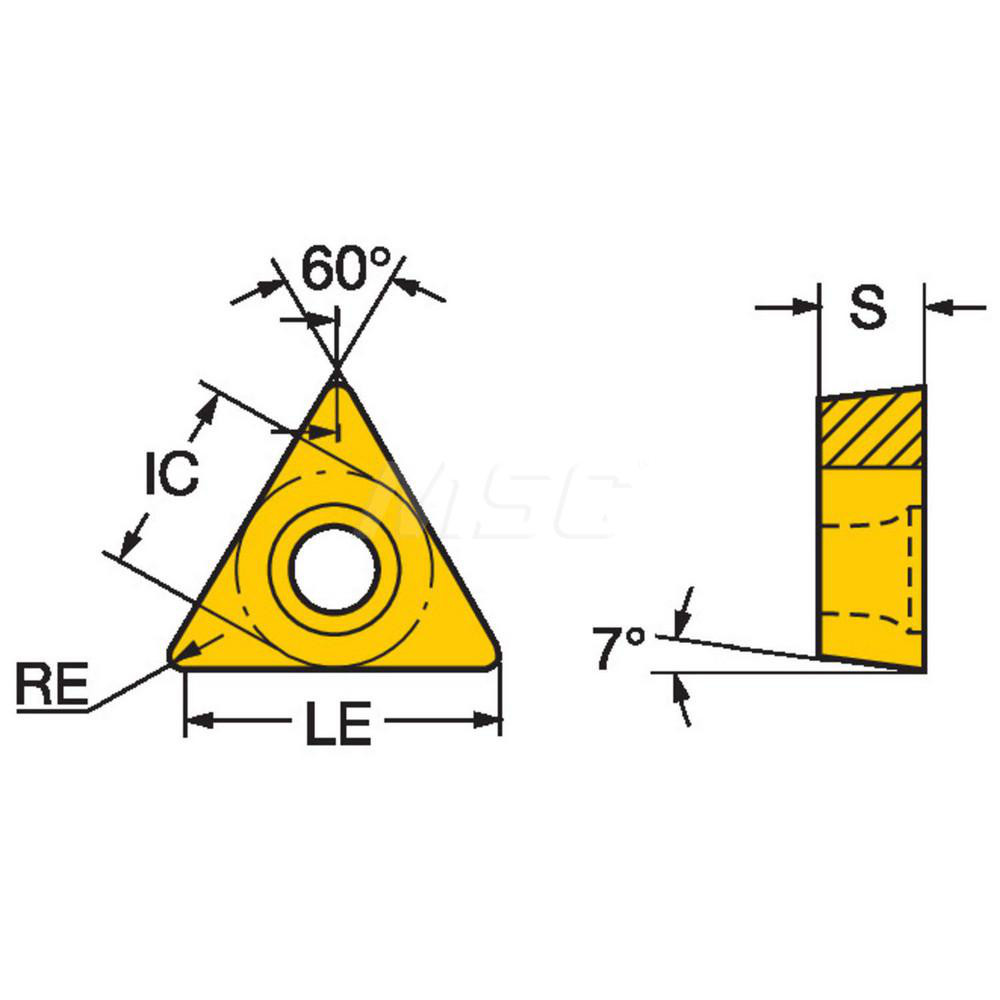

| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 7 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Insert Thickness (Inch) | 5/32 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 3 |
| Side Clearance | Positive |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
| ISO Insert Code | TCMT16T308 |
| ANSI Insert Code | TCMT32.52 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | TCMT 16 T3 08-UM 4425 |
| Manufacturers Catalog Number | TCMT 3(2.5)2-UM |
| Chip Breaker | UM |
| Industry Standard Number | TCMT 16 T3 08-UM 4425 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 16T3 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 28519973 |
