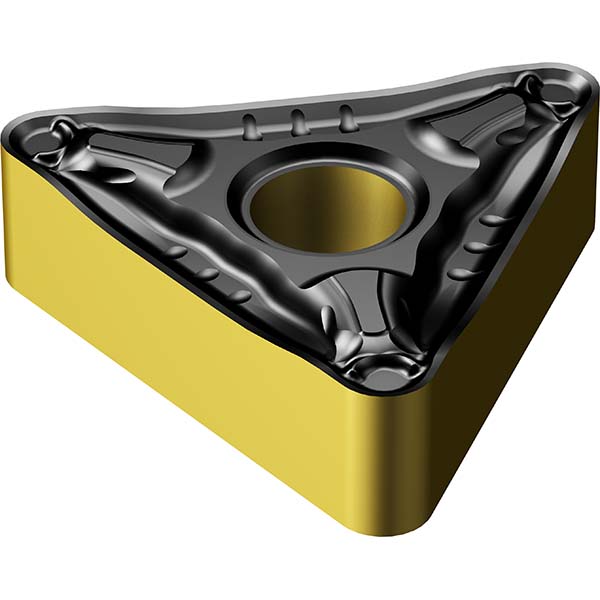

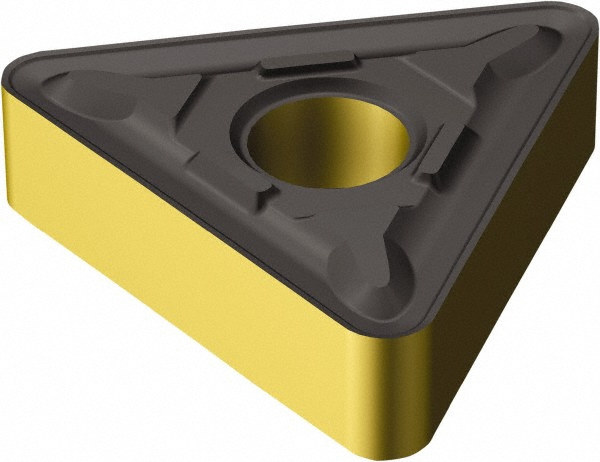

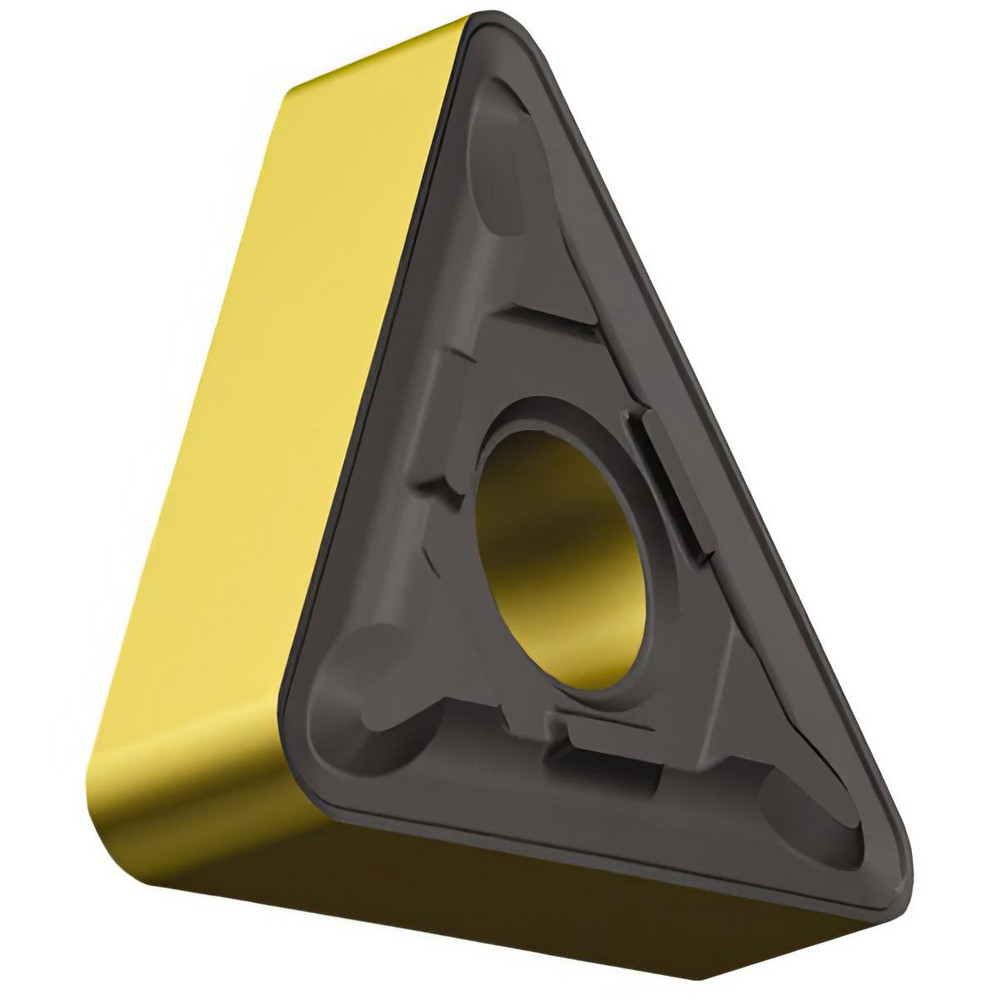

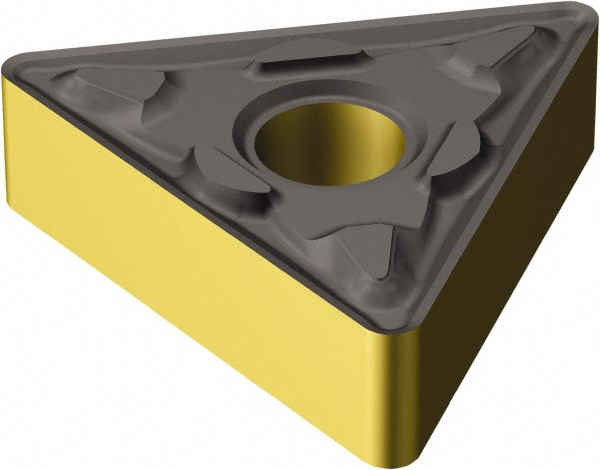

TiCN, AI2O3 & TiN Finish, Neutral, 0.5000" Inscribed Circle, 0.0625" Corner Radius, 60 deg T - Triangle, Series T-Max P
| Insert Style | TNMG |
|---|---|
| ISO Size Code | 220416 |
| ANSI Size Code | 434 |
| Insert Shape | T - Triangle |
| Included Angle | 60 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (mm) | 1.59 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Insert Material | Carbide |
| Manufacturer Grade | 2220 |
| Coating/Finish | TiCN; TiN; AI2O3 |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Side Clearance | Negative |
| Insert Shape Code | T |
| ISO Insert Code | TNMG220416 |
| ANSI Insert Code | TNMG434 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material Code | M |
| Iso Code | TNMG 22 04 16-MR 2220 |
| Chip Breaker | MR |
| UNSPSC Code | 23242105 |
| Insert Size Code | 434 |
| Country of Origin | Sweden |
| MSC Number | MSC# 32605354 |
