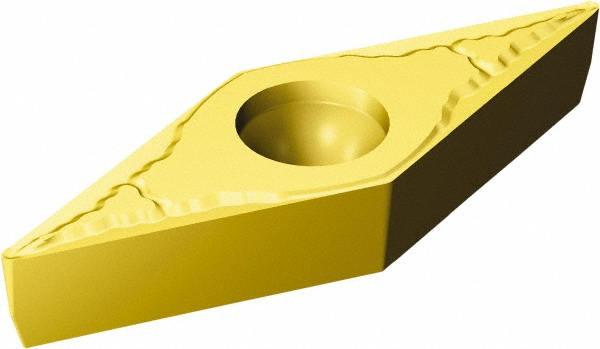

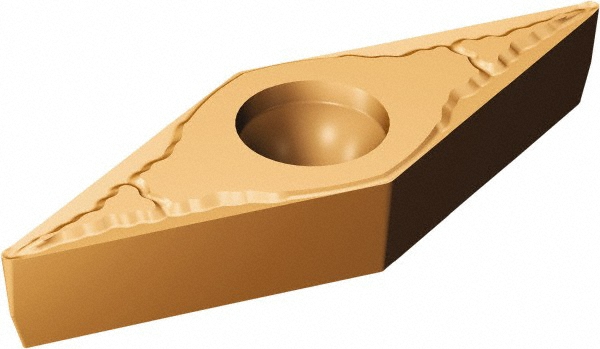

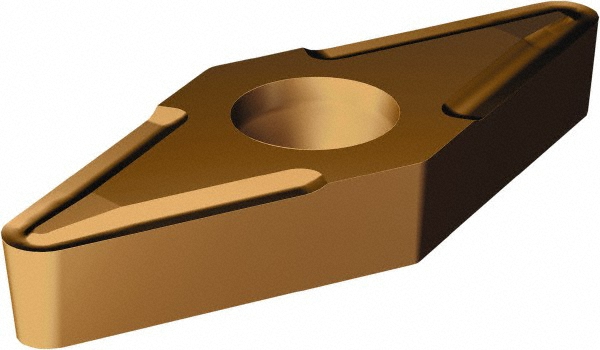

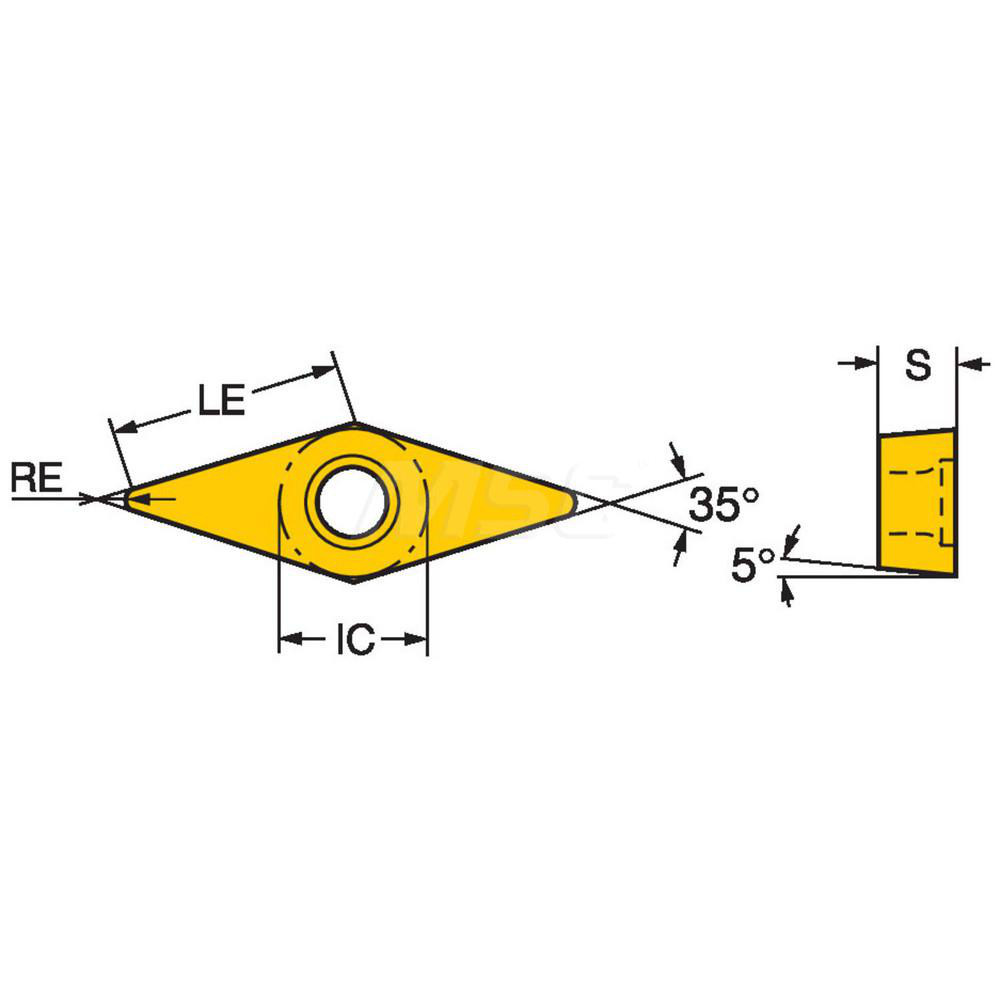

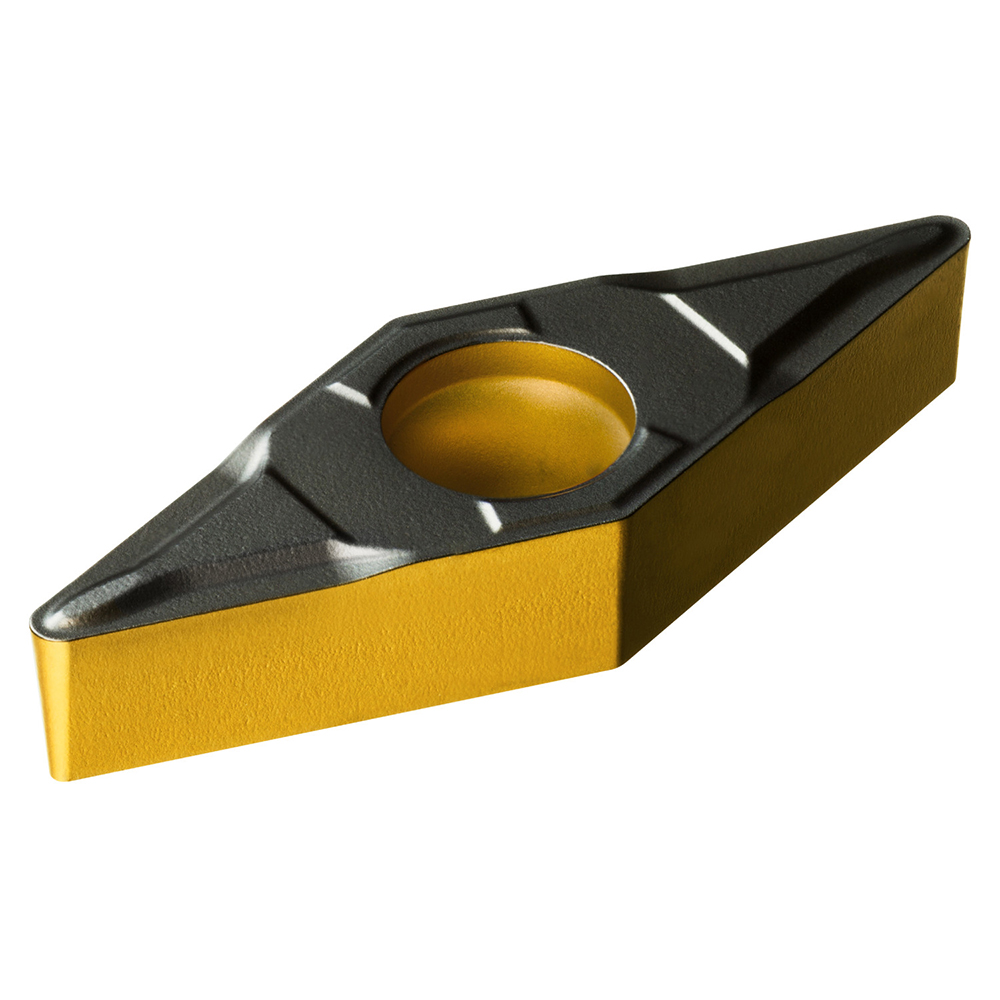

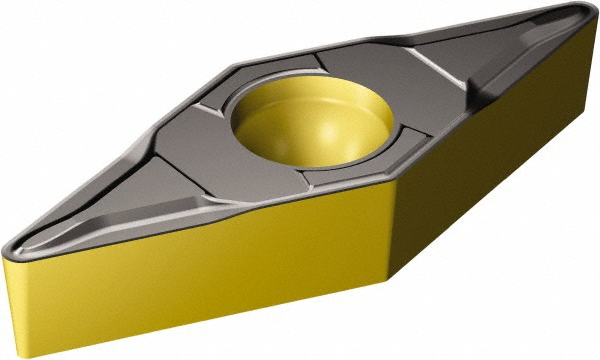

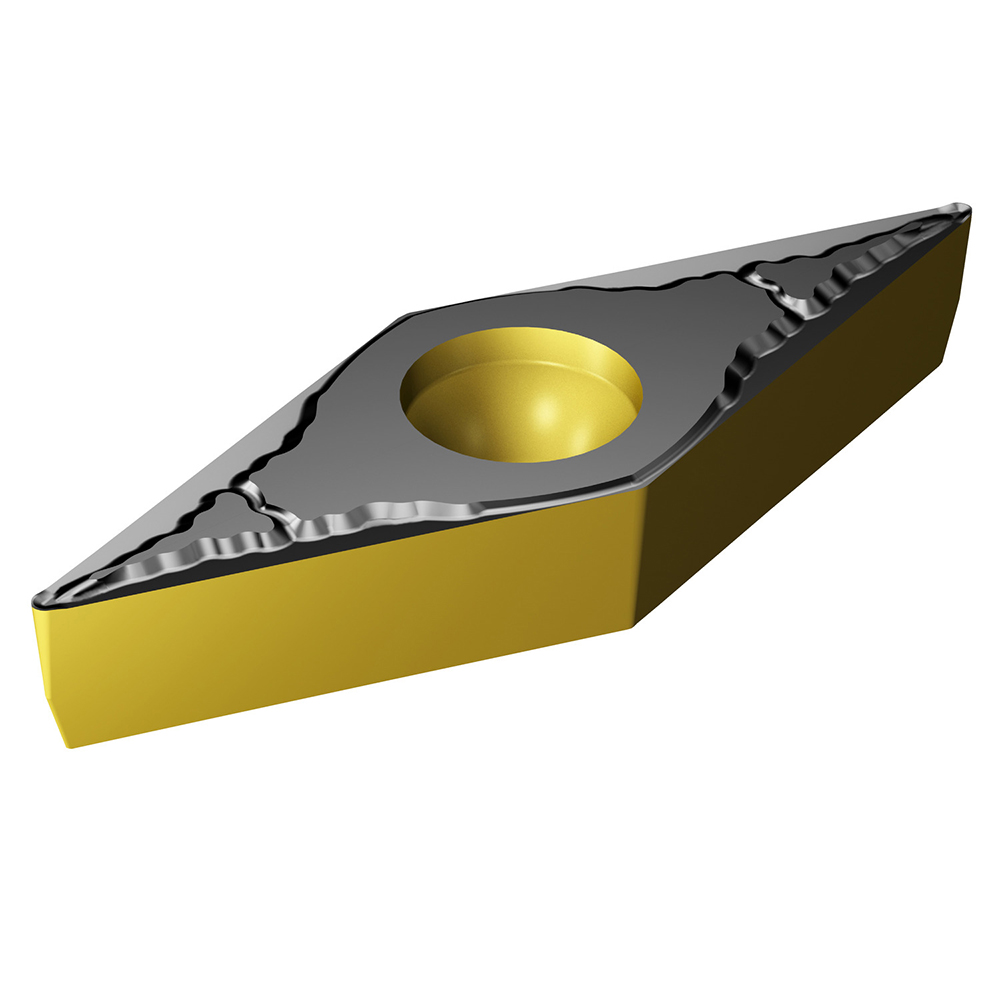

TiAlN & AlCr2O3 Finish, Neutral, 15.81 mm Long, 0.79 mm Corner Radius, 35.00 deg V - Diamond (Rhombic) 35-Deg, Series CoroTurn 107
| Insert Style | VBMT |
|---|---|
| ISO Size Code | 160408 |
| ANSI Size Code | 332 |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Included Angle | 35.00 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 5.000 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | CoroTurn 107 |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Chip Breaker Operation | Medium Machining; Roughing |
| Number Of Cutting Edges | 2 |
| Side Clearance | Positive |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.4000 |
| ISO Insert Code | VBMT160408 |
| ANSI Insert Code | VBMT332 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Insert Length (Decimal Inch) | 0.6223 |
| Insert Length (mm) | 15.81 |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Superalloy; Titanium |
| Secondary Workpiece Material Code | S |
| Iso Code | VBMT 16 04 08-MM 1115 |
| Chip Breaker | MM |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
| Country of Origin | India |
