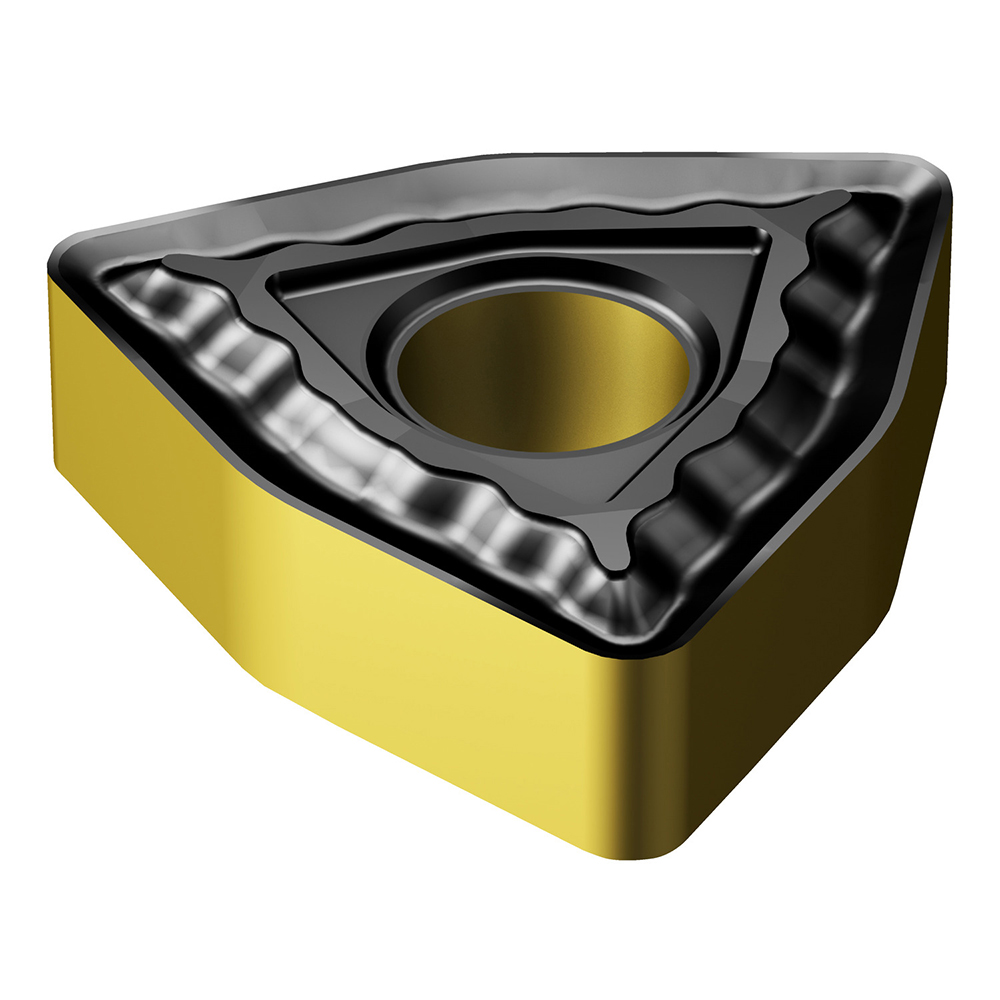

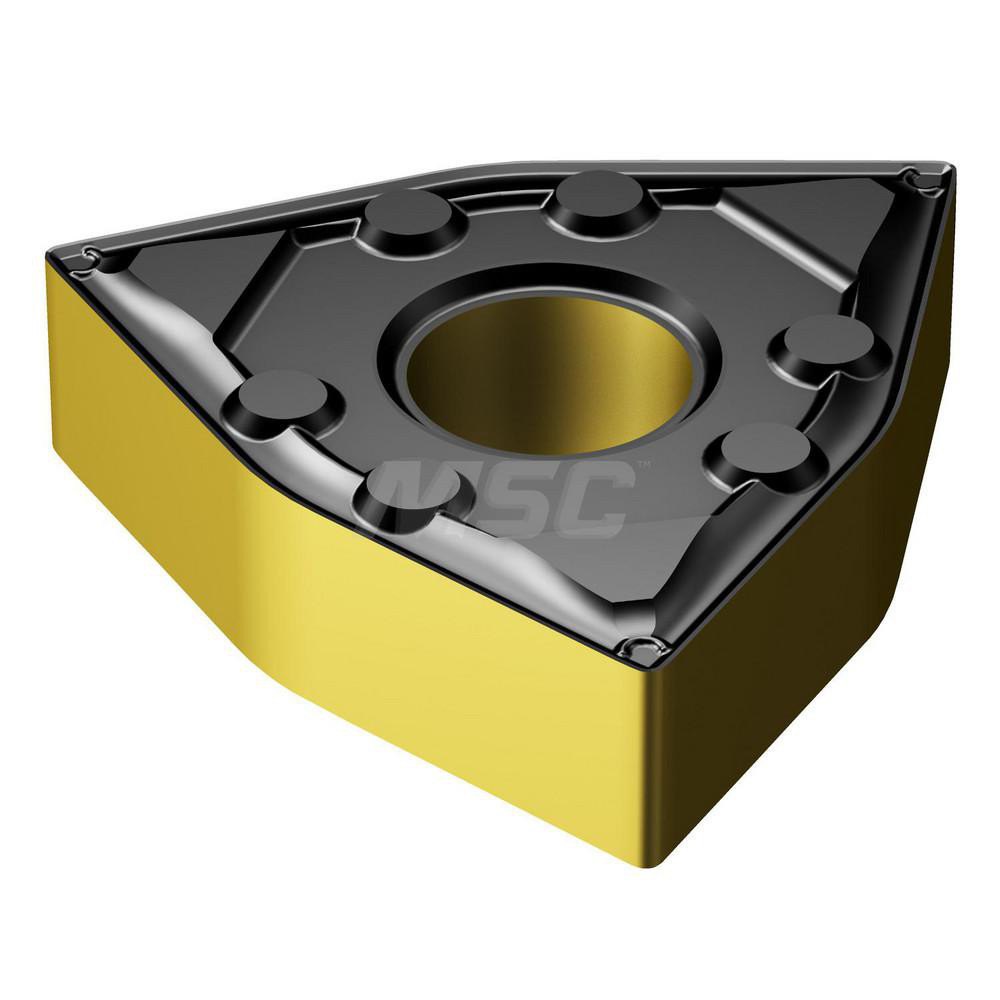

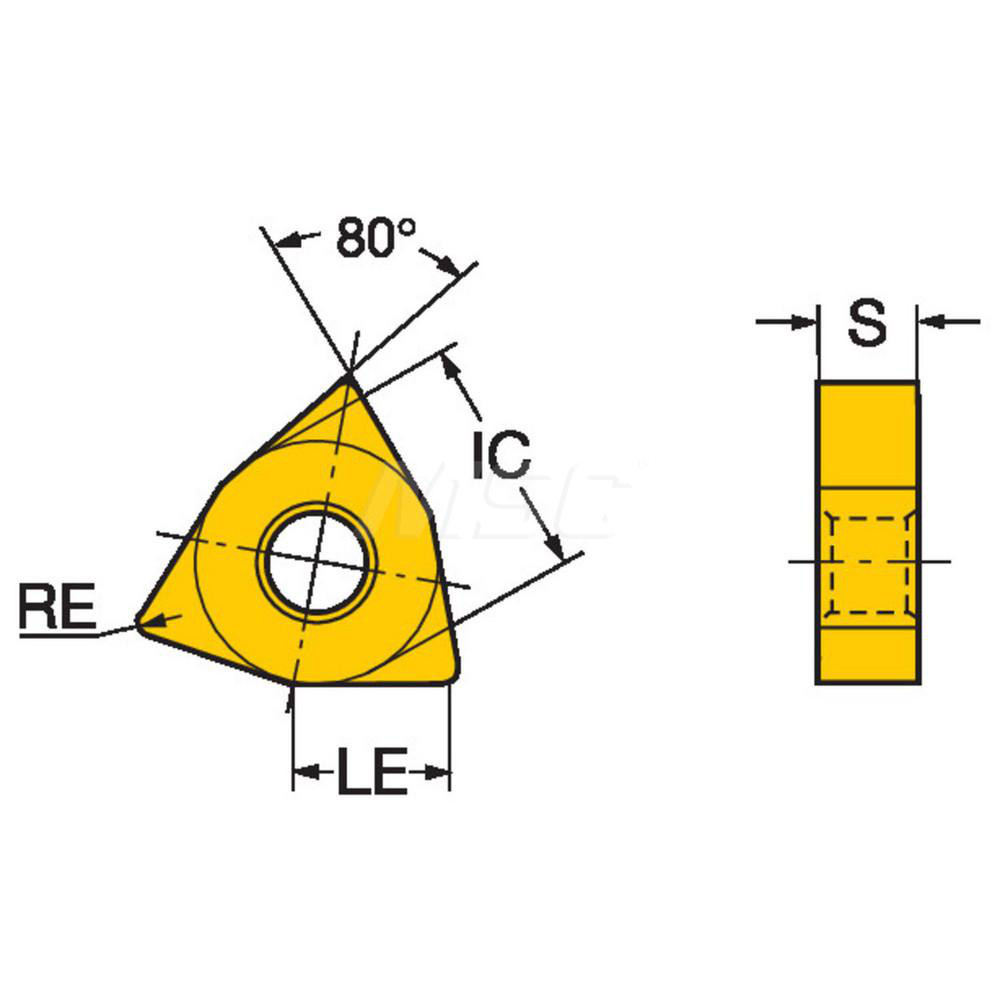

Al2O3, TiN & TiCN Finish, Neutral, 0.3750" Inscribed Circle, 0.0313" Corner Radius, 80 deg W - Trigon 80-Deg, Series T-Max P
| Insert Style | WNMG |
|---|---|
| ISO Size Code | 060408 |
| ANSI Size Code | 332 |
| Insert Shape | W - Trigon 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Insert Material | Carbide |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Relief Angle | 0 |
| Wiper Edge | No |
| Insert Thickness (Decimal Inch) | 0.1875 |
| Insert Thickness (Inch) | 3/16 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Number Of Cutting Edges | 6 |
| Side Clearance | Negative |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.1500 |
| ISO Insert Code | WNMG060408 |
| ANSI Insert Code | WNMG332 |
| Insert Holding Method | Screw; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Iso Code | WNMG 06 04 08-LC 4425 |
| Manufacturers Catalog Number | WNMG 332-LC |
| Chip Breaker | LC |
| Industry Standard Number | WNMG 06 04 08-LC 4425 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 0604 |
| Country of Origin | Sweden |
| undefined | undefined |
| MSC Number | MSC# 10207082 |
