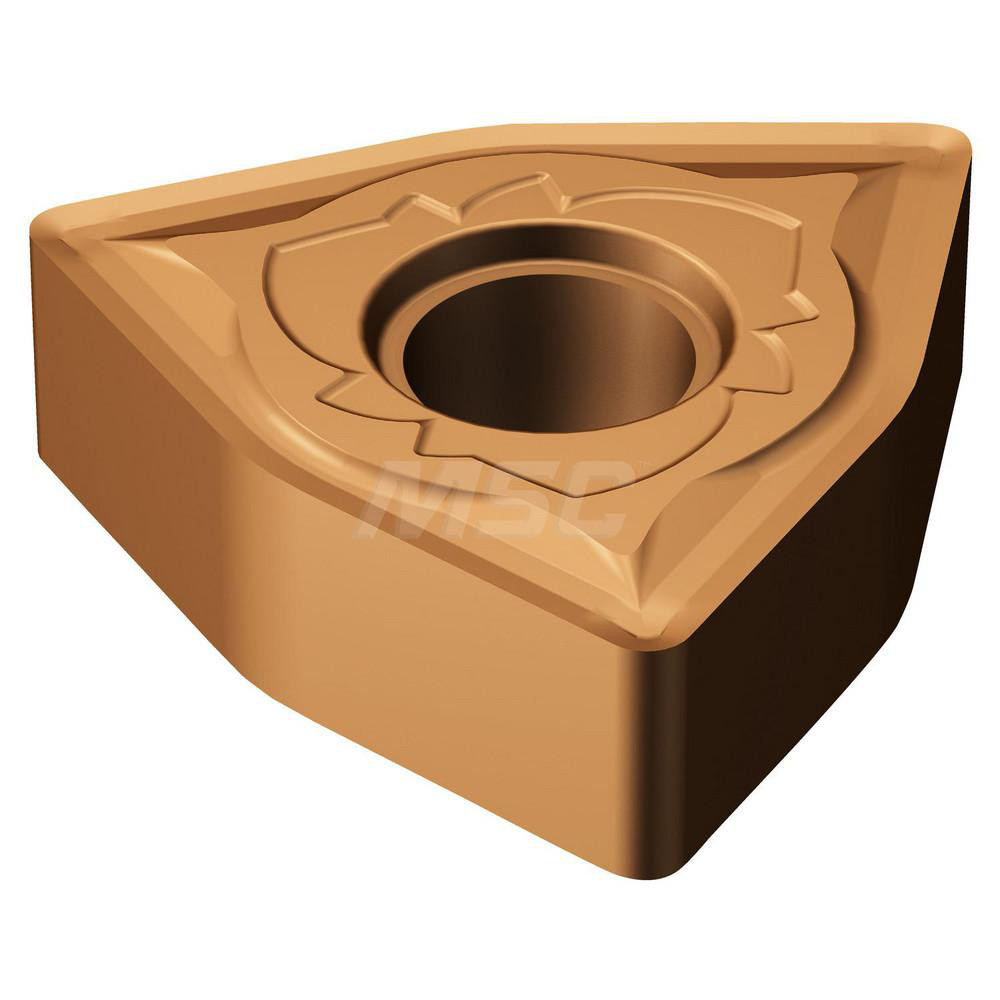

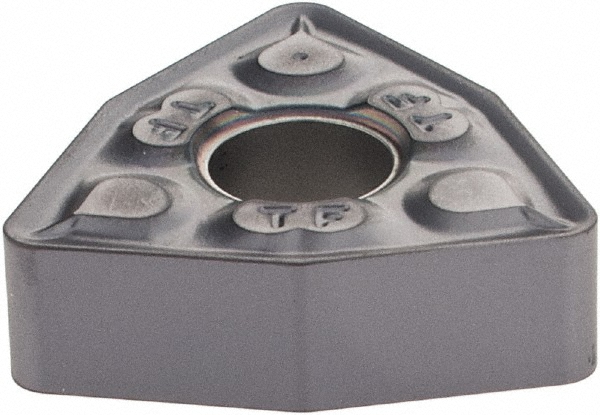

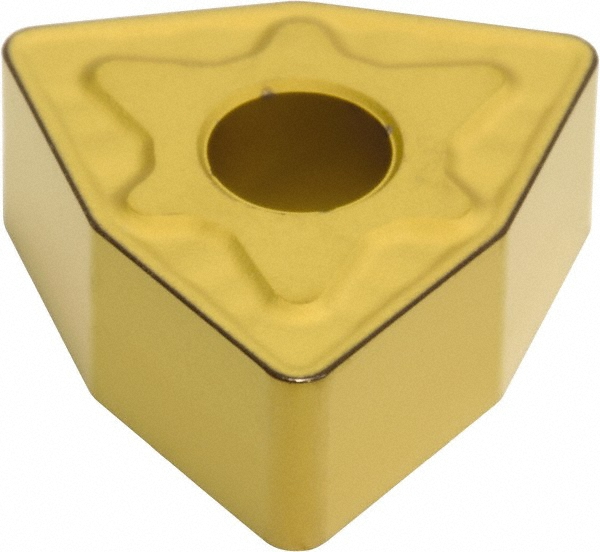

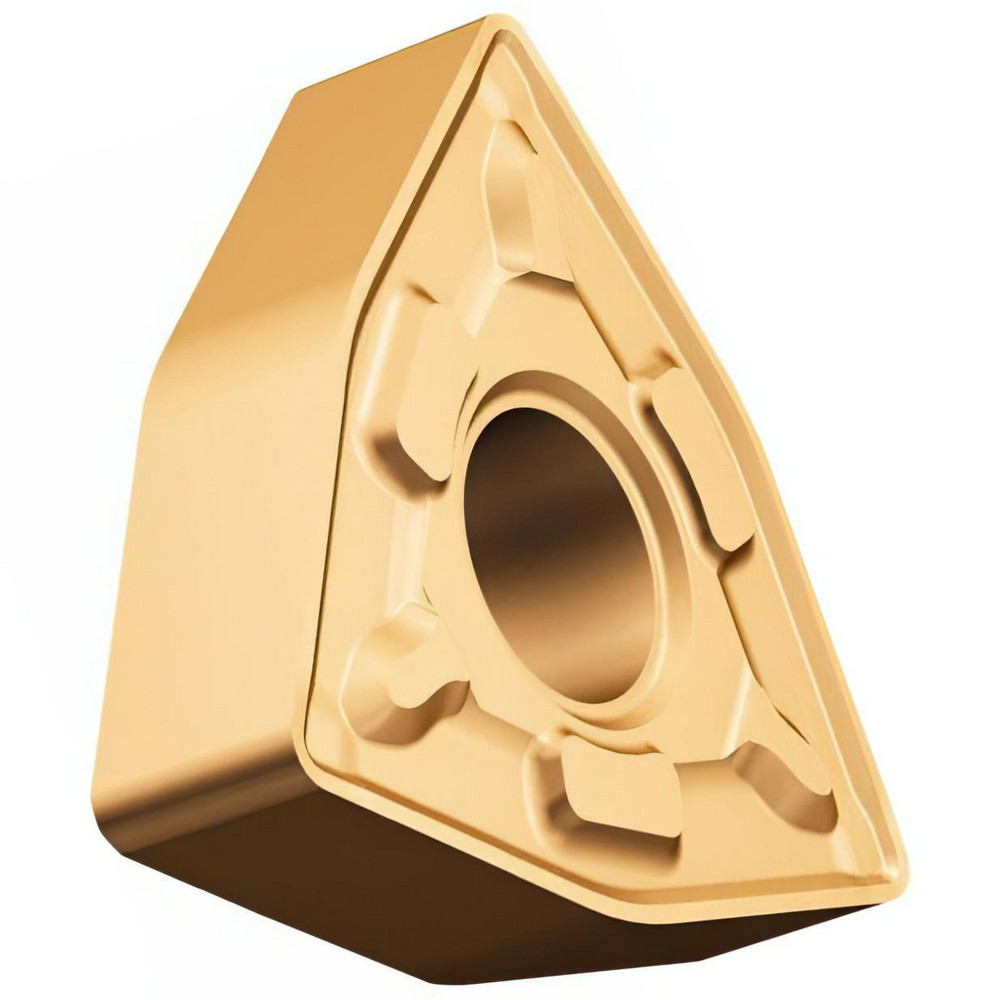

TiAlN & AlCr2O3 Finish, Neutral, 8.69 mm Long, 1.20 mm Corner Radius, 80 deg W - Trigon 80-Deg, Series T-Max P
| Insert Style | WNMG |
|---|---|
| ISO Size Code | 080412 |
| ANSI Size Code | 433 |
| Insert Shape | W - Trigon 80-Deg |
| Included Angle | 80 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.20 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Insert Material | Carbide |
| Manufacturer Grade | 1115 |
| Coating/Finish | AlCr2O3; TiAlN |
| Relief Angle | 0 |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Insert Thickness (Inch) | 3/16 |
| Insert Thickness | 4.76 |
| Insert Hand | Neutral |
| Series | T-Max P |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Negative |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.2032 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.16 |
| Maximum Depth of Cut (mm) | 7.49 |
| Maximum Depth of Cut (Decimal Inch) | 0.2949 |
| ISO Insert Code | WNMG080412 |
| ANSI Insert Code | WNMG433 |
| Insert Holding Method | Pin; Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3421 |
| Insert Length (mm) | 8.69 |
| Primary Workpiece Material Code | S; M |
| Iso Code | WNMG080412MRR1115 |
| Manufacturers Catalog Number | 6293038 |
| Chip Breaker | MRR |
| UNSPSC Code | 23242105 |
| Insert Size Code | 433 |
| Country of Origin | Sweden |
| MSC Number | MSC# 49455066 |
