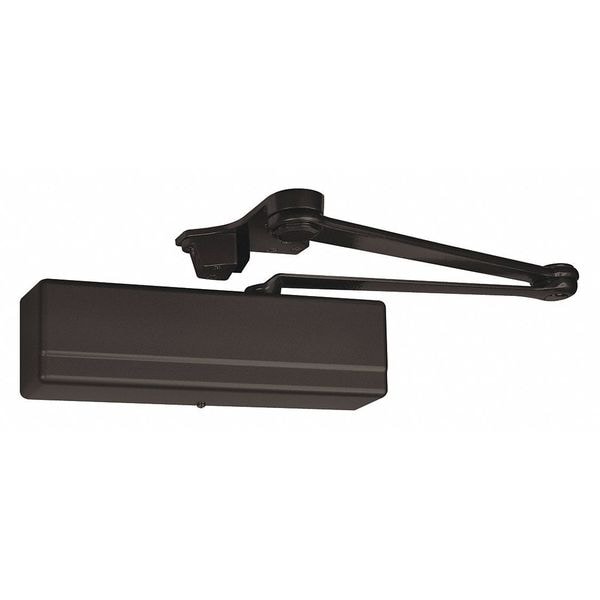

Automatic/Manual, Hydraulic, Sargent 1431, Door Closer, Heavy Duty Interior and Exterior
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | Sargent 1431 |
| Closer Type | Compression Stop |
| Color | Dark Bronze |
| Finish | Bronze Powder Coated |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-1/4 in |
| Housing Height | 3-3/8 in |
| Housing Length | 12 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual, Automatic |
| Material | Cast Aluminum Silicon Alloy |
| Standards | ANSI/BHMA A156.4, Grade 1; UL 10C Listed; ADA; UL/cUL; ANSI/BHMA Standard A117.1 |
| Exterior Door Width | 48 in |
| ADA Compliant | Yes |
| Projection from Wall | 2-1/4 in |
| Interior Door Width | 48 in |
| Mounting Hardware | Included |
| Includes | Cushion Stop |
| Arm Material | Steel |
| Ligature Resistant | No |
| Spring Size | Adjustable 1 to 6 |
| Arm Type | Parallel |
| Max. Door Opening | 120 Degrees to 180 Degrees |
| Category Type | Parallel Arm |
| Features | Self Sticking Templates |
| Series | 1431 |
| Ligature-Resistant | Not Ligature-Resistant |
| Compatible Manufacturer Model Number | Not Applicable |
| Fire Rating | 3 hr |
| Door Opening - Maximum | 180 deg |
| Projection | 2-1/4 in |
| Compatible Brand | Sargent |
| Operation Style | Manual, Automatic |
| Length Between Mounting Holes | 11-1/8 in |
| Interior/Exterior Use | Interior, Exterior |
| Compatible Series | Not Applicable |
| ANSI/BHMA Finish | Painted |
| Includes Hardware | Hardware Included |
| Closer Cycles | 25,000,000 |
| Exterior Door Width - Maximum | 48 in |
| Product Type | Door Closer |
| Spring Type | Adjustable |
| UL Fire Rating | UL10C |
| Spring Size - Minimum | 1 |
| Door Opening - Minimum | 85 deg |
| Height Between Mounting Holes | 1 in |
| Interior Door Width - Maximum | 48 in |
| Spring Size - Maximum | 6 |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
