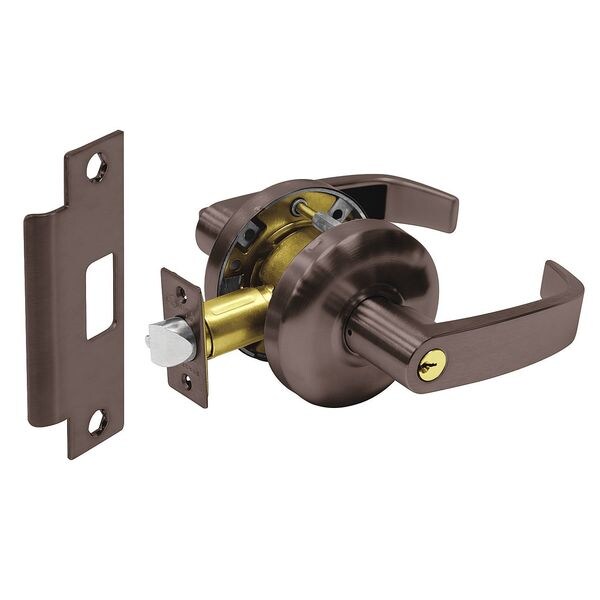

Lever Lockset, Mechanical, Entrance
| Lockset Finish | Oil Rubbed Bronze |
|---|---|
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Material | Brass, Wrought and Cast Steel, Stainless Steel |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance, Office |
| Required Door Thickness | 1-3/8 in to 1-3/4 in |
| Keyway Type | Sargent LA |
| Key Type | Keyed Different |
| Series | 6500 |
| Key Material | Nickel Silver |
| Electrical/Mechanical | Mechanical |
| Backset | 2-3/4 in |
| ADA Compliant | Yes |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| Item | Door Lockset |
| Lockset Performance Strength | Heavy Duty |
| Standards | ANSI/BHMA A156.2, Series 4000, Grade 2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed |
| Lockset Fire Rating | 3 hr |
| Handle Material | Wrought, Brass, Cast Steel, Stainless Steel |
| Number of Keys | 2 |
| Style | 6500 Right Angle |
| Number of Pins | 6, 7 |
| Ligature Resistant | No |
| Location Type | Institutional |
| For Use With | ANSI 115.2 (161 Modifed) Door Prep |
| Strike Type | Curved Lip |
| Mortise/Cylindrical | Cylindrical |
| Fire Rated | 3 hr. |
| Grade | 2 |
| Finish | Oxidized Oil Rubbed Bronze |
| Keying | Keyed Different |
| Voltage | Not Applicable |
| Type | Cylindrical |
| Cylinder Core Type | Conventional Core Cylinder |
| Visual Indicator Message | No Message |
| Function | Entry |
| Case Material | Steel and Zinc |
| For Door Thickness | 1-3/8 to 1-3/4" |
| Pins | 6 |
| Strike | ANSI 4-7/8 x 1-1/4" Curved Lip |
| Cylinder | Yes |
| Knob/Handle Material | Bronze |
| Visual Indicator Location | Not Applicable |
| ANSI Grade | 2 |
| Door Thickness - Minimum | 1-3/8 in |
| Lockset Style | 6500 Lever |
| Strike Plate Lip Length | 1-1/4 in |
| ANSI/BHMA Finish | Dark Oxidized Satin Bronze, Oil Rubbed |
| Strike Plate Width | 1-1/4 in |
| Trim Plate Shape | Round |
| Door Thickness - Maximum | 1-3/4 in |
| Lockset Function ANSI Code | F105 |
| Includes Core | Core Included |
| Lockset Type | Mechanical |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 2 |
| Fire Rating | 3 hr |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Inside | Thumb Turn |
| Locking/Unlocking Access - Outside | Keyway |
| Strike Plate Thickness | 1/16 in |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
