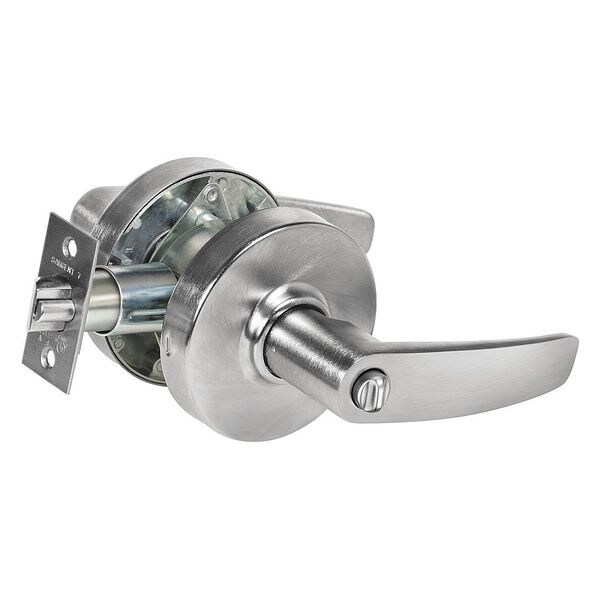

Lever Lockset, Mechanical, Entrance, Grd. 2
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Entrance |
| Lockset Grade | Grade 2 |
| Style | 7 Angled |
| Required Door Thickness | 1-3/4 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Sargent LA |
| Key Type | Keyed Different |
| Ligature Resistant | No |
| Number of Pins | 6, 7 |
| Lockset Performance Strength | Heavy Duty |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Lockset Fire Rating | 3 hr |
| Number of Keys | 2 |
| For Use With | Wood, Steel Doors |
| Handle Material | Solid Cast |
| ADA Compliant | Yes |
| Mortise/Cylindrical | Cylindrical |
| Location Type | Commercial |
| Strike Type | Curved Lip, T-Strike |
| Includes | Hardware |
| Item | Door Lockset |
| Series | 7 |
| Cylinder Core Type | Not Included |
| Key Material | Brass/Nickel Silver |
| Backset | 2-3/4 in |
| Features | Easy Change Outs, Simple Cylinder Removal |
| Keying | Keyed Different |
| Finish | Satin Chrome |
| Fire Rated | 3 hr. |
| Grade | 2 |
| Standards | UL Listed, ULC Listed |
| Voltage | Not Applicable |
| Function | Entrance |
| Visual Indicator Message | No Message |
| Pins | 6 |
| Cylinder | Yes |
| ANSI Grade | 2 |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Outside | Keyway |
| Door Thickness - Maximum | 1-3/4 in |
| Hand Orientation | Non-Handed |
| Lockset Function ANSI Code | F109 |
| Application | Commercial |
| Door Thickness - Minimum | 1-3/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Latch Bolt/Dead Bolt | Dead Latch |
| Lockset Type | Mechanical |
| Strike Plate Width | 1-1/4 in |
| Lockset Style | 7 Angled |
| Strike Plate Lip Length | 2-7/8 in |
| Visual Indicator Location | Not Applicable |
| Strike Plate Height | 4-7/8 in |
| Fire Rating | 3 hr |
| Includes Core | Core Not Included |
| Includes Hardware | Hardware Included |
| Performance Grade | 1 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
