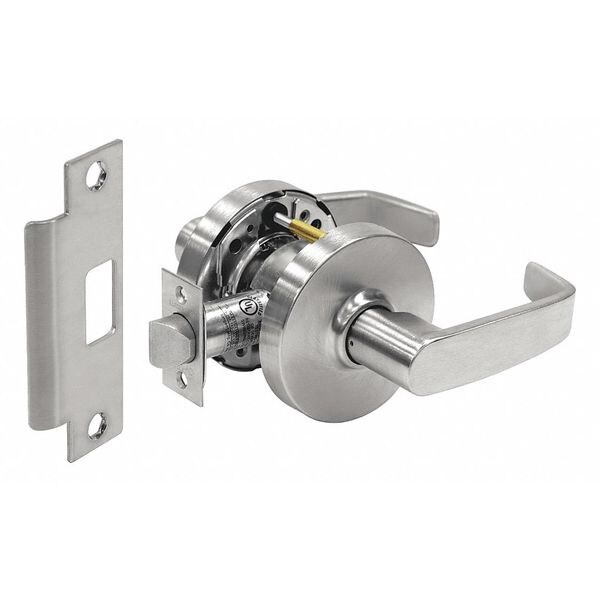

Lever Lockset, Mechanical, Passage, Grd. 1
| Item | Door Lockset |
|---|---|
| Lockset Function | Passage |
| Location Type | Commercial |
| Electrical/Mechanical | Mechanical |
| Grade | 1 |
| Finish | Satin Chrome |
| Series | 10 |
| Required Door Thickness | 1-3/4 in |
| Backset | 2 3/4 in |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Includes | Hardware |
| For Use With | Wood, Steel Doors |
| Lockset Grade | 1 |
| Handle Material | Solid Cast |
| Features | Pre-Assembled, Accommodates Retrofit Applications and A Variety of Door Preparations |
| Mortise/Cylindrical | Cylindrical |
| Strike Type | Curved Lip, T-Strike |
| Style | 10 Angled |
| ADA Compliant | Yes |
| Mortise / Cylindrical | Cylindrical |
| Lockset Finish | Satin Chrome |
| Cylinder Core Type | Not Included |
| Lockset Fire Rating | 3 hr |
| Lockset Handle Type | Lever |
| Ligature Resistant | No |
| Lockset Performance Strength | Heavy Duty |
| Standards | ANSI/BHMA A156.2, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, EPD, HPD, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed |
| Number of Pins | 6, 7 |
| Number of Keys | 2 |
| Voltage | Not Applicable |
| Application | Industrial |
| Function | Passage |
| Cylinder | Not Included |
| Fire Rated | 3 hr. |
| Visual Indicator Message | No Message |
| Visual Indicator Location | Not Applicable |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Latch Bolt/Dead Bolt | Spring Latch |
| Hand Orientation | Non-Handed |
| Locking/Unlocking Access - Outside | Not Lockable |
| Strike Plate Width | 1-1/4 in |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| ANSI Grade | 1 |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Minimum | 1-3/8 in |
| Locking/Unlocking Access - Inside | Not Lockable |
| Fire Rating | 3 hr |
| Strike Plate Height | 4-7/8 in |
| Performance Grade | 1 |
| Includes Core | Core Not Included |
| Lockset Style | Angle |
| Door Thickness - Maximum | 2 in |
| Lockset Function ANSI Code | F75 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
