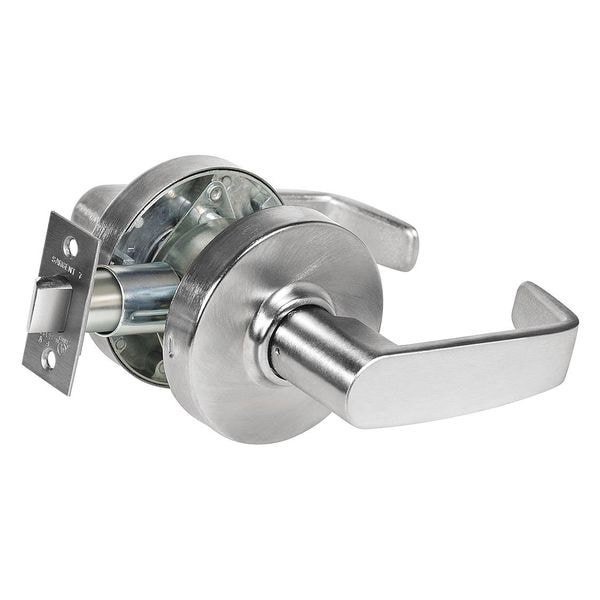

Lever Lockset, Mechanical, Passage, Grd. 2
| Lockset Finish | Satin Chrome |
|---|---|
| Lockset Grade | 2 |
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Passage |
| Required Door Thickness | 1-3/4 in |
| Key Type | Not Keyed |
| Series | 7 |
| Key Material | Not Applicable |
| Electrical/Mechanical | Mechanical |
| Backset | 2-3/4 in |
| Style | 7 Angled |
| Features | Easy Change Outs, Simple Cylinder Removal |
| ADA Compliant | Yes |
| Location Type | Commercial |
| Strike Type | Curved Lip, T-Strike |
| Lockset Fire Rating | 3 hr |
| Lockset Performance Strength | Heavy Duty |
| For Use With | Wood, Steel Doors |
| Mortise/Cylindrical | Cylindrical |
| Strike Dim. | 1-1/4 in x 4-7/8 in |
| Cylinder Core Type | Not Included |
| Includes | Hardware |
| Ligature Resistant | No |
| Item | Door Lockset |
| Handle Material | Solid Cast |
| Number of Pins | 6, 7 |
| Fire Rated | 3 hr. |
| Number of Keys | 2 |
| Standards | UL Listed, ULC Listed |
| Finish | Satin Chrome |
| Grade | 2 |
| Application | Commercial |
| Voltage | Not Applicable |
| Cylinder | Not Included |
| Function | Passage |
| Visual Indicator Message | No Message |
| Lockset Type | Mechanical |
| Includes Hardware | Hardware Included |
| Lockset Style | 7 Angled |
| Fire Rating | 3 hr |
| Strike Plate Width | 1-1/4 in |
| Strike Plate Lip Length | 2-7/8 in |
| Hand Orientation | Non-Handed |
| Includes Core | Core Not Included |
| Visual Indicator Location | Not Applicable |
| Lockset Function ANSI Code | F75 |
| Door Thickness - Minimum | 1-3/8 in |
| Performance Grade | 1 |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Strike Plate Height | 4-7/8 in |
| Latch Bolt/Dead Bolt | Spring Latch |
| Ligature-Resistant | Not Ligature-Resistant |
| Locking/Unlocking Access - Inside | Not Lockable |
| ANSI Grade | 2 |
| Locking/Unlocking Access - Outside | Not Lockable |
| Door Thickness - Maximum | 1-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
