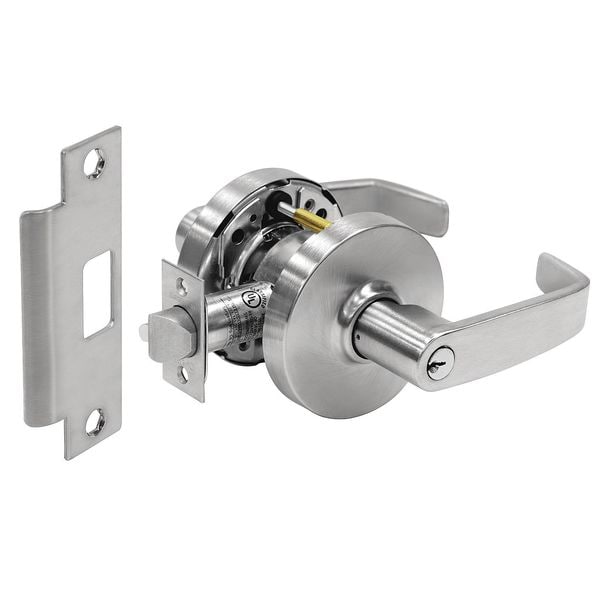

Lever Lockset, Mechanical, Storeroom
| Electrical/Mechanical | Mechanical |
|---|---|
| Lockset Handle Type | Lever |
| Mortise / Cylindrical | Cylindrical |
| Lockset Function | Storeroom, Closet |
| Lockset Grade | Grade 1 |
| Style | 10 Line |
| Required Door Thickness | 1-3/4 in to 2 in |
| Lockset Finish | Satin Chrome |
| Keyway Type | Sargent LA |
| Key Type | Keyed Different |
| Lockset Performance Strength | Heavy Duty |
| Lockset Fire Rating | 3 hr |
| Strike Dim. | 4-7/8 in x 1-1/4 in |
| For Use With | ANSI 115.2 (161 Modified) Door Prep |
| Mortise/Cylindrical | Cylindrical |
| Strike Type | Curved Lip, T-Strike |
| Item | Door Lockset |
| Number of Pins | 6, 7 |
| Location Type | Commercial, Institutional, Office, Facilities, Hospital, School, Universities |
| Number of Keys | 2 |
| Handle Material | Brass, Bronze, Cast Steel, Wrought |
| ADA Compliant | Yes |
| Series | 10 Line |
| Ligature Resistant | No |
| Key Material | Nickel Silver |
| Backset | 2-3/4 in |
| Standards | ANSI/BHMA A156.2, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL 437, UL and cUL Listed |
| Includes | (2) Keys |
| Finish | Satin Chrome |
| Pins | 6 |
| Cylinder Core Type | Conventional Core Cylinder |
| Voltage | Not Applicable |
| Type | Cylindrical |
| For Door Thickness | 1-3/4 to 2" |
| Grade | 1 |
| Fire Rated | 3 hr. |
| Strike | ANSI 4-7/8 x 1-1/4" Curved Lip |
| Function | Storeroom |
| Keying | Keyed Different |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Health Product Declaration Collaborative |
| Application | Commercial, Government, Hospitals, Manufacturing Facilities, Office, Schools |
| Cylinder | Yes |
| Material | Brass, Bronze, Steel |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Visual Indicator Message | No Message |
| Case Material | Steel and Zinc |
| Trim Plate Shape | Round |
| Strike Plate Lip Length | 1-1/4 in |
| ANSI Grade | 1 |
| Lockset Style | 10X Line |
| Fire Rating | 3 hr |
| Lockset Type | Mechanical |
| Strike Plate Width | 1-1/4 in |
| Locking/Unlocking Access - Outside | Keyway |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Thickness - Maximum | 2 in |
| Performance Grade | 1 |
| Knob/Handle Material | Cast Zinc |
| Lockset Function ANSI Code | F86 |
| Door Thickness - Minimum | 1-3/8 in |
| Strike Plate Height | 4-7/8 in |
| Includes Core | Core Included |
| Locking/Unlocking Access - Inside | Not Lockable |
| Hand Orientation | Non-Handed |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Visual Indicator Location | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
