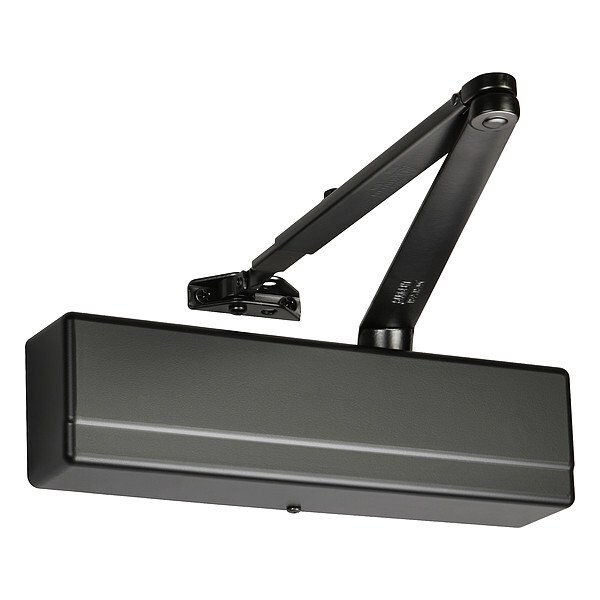

Manual, Hydraulic, Door Closer, Black
| Item | Door Closer |
|---|---|
| Closer Type | Non Hold Open |
| Color | Black |
| Finish | Powder Coated |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-7/8 in |
| Housing Height | 3-3/8 in |
| Housing Length | 12 in |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Aluminum |
| Standards | ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL and cUL Listed |
| ADA Compliant | Yes |
| Arm Type | Parallel |
| Series | 1431 |
| Ligature Resistant | No |
| Compatible Brand | Sargent |
| Interior Door Width - Maximum | 60 in |
| Closer Cycles | 15,000,000 |
| Exterior Door Width - Maximum | 48 in |
| Projection | 2-1/4 in |
| Compatible Series | Sargent 1431 |
| ANSI/BHMA Finish | Black Suede Powder Coated, Sprayed |
| Spring Size - Maximum | 6 |
| Spring Size - Minimum | 1 |
| Stop Type | Spring |
| Fire Rating | 3 hr |
| UL Fire Rating | UL10C |
| Product Type | Door Closer |
| Spring Type | Adjustable |
| Height Between Mounting Holes | 1 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Compatible Manufacturer Model Number | Not Applicable |
| Length Between Mounting Holes | 11-1/8 in |
| Performance Grade | 1 |
| Interior/Exterior Use | Interior, Exterior |
| Door Opening - Maximum | 160 deg |
| Green Certification or Other Recognition | UL Environment Claims Validated, USDA Certified Biobased Product |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
