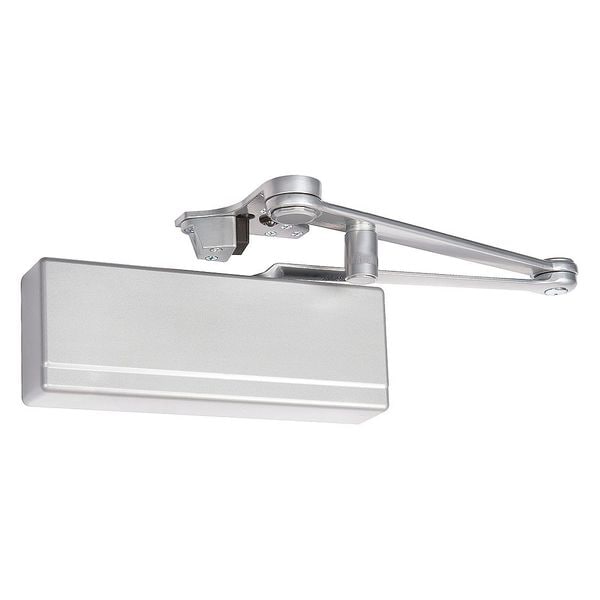

Manual, Hydraulic, Sargent 281, Door Closer, Heavy Duty Interior and Exterior, Gray
| Item | Door Closer |
|---|---|
| Closer Mounting Style | Parallel |
| Closer Performance | Heavy Duty |
| Closer Series | Sargent 281 |
| Closer Type | Stop Arm |
| Color | Gray |
| Finish | Aluminum Powder Coated |
| Hand Orientation | Non-Handed |
| Housing Depth | 2-3/16 in |
| Housing Height | 4-3/8 in |
| Housing Length | 11-13/16 in |
| Interior/Exterior | Interior, Exterior |
| Hydraulic/Pneumatic | Hydraulic |
| Automatic/Manual | Manual |
| Material | Cast Iron |
| Exterior Door Width | 48 in |
| Spring Size | Adjustable 1 to 6 |
| Interior Door Width | 48 in |
| Arm Material | Steel |
| Mounting Hardware | Included |
| Max. Door Opening | 120 Degrees |
| Standards | UL-10C and UBC 7-2 (1997) Positive Pressure Fire Test; ANSI A156.4, Grade 1; UL Listed |
| ADA Compliant | Yes |
| Arm Type | Parallel |
| Projection from Wall | 2-3/16 in |
| Ligature Resistant | No |
| Category Type | Parallel Arm |
| Features | High Impact Non-Corrosive Plastic Covers with Two Machine Screw Standard, Self Sticking Templates |
| Series | 281 |
| Door Handing | Non-Handed |
| For Use With | Interior and Exterior Doors |
| Mounting Style | Regular |
| Product Type | Door Closer |
| Closer Cycles | 25,000,000 |
| Door Opening - Maximum | 120 deg |
| UL Fire Rating | UL10C |
| Includes Hardware | Hardware Included |
| Spring Size - Minimum | 1 |
| Exterior Door Width - Maximum | 48 in |
| Height Between Mounting Holes | 1 in |
| Ligature-Resistant | Not Ligature-Resistant |
| Interior Door Width - Maximum | 48 in |
| Compatible Series | Not Applicable |
| Fire Rating | 3 hr |
| Length Between Mounting Holes | 10-3/8 in |
| Projection | 2-3/16 in |
| Compatible Manufacturer Model Number | Not Applicable |
| Compatible Brand | Sargent |
| Operation Style | Manual |
| Interior/Exterior Use | Interior, Exterior |
| ANSI/BHMA Finish | Aluminum Painted |
| Spring Size - Maximum | 6 |
| Performance Grade | 1 |
| Spring Type | Adjustable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
