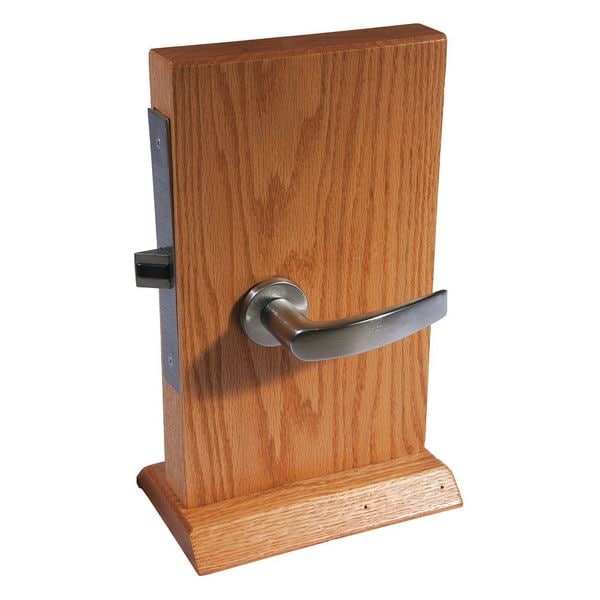

Mortise Lockset, Storeroom, 8200 Series
| Lockset Handle Type | Lever |
|---|---|
| Lockset Function | Storeroom, Closet |
| Lockset Grade | Grade 1 |
| Style | Curved Lever with Return |
| Required Door Thickness | 1-3/4" |
| Lockset Finish | Satin Chrome |
| Fire Rated | 3 hr |
| Series | 8200 |
| Features | Integrates with All Sargent Key Systems (Degree, Signature, KESO, and XC) |
| Item | Door Lockset |
| Finish | Satin Chrome |
| Standards | ANSI/BHMA A156.13, ANSI/BHMA A156.41, ANSI/SDI 250.13, ASTM E1886, ASTM E1996, ASTM E330, CAL FIRE, 3025-0006:0111, EPD, Florida Building Code Approved FL# 2998, ICC A117.1, NFPA 80, TAS 201, TAS 202, TAS 203, UL and cUL Listed |
| Includes | Mounting Hardware |
| Grade | 1 |
| Visual Indicator Message | No Message |
| Backset | 2-3/4 in |
| Strike Type | Curved Lip |
| Number of Keys | 2 |
| ADA Compliant | Yes |
| Mortise/Cylindrical | Mortise |
| Number of Pins | 6, 7 |
| Voltage | Not Applicable |
| Function | Storeroom |
| Case Material | Steel |
| Handle Type | Lever |
| Pins | 0 |
| Lockset Type | Mechanical |
| Strike Plate Height | 4-7/8 in |
| ANSI/BHMA Finish | Satin Chromium-Plated |
| Fire Rating | 3 hr |
| Performance Grade | 1 |
| Locking/Unlocking Access - Outside | Keyway |
| Visual Indicator Location | Not Applicable |
| Includes Core | Core Included |
| Lockset Style | Single Cylinder Without Deadbolt |
| ANSI Grade | 1 |
| Lockset Function ANSI Code | F07 |
| Latch Bolt/Dead Bolt | Latch Bolt |
| Hand Orientation | Non-Handed |
| Door Thickness - Maximum | 1-3/4 in |
| Strike Plate Lip Length | 1-1/4 in |
| UL Fire Rating | UL10C |
| Includes Hardware | Hardware Included |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
