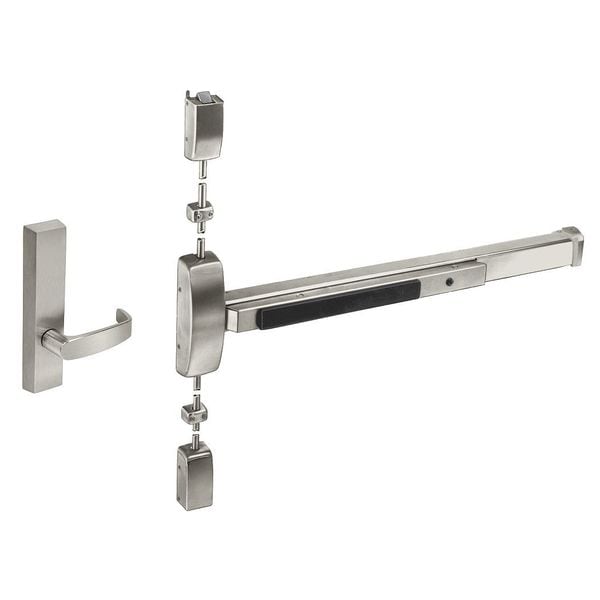

Vertical Rod w/Trim, Grade 1, 80 Series
| Series | 80 |
|---|---|
| Exit Device Type | Surface Vertical Rod |
| For Door Thickness | 1 3/4 in |
| Door Width | 33 in to 36 in |
| Fits Stile Width | 3-1/2 in |
| Door Handing | Right Hand Reversible |
| Finish | Stainless Steel |
| Fire Rated | Yes |
| Grade | 1 |
| Item | Surface Vertical Rod |
| Standards | ANSI/BHMA A156.41, ANSI/SDI 250.13, California Building Code Chapter 11B Section 11B-309.4, EPD, FEMA P-361 ICC 500, Florida Building Code Approved FL# 2998, ICC A117.1 Compliant |
| ADA Compliant | Yes |
| Door Height | 84 in |
| Type | Vertical Rod |
| Green Certification or Other Recognition | Environmental Transparency Through EPD (Environmental Product Declaration), Green Circle Certified |
| Green Environmental Attribute | Applicable to LEED Criteria |
| Outside Trim Type | Not Included |
| Lockdown Type | Hex Key Dogging |
| Lockset Function | Passage |
| UL Fire Rating | UL10C |
| ANSI Grade | 1 |
| Exit Bar Style | Touchbar |
| Door Height - Minimum | Not Applicable |
| Ligature-Resistant | Not Ligature-Resistant |
| Door Width - Minimum | 33 in |
| Door Thickness - Maximum | 1-3/4 in |
| Door Thickness - Minimum | 1-3/4 in |
| Door Width - Maximum | 36 in |
| Hand Orientation | Right-Handed |
| Product Type | Exit Device |
| Door Height - Maximum | 96 in |
| ANSI/BHMA Finish | Satin Stainless Steel |
| Lockset Type | Mechanical |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
