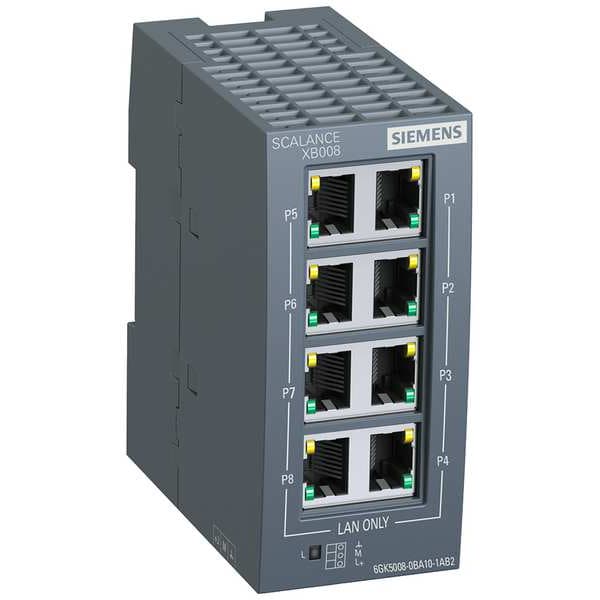

SCALANCE XB008 Unmanaged Industrial Ethe
| Item | Industrial Ethernet Switch |
|---|---|
| Type | 8 Port Unmanaged Twisted Pair |
| Ports | 8 |
| Port Type | RJ45 |
| Input Voltage | 24V AC/DC |
| Speed | 10/100 Mbit/s |
| Description/Special Features | LED Diagnostics |
| Standards | CSA C22.2 No. 60950-1, EN 60079-0:2009, EN 61000-6-2, EN 61000-6-4, EN 61000-6-4 (Class A), EN60079-15:2010, FM3611, IEC 81346-2 KF, IEC 81346-2:2019 KFE, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X, UL 60950-1 |
| Number of Ports | 8 |
| Operation Description | Unmanaged Switch |
| Operating Temp. Range (F) | 14 to 140 |
| Height (In.) | 3.94 |
| Width (In.) | 1.77 |
| Operating Temp. Range (C) | -10 to 60 deg C |
| Depth (In.) | 3.42 |
| Resistance Properties | Not Applicable |
| Maximum Input Voltage | 24V DC |
| IP Rating | IP20 |
| Overall Depth | 3-3/8 in |
| Maximum Operating Temperature | 140 deg F |
| Features | LED Diagnostics |
| Minimum Operating Temperature | 14 deg F |
| Overall Height | 3-7/8 in |
| Overall Width | 1-3/4 in |
| Switch Management | Unmanaged |
| Network Interface | 10/100 Mbit/s |
| Country of Origin (subject to change) | Germany |
| Package Quantity | 1 |
